SRX815P

15-inch 2-Way Multipurpose Powered Speaker

지금 구매하기

SRX815P

큰 이미지

15-inch 2-Way Multipurpose Powered Speaker

The SRX800 Series is the next generation high performance powered loudspeaker system comprising three full range and two subwoofer models with an array of features that elevate the SRX800 Series to the best in class of all competitive systems. The full range 15" two-way, SRX815P features legendary JBL Drivers, proprietary 2,000 Watt Crown amplification, Crown Front-End DriveCore Technology, premium JBL user-configurable DSP, V5 Tunings compatible with Vertec and VTX touring systems, and HiQnet Network control options via iOS and Android applications. Drawing on JBL’s long history of groundbreaking technology and loudspeaker design, the SRX800 Series meets the needs of touring houses, installations, and the most demanding live sound applications ensuring they can deploy a no-compromise, all-in-one solution featuring legendary JBL sound and performance, a wide array of configurability, and compatibility with JBL’s flagship touring systems.

특징

Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
JBL Premium Transducers
Drivecore Amplification By Crown
Full User Configurable DSP
Network Control
JBL Engineered Application Presets
LCD Screen and Glow in the Dark Ink on Back Panel
M10 Suspension Points
Standard 35mm Pole Cup
Feet for Monitor Angle

Unprecedented Control

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

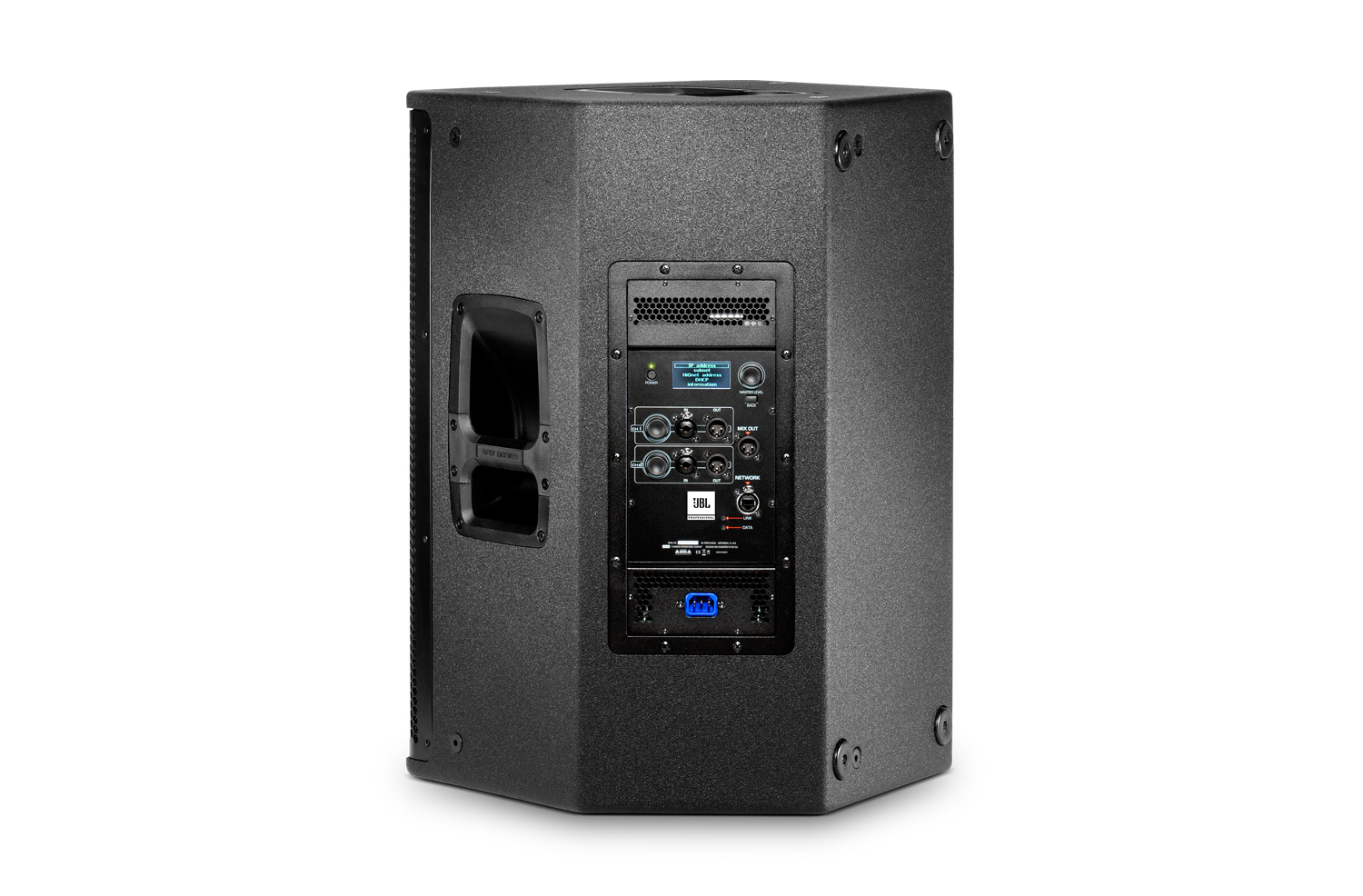

BackPanel

Applications

Live performance systems.
Mobile and fixed DJ systems.
Sound system rental and tour.
Permanent installations.

더 알아보기

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

DRIVECORE BY CROWN

Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.

HIQNET NETWORK CONTROL

With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion Control™ iOS app, and standalone applications for iOS and Android.

다운로드

Data Sheets

	크기	업로드 날짜
SRX815P Data Sheet 업데이트: 2019년 4월	1.8MB	2019년 4월

Specifications

	크기	업로드 날짜
SRX815P Spec Sheet 업데이트: 2019년 4월	713KB	2019년 4월

Manuals

	크기	업로드 날짜
SRX Connect Presets HelpGuide 업데이트: 2020년 10월	286KB	2020년 10월
SRX Connect NormalView HelpGuide 업데이트: 2020년 10월	427KB	2020년 10월

Brochures

	버전	언어	크기	업로드 날짜
JBL 2025 PPA Brochure 버전 B, 업데이트: 2025년 8월	B		8.45MB	2025년 8월

Compliances

	크기	업로드 날짜
SRX800 Series Declaration of Conformity 업데이트: 2020년 10월	154KB	2020년 10월

Software

	크기	업로드 날짜
Software Support 업데이트: 2019년 4월	114KB	2019년 4월
SRX Connect 출시: 2023년 8월		2023년 8월
HiQnet Audio Architect 출시: 2020년 11월		2020년 11월
SRX Connect 출시: 2023년 8월		2023년 8월

User Guides

	크기	업로드 날짜
SRX 812P/815P/835P QuickStart Guide 업데이트: 2020년 11월	1.75MB	2020년 11월
SRX800 User Guide 업데이트: 2019년 4월	7.41MB	2019년 4월

Images

	크기	업로드 날짜
SRX800 Driver 업데이트: 2019년 4월	158KB	2019년 4월
SRX800 Handle 업데이트: 2019년 4월	208KB	2019년 4월
SRX815P Back 업데이트: 2019년 4월	253KB	2019년 4월

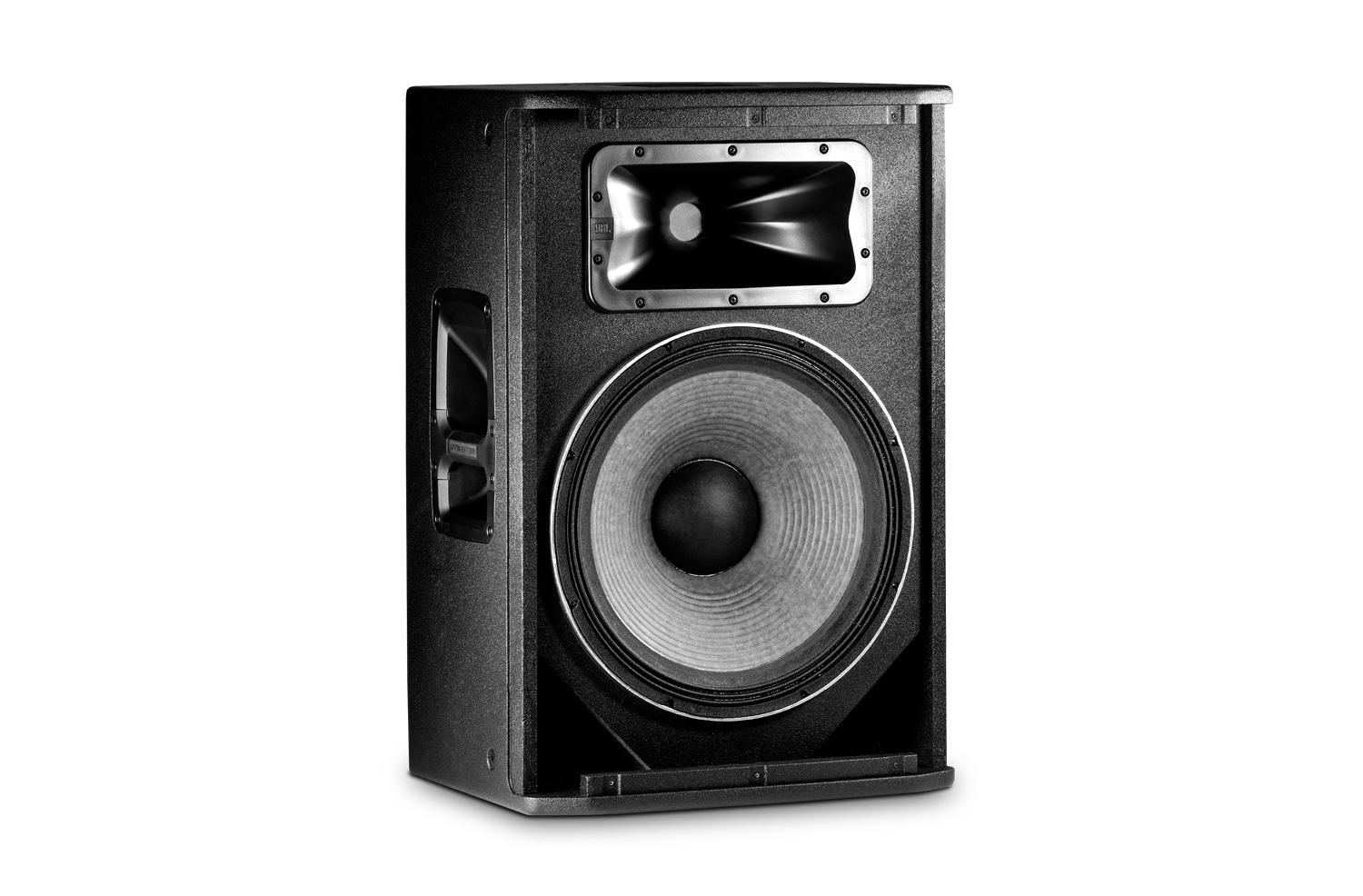

SRX815P Angle No-Grill 업데이트: 2019년 4월	232KB	2019년 4월

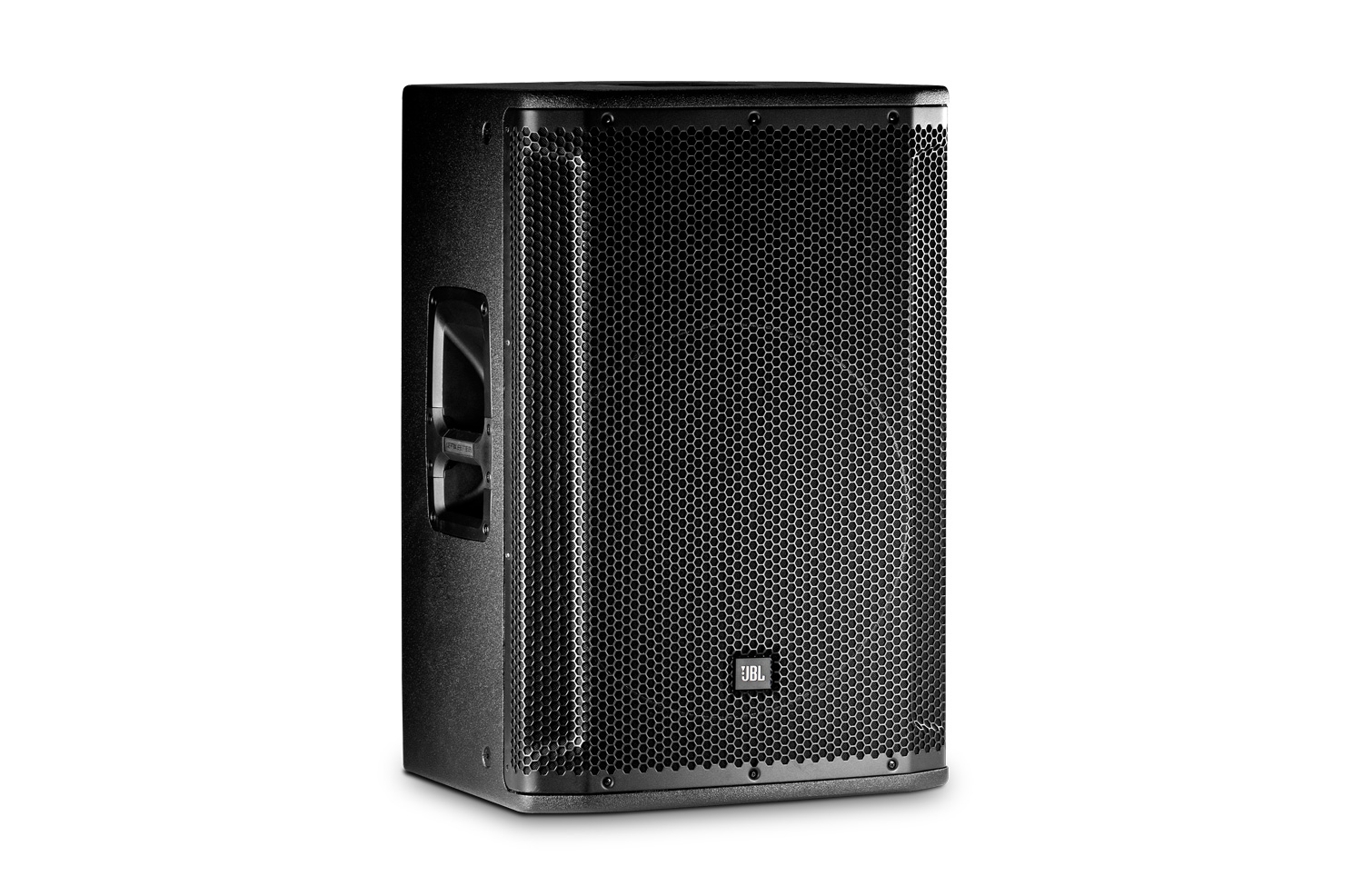

SRX815P Angle 업데이트: 2019년 4월	322KB	2019년 4월

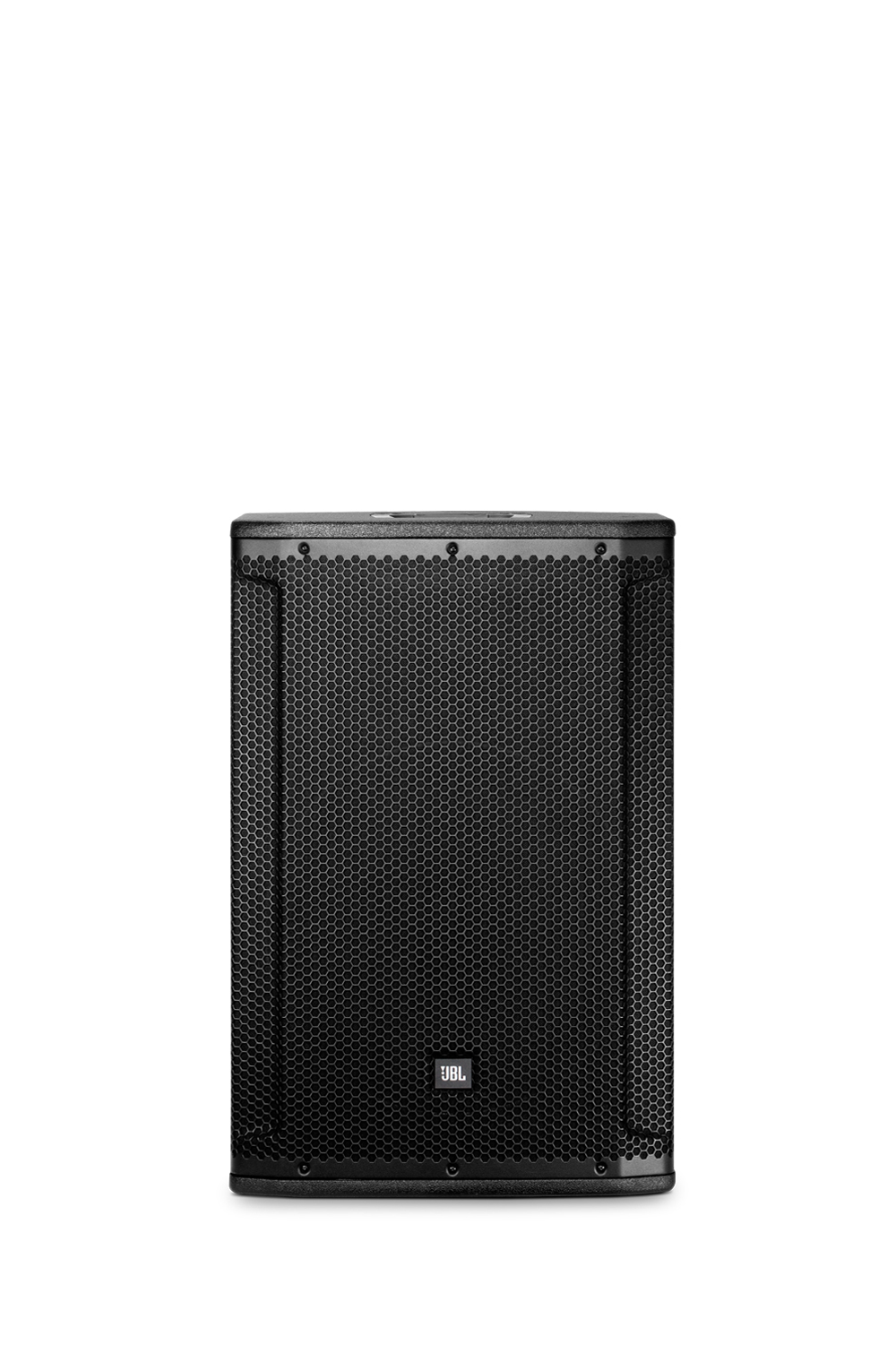

SRX815P Front 업데이트: 2019년 4월	338KB	2019년 4월

위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하세요.

부품 및 서비스

사양

System Type	Self powered 15”, two-way, bass-reflex
Maximum SPL (1m)	137 dB
Frequency Range (-10dB)	36 Hz - 21 kHz
Frequency Response (±3 dB)	44 Hz - 20 kHz
Coverage Pattern	90° x 50°
Amplifier Design	Class D
Power Rating	2000 W Peak
Dimensions (H x W x D)	478mm x 458mm x 691mm (18.82in x 18.03in x 27.20in)
Net Weight (each)	28.6 kg (63 lb)
EQ	20 parametric EQ's, speaker delay, and 50 available slots for presets
Inputs	Neutrik ¼ - XLR input; Neutrik XLR Output
Outputs	2 x XLR
Enclosure	18 mm, 11-ply Finnish birch plywood; black DuraFlex™ finish; integral recessed handles
Nominal Impedance	NA - amplification is integrated
LF Driver	1 x 2275F, Differential Drive®, 15" diameter
HF Driver	1 x 2432H compression driver, neodymium 76mm (3 in) diameter voice coil
Suspension / Mounting	Dual 36 mm pole socket, 12 x M10 suspension points

액세서리

SRX815P-CVR-DLX | Deluxe padded cover for SRX815P

SRX815P-CVR-DLX Main photo

큰 이미지

SRX815P-CVR-DLX detail thumbnail #1

Deluxe padded cover for SRX815P, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo
