SRX815P

15インチ 2ウェイ 多目的パワードスピーカー

画像を拡大

15-inch 2-Way Multipurpose Powered Speaker

The SRX800 Series is the next generation high performance powered loudspeaker system comprising three full range and two subwoofer models with an array of features that elevate the SRX800 Series to the best in class of all competitive systems. The full range 15" two-way, SRX815P features legendary JBL Drivers, proprietary 2,000 Watt Crown amplification, Crown Front-End DriveCore Technology, premium JBL user-configurable DSP, V5 Tunings compatible with Vertec and VTX touring systems, and HiQnet Network control options via iOS and Android applications. Drawing on JBL’s long history of groundbreaking technology and loudspeaker design, the SRX800 Series meets the needs of touring houses, installations, and the most demanding live sound applications ensuring they can deploy a no-compromise, all-in-one solution featuring legendary JBL sound and performance, a wide array of configurability, and compatibility with JBL’s flagship touring systems.



特長

  • 用途を見据えた設計:堅牢で直感的に操作でき、持ち運びも容易
  • JBL プレミアムトランスデューサー
  • Crown の Drivecore アンプ
  • ユーザーが自由に設定できる充実した DSP
  • ネットワークコントロール
  • JBL が設計したアプリケーションプリセット
  • LCD スクリーンと、リアパネルの蓄光インク表示
  • M10 サスペンションポイント
  • 標準 35mm ポールカップ
  • モニター角度設定用のフット

かつてないコントロール性

SRX800 Series に内蔵された高性能な 400MHz Sharc DSP により、ユーザーが操作できる充実した DSP 機能を実現しました。20 個の PEQ、2 秒のディレイ、信号発生器、入力ミキシング、アンプモニタリング、50 種類のユーザープリセットを備えています。さらに V5 JBL チューニングにも対応しており、フラッグシップのツアーシステムである Vertec および VTX との互換性を確保します。内蔵 LCD スクリーンにより、セットアップと設定を迅速に行えます。

主な用途

  • ライブパフォーマンスシステム
  • モバイルおよび固定式 DJ システム
  • サウンドシステムのレンタルおよびツアー
  • 常設インストレーション


詳細情報

目的に即した設計

SRX800シリーズは、あらゆる細部に至るまで、使用目的を十分に考慮して設計されています。人間工学に基づいたハンドルは、疲れにくく握りやすいため、スムーズな取り扱いが可能です。M10サスペンションポイント、インデックス付きフット、ポール/三脚マウントにより、幅広く柔軟な設置構成に対応します。

トランスデューサー技術

JBL独自の特許技術Differential Drive® Technologyを採用したフェライトドライバーは、3インチボイスコイルと低質量のフェライトマグネットを組み合わせ、軽量化、高い耐入力、極めて低い歪み、低域再生能力の拡張を実現しています。JBLの2432Hは、このクラスで唯一のネオジム採用3インチボイスコイル・コンプレッションドライバーで、非常に高い出力レベルと、なめらかで澄み切ったサウンドを提供します。

DRIVECORE BY CROWN

各モデルには、Crown独自のフロントエンドDriveCoreテクノロジーを搭載しています。2000Wの定格出力は、このクラスのスピーカーで最高の値です。103dBという優れたS/N比により、SRX800シリーズは、十分なヘッドルームと極めて低い歪みを確保し、全周波数帯域にわたって極めて明瞭なサウンドで大音圧レベルを実現します。

HIQNETネットワークコントロール

HiQnetネットワークに完全統合されているため、SRX800システムの設定が大幅に簡素化され、コントロールインターフェースの設定を完全に自動化して時間を節約できます。Etherconコネクター経由でシンプルな有線コントロールが可能で、サードパーティ製ワイヤレスルーターにも対応しています。コントロール手段として、Audio Architect、HiQnet Motion Control™ iOSアプリ、iOSおよびAndroid向けのスタンドアロンアプリケーションをご利用いただけます。

ダウンロード

Data Sheets
  サイズ アップロード済み
file type icon SRX815P Data Sheet
更新: 2019年4月
1.8MB 2019年4月
Specifications
  サイズ アップロード済み
file type icon SRX815P Spec Sheet
更新: 2019年4月
713KB 2019年4月
Manuals
  サイズ アップロード済み
file type icon SRX Connect Presets HelpGuide
更新: 2020年10月
286KB 2020年10月
file type icon SRX Connect NormalView HelpGuide
更新: 2020年10月
427KB 2020年10月
Brochures
  バージョン 言語 サイズ アップロード済み
file type icon JBL 2025 PPA Brochure
en バージョン B, 更新: 2025年8月
B  en  8.45MB 2025年8月
Compliances
  サイズ アップロード済み
154KB 2020年10月
Software
  バージョン サイズ アップロード済み
file type icon Software Support
更新: 2019年4月
  114KB 2019年4月
Android download icon SRX Connect
リリース済み: 2023年8月
  2023年8月
Windows download icon HiQnet Audio Architect
バージョン 2.55.4, リリース済み: 2026年10月
2.55.4   2026年10月
iOS download icon SRX Connect
リリース済み: 2023年8月
  2023年8月
User Guides
  サイズ アップロード済み
1.75MB 2020年11月
file type icon SRX800 User Guide
更新: 2019年4月
7.41MB 2019年4月
Images
  サイズ アップロード済み
file type icon SRX800 Driver
更新: 2019年4月
158KB 2019年4月
file type icon SRX800 Handle
更新: 2019年4月
208KB 2019年4月

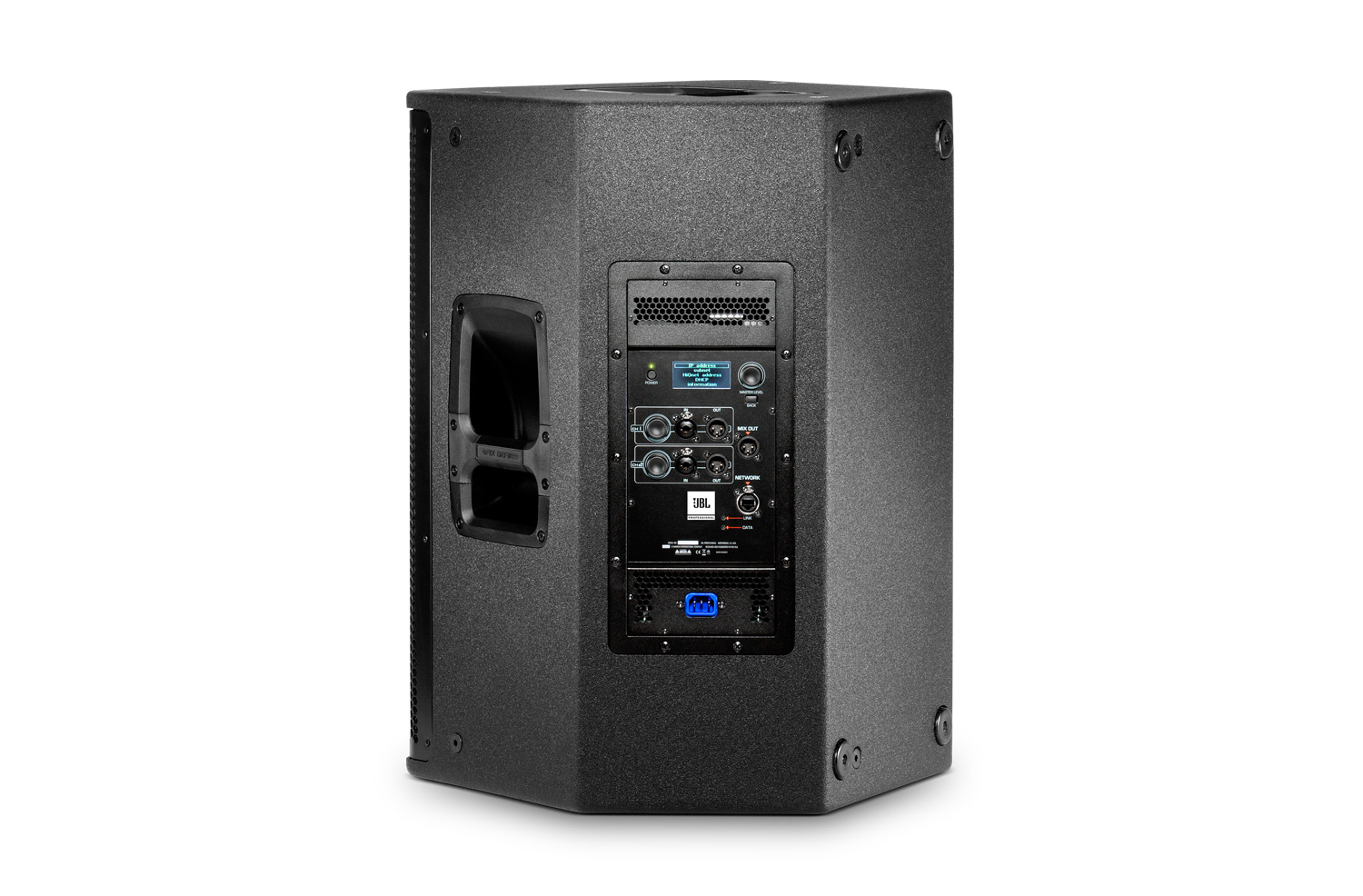

file type icon SRX815P Back
更新: 2019年4月
253KB 2019年4月

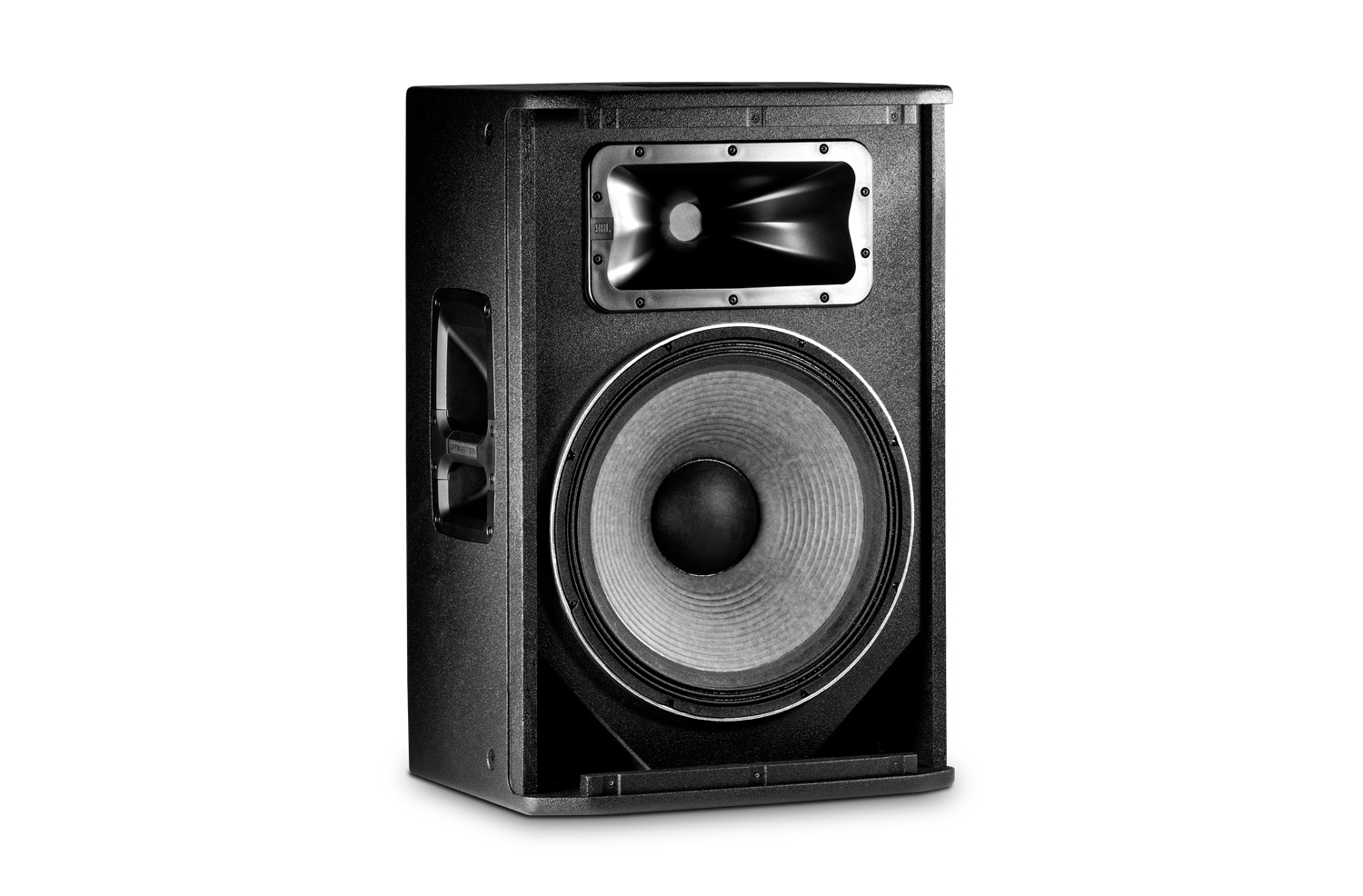

file type icon SRX815P Angle No-Grill
更新: 2019年4月
232KB 2019年4月

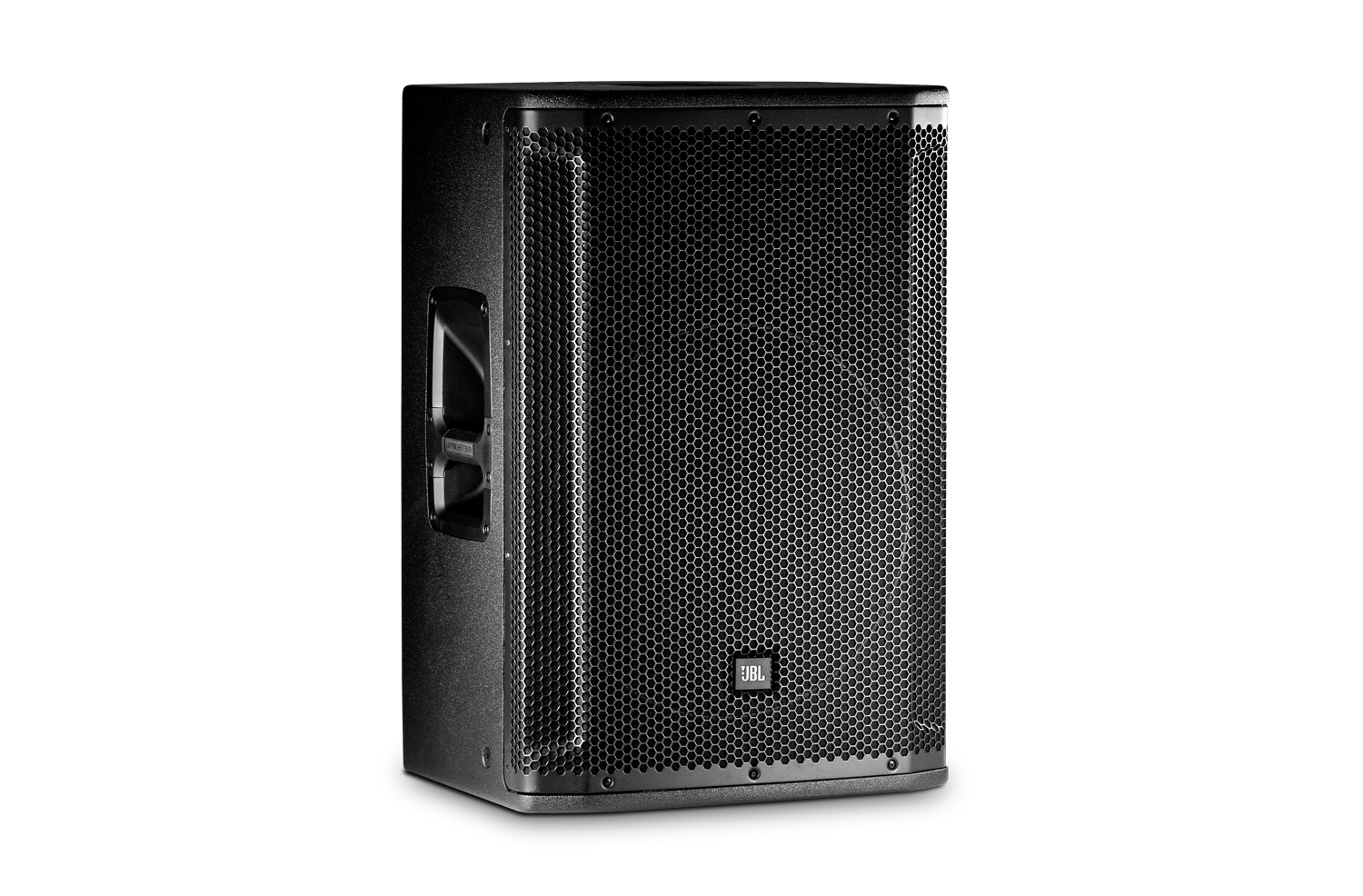

file type icon SRX815P Angle
更新: 2019年4月
322KB 2019年4月

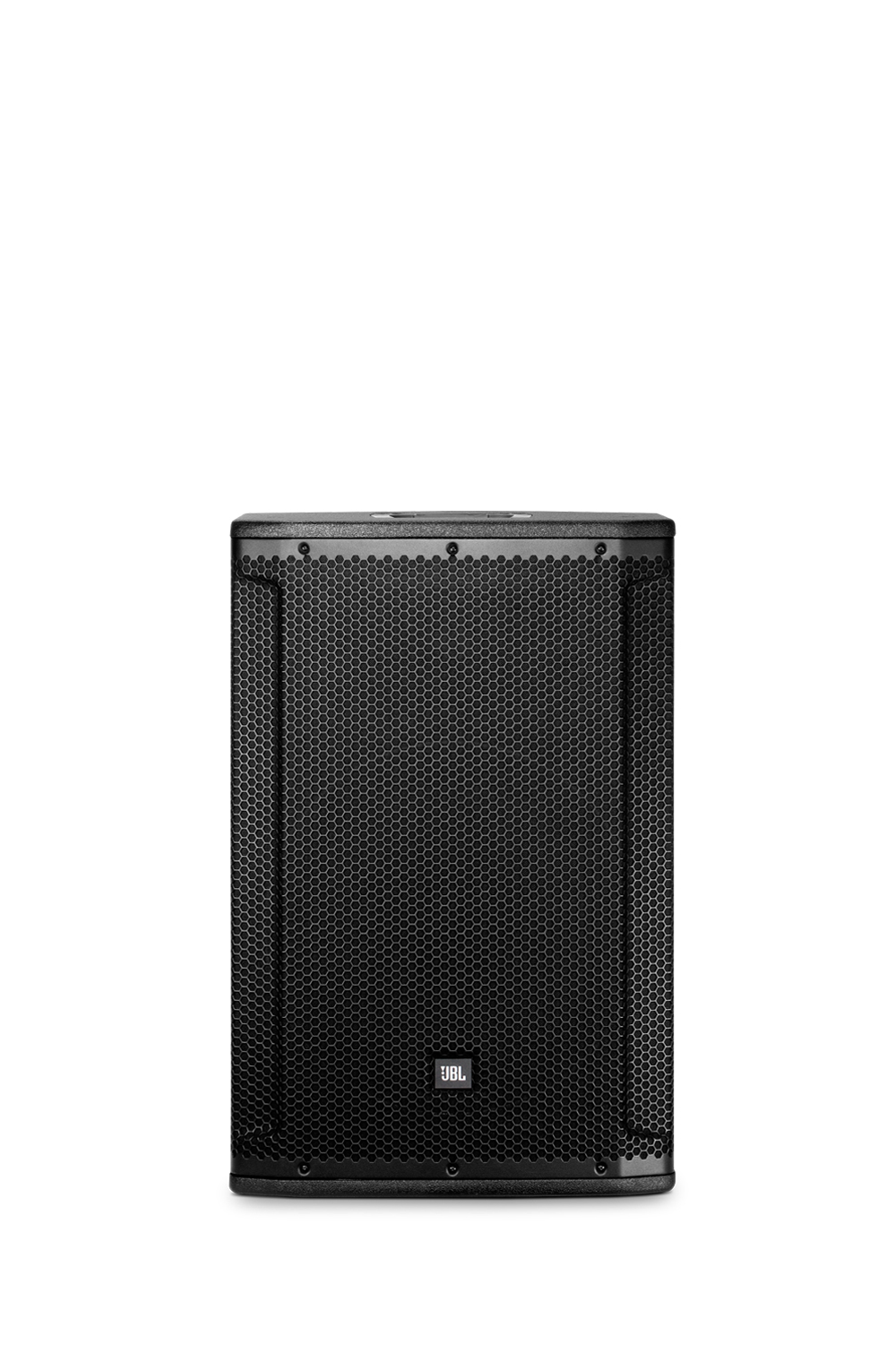

file type icon SRX815P Front
更新: 2019年4月
338KB 2019年4月

上記のリンクをクリックしてブラウザで文字化けが発生する場合は、ファイルを右クリックしてコンピューターに保存してください。

パーツ&サービス

仕様

System Type Self powered 15”, two-way, bass-reflex
Maximum SPL (1m) 137 dB
Frequency Range (-10 dB) 36 Hz - 21 kHz
Frequency Response (±3 dB) 44 Hz - 20 kHz
Coverage Pattern 90° x 50°
Amplifier Design Class D
Power Rating 2000 W Peak
Dimensions (H x W x D) 478mm x 458mm x 691mm (18.82in x 18.03in x 27.20in)
Net Weight (each) 28.6 kg (63 lb)
EQ 20 parametric EQ's, speaker delay, and 50 available slots for presets
Inputs Neutrik ¼ - XLR input; Neutrik XLR Output
Outputs 2 x XLR
Enclosure 18 mm, 11-ply Finnish birch plywood; black DuraFlex™ finish; integral recessed handles
Nominal Impedance NA - amplification is integrated
LF Driver 1 x 2275F, Differential Drive®, 15" diameter
HF Driver 1 x 2432H compression driver, neodymium 76mm (3 in) diameter voice coil
Suspension / Mounting Dual 36 mm pole socket, 12 x M10 suspension points
