15" Two-Way Bass Reflex Self-Powered System


15" Two-Way Bass Reflex Self-Powered System

The SRX800 Series is the next generation high performance powered loudspeaker system comprising three full range and two subwoofer models with an array of features that elevate the SRX800 Series to the best in class of all competitive systems. The full range 15" two-way, SRX815P features legendary JBL Drivers, proprietary 2,000 Watt Crown amplification, Crown Front-End DriveCore Technology, premium JBL user-configurable DSP, V5 Tunings compatible with Vertec and VTX touring systems, and HiQnet Network control options via iOS and Android applications. Drawing on JBL’s long history of groundbreaking technology and loudspeaker design, the SRX800 Series meets the needs of touring houses, installations, and the most demanding live sound applications ensuring they can deploy a no-compromise, all-in-one solution featuring legendary JBL sound and performance, a wide array of configurability, and compatibility with JBL’s flagship touring systems.



  • Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
  • JBL Premium Transducers
  • Drivecore Amplification By Crown
  • Full User Configurable DSP
  • Network Control
  • JBL Engineered Application Presets
  • LCD Screen and Glow in the Dark Ink on Back Panel
  • M10 Suspension Points
  • Standard 35mm Pole Cup
  • Feet for Monitor Angle

Unprecedented Control

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.


  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.



Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.


JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.


Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.


With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion Control™ iOS app, and standalone applications for iOS and Android.


  Version Language Size Uploaded
Data Sheets
file type icon SRX815P Data Sheet
updated: 4月29日
    1.8 MB 4月29日
file type icon SRX815P Spec Sheet
updated: 4月29日
    713.5 KB 4月29日
file type icon SRX Connect Presets HelpGuide
updated: 10月22日
    285.5 KB 10月22日
file type icon SRX Connect NormalView HelpGuide
updated: 10月22日
    427.4 KB 10月22日
file type icon SRX800 Series Declaration of Conformity
updated: 10月22日
    154.4 KB 10月22日
file type icon Software Support
updated: 4月29日
    114.5 KB 4月29日
platform icon SRX Connect
updated: 10月09日
platform icon HiQnet Audio Architect
updated: 11月10日
platform icon SRX Connect
updated: 10月09日
User Guides
file type icon SRX 812P/815P/835P QuickStart Guide
updated: 11月10日
    1.8 MB 11月10日
file type icon SRX800 User Guide
updated: 4月29日
    7.4 MB 4月29日
file type icon SRX800 Driver
updated: 4月29日
    157.9 KB 4月29日
file type icon SRX800 Handle
updated: 4月29日
    208.1 KB 4月29日

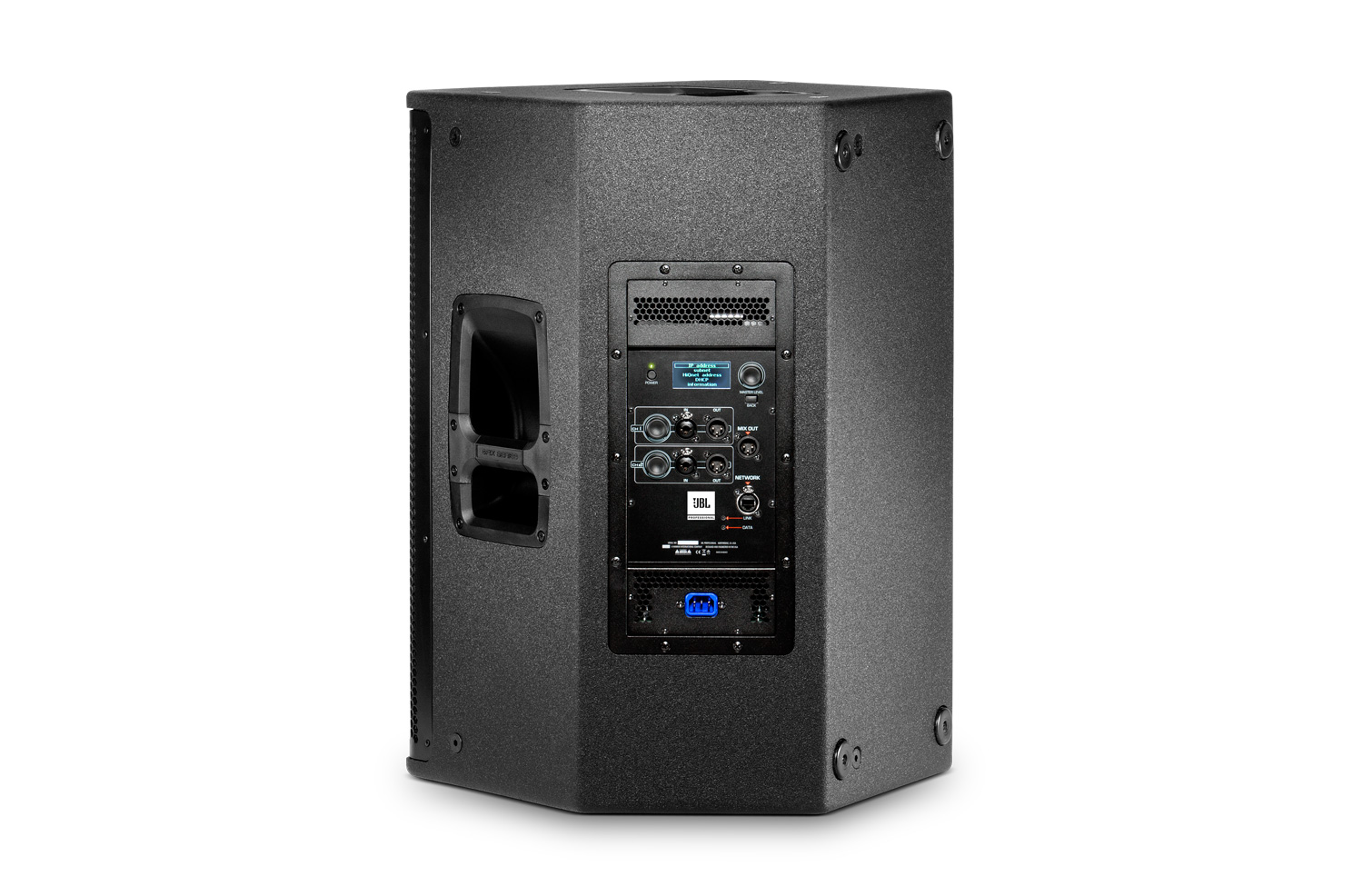

file type icon SRX815P Back
updated: 4月29日
    253.4 KB 4月29日

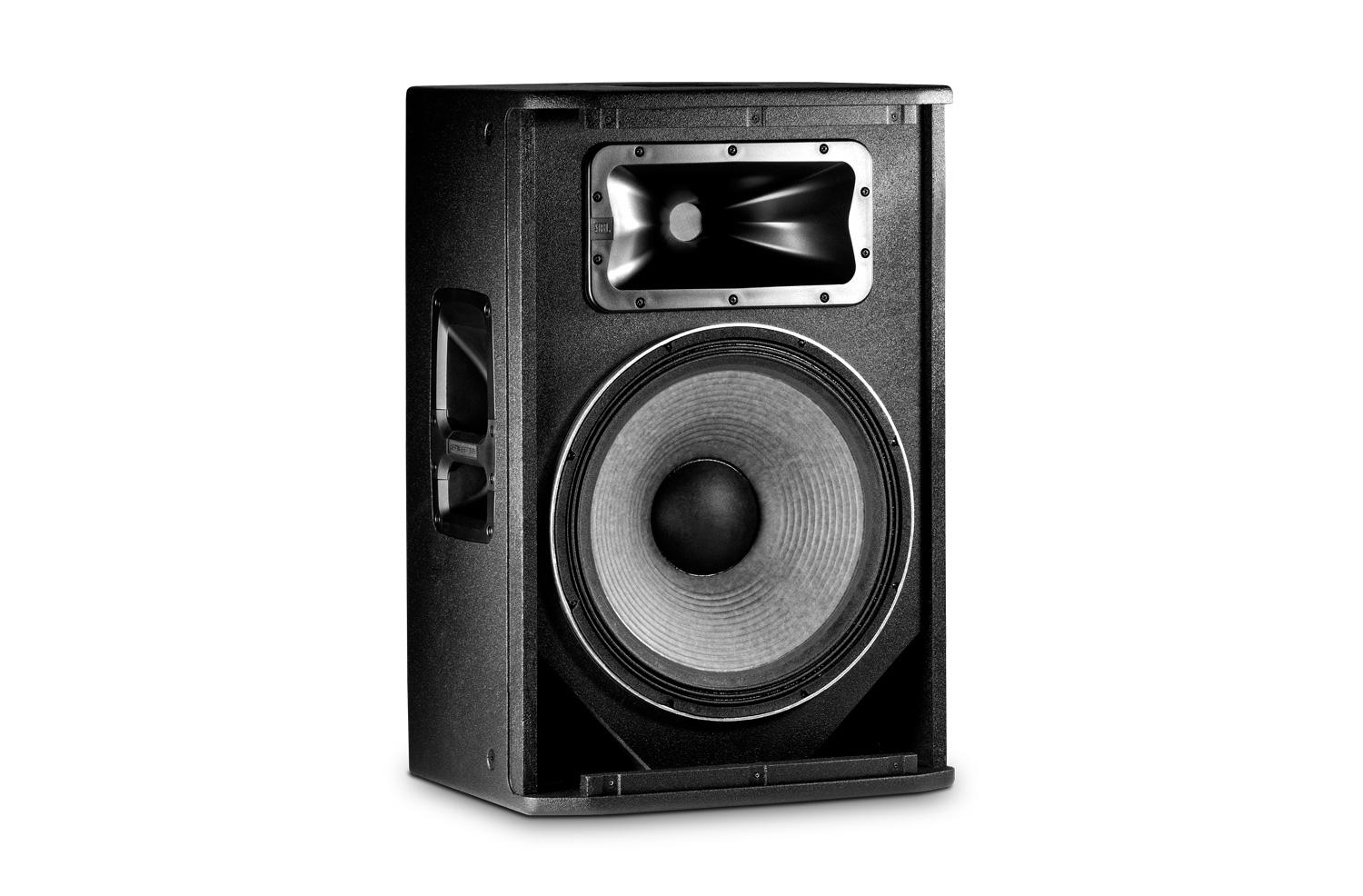

file type icon SRX815P Angle No-Grill
updated: 4月29日
    231.9 KB 4月29日

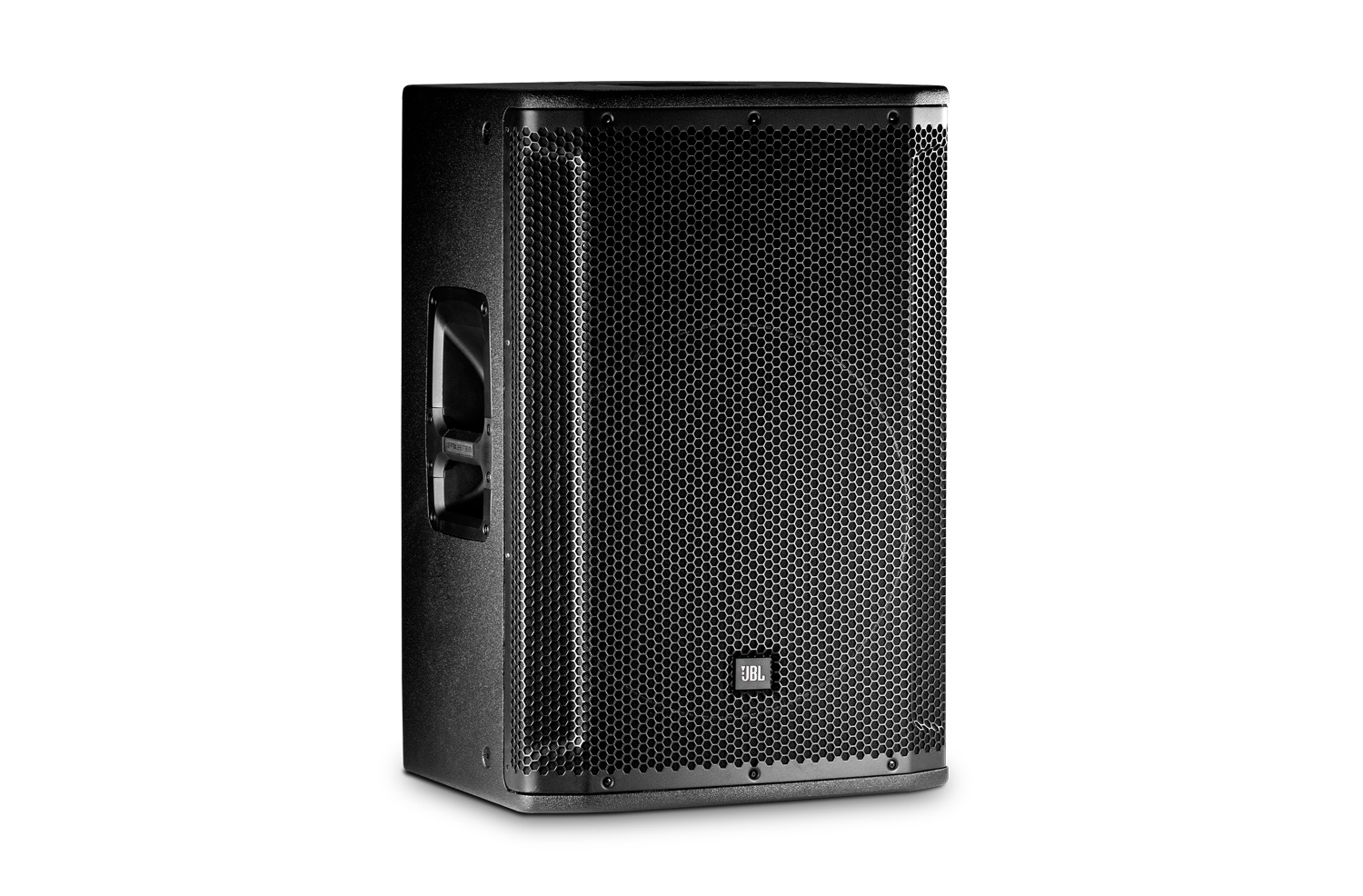

file type icon SRX815P Angle
updated: 4月29日
    322.3 KB 4月29日
file type icon SRX815P Front
updated: 4月29日
    338.2 KB 4月29日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


系统类型 Self powered 15”, two-way, bass-reflex
Maximum SPL (1m) 137 dB
频率范围 (-10dB) 36 Hz - 21 kHz
Frequency Response (±3 dB) 44 Hz - 20 kHz
覆盖范围 90° x 50°
Amplifier Design Class D
额定功率 2000 W Peak
尺寸(高 x 宽 x 厚) 478mm x 458mm x 691mm (18.82in x 18.03in x 27.20in)
Net Weight (each) 28.6 kg (63 lb)
EQ 20 parametric EQ's, speaker delay, and 50 available slots for presets
输入通道 Neutrik ¼ - XLR input; Neutrik XLR Output
输出 2 x XLR
Enclosure 18 mm, 11-ply Finnish birch plywood; black DuraFlex™ finish; integral recessed handles
标称阻抗 NA - amplification is integrated
低频驱动单元 1 x 2275F, Differential Drive®, 15" diameter
HF 驱动程序 1 x 2432H compression driver, neodymium 76mm (3 in) diameter voice coil
Suspension / Mounting Dual 36 mm pole socket, 12 x M10 suspension points


SRX815P-CVR-DLX | Deluxe padded cover for SRX815P
SRX815P-CVR-DLX Main photo

Deluxe padded cover for SRX815P, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo
