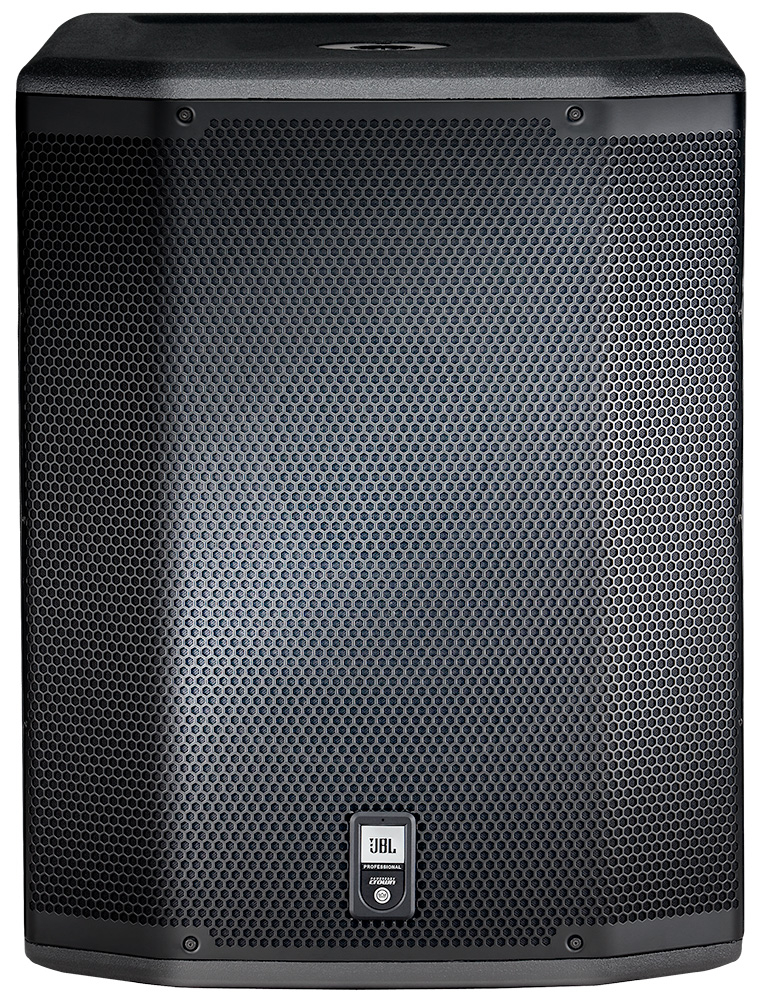

Sistema de Subwoofer Autoamplificado de 18"
Compacto y potente, el PRX618S ofrece el rendimiento de un subwoofer de 18" en un paquete no mucho más grande que un sub de 15" típico.
Imágenes más grandes
Características
- Maximum SPL 129 db peak
- 460 mm (18 in) Differential Drive® dual voice-coil and magnetic gap, neodymium woofer
- 600 Watt Class-D, Crown® digital amplifier
- Professional XLR line and ¼" Mic/Instrument inputs
- Stereo input and Loop-Thru capability
- Top panel 36mm pole mount socket for sub/satellite configuration
- 16 Gauge, dent resistant grille
- Obsidian DuraFlex™ coated plywood construction
- Large die-cast aluminum handle bar with a fine tuned ergonomic rubber grip for maximum comfort
Applications
- Compact and powerful, the PRX618S offers the performance of an 18" subwoofer in a package not much larger than a typical 15" sub. With a pole receptacle (that accepts a SS3-BK or SS3-BK24) on the top panel and integrated stereo pass-thru, with selectable HP filter, this is the perfect compliment to the PRX600 full-range systems. Configured with a PRX612M or PRX615M the result is a highly transportable, high performance subs/satellite system. The addition of a polarity reverse options further enables integration with any top cabinet.

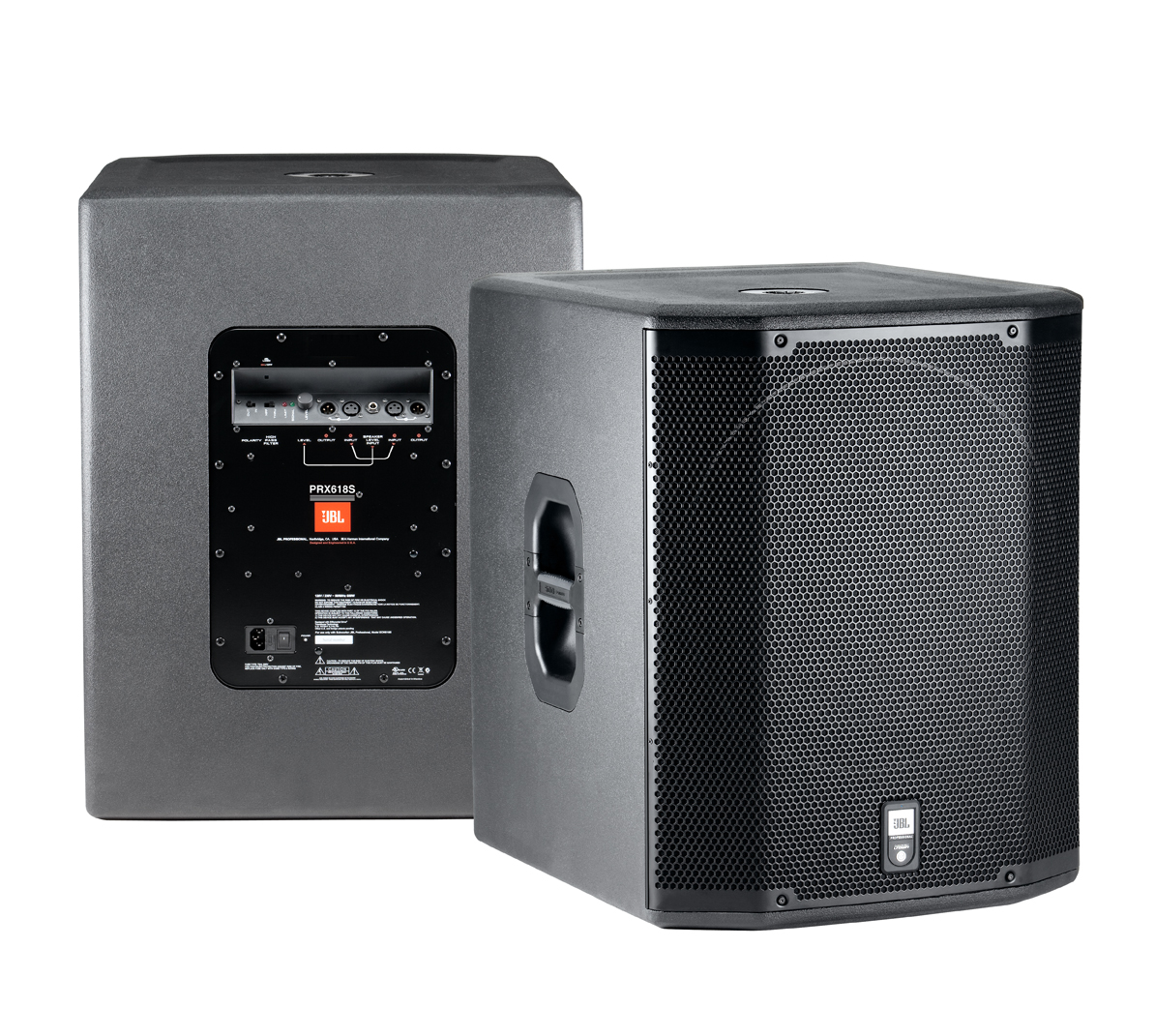

- The PRX618S is a high performance self powered compact subwoofer system. The PRX618S is comprised of a 268G 460 mm (18") Differential Drive® dual voice-coil and magnetic gap, neodymium woofer driven by a Crown Class-D power amplifier. The amplifier input panel offers stereo or mono line level inputs via balanced XLR connectors as well as a single channel speaker level input via a ¼ inch TS phone jack. Signal processing, crossover functionality and limiting for the system is integrated into the input section functionality. Overall subwoofer input sensitivity is controlled by a single easy grip knob and a simple switch enables polarity reversal for sub/satellite system optimization. Signal present and limit lights indicate performance status.
- All PRX600 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability.
- Special note: JBL highly recommends that no more than 70 lbs of weight be placed on a speaker pole that is mounted to a PRX618S or PRX618S-XLF.
Descargas
Specifications
| Tamaño | |
|
|
644 KB |
Manuals
| Tamaño | |
|
|
3,68 MB |
actualizado: oct 2020
Brochures
| Tamaño | |
|
|
1,49 MB |
CAD Drawings
| Tamaño | |
|
|
4,8 MB |
Compliances
| Tamaño | |
|
|
93,3 KB |
User Guides
| Tamaño | |
|
|
4,65 MB |
Images
| Tamaño | |
|
|
658 KB |
|
|
517 KB |
Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.
Piezas y servicio
Especificaciones
| TIPO DE SISTEMA | Self-Powered 18", bass - reflex |
| Maximum SPL Output | 129 dB peak |
| Frequency Range (-10dB) | 41 Hz – 130 Hz |
| RESPUESTA DE FRECUENCIA (±3 dB) | 50 Hz – 100 Hz |
| Polarity | Normal or reverse polarity |
| Frecuencia de crossover | 120 Hz |
| Amp Design | Crown® Class D |
| Power Rating | 600 W |
| Dimensions (H x W x D) | 685.8 mm x 530.9 mm x 614.7 mm ( 27.0 in x 20.9 in x 24.2 in ) |
| PESO NETO | 32 kg ( 70.5 lb ) |
