JBL Professional PRX618S

Grandes images

18 in. Self-Powered Subwoofer System

Compact and powerful, the PRX618S offers the performance of an 18" subwoofer in a package not much larger than a typical 15" sub.

Caractéristiques

Maximum SPL 129 db peak
460 mm (18 in) Differential Drive® dual voice-coil and magnetic gap, neodymium woofer
600 Watt Class-D, Crown® digital amplifier
Professional XLR line and ¼" Mic/Instrument inputs
Stereo input and Loop-Thru capability
Top panel 36mm pole mount socket for sub/satellite configuration
16 Gauge, dent resistant grille
Obsidian DuraFlex™ coated plywood construction
Large die-cast aluminum handle bar with a fine tuned ergonomic rubber grip for maximum comfort

Applications

Compact and powerful, the PRX618S offers the performance of an 18" subwoofer in a package not much larger than a typical 15" sub. With a pole receptacle (that accepts a SS3-BK or SS3-BK24) on the top panel and integrated stereo pass-thru, with selectable HP filter, this is the perfect compliment to the PRX600 full-range systems. Configured with a PRX612M or PRX615M the result is a highly transportable, high performance subs/satellite system. The addition of a polarity reverse options further enables integration with any top cabinet.
The PRX618S is a high performance self powered compact subwoofer system. The PRX618S is comprised of a 268G 460 mm (18") Differential Drive® dual voice-coil and magnetic gap, neodymium woofer driven by a Crown Class-D power amplifier. The amplifier input panel offers stereo or mono line level inputs via balanced XLR connectors as well as a single channel speaker level input via a ¼ inch TS phone jack. Signal processing, crossover functionality and limiting for the system is integrated into the input section functionality. Overall subwoofer input sensitivity is controlled by a single easy grip knob and a simple switch enables polarity reversal for sub/satellite system optimization. Signal present and limit lights indicate performance status.
All PRX600 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability.
Special note: JBL highly recommends that no more than 70 lbs of weight be placed on a speaker pole that is mounted to a PRX618S or PRX618S-XLF.

Téléchargements

	Version	Language	Size	Uploaded
Specifications
PRX618S Spec Sheet updated: oct. 23, 2020			644 ko	oct. 23, 2020
Manuals
PRX600 Users Guide - French updated: oct. 22, 2020			3,68 Mo	oct. 22, 2020
Brochures
PRX600 Brochure updated: oct. 22, 2020			1,49 Mo	oct. 22, 2020
CAD Drawings
PRX600 Drawings 2D & 3D updated: oct. 22, 2020			4,8 Mo	oct. 22, 2020
Compliances
PRX600 Series Declaration of Conformity updated: oct. 22, 2020			93,3 ko	oct. 22, 2020
User Guides
PRX600 Users Guide updated: oct. 22, 2020			4,65 Mo	oct. 22, 2020
Images

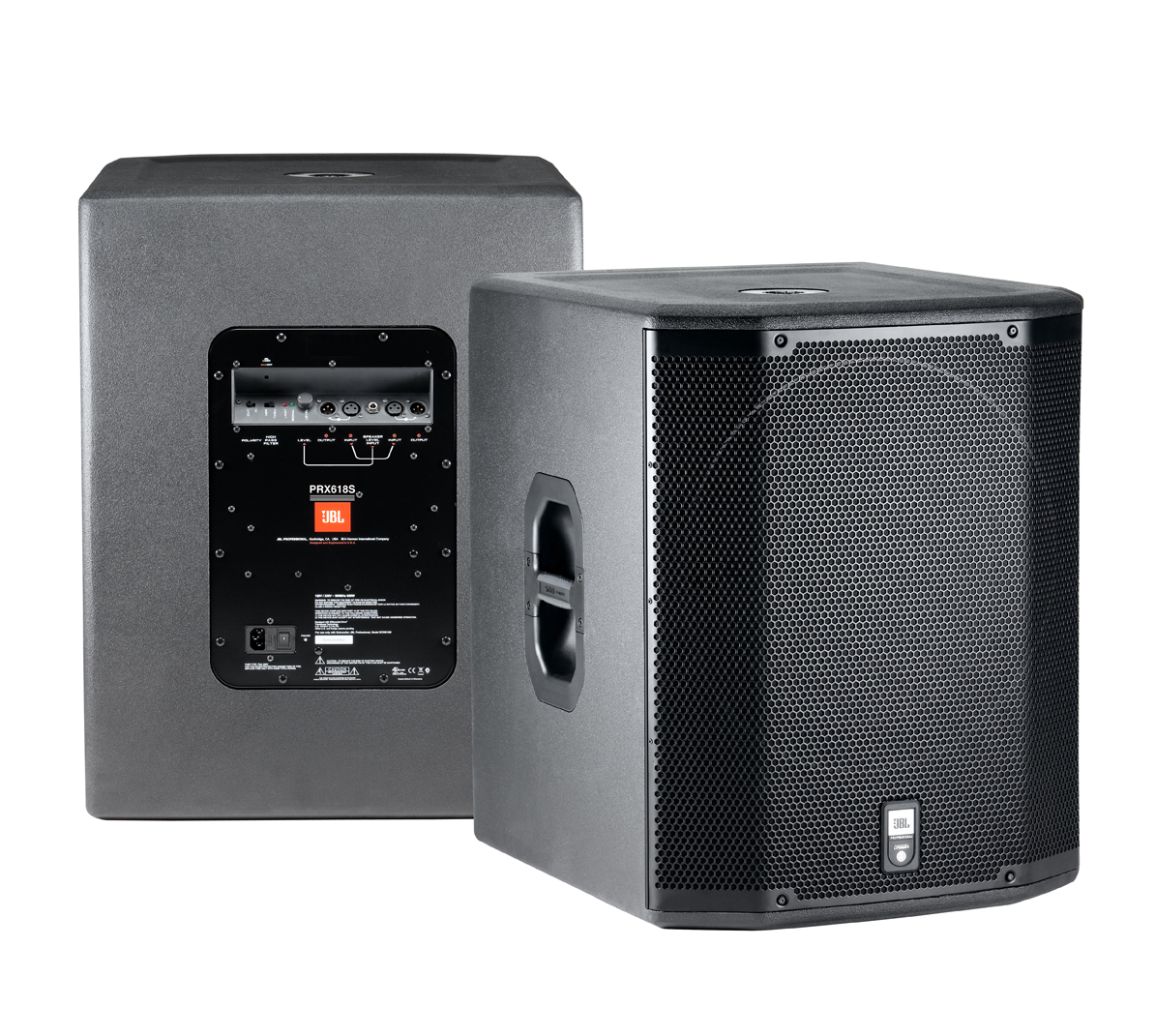

PRX618S Front-Back updated: oct. 23, 2020			658 ko	oct. 23, 2020

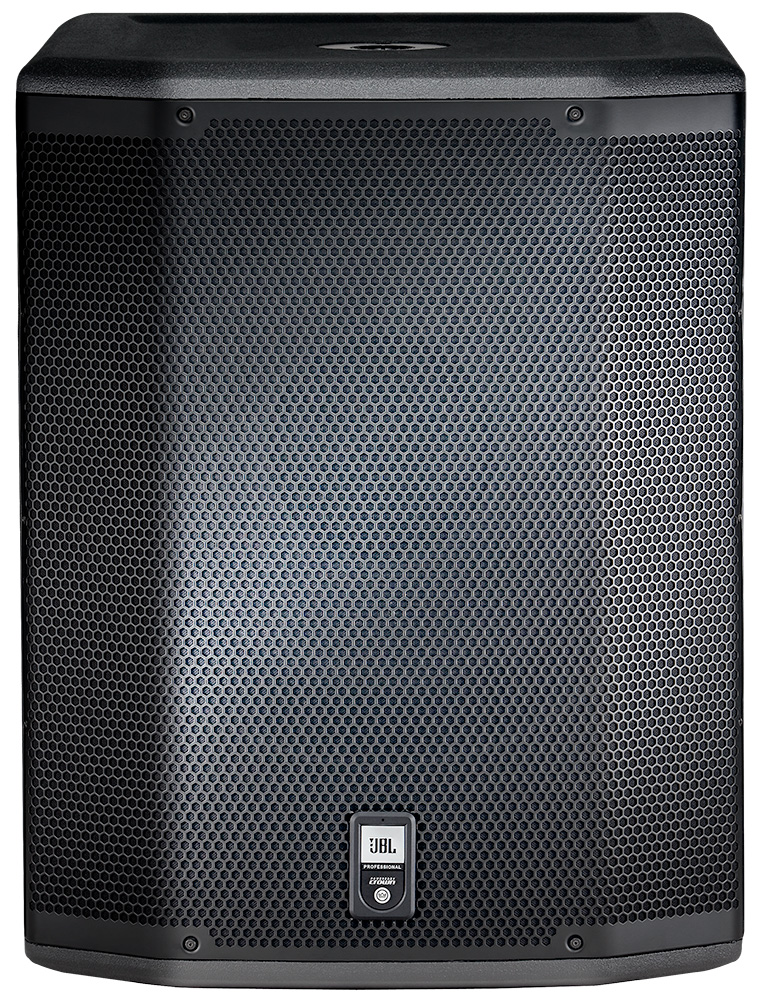

PRX618S Front updated: oct. 23, 2020			517 ko	oct. 23, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Pièces détachées et réparations

Caractéristiques techniques

System Type	Self-Powered 18", bass - reflex
Maximum SPL Output	129 dB peak
Frequency Range (-10dB)	41 Hz – 130 Hz
Frequency Response (±3 dB)	50 Hz – 100 Hz
Polarity	Normal or reverse polarity
Crossover Frequency	120 Hz
Amp Design	Crown® Class D
Power Rating	600 W
Dimensions (H x W x D)	685.8 mm x 530.9 mm x 614.7 mm ( 27.0 in x 20.9 in x 24.2 in )
Net Weight	32 kg ( 70.5 lb )
