18 in. Self-Powered Subwoofer System
Compact and powerful, the PRX618S offers the performance of an 18" subwoofer in a package not much larger than a typical 15" sub.
较大的图像
特点
- Maximum SPL 129 db peak
- 460 mm (18 in) Differential Drive® dual voice-coil and magnetic gap, neodymium woofer
- 600 Watt Class-D, Crown® digital amplifier
- Professional XLR line and ¼" Mic/Instrument inputs
- Stereo input and Loop-Thru capability
- Top panel 36mm pole mount socket for sub/satellite configuration
- 16 Gauge, dent resistant grille
- Obsidian DuraFlex™ coated plywood construction
- Large die-cast aluminum handle bar with a fine tuned ergonomic rubber grip for maximum comfort
Applications
- Compact and powerful, the PRX618S offers the performance of an 18" subwoofer in a package not much larger than a typical 15" sub. With a pole receptacle (that accepts a SS3-BK or SS3-BK24) on the top panel and integrated stereo pass-thru, with selectable HP filter, this is the perfect compliment to the PRX600 full-range systems. Configured with a PRX612M or PRX615M the result is a highly transportable, high performance subs/satellite system. The addition of a polarity reverse options further enables integration with any top cabinet.
- The PRX618S is a high performance self powered compact subwoofer system. The PRX618S is comprised of a 268G 460 mm (18") Differential Drive® dual voice-coil and magnetic gap, neodymium woofer driven by a Crown Class-D power amplifier. The amplifier input panel offers stereo or mono line level inputs via balanced XLR connectors as well as a single channel speaker level input via a ¼ inch TS phone jack. Signal processing, crossover functionality and limiting for the system is integrated into the input section functionality. Overall subwoofer input sensitivity is controlled by a single easy grip knob and a simple switch enables polarity reversal for sub/satellite system optimization. Signal present and limit lights indicate performance status.
- All PRX600 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability.
- Special note: JBL highly recommends that no more than 70 lbs of weight be placed on a speaker pole that is mounted to a PRX618S or PRX618S-XLF.
下载
| Size | ||||
Specifications | ||||
PRX618S Spec Sheet
updated: 10月 2020
|
644.5 KB | |||
Manuals | ||||
PRX600 Users Guide - French
updated: 10月 2020
|
3.7 MB | |||
Brochures | ||||
|
PRX600 Brochure
updated: 10月 2020
|
1.5 MB | |||
CAD Drawings | ||||
PRX600 Drawings 2D & 3D
updated: 10月 2020
|
4.8 MB | |||
Compliances | ||||
|
PRX600 Series Declaration of Conformity
updated: 10月 2020
|
93.3 KB | |||
User Guides | ||||
|
PRX600 Users Guide
updated: 10月 2020
|
4.6 MB | |||
Images | ||||
|

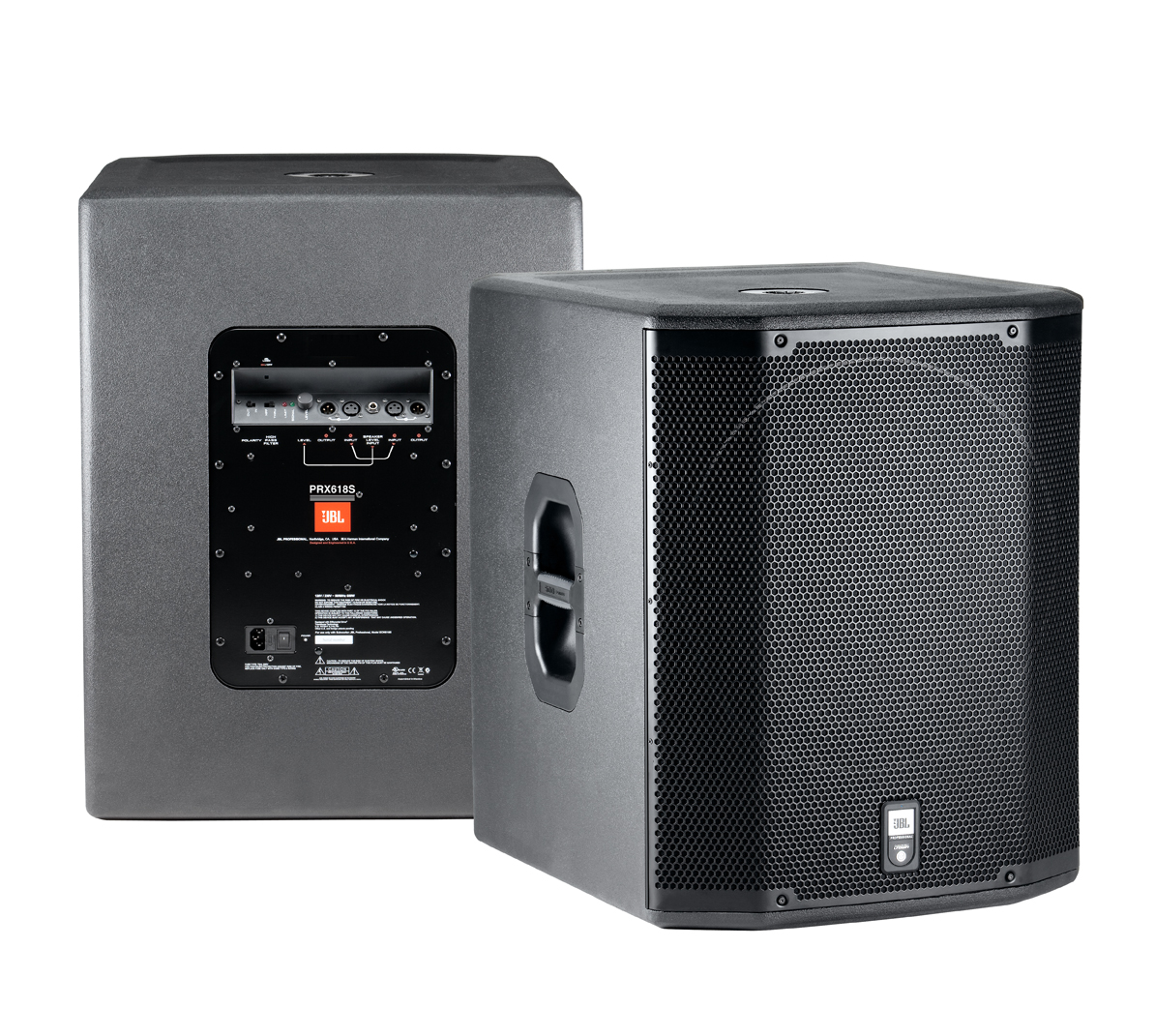

PRX618S Front-Back
updated: 10月 2020
|
658.0 KB | |||
|
PRX618S Front
updated: 10月 2020
|
517.3 KB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
性能
| 系统类型 | Self-Powered 18", bass - reflex |
| Maximum SPL Output | 129 dB peak |
| 频率范围 (-10dB) | 41 Hz – 130 Hz |
| Frequency Response (±3 dB) | 50 Hz – 100 Hz |
| 极性 | Normal or reverse polarity |
| 分频点 | 120 Hz |
| Amp Design | Crown® Class D |
| 额定功率 | 600 W |
| 尺寸（高 x 宽 x 厚） | 685.8 mm x 530.9 mm x 614.7 mm ( 27.0 in x 20.9 in x 24.2 in ) |
| 净重量 | 32 kg ( 70.5 lb ) |
