JBL Professional PRX618S

Μεγαλύτερες εικόνες

18 in. Self-Powered Subwoofer System

Compact and powerful, the PRX618S offers the performance of an 18" subwoofer in a package not much larger than a typical 15" sub.

Χαρακτηριστικά

Maximum SPL 129 db peak
460 mm (18 in) Differential Drive® dual voice-coil and magnetic gap, neodymium woofer
600 Watt Class-D, Crown® digital amplifier
Professional XLR line and ¼" Mic/Instrument inputs
Stereo input and Loop-Thru capability
Top panel 36mm pole mount socket for sub/satellite configuration
16 Gauge, dent resistant grille
Obsidian DuraFlex™ coated plywood construction
Large die-cast aluminum handle bar with a fine tuned ergonomic rubber grip for maximum comfort

Applications

Compact and powerful, the PRX618S offers the performance of an 18" subwoofer in a package not much larger than a typical 15" sub. With a pole receptacle (that accepts a SS3-BK or SS3-BK24) on the top panel and integrated stereo pass-thru, with selectable HP filter, this is the perfect compliment to the PRX600 full-range systems. Configured with a PRX612M or PRX615M the result is a highly transportable, high performance subs/satellite system. The addition of a polarity reverse options further enables integration with any top cabinet.
The PRX618S is a high performance self powered compact subwoofer system. The PRX618S is comprised of a 268G 460 mm (18") Differential Drive® dual voice-coil and magnetic gap, neodymium woofer driven by a Crown Class-D power amplifier. The amplifier input panel offers stereo or mono line level inputs via balanced XLR connectors as well as a single channel speaker level input via a ¼ inch TS phone jack. Signal processing, crossover functionality and limiting for the system is integrated into the input section functionality. Overall subwoofer input sensitivity is controlled by a single easy grip knob and a simple switch enables polarity reversal for sub/satellite system optimization. Signal present and limit lights indicate performance status.
All PRX600 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability.
Special note: JBL highly recommends that no more than 70 lbs of weight be placed on a speaker pole that is mounted to a PRX618S or PRX618S-XLF.

Λήψεις

Specifications

	Μέγεθος	Ανέβηκε
PRX618S Spec Sheet ενημέρωση: Οκτ 2020	600 KB	Οκτ 2020

Manuals

	Γλώσσα	Μέγεθος	Ανέβηκε
PRX600 Users Guide - French ενημέρωση: Οκτ 2020		4 MB	Οκτ 2020

Brochures

	Μέγεθος	Ανέβηκε
PRX600 Brochure ενημέρωση: Οκτ 2020	1 MB	Οκτ 2020

CAD Drawings

	Μέγεθος	Ανέβηκε
PRX600 Drawings 2D & 3D ενημέρωση: Οκτ 2020	5 MB	Οκτ 2020

Compliances

	Μέγεθος	Ανέβηκε
PRX600 Series Declaration of Conformity ενημέρωση: Οκτ 2020	90 KB	Οκτ 2020

User Guides

	Μέγεθος	Ανέβηκε
PRX600 Users Guide ενημέρωση: Οκτ 2020	5 MB	Οκτ 2020

Images

	Μέγεθος	Ανέβηκε

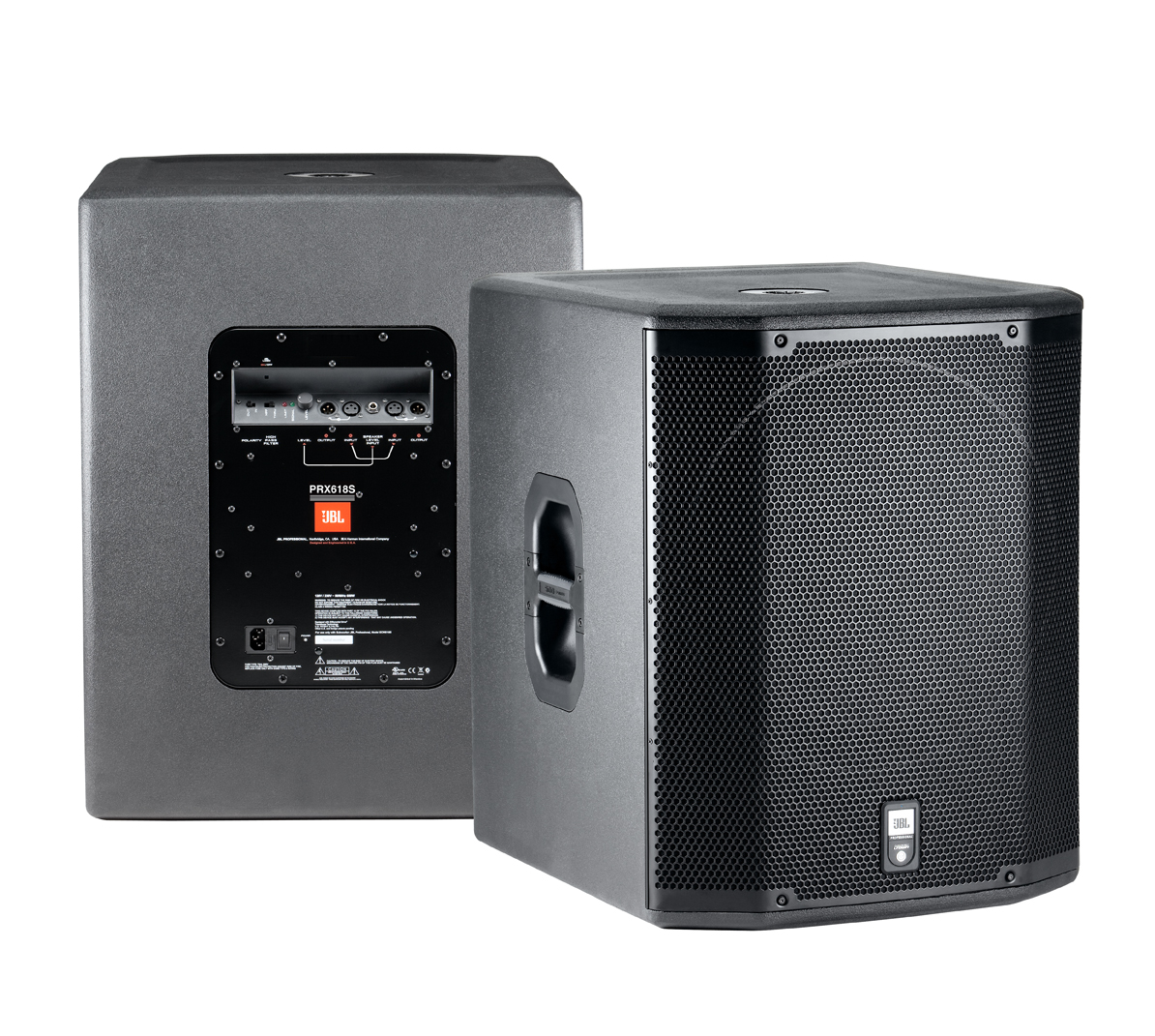

PRX618S Front-Back ενημέρωση: Οκτ 2020	700 KB	Οκτ 2020

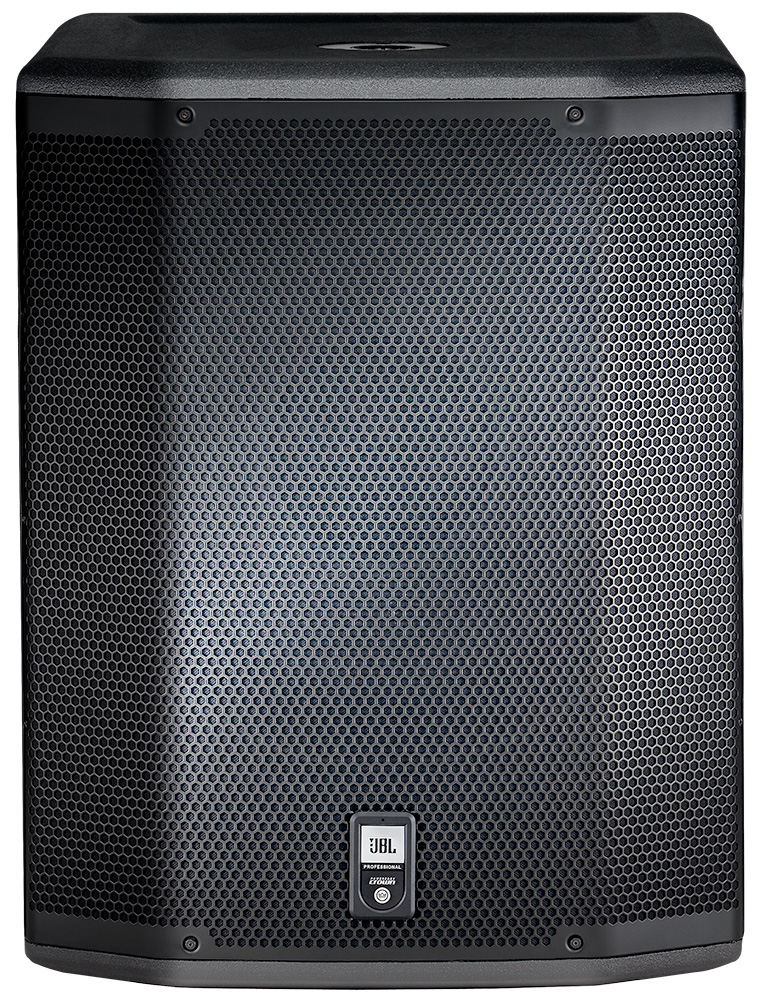

PRX618S Front ενημέρωση: Οκτ 2020	500 KB	Οκτ 2020

Εάν κάποιος από τους παραπάνω συνδέσμους έχει ως αποτέλεσμα παράξενους χαρακτήρες στο πρόγραμμα περιήγησής σας, κάντε δεξί κλικ στο αρχείο για να το αποθηκεύσετε στον υπολογιστή σας.

Ανταλλακτικά και σέρβις

Προδιαγραφές

System Type	Self-Powered 18", bass - reflex
Maximum SPL Output	129 dB peak
Frequency Range (-10dB)	41 Hz – 130 Hz
Frequency Response (±3 dB)	50 Hz – 100 Hz
Polarity	Normal or reverse polarity
Crossover Frequency	120 Hz
Amp Design	Crown® Class D
Power Rating	600 W
Dimensions (H x W x D)	685.8 mm x 530.9 mm x 614.7 mm ( 27.0 in x 20.9 in x 24.2 in )
Net Weight	32 kg ( 70.5 lb )
