JBL Professional LSR6312SP

Imágenes más grandes

Powered Studio Subwoofer System

The LSR6312SP powered subwoofer is based on a 12" woofer with JBL's patented Differential Drive® and 250 Watts of power. THX® pm3 Approved. METAlliance® Certified.

Características

Multi-format powered subwoofer for Dolby Prologic, AC-3, DTS and other surround formats.
250 W continuous output power amplifier.
Sophisticated LCR bass management system.
Direct LFE input with selectable 10 dB input sensitivity.
Summed output allows chaining of multiple LSR6312SP for multiple subwoofer systems.
Differential Drive® technology with dynamic braking for extended low frequency response and low
power compression.
High-density baffle for low resonance and stable inertial ground.
Linear Dynamics Aperture port design eliminates port turbulence and reduces port compression.
Reinforced enclosure and convenient mounting points for mounted installation.

Descargas

Specifications

	Tamaño	Subido
LSR6312SP Spec Sheet actualizado: oct 2020	279 KB	oct 2020

Manuals

	Tamaño	Subido
LSR6325P used with LSR6312SP Subwoofer Operating note actualizado: oct 2019	11,1 KB	oct 2019

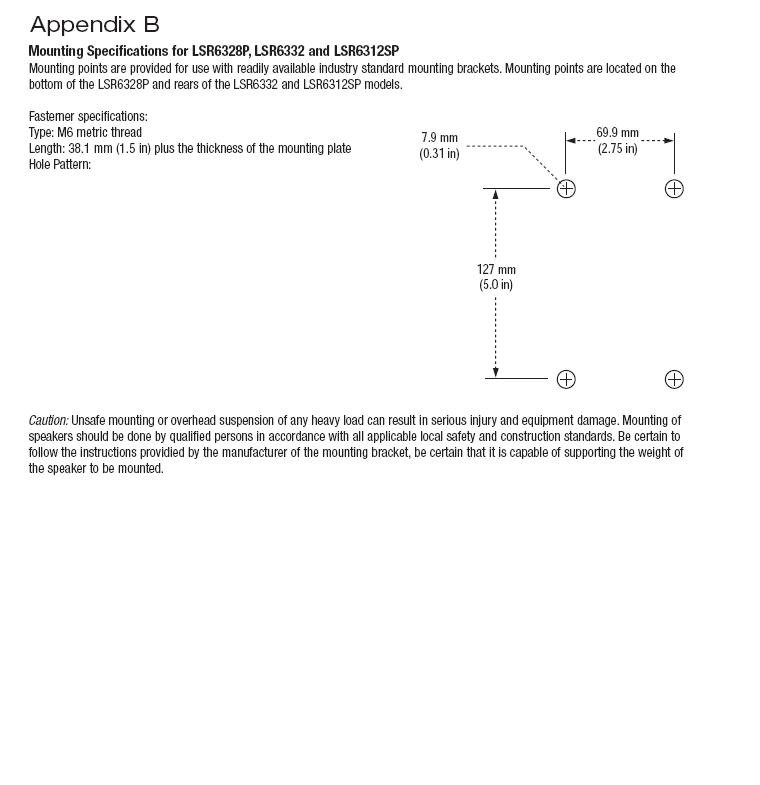

LSR6328P/6332/6312SP Mounting Specs actualizado: oct 2019	48,8 KB	oct 2019

Brochures

	Tamaño	Subido
LSR 6300 Brochure actualizado: oct 2020	5,89 MB	oct 2020
Recording & Broadcast Full Line Catalog actualizado: oct 2020	1,81 MB	oct 2020

Compliances

	Tamaño	Subido
LSR6300 Series Declaration of Conformity actualizado: oct 2019	93,2 KB	oct 2019

Tech Notes

	Tamaño	Subido
Tech Note: The New JBL LSR6300 Series Studio Monitors actualizado: oct 2019	627 KB	oct 2019

Information documents

	Tamaño	Subido
7 Series Mounting Hardware actualizado: oct 2020	395 KB	oct 2020

Helpful Links

	Tamaño	Subido
RMC White Paper actualizado: oct 2020	189 KB	oct 2020
RMC Graph Paper actualizado: oct 2020	60 KB	oct 2020

User Guides

	Tamaño	Subido
RMC User Guide actualizado: oct 2020	2,58 MB	oct 2020

Install Guides

	Tamaño	Subido
R&B Mounting Brackets actualizado: oct 2020	26,2 KB	oct 2020

Images

	Tamaño	Subido

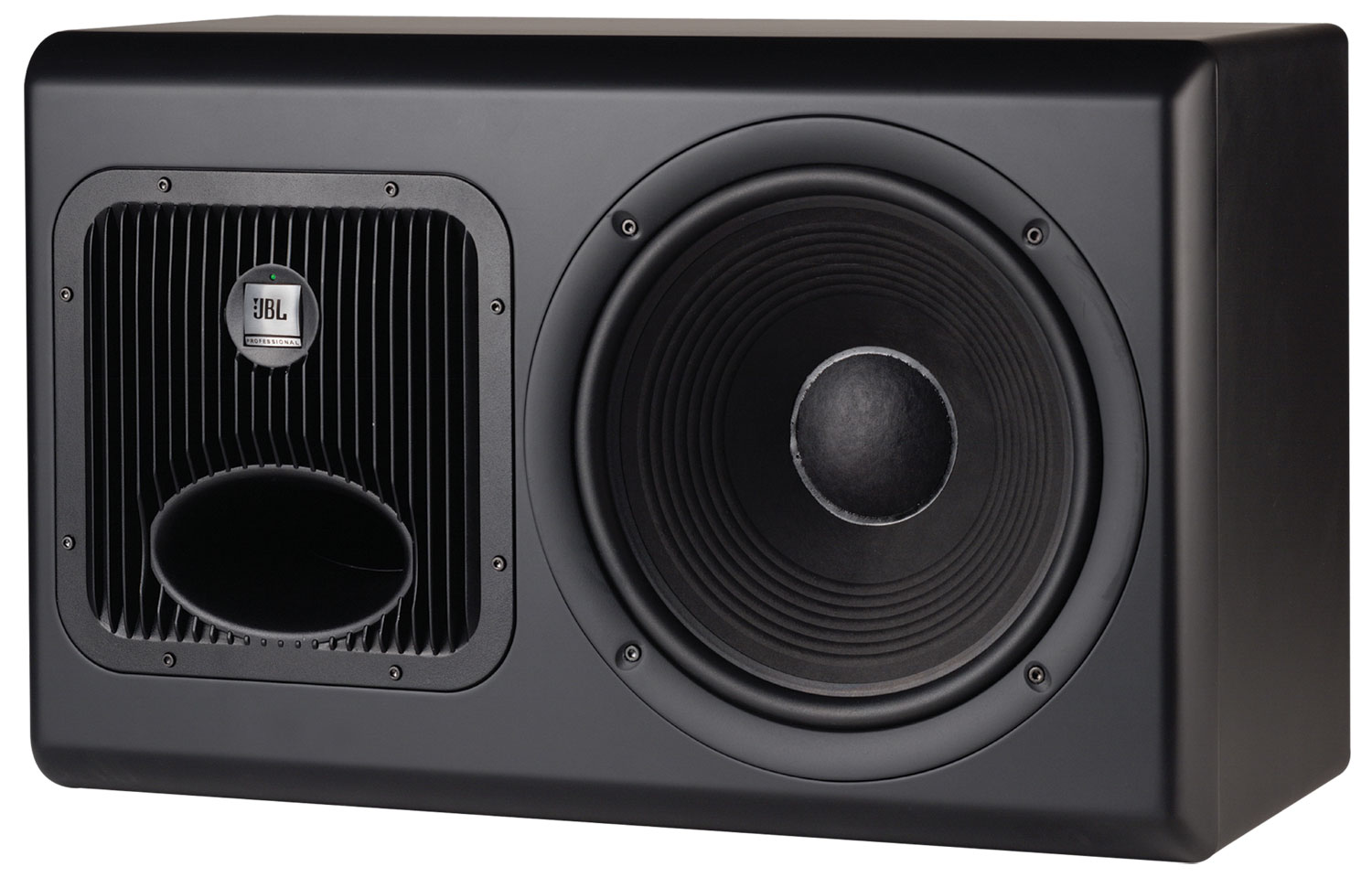

LSR6312SP Left Angle actualizado: oct 2020	148 KB	oct 2020

Owner's Manuals

	Tamaño	Subido
LSR6300 Manual actualizado: oct 2020	815 KB	oct 2020

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Piezas y servicio

Especificaciones

Respuesta de frecuencia	(-6 dB) 28 Hz - 80 Hz
-10 dB	26 Hz
Enclosure Resonance Frequency	28 Hz
Low-To-High Crossover Frequency	80 Hz (4th order electroacoustic Linkwitz-Riley)
Distortion, 96 dB SPL/ 1 m	N/A
Low Frequency (<80 Hz)	N/A
2nd Harmonic	<2%
3rd Harmonic	<1%
Maximum Continuous SPL	>112 dB SPL / 1 m (35 Hz - 80 Hz)
Maximum Peak SPL	>115 dB SPL / 1 m (35 Hz - 80 Hz)
Calibrated Input Sensitivity	XLR or 1/4"
Selectable -10 dBV +4 dBu, +8 dBu	96 dB / 1 m
Power Nonlinearity (20 Hz - 200 Hz):	N/A
30 W	<0.4 dB
100 W	<1.0 dB
Power / Clip / Bypass Indicators	Green LED - normal operationAmber LED - bypass modeRed LED - Limiter activated
Low Frequency Topology	Class A-B, all discrete
Sine Wave Power Rating	260 W (<0.5% THD into rated impedance)
THD + N, 1⁄2Power	<0.05%
AC INPUT VOLTAGE	115 VAC, 60 Hz (230VAC, 50 Hz – model LSR6312SP/230)
AC Input Voltage Operating Range	±15%
