LSR6312SP (停产)

Powered Studio Subwoofer System

较大的图像

Powered Studio Subwoofer System

The LSR6312SP powered subwoofer is based on a 12" woofer with JBL's patented Differential Drive® and 250 Watts of power. THX® pm3 Approved. METAlliance® Certified.



特点

  • Multi-format powered subwoofer for Dolby Prologic, AC-3, DTS and other surround formats.
  • 250 W continuous output power amplifier.
  • Sophisticated LCR bass management system.
  • Direct LFE input with selectable 10 dB input sensitivity.
  • Summed output allows chaining of multiple LSR6312SP for multiple subwoofer systems.
  • Differential Drive® technology with dynamic braking for extended low frequency response and low
    power compression.
  • High-density baffle for low resonance and stable inertial ground.
  • Linear Dynamics Aperture port design eliminates port turbulence and reduces port compression.
  • Reinforced enclosure and convenient mounting points for mounted installation.


下载

  Version Language Size Uploaded
Specifications
LSR6312SP Spec Sheet
updated: 4月29日
    278.5 KB 4月29日
Manuals
LSR6325P used with LSR6312SP Subwoofer Operating note
updated: 10月31日
    11.1 KB 10月31日

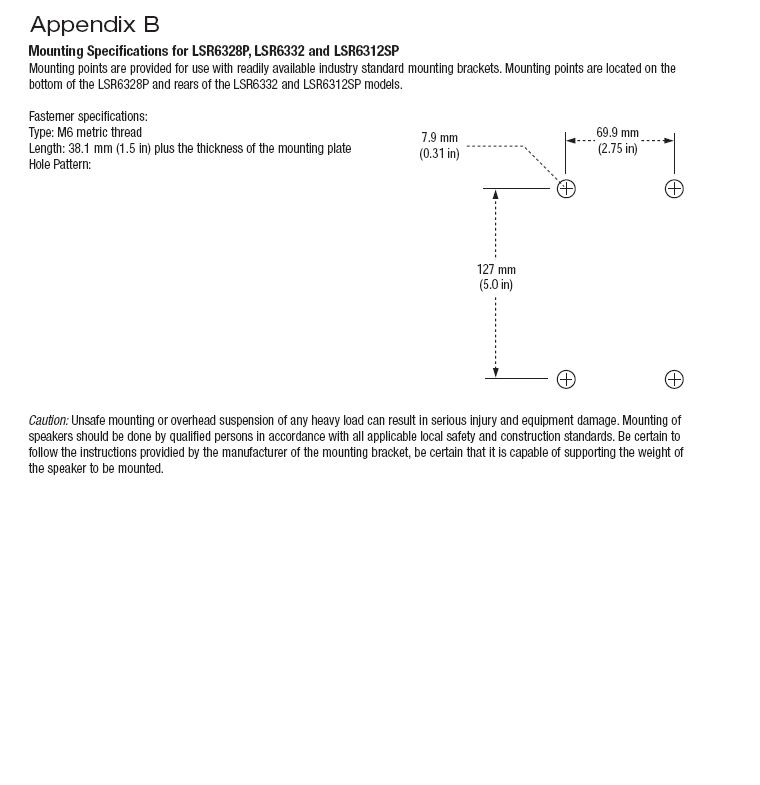

LSR6328P/6332/6312SP Mounting Specs
updated: 10月31日
    48.8 KB 10月31日
Brochures
LSR 6300 Brochure
updated: 4月29日
    5.9 MB 4月29日
Recording & Broadcast Full Line Catalog
updated: 8月20日
    1.8 MB 8月20日
Compliances
LSR6300 Series Declaration of Conformity
updated: 10月18日
    93.2 KB 10月18日
Tech Notes
Tech Note: The New JBL LSR6300 Series Studio Monitors
updated: 10月18日
    627.1 KB 10月18日
Information Documents
7 Series Mounting Hardware
updated: 10月18日
    394.5 KB 10月18日
Helpful Links
RMC White Paper
updated: 10月02日
    188.7 KB 10月02日
RMC Graph Paper
updated: 10月02日
    60.0 KB 10月02日
User Guides
RMC User Guide
updated: 10月02日
    2.6 MB 10月02日
Install Guides
R&B Mounting Brackets
updated: 10月02日
    26.2 KB 10月02日
Images

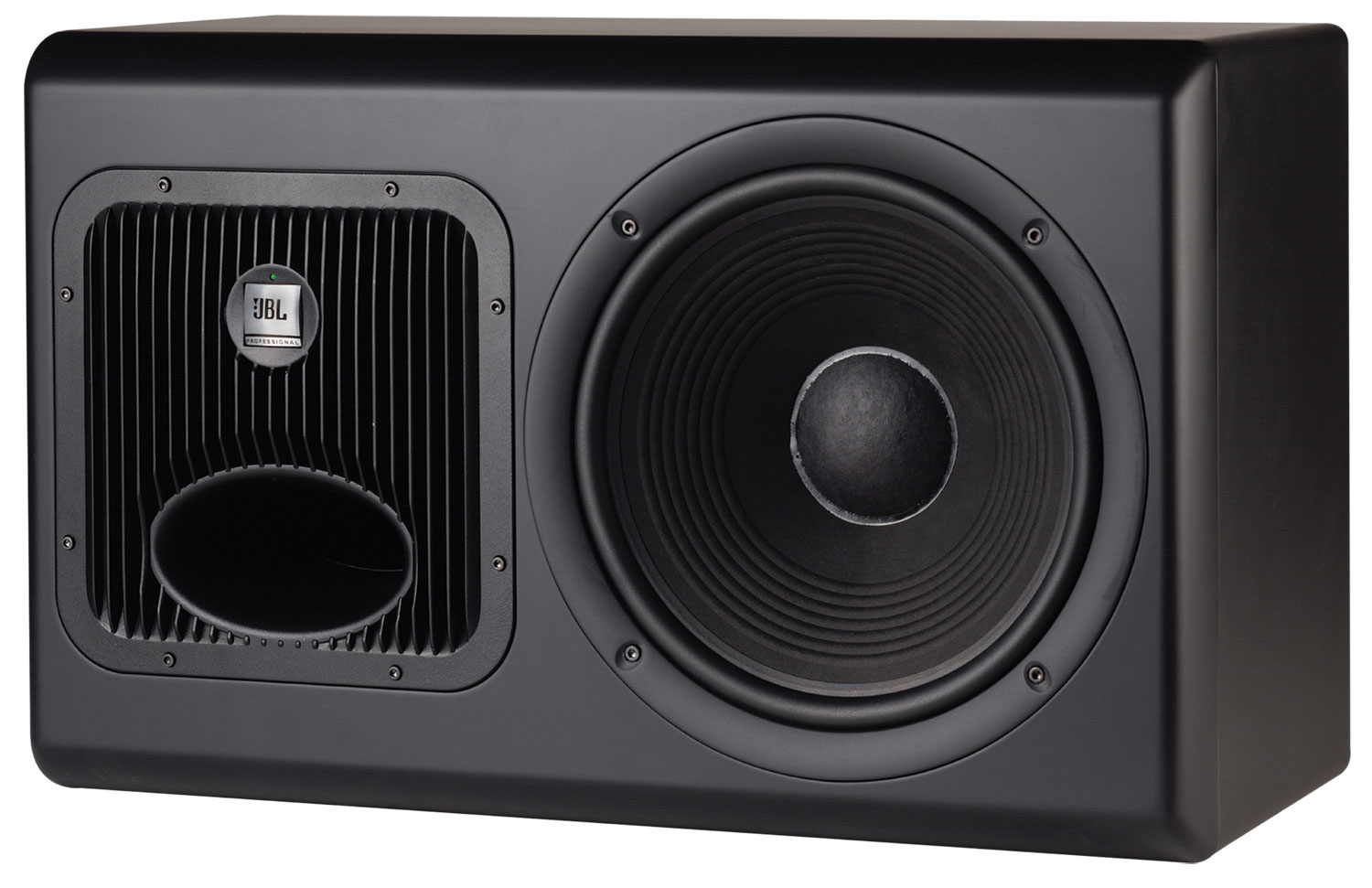

LSR6312SP Left Angle
updated: 4月29日
    147.7 KB 4月29日
Owner's Manuals
LSR6300 Manual
updated: 4月29日
    815.2 KB 4月29日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

频率响应

(-6 dB) 28 Hz - 80 Hz
-10 dB 26 Hz
Enclosure Resonance Frequency 28 Hz
Low-To-High Crossover Frequency 80 Hz (4th order electroacoustic Linkwitz-Riley)
Distortion, 96 dB SPL/ 1 m N/A
Low Frequency (<80 Hz) N/A
2nd Harmonic <2%
3rd Harmonic <1%
Maximum Continuous SPL >112 dB SPL / 1 m (35 Hz - 80 Hz)
Maximum Peak SPL >115 dB SPL / 1 m (35 Hz - 80 Hz)
Calibrated Input Sensitivity XLR or 1/4"
Selectable -10 dBV +4 dBu, +8 dBu 96 dB / 1 m
Power Nonlinearity (20 Hz - 200 Hz): N/A
30 W <0.4 dB
100 W <1.0 dB
Power / Clip / Bypass Indicators Green LED - normal operationAmber LED - bypass modeRed LED - Limiter activated
Low Frequency Topology Class A-B, all discrete
Sine Wave Power Rating 260 W (<0.5% THD into rated impedance)
THD + N, 1⁄2Power <0.05%
AC INPUT VOLTAGE 115 VAC, 60 Hz (230VAC, 50 Hz – model LSR6312SP/230)
AC Input Voltage Operating Range ±15%
