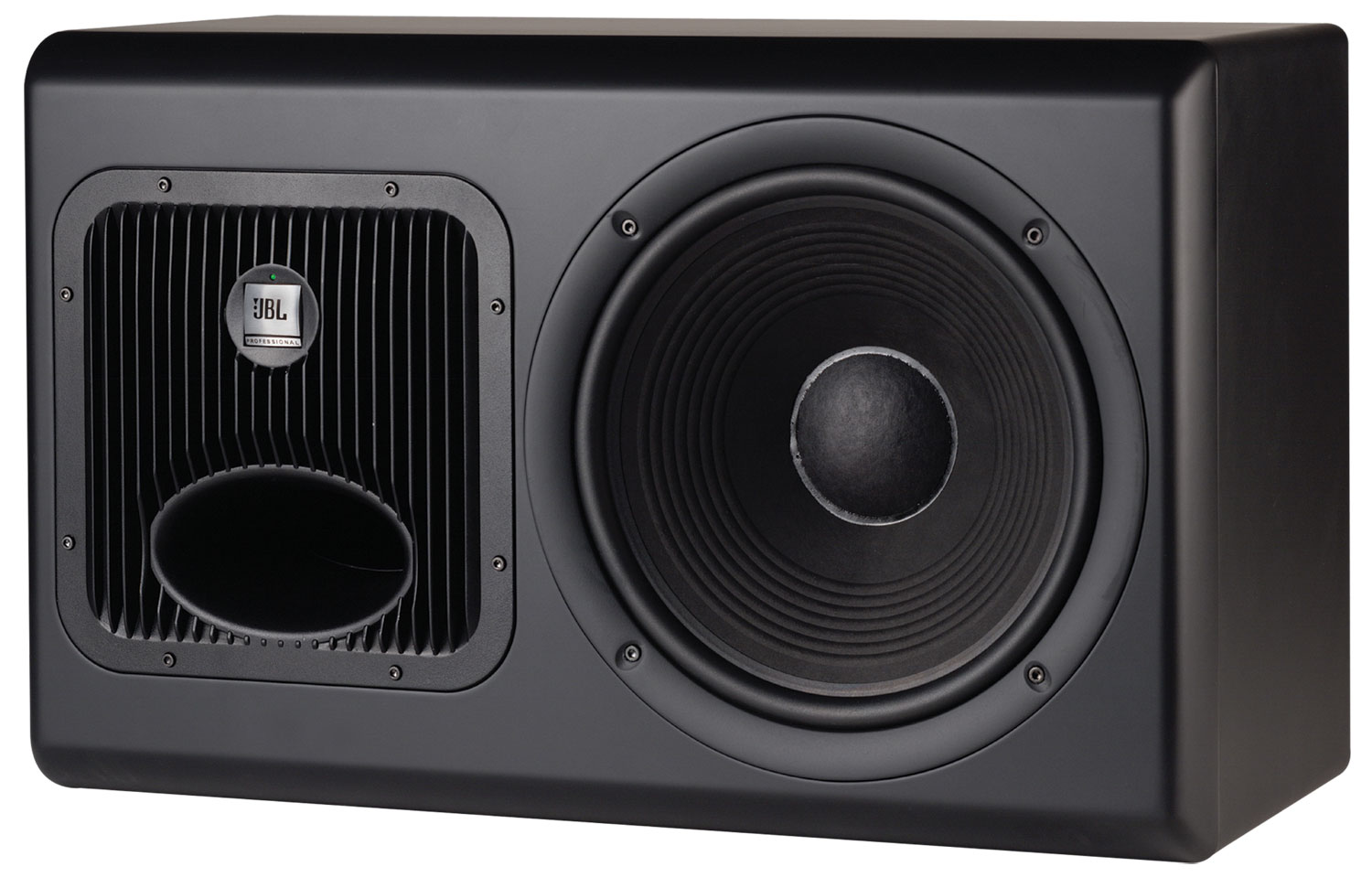

Powered Studio Subwoofer System
The LSR6312SP powered subwoofer is based on a 12" woofer with JBL's patented Differential Drive® and 250 Watts of power. THX® pm3 Approved. METAlliance® Certified.
拡大画像
特長
- Multi-format powered subwoofer for Dolby Prologic, AC-3, DTS and other surround formats.
- 250 W continuous output power amplifier.
- Sophisticated LCR bass management system.
- Direct LFE input with selectable 10 dB input sensitivity.
- Summed output allows chaining of multiple LSR6312SP for multiple subwoofer systems.
- Differential Drive® technology with dynamic braking for extended low frequency response and low
power compression. - High-density baffle for low resonance and stable inertial ground.
- Linear Dynamics Aperture port design eliminates port turbulence and reduces port compression.

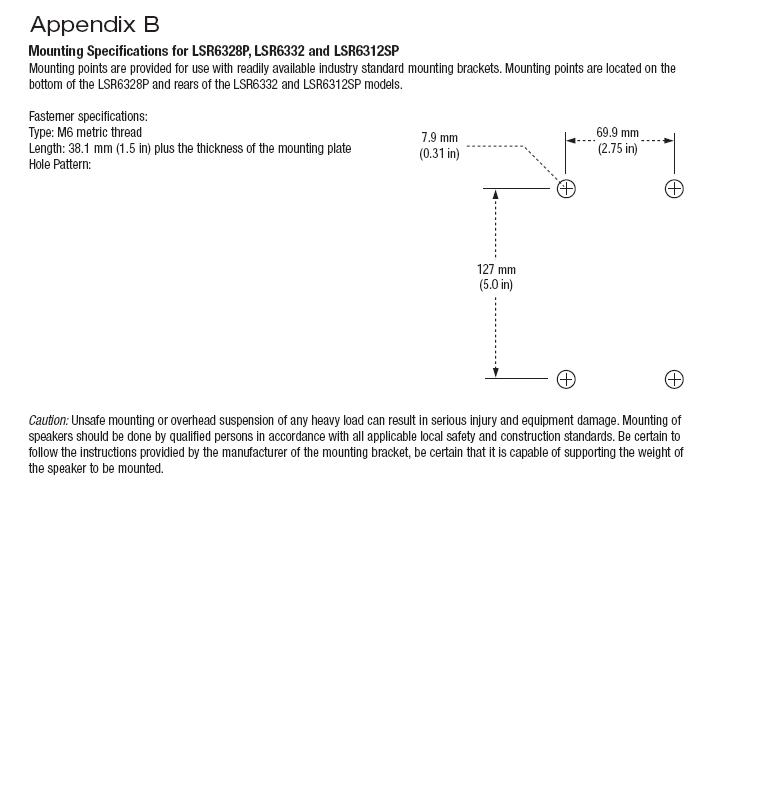

- Reinforced enclosure and convenient mounting points for mounted installation.
ダウンロード
Specifications
| サイズ | |
|
|
279KB |
Manuals
| サイズ | |
| 11.1KB | |
|
|
48.8KB |
Brochures
| サイズ | |
|
|
5.89MB |
|
|
1.81MB |
Compliances
| サイズ | |
|
|
93.2KB |
Tech Notes
| サイズ | |
| 627KB |
Information documents
| サイズ | |
|
|
395KB |
Helpful Links
| サイズ | |
|
|
189KB |
|
|
60KB |
User Guides
| サイズ | |
|
|
2.58MB |
Install Guides
| サイズ | |
|
|
26.2KB |
Images
| サイズ | |
|
|
148KB |
Owner's Manuals
| サイズ | |
|
|
815KB |
上記のリンクをクリックしてブラウザで文字化けが発生する場合は、ファイルを右クリックしてコンピューターに保存してください。
パーツとサービス
仕様
| Frequency Response | (-6 dB) 28 Hz - 80 Hz |
| -10 dB | 26 Hz |
| Enclosure Resonance Frequency | 28 Hz |
| Low-To-High Crossover Frequency | 80 Hz (4th order electroacoustic Linkwitz-Riley) |
| Distortion, 96 dB SPL/ 1 m | N/A |
| Low Frequency (<80 Hz) | N/A |
| 2nd Harmonic | <2% |
| 3rd Harmonic | <1% |
| Maximum Continuous SPL | >112 dB SPL / 1 m (35 Hz - 80 Hz) |
| Maximum Peak SPL | >115 dB SPL / 1 m (35 Hz - 80 Hz) |
| Calibrated Input Sensitivity | XLR or 1/4" |
| Selectable -10 dBV +4 dBu, +8 dBu | 96 dB / 1 m |
| Power Nonlinearity (20 Hz - 200 Hz): | N/A |
| 30 W | <0.4 dB |
| 100 W | <1.0 dB |
| Power / Clip / Bypass Indicators | Green LED - normal operationAmber LED - bypass modeRed LED - Limiter activated |
| Low Frequency Topology | Class A-B, all discrete |
| Sine Wave Power Rating | 260 W (<0.5% THD into rated impedance) |
| THD + N, 1⁄2Power | <0.05% |
| AC INPUT VOLTAGE | 115 VAC, 60 Hz (230VAC, 50 Hz – model LSR6312SP/230) |
| AC Input Voltage Operating Range | ±15% |
