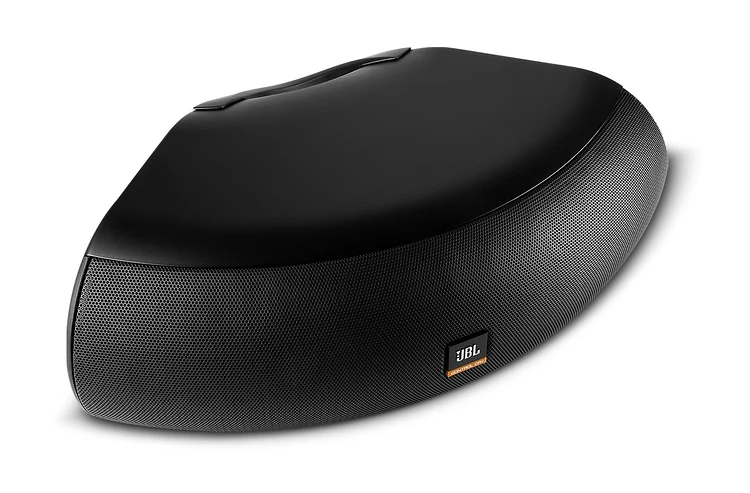

CRV Black
Larger Images

Control CRV

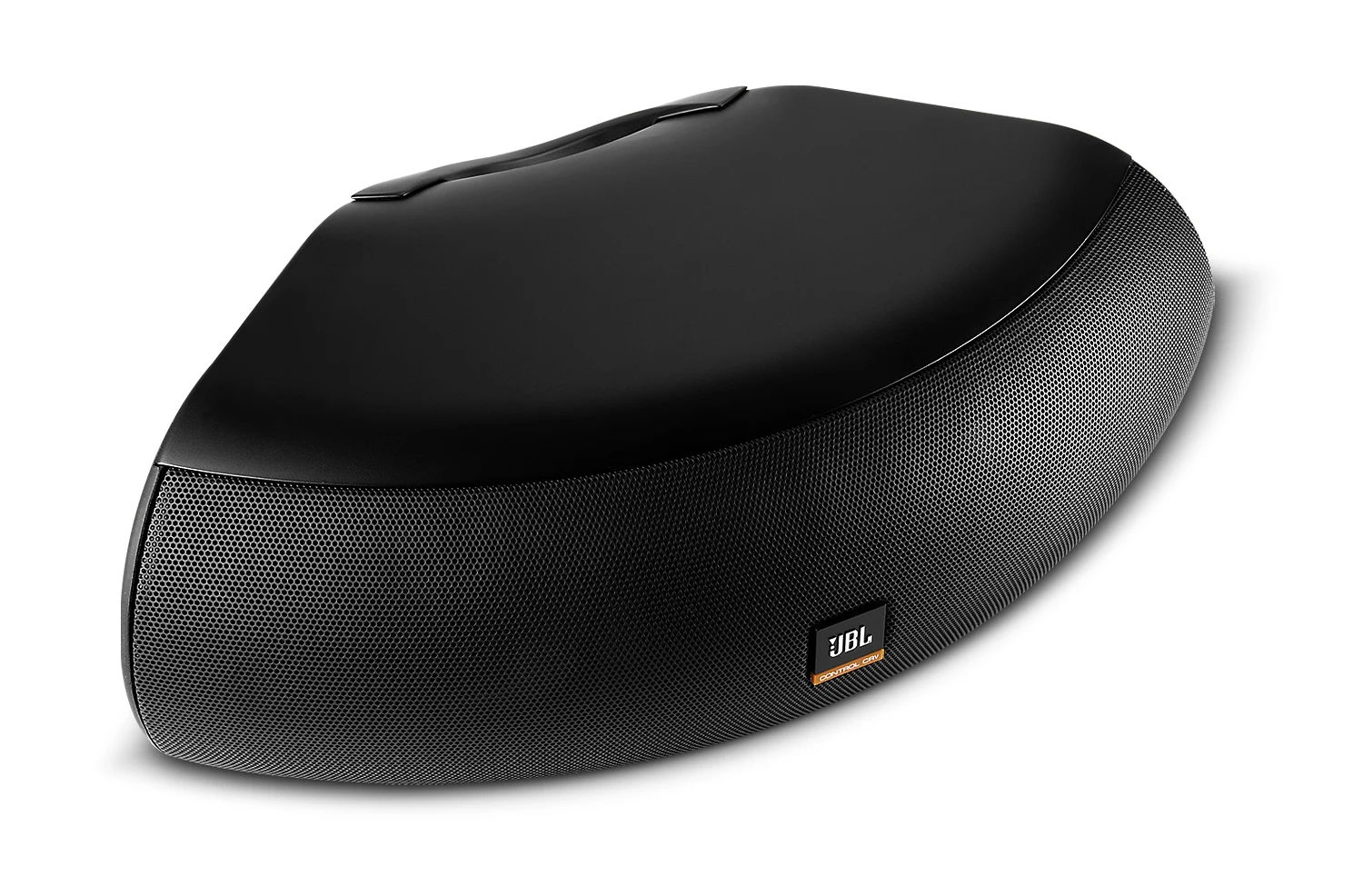

High Design Loudspeaker with 70V/100V Transformer. Weather Resistance. Unique, contemporary, curved design. Dual 100 mm (4 in) woofers provide superb sound quality. Combinable into half-round or full 360° round arc clusters.

Downloads

  Version Language Size Uploaded
Specifications
file type icon Control CRV Spec Sheet
updated: oct 2020
    573 KB oct 2020
Manuals
file type icon CRV Owner's Manual
updated: oct 2019
    2,18 MB oct 2019
CAD Drawings
file type icon Control CRV 2D CAD Drawing
updated: oct 2023
    578 KB oct 2023
file type icon Control CRV 3D CAD Drawing
updated: oct 2023
    4,73 MB oct 2023
Compliances
file type icon JBL Control Series Passive Speakers DoC
updated: dic 2019
    179 KB dic 2019
file type icon Control CRV Declaration of Conformity
updated: oct 2019
    145 KB oct 2019
Information documents
file type icon Pole Mount Bracket
updated: oct 2020
    611 KB oct 2020
Images

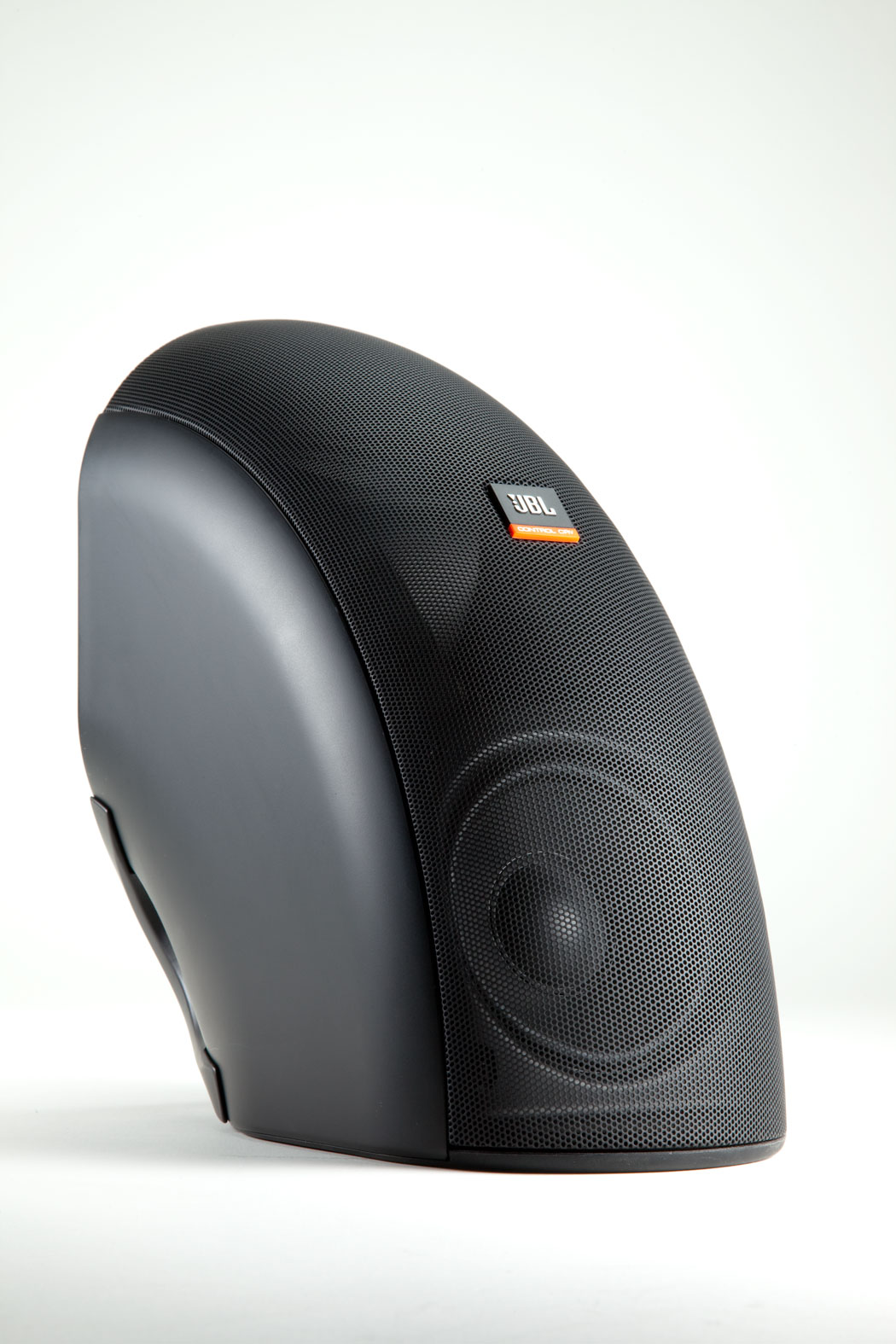

file type icon CRV Black Hi Res Photo
updated: oct 2020
    199 KB oct 2020
FAQs
file type icon Control CRV FAQ
updated: oct 2020
    109 KB oct 2020
Drawings 2D/3Ds
file type icon Control CRV 2D Drawing
updated: oct 2023
    138 KB oct 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range 80 Hz – 20 kHz
Power Capacity 75 W continuous pink noise (300 W peak)
Transformer Selectable 70V/100V or low impedance
Usability Indoor/outdoor capable
Colors Black, or White (-WH)
Sensitivity 89 dB, 1W@1m
Maximum SPL (1m) 108 dB continuous average long-term (peaks of 114 dB)
Coverage Angle 105°H x80°V
Impedance 4 Ohms
Transformer Taps 30 W, 15 W, 7.5 W (plus 3.8 W @ 70 V only), plus Thru
Drivers LF Driver: Dual 4" (100 mm)
HF Driver: 3/4" (19 mm)
Input Connectors Screw-down terminal strip
Grille Zinc-plated steel
Mounting Hardware Included wall-mount bracket. Optional pole-mount accessory.
Outdoor Capability IP-34 rating. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray
Included Accessories Corner/wall-mount bracket with cap, screws, and trim covers
Optional Accessories Pole-Mount Bracket for 4-speaker 360° hanging pendant cluster
