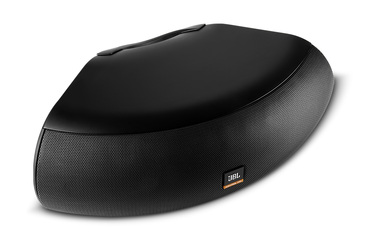

CRV Black

Control CRV

Larger Images

Control CRV

High Design Loudspeaker with 70V/100V Transformer. Weather Resistance. Unique, contemporary, curved design. Dual 100 mm (4 in) woofers provide superb sound quality. Combinable into half-round or full 360° round arc clusters.

Downloads

  Version Language Size Uploaded
Specifications
Control CRV Spec Sheet
updated: Apr 29, 2019
    573 KB Apr 29, 2019
Manuals
CRV Owner's Manual
updated: Oct 18, 2019
    2.18 MB Oct 18, 2019
Bim Objects
BIM (Revit) Files
updated: Oct 03, 2019
    12.4 MB Oct 03, 2019
Compliances
Control CRV Declaration of Conformity
updated: Oct 18, 2019
    145 KB Oct 18, 2019
JBL Control Series Passive Speakers DoC
updated: Dec 17, 2019
    179 KB Dec 17, 2019
Faqs
Control CRV FAQ
updated: Apr 29, 2019
    109 KB Apr 29, 2019
Images

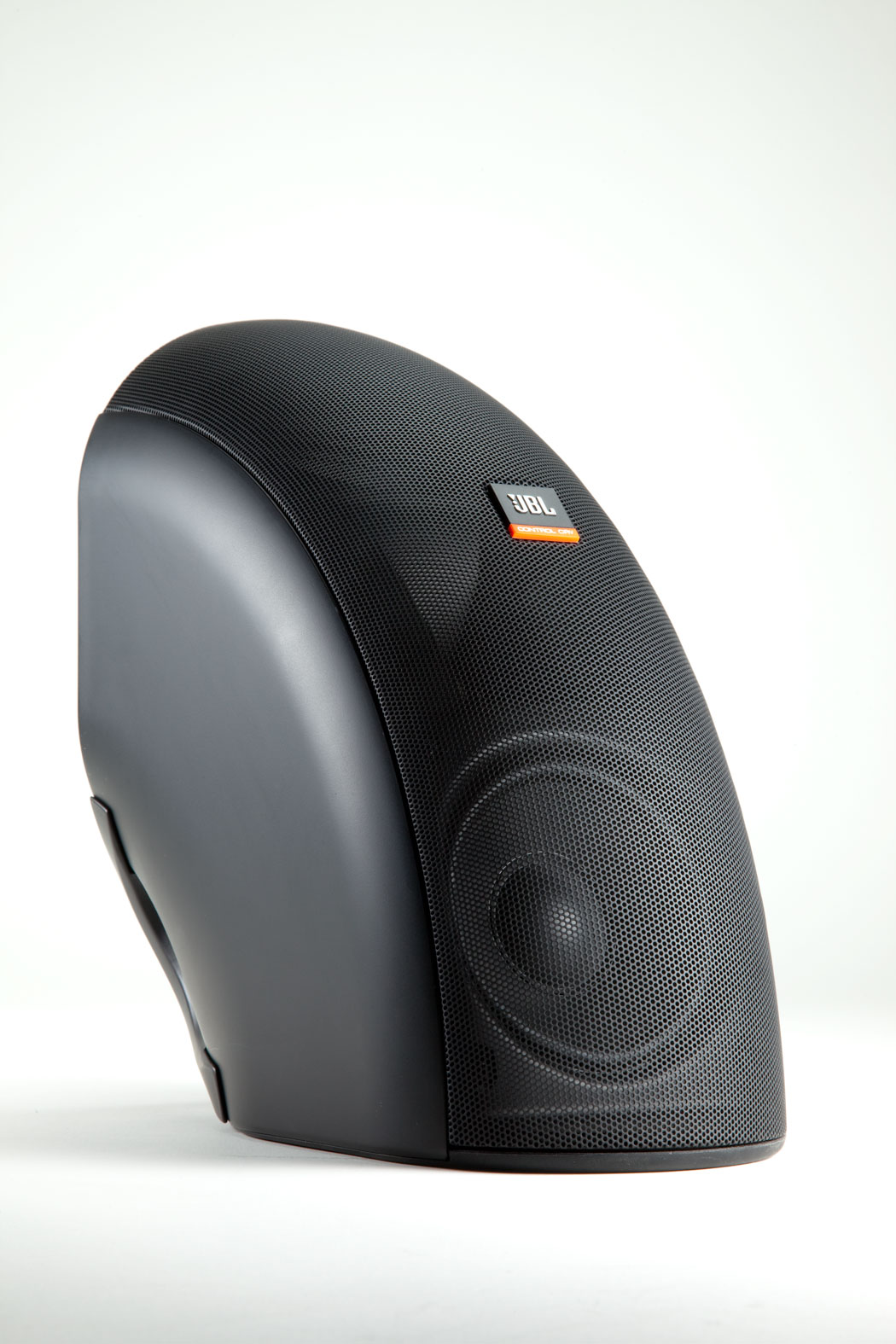

CRV Black Hi Res Photo
updated: Apr 29, 2019
    199 KB Apr 29, 2019
Information Documents
Pole Mount Bracket
updated: Oct 18, 2019
    611 KB Oct 18, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Range 80 Hz – 20 kHz
Power Capacity 75 W continuous pink noise (300 W peak)
Transformer Selectable 70V/100V or low impedance
Usability Indoor/outdoor capable
Colors Black, or White (-WH)
Sensitivity (1W, 1m) 89 dB, 1W@1m
Maximum SPL (1m) 108 dB continuous average long-term (peaks of 114 dB)
Coverage Angle 105° horizontal x 80° vertical
Impedance 4 Ohms
Transformer Taps 30 W, 15 W, 7.5 W (plus 3.8 W @ 70 V only), plus Thru
Drivers LF Driver: Dual 4" (100 mm)
HF Driver: 3/4" (19 mm)
Input Connectors Screw-down terminal strip
Grille Zinc-plated steel
Mounting Hardware Included wall-mount bracket. Optional pole-mount accessory.
Outdoor Capability IP-34 rating. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray
Included Accessories Corner/wall-mount bracket with cap, screws, and trim covers
Optional Accessories Pole-Mount Bracket for 4-speaker 360° hanging pendant cluster
