CRV Black

Control CRV

CRV Black
较大的图像

Control CRV

High Design Loudspeaker with 70V/100V Transformer. Weather Resistance. Unique, contemporary, curved design. Dual 100 mm (4 in) woofers provide superb sound quality. Combinable into half-round or full 360° round arc clusters.

下载

  Version Language Size Uploaded
Specifications
file type icon Control CRV Spec Sheet
updated: 10月 2020
    572.6 KB 10月 2020
Manuals
file type icon CRV Owner's Manual
updated: 10月 2019
    2.2 MB 10月 2019
CAD Drawings
file type icon Control CRV 2D CAD Drawing
updated: 10月 2023
    578.3 KB 10月 2023
file type icon Control CRV 3D CAD Drawing
updated: 10月 2023
    4.7 MB 10月 2023
Compliances
file type icon JBL Control Series Passive Speakers DoC
updated: 12月 2019
    179.3 KB 12月 2019
file type icon Control CRV Declaration of Conformity
updated: 10月 2019
    144.7 KB 10月 2019
Information documents
file type icon Pole Mount Bracket
updated: 10月 2020
    611.3 KB 10月 2020
Images

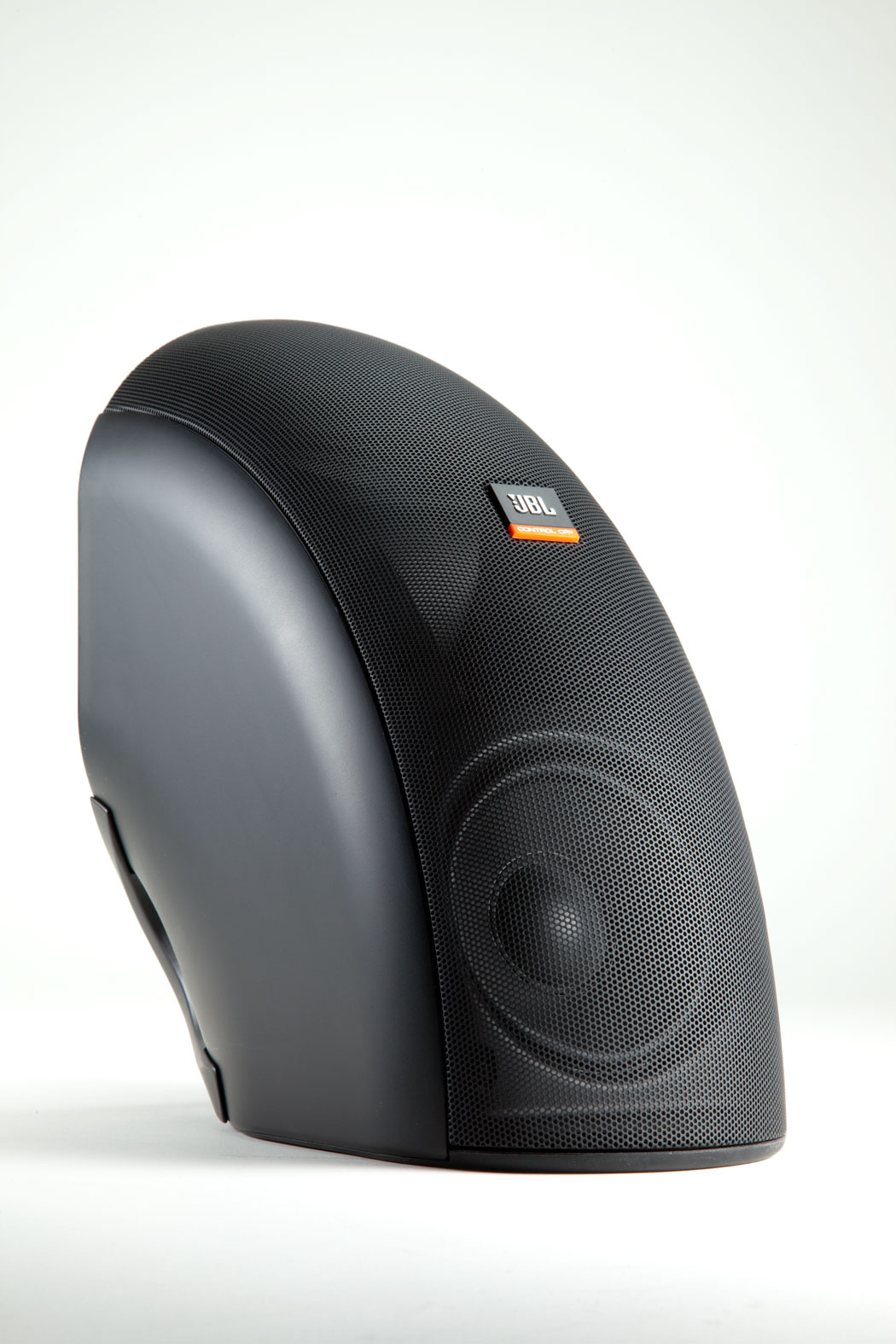

file type icon CRV Black Hi Res Photo
updated: 10月 2020
    199.2 KB 10月 2020
FAQs
file type icon Control CRV FAQ
updated: 10月 2020
    108.8 KB 10月 2020
Drawings 2D/3Ds
file type icon Control CRV 2D Drawing
updated: 10月 2023
    137.7 KB 10月 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 80 Hz – 20 kHz
功率容量 75 W continuous pink noise (300 W peak)
变压器 Selectable 70V/100V or low impedance
Usability Indoor/outdoor capable
Colors Black, or White (-WH)

灵敏度

89 dB, 1W@1m
Maximum SPL (1m) 108 dB continuous average long-term (peaks of 114 dB)
覆盖角度 105°H x80°V
阻抗 4 Ohms
变压器抽头 30 W, 15 W, 7.5 W (plus 3.8 W @ 70 V only), plus Thru
Drivers LF Driver: Dual 4" (100 mm)
HF Driver: 3/4" (19 mm)
输入接口 Screw-down terminal strip
网罩 Zinc-plated steel
装配硬件 Included wall-mount bracket. Optional pole-mount accessory.
Outdoor Capability IP-34 rating. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray

随附配件

Corner/wall-mount bracket with cap, screws, and trim covers
Optional Accessories Pole-Mount Bracket for 4-speaker 360° hanging pendant cluster
