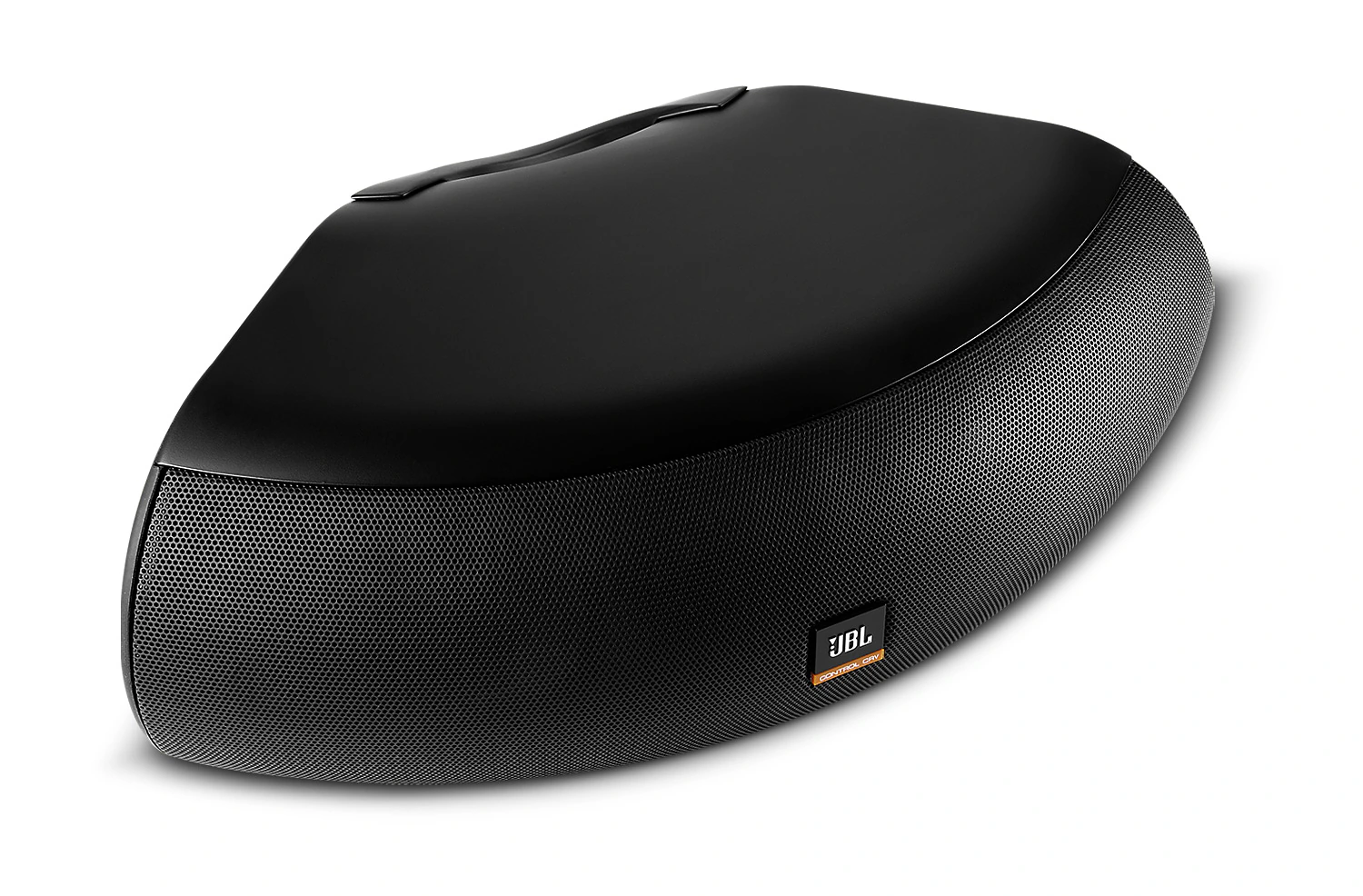

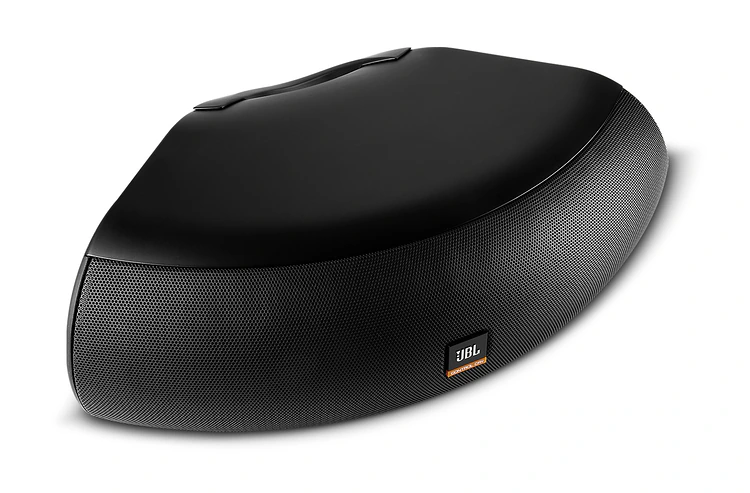

Control CRV
High Design Loudspeaker with 70V/100V Transformer. Weather Resistance. Unique, contemporary, curved design. Dual 100 mm (4 in) woofers provide superb sound quality. Combinable into half-round or full 360° round arc clusters.
Grandes images
Téléchargements
| Size | ||||
Specifications | ||||
Control CRV Spec Sheet
updated: oct. 2020
|
573 ko | |||
Manuals | ||||
|
CRV Owner's Manual
updated: oct. 2019
|
2,18 Mo | |||
CAD Drawings | ||||
Control CRV 2D CAD Drawing
updated: oct. 2023
|
578 ko | |||
|
Control CRV 3D CAD Drawing
updated: oct. 2023
|
4,73 Mo | |||
Compliances | ||||
|
JBL Control Series Passive Speakers DoC
updated: déc. 2019
|
179 ko | |||
|
Control CRV Declaration of Conformity
updated: oct. 2019
|
145 ko | |||
Information documents | ||||
|
Pole Mount Bracket
updated: oct. 2020
|
611 ko | |||
Images | ||||
|

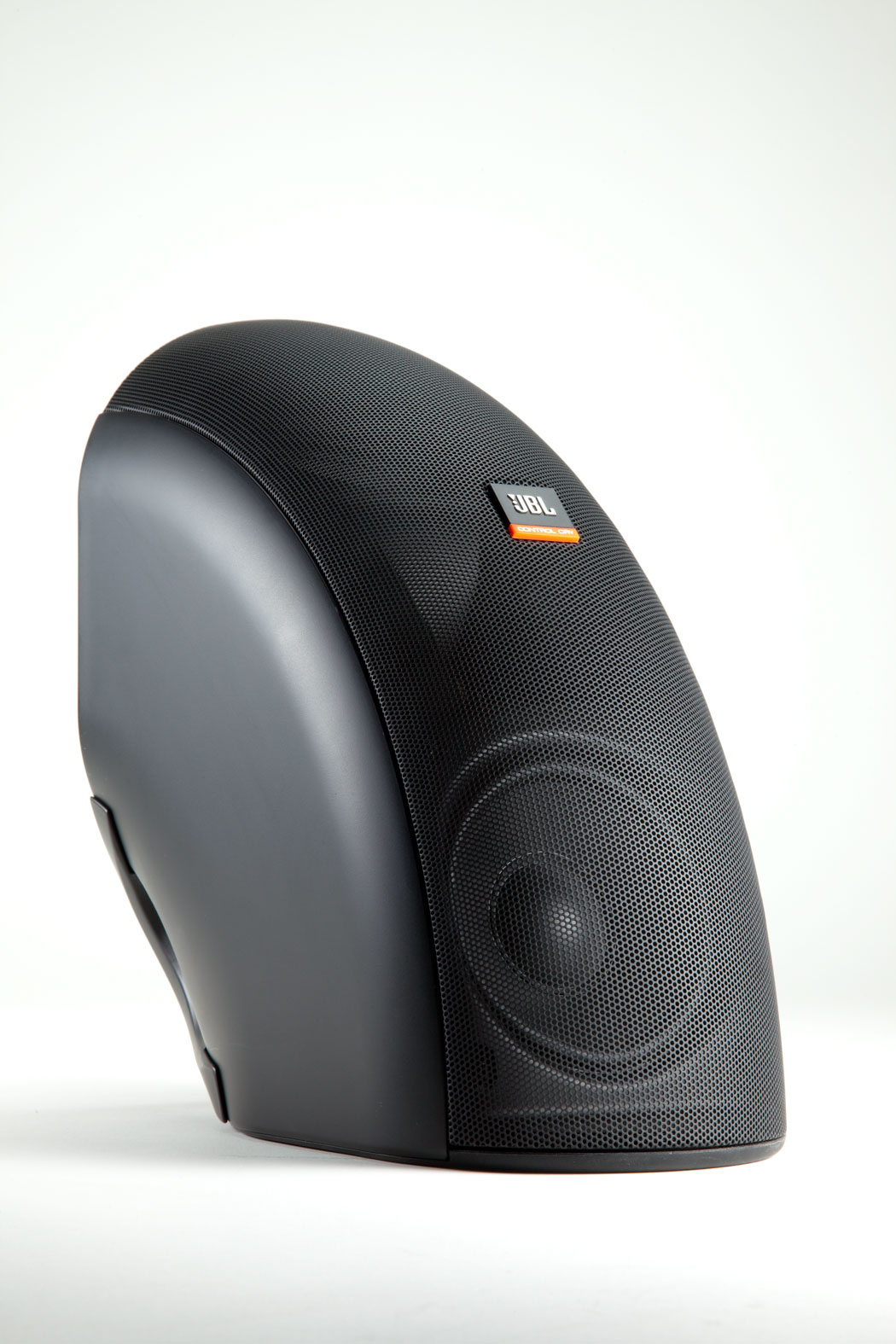

CRV Black Hi Res Photo
updated: oct. 2020
|
199 ko | |||
FAQs | ||||
|
Control CRV FAQ
updated: oct. 2020
|
109 ko | |||
Drawings 2D/3Ds | ||||
|
Control CRV 2D Drawing
updated: oct. 2023
|
138 ko | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Pièces détachées et réparations
Caractéristiques techniques
| Frequency Range | 80 Hz – 20 kHz |
| Power Capacity | 75 W continuous pink noise (300 W peak) |
| Transformer | Selectable 70V/100V or low impedance |
| Usability | Indoor/outdoor capable |
| Colors | Black, or White (-WH) |
| Sensitivity | 89 dB, 1W@1m |
| Maximum SPL (1m) | 108 dB continuous average long-term (peaks of 114 dB) |
| Coverage Angle | 105°H x80°V |
| Impedance | 4 Ohms |
| Transformer Taps | 30 W, 15 W, 7.5 W (plus 3.8 W @ 70 V only), plus Thru |
| Drivers | LF Driver: Dual 4" (100 mm) HF Driver: 3/4" (19 mm) |
| Input Connectors | Screw-down terminal strip |
| Grille | Zinc-plated steel |
| Mounting Hardware | Included wall-mount bracket. Optional pole-mount accessory. |
| Outdoor Capability | IP-34 rating. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray |
| Included Accessories | Corner/wall-mount bracket with cap, screws, and trim covers |
| Optional Accessories | Pole-Mount Bracket for 4-speaker 360° hanging pendant cluster |
