Control 227CT

Altavoz de techo coaxial de 6,5" con controlador de compresión de HF

Control 227CT
Imágenes más grandes

Altavoz de Techo Coaxial de 6.5" con Controlador de Compresión HF y Transformador Multi-Tap de 60W

Los altavoces profesionales de techo premium JBL Professional Control 227C y CT están diseñados para aplicaciones que requieren sonido de calidad superior en instalaciones de montaje en techo.

Características

  • Consistent 120° broadband pattern control for exceptional coverage.
  • Coaxial design featuring:
    Kevlar-reinforced 165 mm (6.5 in) woofer.
    25 mm (1 in) compression driver.
  • Extraordinary clarity for speech and vocals with extended frequency response for music.
  • 150 Watts Power Handling.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • Separate back can and contemporary grille available.
    (sold separately)

Descargas

Specifications
  Tamaño Subido
file type icon Control 227C AE Specs
actualizado: abr 2019
13 KB abr 2019
file type icon Control 227C Spec Sheet
actualizado: abr 2019
363 KB abr 2019
Manuals
  Versión Tamaño Subido
file type icon Control 227C&CT install instructions
actualizado: oct 2020
  590 KB oct 2020
  590 KB oct 2019
file type icon Control 200 User's Guide
actualizado: oct 2019
  2,3 MB oct 2019
file type icon Ceiling Speaker Accessory Guide
versión A, actualizado: may 2026
127 KB may 2026
Brochures
  Versión Idioma Tamaño Subido
file type icon Control 200 Brochure
actualizado: abr 2019
    324 KB abr 2019
file type icon Control Contractor Brochure (2025)
en versión A, actualizado: mar 2026
en  23 MB mar 2026
file type icon Control Contractor Brochure (2024)
en versión D, actualizado: feb 2024
en  14 MB feb 2024
file type icon Control Contractor Brochure (2026)
en actualizado: mar 2026
  en  21 MB mar 2026
CAD Drawings
  Tamaño Subido
file type icon CAD Drawings
actualizado: abr 2019
3,45 MB abr 2019
Compliances
  Tamaño Subido
179 KB dic 2019
92,6 KB oct 2019
Software
  Versión Tamaño Subido
Windows download icon Distributed System Design (DSD)
versión 3.9, actualizado: nov 2025
3.9   612 KB nov 2025
Speaker Tunings
  Versión Tamaño Subido
file type icon Commercial, CBT, and AWC Tunings 220616
versión A, actualizado: may 2023
557 KB may 2023
Install Guides
  Tamaño Subido
file type icon Control 227C Install Sheet
actualizado: abr 2019
590 KB abr 2019
Owner's Manuals
  Tamaño Subido
file type icon Control 226/227 Manual
actualizado: abr 2024
2,3 MB abr 2024

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Piezas y servicio

Especificaciones

Frequency Range (-10dB) 43 Hz - 19 kHz
Transformer Taps 68W, 34W, 17W (& 8.5W @ 70V)
Sensitivity 90 dB (1 kHz - 16 kHz)
Coverage Angle 120° conical, constant directivity
Resposta de frequência (-3dB) 75 Hz - 17 kHz
Drivers LF Driver: 165 mm (6.5 inch)
HF Driver: compression driver, 25 mm (1 inch) coil
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-200BB6 or MTC300BB8. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Dimensions (H x Dia) Ø 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in)
Net Weight (each) 5.2 kg (11.5 lb)
Shipping Weight (pair) 6.6 kg (14.5 lb)
Power Rating See transformer taps
Maximum SPL (1m) 108 dB (top 70V/100V tap)
CONEXIONES DE ENTRADA Screw locking barrier strip for bare wire
Color White
Backcan formed steel (wood-lined; accessory)
Baffle/Rim Metal, round, driver pre-mounted to baffle, ported.
Ceiling Cutout Size 310 mm (12.2 in) diameter (for MTC-200BB6 backcan)
Included Accessories Ported baffle pre-attached, transformer on 227CT
Optional Accessories MTC-200BB6 Back Can (0.7 cu ft) MTC-RG6/8 Grille MTC-TB6/8 Tile Bridge Also compatible with MTC-300BB8 backcan (1.0 cu ft)
Plenum Usage Yes, with accessory backcan

Accesorios

MTC-200BB6 | MTC-200BB6 Backcan Premium 0.5 Cubic Foot Cylindrical Backcan
MTC-200BB6 Main photo
Imágenes más grandes
MTC-200BB6 detail thumbnail #1 MTC-200BB6 detail thumbnail #2

MTC-200BB6 Backcan Premium 0.5 Cubic Foot Cylindrical Backcan

Backcan for Control 227C & CT Medium Format In-Ceiling Loudspeakers

  • Extra-thick 16 gauge metal construction.
  • Lined with 12 mm (1/2 in) thick MDF to eliminate resonances and to provide extra bass response.
  • Knockouts on top and side.

Documentación
MTC-RG6/8 | Round Grille for Control 200 and Control 300 Series
MTC-RG6/8 Main photo
Imágenes más grandes
MTC-RG6/8 detail thumbnail #1

Round Grille for Control 200 and Control 300 Series



  • Rugged 19 gauge metal construction for enduring reliability.
  • Sculpted design for an elegant appearance and perfect for any decor or architectural setting.
  • Zinc underplating provides a rust and scratch resistant surface for years of maintenance free wear.
  • Powder coat final finish minimizes scratching and can easily be repainted to match any room color.

Documentación

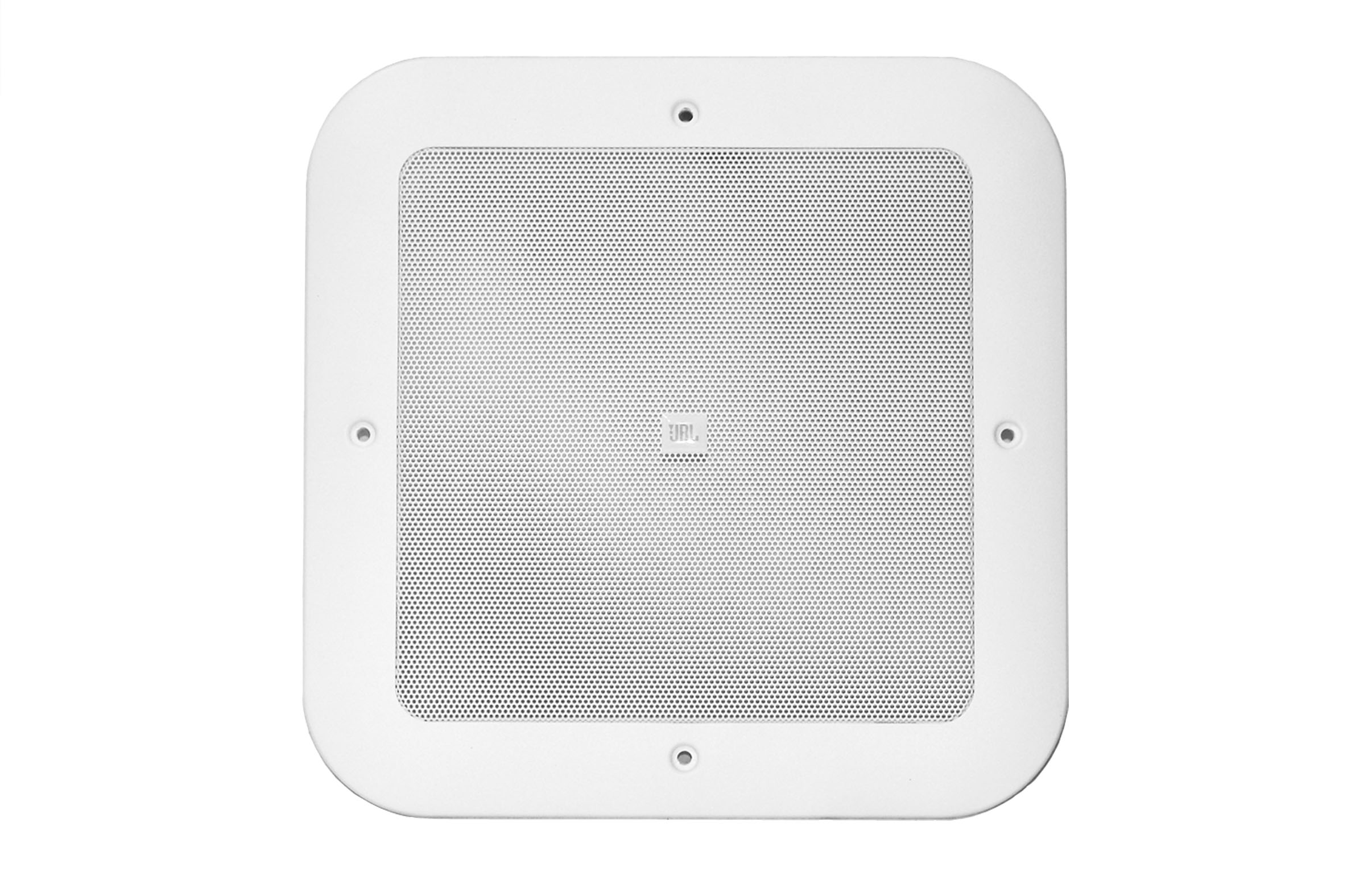

MTC-SG6/8 | Square Grille for Control 200 and Control 300 Series
MTC-SG6/8 Main photo
Imágenes más grandes
MTC-SG6/8 detail thumbnail #1

Square Grille for Control 200 and Control 300 Series



  • Rugged 19 gauge metal construction for enduring reliability.
  • Sculpted design for an elegant appearance and perfect for any decor or architectural setting.
  • Zinc plating provides a rust and scratch resistant surface for years of maintenance free wear.
  • Powder coated paint finish minimizes scratching and can easily be repainted to match any room color.

Documentación
MTC-TB6/8 | Tile Bridge for Control 200 and Control 300 Series
MTC-TB6/8 Main photo
Imágenes más grandes
MTC-TB6/8 detail thumbnail #1 MTC-TB6/8 detail thumbnail #2

Tile Bridge for Control 200 and Control 300 Series



  • Robust 18-gauge steel construction with an epoxy based powdercoat finish.
  • Over-The-Grid design reduces sound transmission to ceiling grid thereby minimizing rattle.
  • 310 mm (12.2 inch) opening accommodating both Control 328C/CT and Control 227C/CT models.
  • Fits 610 mm (24 inch) and 600 mm (23.6 inch) tile grids.

Documentación
