Control 227CT

6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver

Control 227CT
较大的图像

6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver with 60W Multi-Tap Transformer

The JBL Professional Control 227C and CT are premium in-ceiling professional loudspeakers designed for applications requiring superior quality sound in-ceiling mount applications.

特点

  • Consistent 120° broadband pattern control for exceptional coverage.
  • Coaxial design featuring:
    Kevlar-reinforced 165 mm (6.5 in) woofer.
    25 mm (1 in) compression driver.
  • Extraordinary clarity for speech and vocals with extended frequency response for music.
  • 150 Watts Power Handling.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • Separate back can and contemporary grille available.
    (sold separately)

下载

  Version Language Size Uploaded
Specifications
file type icon Control 227C AE Specs
updated: 4月 2019
    13.0 KB 4月 2019
file type icon Control 227C Spec Sheet
updated: 4月 2019
    363.1 KB 4月 2019
Manuals
file type icon Ceiling Speaker Accessory Guide
version B, updated: 1月 2024
  230.7 KB 1月 2024
file type icon Control 227C&CT install instructions
updated: 10月 2020
    590.2 KB 10月 2020
file type icon Control 227 Backcan Assy. Instructions
updated: 10月 2019
    590.2 KB 10月 2019
file type icon Control 200 User's Guide
updated: 10月 2019
    2.3 MB 10月 2019
Brochures
file type icon Control 200 Brochure
updated: 4月 2019
    323.8 KB 4月 2019
file type icon Control Contractor Brochure (2024)
en version E, updated: 3月 2024
en  14.2 MB 3月 2024
CAD Drawings
file type icon CAD Drawings
updated: 4月 2019
    3.4 MB 4月 2019
Compliances
file type icon JBL Control Series Passive Speakers DoC
updated: 12月 2019
    179.3 KB 12月 2019
file type icon Control 200 Series Declaration of Conformity
updated: 10月 2019
    92.6 KB 10月 2019
Software
platform icon Distributed System Design (DSD)
version 3.7, updated: 11月 2023
3.7     1.1 MB 11月 2023
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: 5月 2023
  557.0 KB 5月 2023
Install Guides
file type icon Control 227C Install Sheet
updated: 4月 2019
    590.2 KB 4月 2019
Owner's Manuals
file type icon Control 226-C/T Manual
updated: 4月 2019
    2.3 MB 4月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 (-10dB) 43 Hz - 19 kHz
变压器抽头 68W, 34W, 17W (& 8.5W @ 70V)

灵敏度

90 dB (1 kHz - 16 kHz)
覆盖角度 120° conical, constant directivity
Frequency Response (-3 dB) 75 Hz - 17 kHz
Drivers LF Driver: 165 mm (6.5 inch)
HF Driver: compression driver, 25 mm (1 inch) coil
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-200BB6 or MTC300BB8. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Dimensions (H x Dia) Ø 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in)
Net Weight (each) 5.2 kg (11.5 lb)
Shipping Weight (pair) 6.6 kg (14.5 lb)
额定功率 See transformer taps
Maximum SPL (1m) 108 dB (top 70V/100V tap)
输入接口 Screw locking barrier strip for bare wire
颜色 White
Backcan formed steel (wood-lined; accessory)
Baffle/Rim Metal, round, driver pre-mounted to baffle, ported.
Ceiling Cutout Size 310 mm (12.2 in) diameter (for MTC-200BB6 backcan)

随附配件

Ported baffle pre-attached, transformer on 227CT
Optional Accessories MTC-200BB6 Back Can (0.7 cu ft) MTC-RG6/8 Grille MTC-TB6/8 Tile Bridge Also compatible with MTC-300BB8 backcan (1.0 cu ft)
Plenum Usage Yes, with accessory backcan

accessories

MTC-200BB6 | MTC-200BB6 Backcan Premium 0.5 Cubic Foot Cylindrical Backcan
MTC-200BB6 Main photo
较大的图像

MTC-200BB6 Backcan Premium 0.5 Cubic Foot Cylindrical Backcan

Backcan for Control 227C & CT Medium Format In-Ceiling Loudspeakers

  • Extra-thick 16 gauge metal construction.
  • Lined with 12 mm (1/2 in) thick MDF to eliminate resonances and to provide extra bass response.
  • Knockouts on top and side.

Documentation
MTC-RG6/8 | Round Grille for Control 200 and Control 300 Series
MTC-RG6/8 Main photo
较大的图像

Round Grille for Control 200 and Control 300 Series



  • Rugged 19 gauge metal construction for enduring reliability.
  • Sculpted design for an elegant appearance and perfect for any decor or architectural setting.
  • Zinc underplating provides a rust and scratch resistant surface for years of maintenance free wear.
  • Powder coat final finish minimizes scratching and can easily be repainted to match any room color.

Documentation
MTC-SG6/8 | Square Grille for Control 200 and Control 300 Series

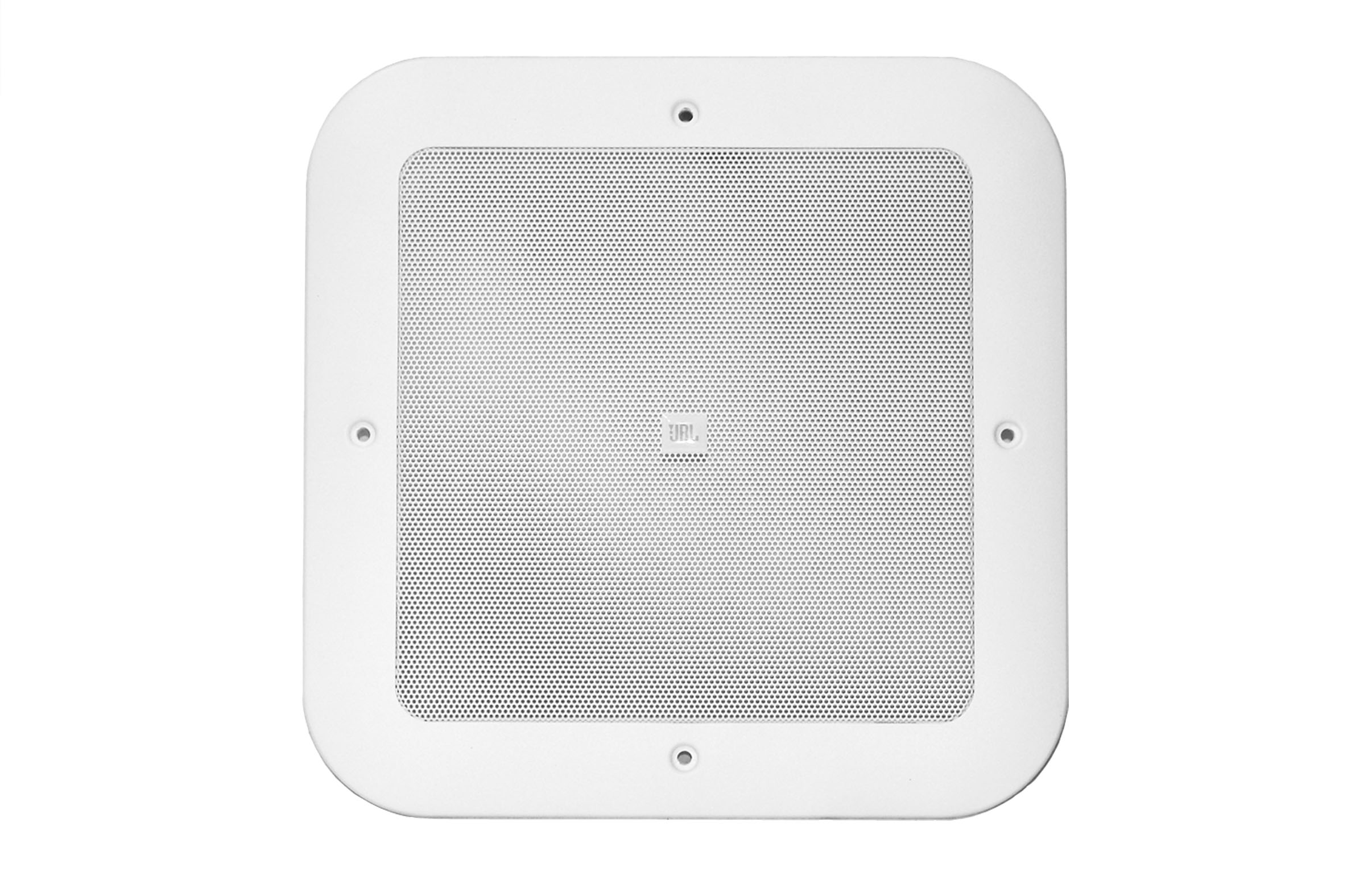

MTC-SG6/8 Main photo
较大的图像

Square Grille for Control 200 and Control 300 Series



  • Rugged 19 gauge metal construction for enduring reliability.
  • Sculpted design for an elegant appearance and perfect for any decor or architectural setting.
  • Zinc plating provides a rust and scratch resistant surface for years of maintenance free wear.
  • Powder coated paint finish minimizes scratching and can easily be repainted to match any room color.

Documentation
MTC-TB6/8 | Tile Bridge for Control 200 and Control 300 Series
MTC-TB6/8 Main photo
较大的图像

Tile Bridge for Control 200 and Control 300 Series



  • Robust 18-gauge steel construction with an epoxy based powdercoat finish.
  • Over-The-Grid design reduces sound transmission to ceiling grid thereby minimizing rattle.
  • 310 mm (12.2 inch) opening accommodating both Control 328C/CT and Control 227C/CT models.
  • Fits 610 mm (24 inch) and 600 mm (23.6 inch) tile grids.

Documentation
