Control 227CT

6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver

Larger Images

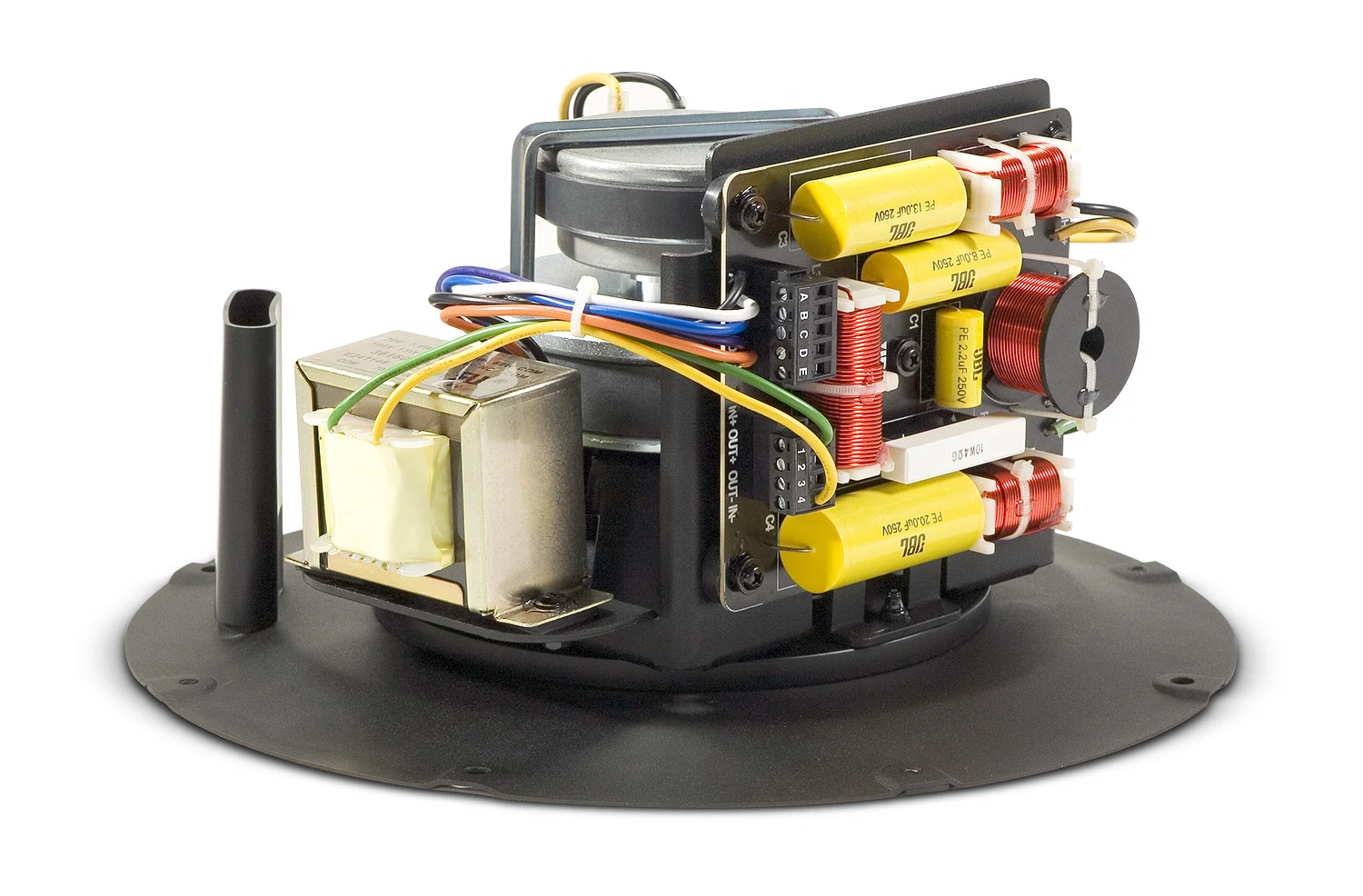

6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver with 60W Multi-Tap Transformer

The JBL Professional Control 227C and CT are premium in-ceiling professional loudspeakers designed for applications requiring superior quality sound in-ceiling mount applications.

Features

  • Consistent 120° broadband pattern control for exceptional coverage.
  • Coaxial design featuring:
    Kevlar-reinforced 165 mm (6.5 in) woofer.
    25 mm (1 in) compression driver.
  • Extraordinary clarity for speech and vocals with extended frequency response for music.
  • 150 Watts Power Handling.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • Separate back can and contemporary grille available.
    (sold separately)

Downloads

  Version Language Size Uploaded
Specifications
Control 227C AE Specs
updated: Apr 29, 2019
    13 KB Apr 29, 2019
Control 227C Spec Sheet
updated: Apr 29, 2019
    363 KB Apr 29, 2019
Manuals
Control 227C&CT install instructions
updated: Oct 23, 2020
    590 KB Oct 23, 2020
    590 KB Oct 18, 2019
Control 200 User's Guide
updated: Oct 18, 2019
    2.3 MB Oct 18, 2019
Ceiling Speaker Accessory Guide
updated: Oct 18, 2019
    127 KB Oct 18, 2019
Brochures
Control 200 Brochure
updated: Apr 29, 2019
    324 KB Apr 29, 2019
CAD Drawings
CAD Drawings
updated: Apr 29, 2019
    3.45 MB Apr 29, 2019
Bim Objects
BIM (Revit) Files
updated: Oct 22, 2020
    12.4 MB Oct 22, 2020
Compliances
    179 KB Dec 17, 2019
    92.6 KB Oct 18, 2019
Software
Distributed System Design (DSD) v3.6.2
version 3.6.2, updated: Jan 14, 2020
3.6.2     805 KB Jan 14, 2020
Install Guides
Control 227C Install Sheet
updated: Apr 29, 2019
    590 KB Apr 29, 2019
Owner's Manuals
Control 226-C/T Manual
updated: Apr 29, 2019
    2.3 MB Apr 29, 2019
Speaker Tunings
    557 KB Oct 22, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Response (-10dB) 43 Hz - 19 kHz
Transformer Taps 68W, 34W, 17W (& 8.5W @ 70V)
Sensitivity 90 dB (1 kHz - 16 kHz)
Coverage Angle 120° conical, constant directivity
Frequency Response (-3 dB) 75 Hz - 17 kHz
Drivers LF Driver: 165 mm (6.5 inch)
HF Driver: compression driver, 25 mm (1 inch) coil
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-200BB6 or MTC300BB8. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Dimensions (H x Dia) Ø 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in)
Net Weight (each) 5.2 kg (11.5 lb)
Shipping Weight (pair) 6.6 kg (14.5 lb)
Power Rating See transformer taps
Maximum SPL (1m) 108 dB (top 70V/100V tap)
Input Connectors Screw locking barrier strip for bare wire
Color White
Backcan formed steel (wood-lined; accessory)
Baffle/Rim Metal, round, driver pre-mounted to baffle, ported.
Ceiling Cutout Size 310 mm (12.2 in) diameter (for MTC-200BB6 backcan)
Included Accessories Ported baffle pre-attached, transformer on 227CT
Optional Accessories MTC-200BB6 Back Can (0.7 cu ft) MTC-RG6/8 Grille MTC-TB6/8 Tile Bridge Also compatible with MTC-300BB8 backcan (1.0 cu ft)
Plenum Usage Yes, with accessory backcan

Accessories

MTC-200BB6 | MTC-200BB6 Backcan Premium 0.5 Cubic Foot Cylindrical Backcan
MTC-200BB6 Main photo
Larger Images

MTC-200BB6 Backcan Premium 0.5 Cubic Foot Cylindrical Backcan

Backcan for Control 227C & CT Medium Format In-Ceiling Loudspeakers

  • Extra-thick 16 gauge metal construction.
  • Lined with 12 mm (1/2 in) thick MDF to eliminate resonances and to provide extra bass response.
  • Knockouts on top and side.

Documentation
MTC-RG6/8 | Round Grille for Control 200 and Control 300 Series
MTC-RG6/8 Main photo
Larger Images

Round Grille for Control 200 and Control 300 Series



  • Rugged 19 gauge metal construction for enduring reliability.
  • Sculpted design for an elegant appearance and perfect for any decor or architectural setting.
  • Zinc underplating provides a rust and scratch resistant surface for years of maintenance free wear.
  • Powder coat final finish minimizes scratching and can easily be repainted to match any room color.

Documentation
MTC-SG6/8 | Square Grille for Control 200 and Control 300 Series
MTC-SG6/8 Main photo
Larger Images

Square Grille for Control 200 and Control 300 Series



  • Rugged 19 gauge metal construction for enduring reliability.
  • Sculpted design for an elegant appearance and perfect for any decor or architectural setting.
  • Zinc plating provides a rust and scratch resistant surface for years of maintenance free wear.
  • Powder coated paint finish minimizes scratching and can easily be repainted to match any room color.

Documentation
MTC-TB6/8 | Tile Bridge for Control 200 and Control 300 Series
MTC-TB6/8 Main photo
Larger Images

Tile Bridge for Control 200 and Control 300 Series



  • Robust 18-gauge steel construction with an epoxy based powdercoat finish.
  • Over-The-Grid design reduces sound transmission to ceiling grid thereby minimizing rattle.
  • 310 mm (12.2 inch) opening accommodating both Control 328C/CT and Control 227C/CT models.
  • Fits 610 mm (24 inch) and 600 mm (23.6 inch) tile grids.

Documentation
