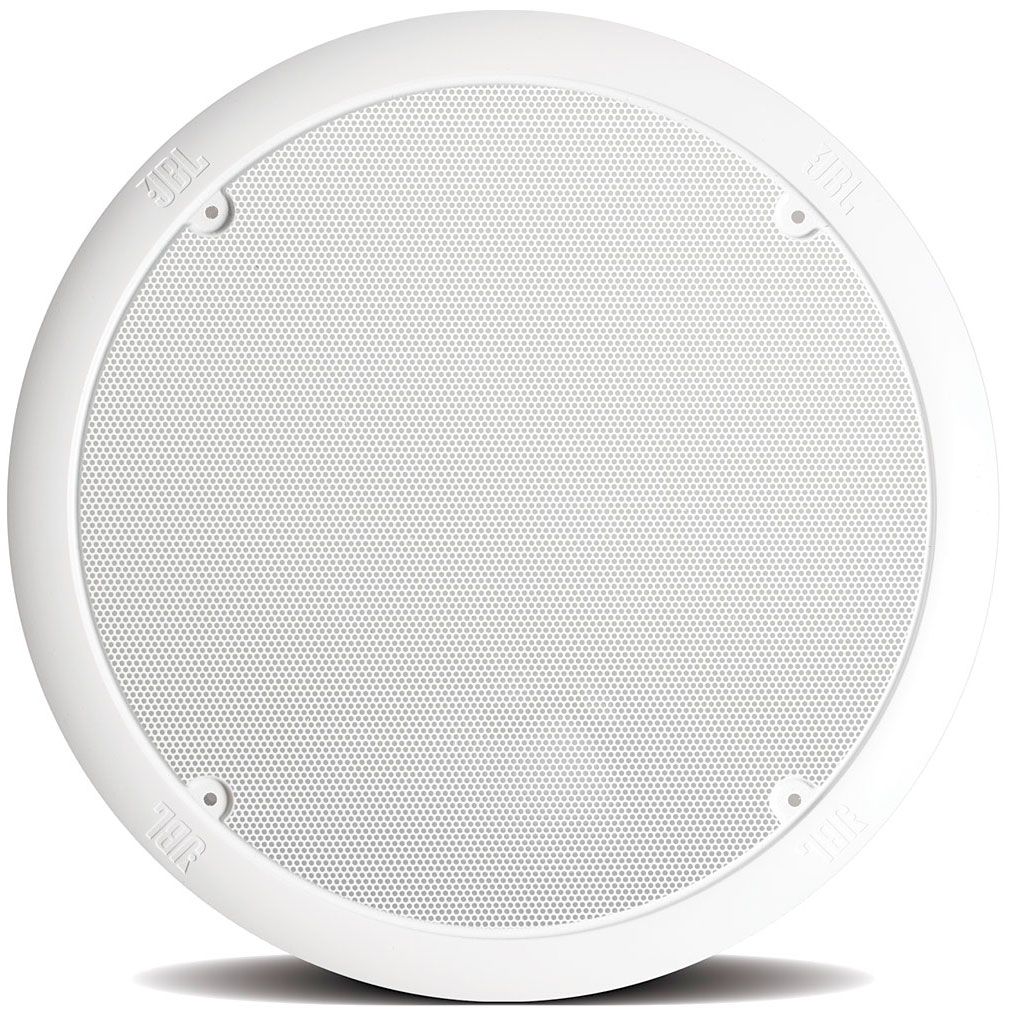

Round Grille for Control 200 and Control 300 Series
Imágenes más grandes
Características
- Rugged 19 gauge metal construction for enduring reliability.
- Sculpted design for an elegant appearance and perfect for any decor or architectural setting.
- Zinc underplating provides a rust and scratch resistant surface for years of maintenance free wear.
- Powder coat final finish minimizes scratching and can easily be repainted to match any room color.
Descargas
Specifications
| Tamaño | |
|
|
79,8 KB |
Compliances
| Tamaño | |
|
|
141 KB |
Install Guides
| Tamaño | |
|
|
590 KB |
Images
| Tamaño | |
|
|
212 KB |
Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.
Piezas y servicio
Especificaciones
| Fits | Control 227C, 227CT, Control 328C, 328CT |
| Dimensions | 13.6” (345 mm) diameter x 0.64” (16.3 mm) deep |
| Material | Zinc plated 19 gauge steel |
| Acabado | Powder coat, satin finish. RAL 9016 (Pantone equivalent 11-0602TPX) |
| Grille Attachment to Baffle | 4 pcs 4 mm machine screws |
| PESO NETO | 45 kg (1.0 lb) |
| Shipping Weight | 1.4 kg (3.0 lb) |
| Included Accessories | 5 pcs 4 mm x 38 mm powder coated machine screws 5 pcs 4 mm powder coated countersunk washers |
