JBL Professional 3732

Imágenes más grandes

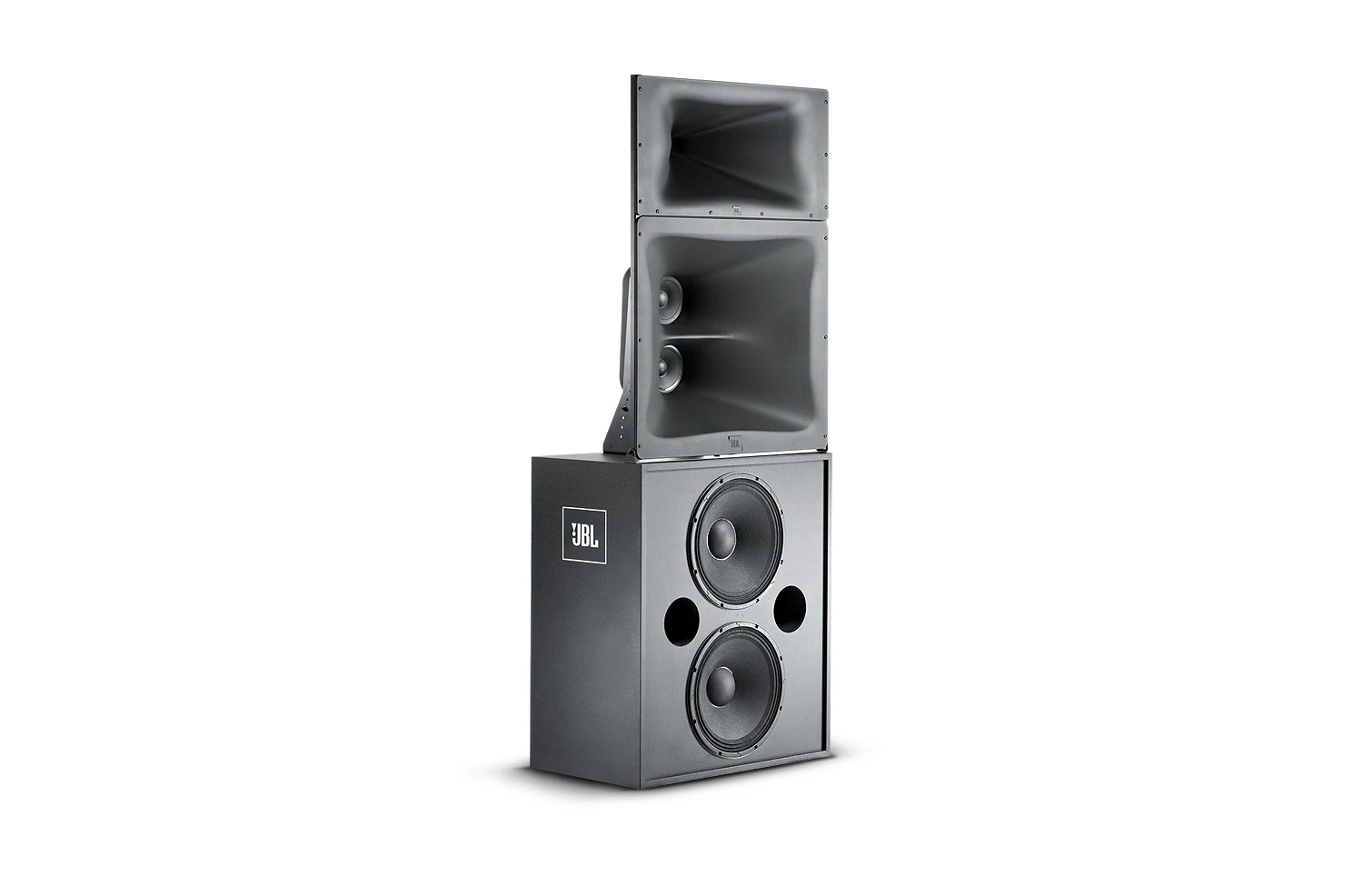

Three-Way Biamplified or Triamplified (T) ScreenArray
Loudspeaker System

The 3732 ScreenArray features true three-way system design enhanced for critical film sound reproduction in small to medium cinemas environments

Características

Three-way ScreenArray™ design for maximum output,
optimal coverage, and minimum distortion
Triamplified (T) or Biamplified operation
Approved for THX® certified applications(3732T)
Ships fully assembled
Second Generation Optimized Aperture Waveguide
technology for ultra-low distortion, and extremely
uniform frequency response
SSC™ Screen Spreading Compensation
Focused Coverage Technology™
Flat-front waveguide design for easy baffle wall installation
Shallow profile for minimum behind screen
depth requirements

Descargas

Specifications

	Tamaño	Subido
3732 Spec Sheet actualizado: oct 2020	172 KB	oct 2020

Compliances

	Tamaño	Subido
Cinema Sound - ScreenArray Systems (3 Way) Declaration of Conformity actualizado: oct 2019	153 KB	oct 2019

Simulation Data

	Versión	Tamaño	Subido
JBL Pro ALL CLF Files versión 12-10-21, actualizado: may 2023	12-10-21	24 MB	may 2023

Images

	Tamaño	Subido

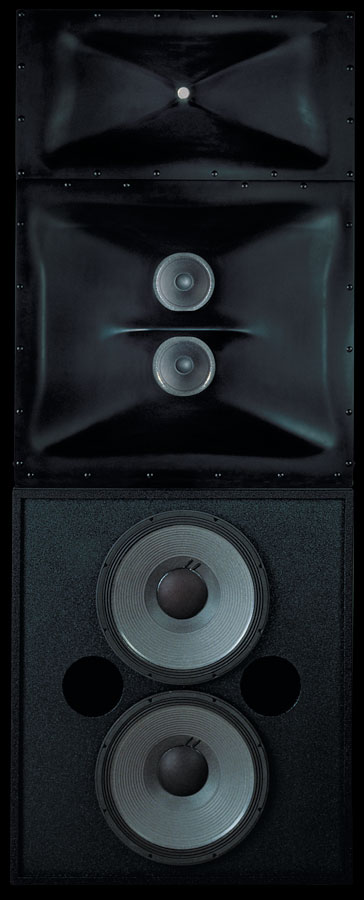

3732 Front actualizado: oct 2020	47,2 KB	oct 2020

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Piezas y servicio

Especificaciones

Frequency Range (-10dB)	30 Hz - 20 kHz
RESPUESTA DE FRECUENCIA (±3 dB)	40 Hz - 19 kHz
Sensitivity	104dB @ 2.83V
Maximum SPL (1m)	125 dB @ 1m (3.3 ft), 131 dB peak
System Input Power Rating	3732: LF: 500 W, M/HF: 150 W 3732-T: HF: 85 W
Horizontal Coverage Angle	90° (-6 dB)
Vertical Coverage Angle	20° up, 30° down (-6 dB)
Directivity Factor (Q)	10.0
Directivity Index (DI)	10 dB
Crossover Frequencies	3732: 350 Hz 3732-T: 1.2 kHz
Dimensions (H x W x D)	1937 x 762 x 450 mm 76.3 x 30 x 17.75 in)
Net Weight (each)	172 lbs (77.9 kg)
Shipping Weight	92.8 kg (205 lbs)
Impedancia nominal	4Ω
Power Handling (2Hr AES Rating)	600W
