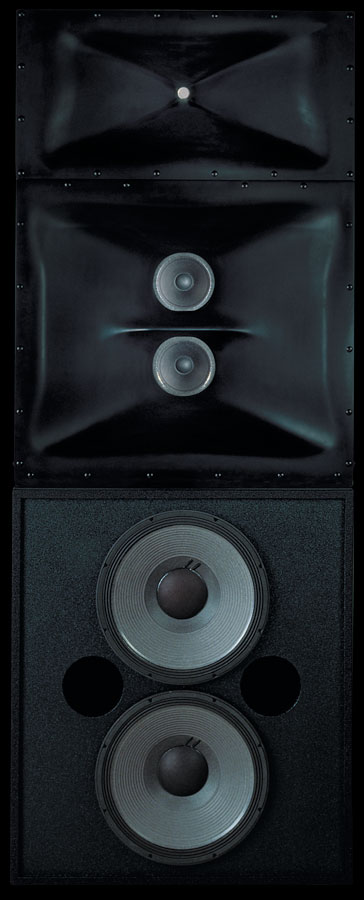

JBL Professional 3732

Größere Bilder

Three-Way Biamplified or Triamplified (T) ScreenArray
Loudspeaker System

The 3732 ScreenArray features true three-way system design enhanced for critical film sound reproduction in small to medium cinemas environments

Eigenschaften

Three-way ScreenArray™ design for maximum output,
optimal coverage, and minimum distortion
Triamplified (T) or Biamplified operation
Approved for THX® certified applications(3732T)
Ships fully assembled
Second Generation Optimized Aperture Waveguide
technology for ultra-low distortion, and extremely
uniform frequency response
SSC™ Screen Spreading Compensation
Focused Coverage Technology™
Flat-front waveguide design for easy baffle wall installation
Shallow profile for minimum behind screen
depth requirements

Downloads

Specifications

	Größe	Hochgeladen
3732 Spec Sheet aktualisiert: Okt 2020	172 KB	Okt 2020

Compliances

	Größe	Hochgeladen
Cinema Sound - ScreenArray Systems (3 Way) Declaration of Conformity aktualisiert: Okt 2019	153 KB	Okt 2019

Simulation Data

	Version	Größe	Hochgeladen
JBL Pro ALL CLF Files Version 12-10-21, aktualisiert: Mai 2023	12-10-21	24 MB	Mai 2023

Images

	Größe	Hochgeladen
3732 Front aktualisiert: Okt 2020	47,2 KB	Okt 2020

Falls einer der obigen Links zu seltsamen Zeichen in Ihrem Browser führt, klicken Sie bitte mit der rechten Maustaste auf die Datei, um sie auf Ihrem Computer zu speichern.

Teile & Service

Spezifikationen

Frequency Range (-10dB)	30 Hz - 20 kHz
Frequency Response (±3 dB)	40 Hz - 19 kHz
Sensitivity	104dB @ 2.83V
Maximum SPL (1m)	125 dB @ 1m (3.3 ft), 131 dB peak
System Input Power Rating	3732: LF: 500 W, M/HF: 150 W 3732-T: HF: 85 W
Horizontal Coverage Angle	90° (-6 dB)
Vertical Coverage Angle	20° up, 30° down (-6 dB)
Directivity Factor (Q)	10.0
Directivity Index (DI)	10 dB
Crossover Frequencies	3732: 350 Hz 3732-T: 1.2 kHz
Dimensions (H x W x D)	1937 x 762 x 450 mm 76.3 x 30 x 17.75 in)
Net Weight (each)	172 lbs (77.9 kg)
Shipping Weight	92.8 kg (205 lbs)
Nominal Impedance	4Ω
Power Handling (2Hr AES Rating)	600W
