Three-Way Biamplified or Triamplified (T) ScreenArray
Loudspeaker System

The 3732 ScreenArray features true three-way system design enhanced for critical film sound reproduction in small to medium cinemas environments


  • Three-way ScreenArray™ design for maximum output,
    optimal coverage, and minimum distortion
  • Triamplified (T) or Biamplified operation
  • Approved for THX® certified applications(3732T)
  • Ships fully assembled
  • Second Generation Optimized Aperture Waveguide
    technology for ultra-low distortion, and extremely
    uniform frequency response
  • SSC™ Screen Spreading Compensation
  • Focused Coverage Technology™
  • Flat-front waveguide design for easy baffle wall installation
  • Shallow profile for minimum behind screen
    depth requirements


  Version Language Size Uploaded
file type icon 3732 Spec Sheet
updated: 10월 2020
    172KB 10월 2020
file type icon Cinema Sound - ScreenArray Systems (3 Way) Declaration of Conformity
updated: 10월 2019
    153KB 10월 2019

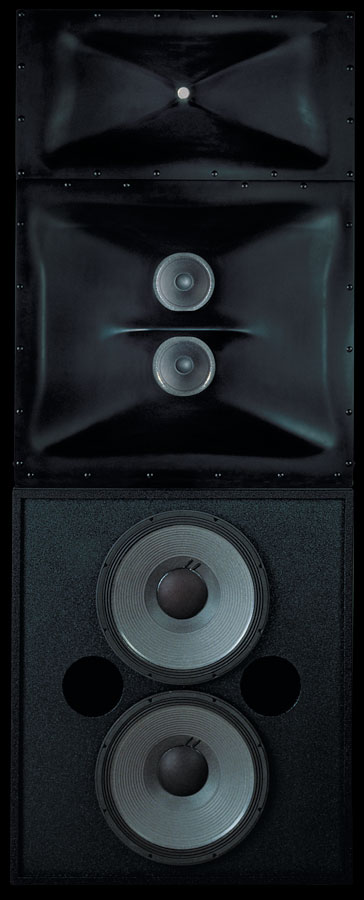

file type icon 3732 Front
updated: 10월 2020
    47.2KB 10월 2020
Simulation Data
file type icon JBL Pro ALL CLF Files
version 12-10-21, updated: 5월 2023
12-10-21    24MB 5월 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


Frequency Range (-10dB) 30 Hz - 20 kHz
Frequency Response (±3 dB) 40 Hz - 19 kHz
Sensitivity 104dB @ 2.83V
Maximum SPL (1m) 125 dB @ 1m (3.3 ft), 131 dB peak
System Input Power Rating 3732: LF: 500 W, M/HF: 150 W 3732-T: HF: 85 W
Horizontal Coverage Angle 90° (-6 dB)
Vertical Coverage Angle 20° up, 30° down (-6 dB)
Directivity Factor (Q) 10.0
Directivity Index (DI) 10 dB
Crossover Frequencies 3732: 350 Hz 3732-T: 1.2 kHz
Dimensions (H x W x D) 1937 x 762 x 450 mm 76.3 x 30 x 17.75 in)
Net Weight (each) 172 lbs (77.9 kg)
Shipping Weight 92.8 kg (205 lbs)
Nominal Impedance
Power Handling (2Hr AES Rating) 600W
