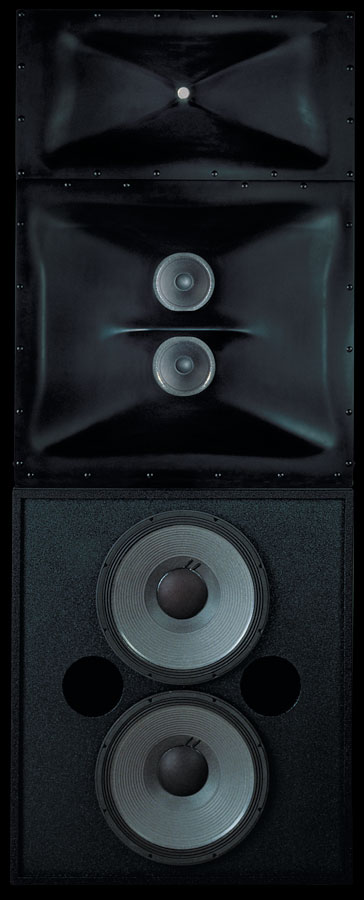

The 3732 ScreenArray features true three-way system design enhanced for critical film sound reproduction in small to medium cinemas environments
| ទំហំ | |
|
|
172 KB |
| ទំហំ | |
Cinema Sound - ScreenArray Systems (3 Way) Declaration of Conformity
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019
|
153 KB |
| ទំហំ | |
|
|
24 MB |
| ទំហំ | |
|
|
47.2 KB |
ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។
| Frequency Range (-10dB) | 30 Hz - 20 kHz |
| Frequency Response (±3 dB) | 40 Hz - 19 kHz |
| Sensitivity | 104dB @ 2.83V |
| Maximum SPL (1m) | 125 dB @ 1m (3.3 ft), 131 dB peak |
| System Input Power Rating | 3732: LF: 500 W, M/HF: 150 W 3732-T: HF: 85 W |
| Horizontal Coverage Angle | 90° (-6 dB) |
| Vertical Coverage Angle | 20° up, 30° down (-6 dB) |
| Directivity Factor (Q) | 10.0 |
| Directivity Index (DI) | 10 dB |
| Crossover Frequencies | 3732: 350 Hz 3732-T: 1.2 kHz |
| Dimensions (H x W x D) | 1937 x 762 x 450 mm 76.3 x 30 x 17.75 in) |
| Net Weight (each) | 172 lbs (77.9 kg) |
| Shipping Weight | 92.8 kg (205 lbs) |
| Nominal Impedance | 4Ω |
| Power Handling (2Hr AES Rating) | 600W |
