VT4880A (discontinued)

Fullsize Arrayable 2-18" Subwoofer with Ultra Long Excursion woofers

Larger Images

Fullsize Arrayable 2-18" Subwoofer with Ultra Long Excursion woofers

The VT4880A Dual 18" Ultra Long Excursion Subwoofer Line Array Element is designed to deliver high fidelity sound reinforcement of sub-low frequencies for a wide variety of live music and A/V support applications. Typical uses include concert audio and multi-media presentations where extended low-frequency performance is desired.



Features

  • Advanced, Ultra Long Excursion Components: Differential Drive® Neodymium Magnet, Dual Voice Coil, Direct Cooled™ cone transducers
  • Advanced Construction Techniques and PlyMax™ panels provide exceptionally rigid, lightweight enclosure
  • Rugged DuraFlex™ exterior finish; weather-resistant components
  • Integrated Suspension System: premium heat-treated alloys. Hingebars included.


Downloads

  Version Language Size Uploaded
Specifications
VT4880A Spec Sheet
updated: Oct 22, 2020
    260 KB Oct 22, 2020
Brochures
VerTec Line Brochure
updated: Oct 22, 2020
    2.09 MB Oct 22, 2020
CAD Drawings
VT4880A 2D PDF
updated: Oct 22, 2020
    167 KB Oct 22, 2020
VT4880A 2D DXF
updated: Oct 22, 2020
    1.15 MB Oct 22, 2020
VT4880A 3D DXF
updated: Oct 22, 2020
    92.3 KB Oct 22, 2020
Bim Objects
BIM (Revit) Files
updated: Oct 22, 2020
    12.4 MB Oct 22, 2020
Compliances
    144 KB Oct 18, 2019
Software
PerformanceManager
version 2.7.0, updated: Aug 17, 2020
2.7.0     108 MB Aug 17, 2020
Vertec Line Array Calculator
version 1.3.1, updated: Jan 23, 2020
1.3.1     18 MB Jan 23, 2020
Helpful Links
    518 KB Oct 22, 2020
AES Paper: J and Spiral Arrays
updated: Oct 22, 2020
    324 KB Oct 22, 2020
    1.12 MB Oct 22, 2020
    856 KB Oct 22, 2020
    2.94 MB Oct 22, 2020
    388 KB Oct 22, 2020
Speaker Tunings
Vertec All DSP Platforms
updated: Oct 22, 2020
    96.3 MB Oct 22, 2020
BSS 366 VT4886 VT4883
updated: Oct 18, 2019
    3.96 MB Oct 18, 2019
DBX 4800 VT4886 VT4883
updated: Oct 18, 2019
    3.19 MB Oct 18, 2019
V5 DPDA DrivePack VT4880A
updated: Oct 18, 2019
    406 KB Oct 18, 2019
BSS Soundweb London All Libraries
updated: Oct 31, 2019
    35.1 MB Oct 31, 2019
    3.72 MB Oct 22, 2020
Accessories
    6.2 MB Oct 22, 2020
Images

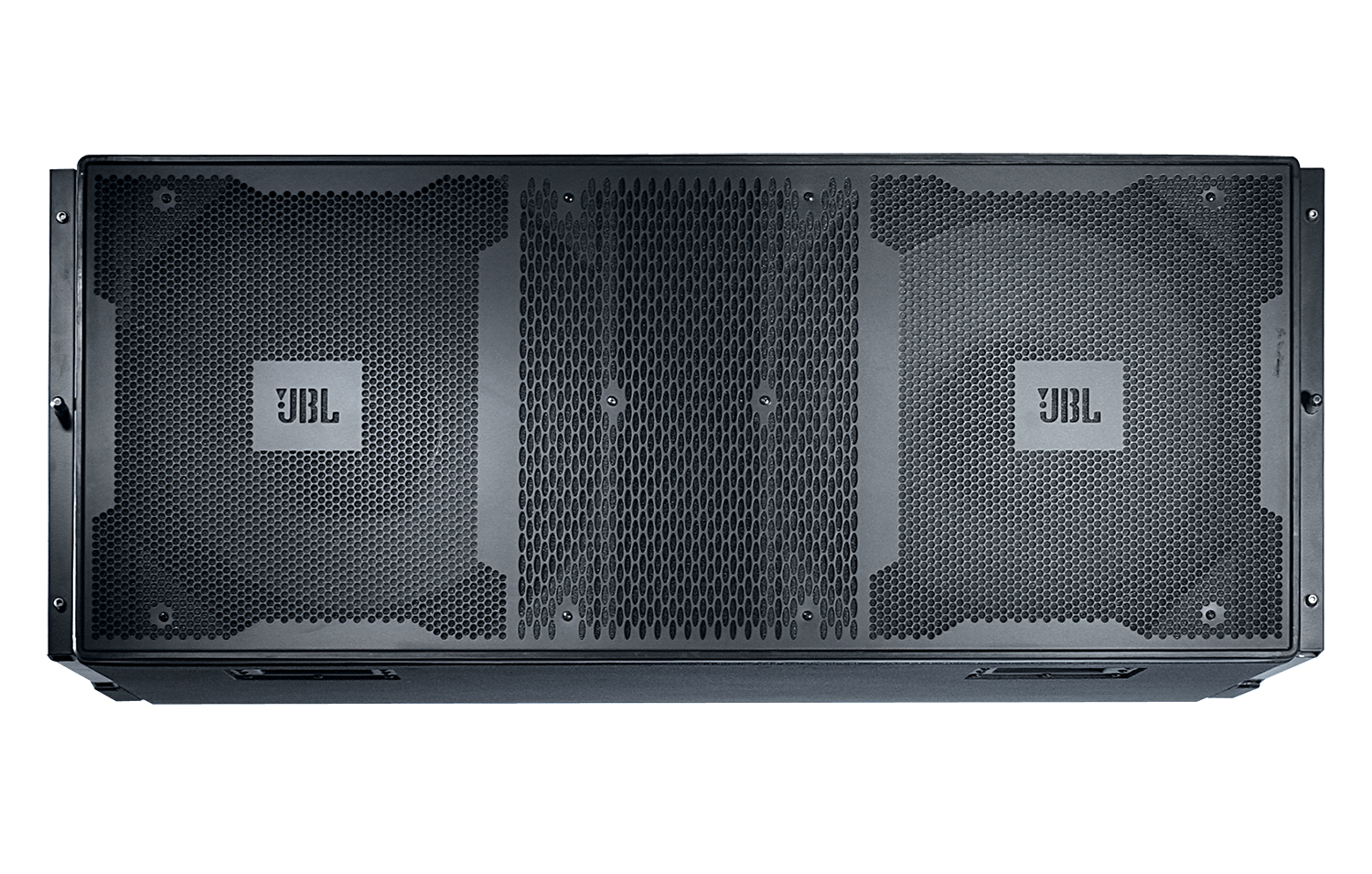

VT4880 photo
updated: Oct 22, 2020
    912 KB Oct 22, 2020
Ease Data
VerTec Ease dII V3.0
updated: Oct 22, 2020
    1.19 MB Oct 22, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Range 25 Hz – 160 Hz (-10 dB)
Frequency Response 29 Hz – 120 Hz (±3 dB)
Continuous Power Rating 4000W
Sensitivity 95dB (1W/1m)
Nominal Impedances 2 x 8 ohms
Dimensions (W x H x D ) 1229 mm x 493 mm x 860 mm(48.3" x 19.4" x 33.9")
Weight 83.9 kg (185 lb)
