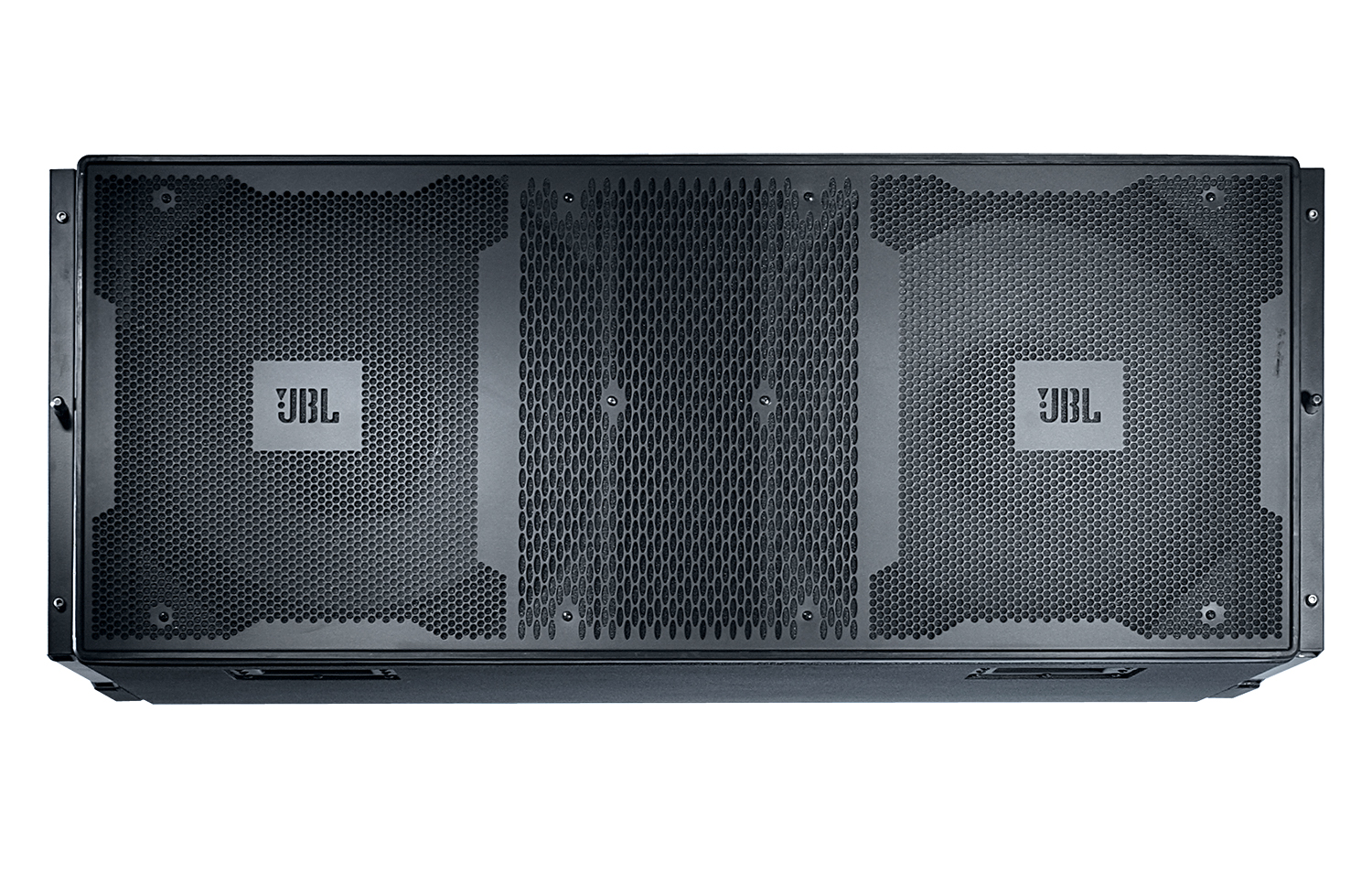

JBL Professional VT4880A

Gambar Lebih Besar

Fullsize Arrayable 2-18" Subwoofer with Ultra Long Excursion woofers

The VT4880A Dual 18" Ultra Long Excursion Subwoofer Line Array Element is designed to deliver high fidelity sound reinforcement of sub-low frequencies for a wide variety of live music and A/V support applications. Typical uses include concert audio and multi-media presentations where extended low-frequency performance is desired.

Fitur

Advanced, Ultra Long Excursion Components: Differential Drive® Neodymium Magnet, Dual Voice Coil, Direct Cooled™ cone transducers
Advanced Construction Techniques and PlyMax™ panels provide exceptionally rigid, lightweight enclosure
Rugged DuraFlex™ exterior finish; weather-resistant components
Integrated Suspension System: premium heat-treated alloys. Hingebars included.

Unduhan

Specifications

	Ukuran	Diunggah
VT4880A Spec Sheet diperbarui: Okt 2020	260 KB	Okt 2020

Brochures

	Ukuran	Diunggah
VerTec Line Brochure diperbarui: Okt 2020	2,09 MB	Okt 2020

CAD Drawings

	Ukuran	Diunggah
VT4880A 2D PDF diperbarui: Okt 2020	167 KB	Okt 2020
VT4880A 2D DXF diperbarui: Okt 2020	1,15 MB	Okt 2020
VT4880A 3D DXF diperbarui: Okt 2020	92,3 KB	Okt 2020

Compliances

	Ukuran	Diunggah
VerTec Series Declaration of Conformity diperbarui: Okt 2019	144 KB	Okt 2019

Software

	Versi	Ukuran	Diunggah
PerformanceManager versi 3.2.0, diperbarui: Sep 2025	3.2.0	134 MB	Sep 2025
Vertec Line Array Calculator versi 1.3.1, dirilis: Agu 2023	1.3.1	18 MB	Agu 2023

Helpful Links

	Ukuran	Diunggah
Considerations for Deployment of Line Arrays diperbarui: Okt 2020	518 KB	Okt 2020
AES Paper: J and Spiral Arrays diperbarui: Okt 2020	324 KB	Okt 2020
Directional Radiation Characteristics - Line Array diperbarui: Okt 2020	1,12 MB	Okt 2020
AES Paper: Pressure Response of Line Source diperbarui: Okt 2020	388 KB	Okt 2020
AES Journal Article: Analysis of Line Arrays diperbarui: Okt 2020	856 KB	Okt 2020
High Frequency Components for High Output Line Arrays diperbarui: Okt 2020	2,94 MB	Okt 2020

Speaker Tunings

	Ukuran	Diunggah
Vertec All DSP Platforms diperbarui: Okt 2020	96,3 MB	Okt 2020
BSS 366 VT4886 VT4883 diperbarui: Okt 2019	3,96 MB	Okt 2019
DBX 4800 VT4886 VT4883 diperbarui: Okt 2019	3,19 MB	Okt 2019
V5 DPDA DrivePack VT4880A diperbarui: Okt 2019	406 KB	Okt 2019
BSS Soundweb London All Libraries diperbarui: Okt 2019	35,1 MB	Okt 2019
V4 DSP BSS_Soundweb_London_VT4889_VT4887 diperbarui: Okt 2020	3,72 MB	Okt 2020

Accessories

	Ukuran	Diunggah
VT Fullsize Array Frame and Adapter CAD diperbarui: Okt 2020	6,2 MB	Okt 2020

Images

	Ukuran	Diunggah
VT4880 photo diperbarui: Okt 2020	912 KB	Okt 2020

Ease Data

	Versi	Ukuran	Diunggah
VerTec EASE DLL versi 3.0, diperbarui: Des 2020	3.0	1,19 MB	Des 2020

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Spesifikasi

Frequency Range	25 Hz – 160 Hz (-10 dB)
Frequency Response	29 Hz – 120 Hz (±3 dB)
Continuous Power Rating	4000W
Sensitivity	95dB (1W/1m)
Nominal Impedances	2 x 8 ohms
Dimensions (W x H x D)	1229 mm x 493 mm x 860 mm(48.3" x 19.4" x 33.9")
Weight	83.9 kg (185 lb)
