VT4880A (discontinued)

Fullsize Arrayable 2-18" Subwoofer with Ultra Long Excursion woofers

VT4880A
Larger Images

Fullsize Arrayable 2-18" Subwoofer with Ultra Long Excursion woofers

The VT4880A Dual 18" Ultra Long Excursion Subwoofer Line Array Element is designed to deliver high fidelity sound reinforcement of sub-low frequencies for a wide variety of live music and A/V support applications. Typical uses include concert audio and multi-media presentations where extended low-frequency performance is desired.



Características

  • Advanced, Ultra Long Excursion Components: Differential Drive® Neodymium Magnet, Dual Voice Coil, Direct Cooled™ cone transducers
  • Advanced Construction Techniques and PlyMax™ panels provide exceptionally rigid, lightweight enclosure
  • Rugged DuraFlex™ exterior finish; weather-resistant components
  • Integrated Suspension System: premium heat-treated alloys. Hingebars included.


Downloads

  Version Language Size Uploaded
Specifications
file type icon VT4880A Spec Sheet
updated: oct 2020
    260 KB oct 2020
Brochures
file type icon VerTec Line Brochure
updated: oct 2020
    2,09 MB oct 2020
CAD Drawings
file type icon VT4880A 2D PDF
updated: oct 2020
    167 KB oct 2020
file type icon VT4880A 2D DXF
updated: oct 2020
    1,15 MB oct 2020
file type icon VT4880A 3D DXF
updated: oct 2020
    92,3 KB oct 2020
Compliances
file type icon VerTec Series Declaration of Conformity
updated: oct 2019
    144 KB oct 2019
Software
platform icon Vertec Line Array Calculator
version 1.3.1, updated: ago 2023
1.3.1     18 MB ago 2023
platform icon PerformanceManager
version 3.0.0, updated: feb 2024
3.0.0     124 MB feb 2024
Helpful Links
file type icon Considerations for Deployment of Line Arrays
updated: oct 2020
    518 KB oct 2020
file type icon AES Paper: J and Spiral Arrays
updated: oct 2020
    324 KB oct 2020
file type icon Directional Radiation Characteristics - Line Array
updated: oct 2020
    1,12 MB oct 2020
file type icon AES Paper: Pressure Response of Line Source
updated: oct 2020
    388 KB oct 2020
file type icon AES Journal Article: Analysis of Line Arrays
updated: oct 2020
    856 KB oct 2020
file type icon High Frequency Components for High Output Line Arrays
updated: oct 2020
    2,94 MB oct 2020
Speaker Tunings
file type icon Vertec All DSP Platforms
updated: oct 2020
    96,3 MB oct 2020
file type icon BSS 366 VT4886 VT4883
updated: oct 2019
    3,96 MB oct 2019
file type icon DBX 4800 VT4886 VT4883
updated: oct 2019
    3,19 MB oct 2019
file type icon V5 DPDA DrivePack VT4880A
updated: oct 2019
    406 KB oct 2019
file type icon BSS Soundweb London All Libraries
updated: oct 2019
    35,1 MB oct 2019
file type icon V4 DSP BSS_Soundweb_London_VT4889_VT4887
updated: oct 2020
    3,72 MB oct 2020
Accessories
file type icon VT Fullsize Array Frame and Adapter CAD
updated: oct 2020
    6,2 MB oct 2020
Images

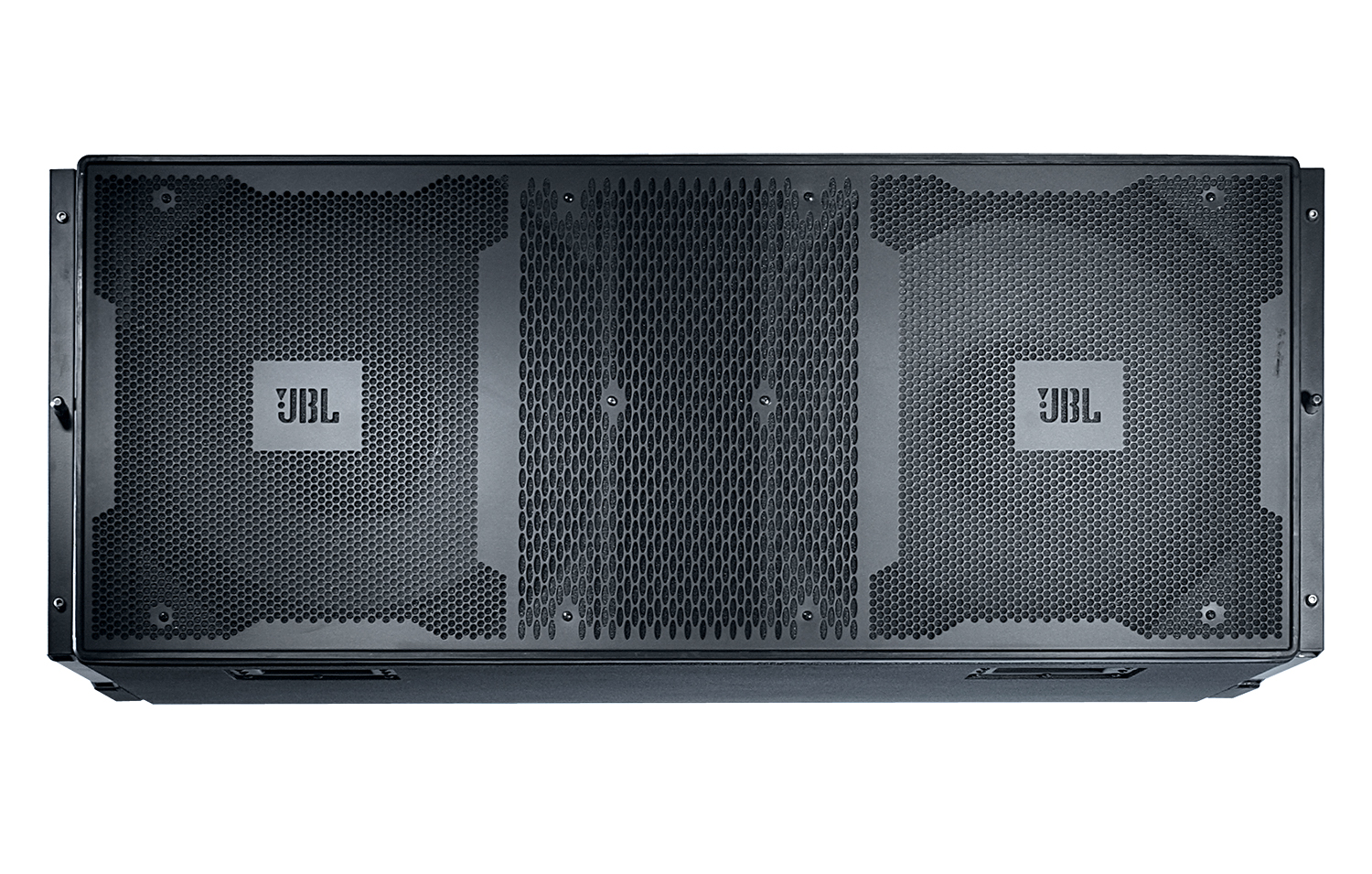

file type icon VT4880 photo
updated: oct 2020
    912 KB oct 2020
Ease Data
file type icon VerTec EASE DLL
version 3.0, updated: dic 2020
3.0    1,19 MB dic 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range 25 Hz – 160 Hz (-10 dB)
Frequency Response 29 Hz – 120 Hz (±3 dB)
Continuous Power Rating 4000W
Sensitivity 95dB (1W/1m)
Nominal Impedances 2 x 8 ohms
Dimensions (W x H x D) 1229 mm x 493 mm x 860 mm(48.3" x 19.4" x 33.9")
Weight 83.9 kg (185 lb)
