Control 328CT

8" Coaxial Ceiling Loudspeaker with HF Compression Driver

Control 328CT
Larger Images

8" Coaxial Ceiling Loudspeaker with HF Compression Driver

Control 328CT has been engineered from the ground up to deliver exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Features

  • Consistent 120° broadband pattern control covers an extremely large area.
  • Shaped mounting baffle provides the pattern control of a 300 mm (12 in) horn from a 200 mm (8 in) driver.
  • Components
    • 200 mm (8 in) woofer with Kevlarreinforced cone and 50 mm (2 in) voice-coil.
    • 25 mm (1" exit) compression driver.
  • Extraordinary clarity for speech and vocals with extended frequency response for music.
  • 250 Watt power handling with very high sensitivity provides high SPL capability.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • Clean, contemporary grille and optional backbox available.

Downloads

  Version Language Size Uploaded
file type icon Control 300 Brochure
en updated: Mar 2024
  en  2.9 MB Mar 2024
file type icon Control 328C_CT Spec Sheet
en updated: Mar 2024
  en  720 KB Mar 2024
file type icon Control 328C-CT Backcan Assembly Instructions
en updated: Mar 2024
  en  539 KB Mar 2024
file type icon Control 300 Transformer Bypass
en updated: Mar 2024
  en  59.2 KB Mar 2024
file type icon Control 300 Transformer Insertion Loss
en updated: Mar 2024
  en  15.4 KB Mar 2024
file type icon Control 300 User Guide
en updated: Mar 2024
  en  2.02 MB Mar 2024
Specifications
file type icon Control 328C/CT Spec Sheet
updated: Apr 2019
    720 KB Apr 2019
Manuals
file type icon Transformer Bypass on Control 321CT, Control 322CT, or Control 328CT
updated: Oct 2019
    59.2 KB Oct 2019
file type icon Control 300 Series Transformer Insertion Loss Chart
updated: Oct 2019
    15.4 KB Oct 2019
file type icon Ceiling Speaker Accessory Guide
version B, updated: Jan 2024
  231 KB Jan 2024
Brochures
file type icon Control 300 Brochure
updated: Apr 2019
    2.9 MB Apr 2019
CAD Drawings
file type icon Control 300 Ceiling Speakers
updated: Oct 2019
    1.39 MB Oct 2019
Compliances
file type icon JBL Control Series Passive Speakers DoC
updated: Dec 2019
    179 KB Dec 2019
file type icon Control 300 Series Declaration of Conformity
updated: Oct 2019
    92.7 KB Oct 2019
Software
platform icon Distributed System Design (DSD)
version 3.7, updated: Nov 2023
3.7     1.07 MB Nov 2023
User Guides
file type icon Control 300 User Guide
updated: Apr 2019
    2.02 MB Apr 2019
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: May 2023
  557 KB May 2023
Install Guides
file type icon Control 328C/CT Assembly Guide
updated: Apr 2019
    539 KB Apr 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range (-10dB) 45 Hz – 18 kHz
Power Rating See transformer taps
Transformer Taps 68W, 34W, 17W, (& 8.5W @ 70V)
Frequency Response (±3 dB) 60Hz – 16 kHz
Coverage Angle 120° conical, constant directivity
Impedance 8 ohms
Directivity Factor (Q) 7.0 (Avg 1k - 16kHz)
Directivity Index (DI) 8.5dB (Avg 1k - 16kHz)
Sensitivity 93 dB (1 kHz - 16 kHz)
Maximum SPL (1m) 118 dB (top 70V/100V tap)
Crossover Network 1.9 kHz, 3rd order (18 dB/oct) high-pass plus conjugate
Dimensions (H x W x D) 305 mm (12.0 in.) diameter round baffle x depth from back of baffle of 218 mm (8.6 in)
Input Connectors Screw locking barrier strip for bare wire
Drivers LF Driver: 200 mm (8 in)
HF Driver: compression driver, 25 mm (1 inch) coil
Color White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-300BB8. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (wood-lined; accessory)
Baffle/Rim Metal, round, driver pre-mounted to baffle, ported.
Ceiling Cutout Size 310 mm (12.2 in) diameter (for MTC-300BB8 backcan)
Included Accessories Ported baffle pre-attached, plus transformer on 328CT.
Optional Accessories MTC-RG6/8 Grille, round contoured, white. MTC-SG6/8 Grille, square, contoured, white. MTC-300BB8 Backbox, 25 liters (1 cubic feet)
Plenum Usage Yes, with accessory backcan

Accessories

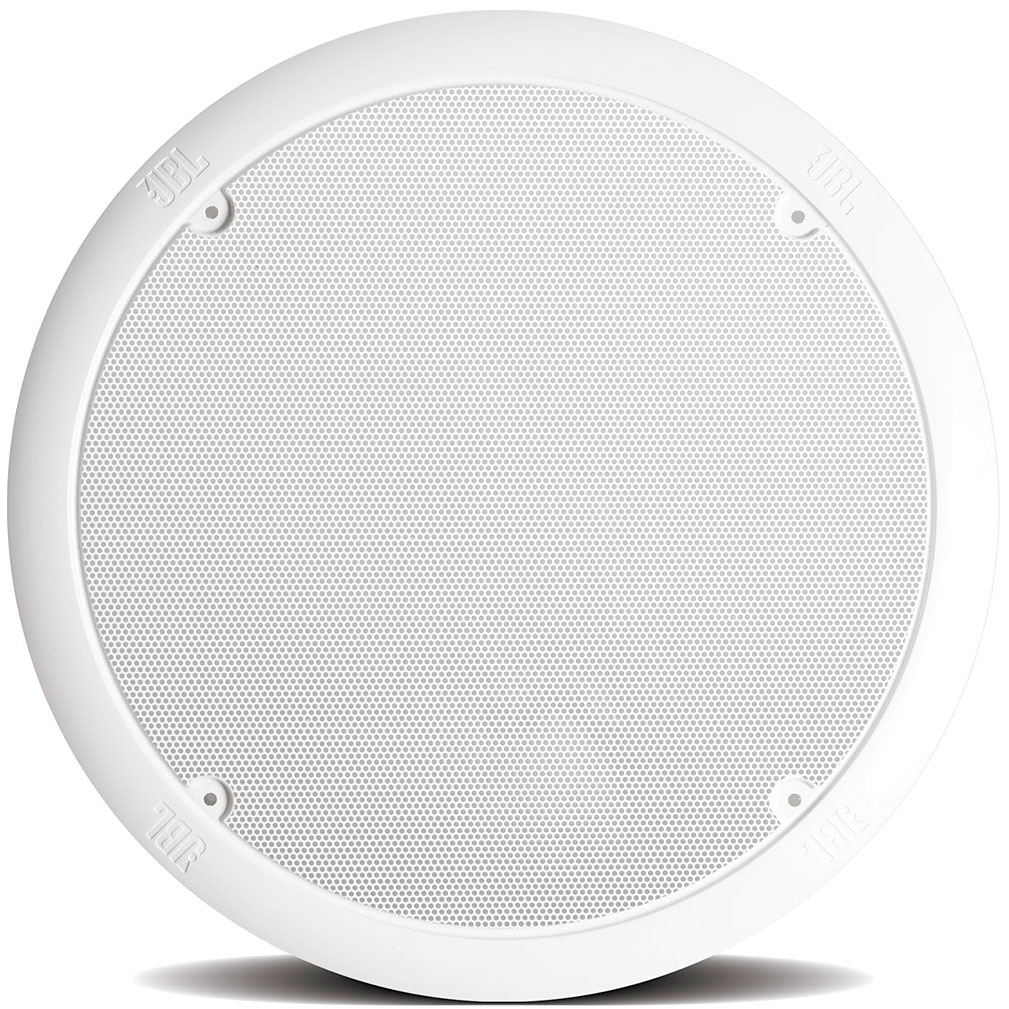

MTC-RG6/8 | Round Grille for Control 200 and Control 300 Series
MTC-RG6/8 Main photo
Larger Images

Round Grille for Control 200 and Control 300 Series



  • Rugged 19 gauge metal construction for enduring reliability.
  • Sculpted design for an elegant appearance and perfect for any decor or architectural setting.
  • Zinc underplating provides a rust and scratch resistant surface for years of maintenance free wear.
  • Powder coat final finish minimizes scratching and can easily be repainted to match any room color.

Documentation

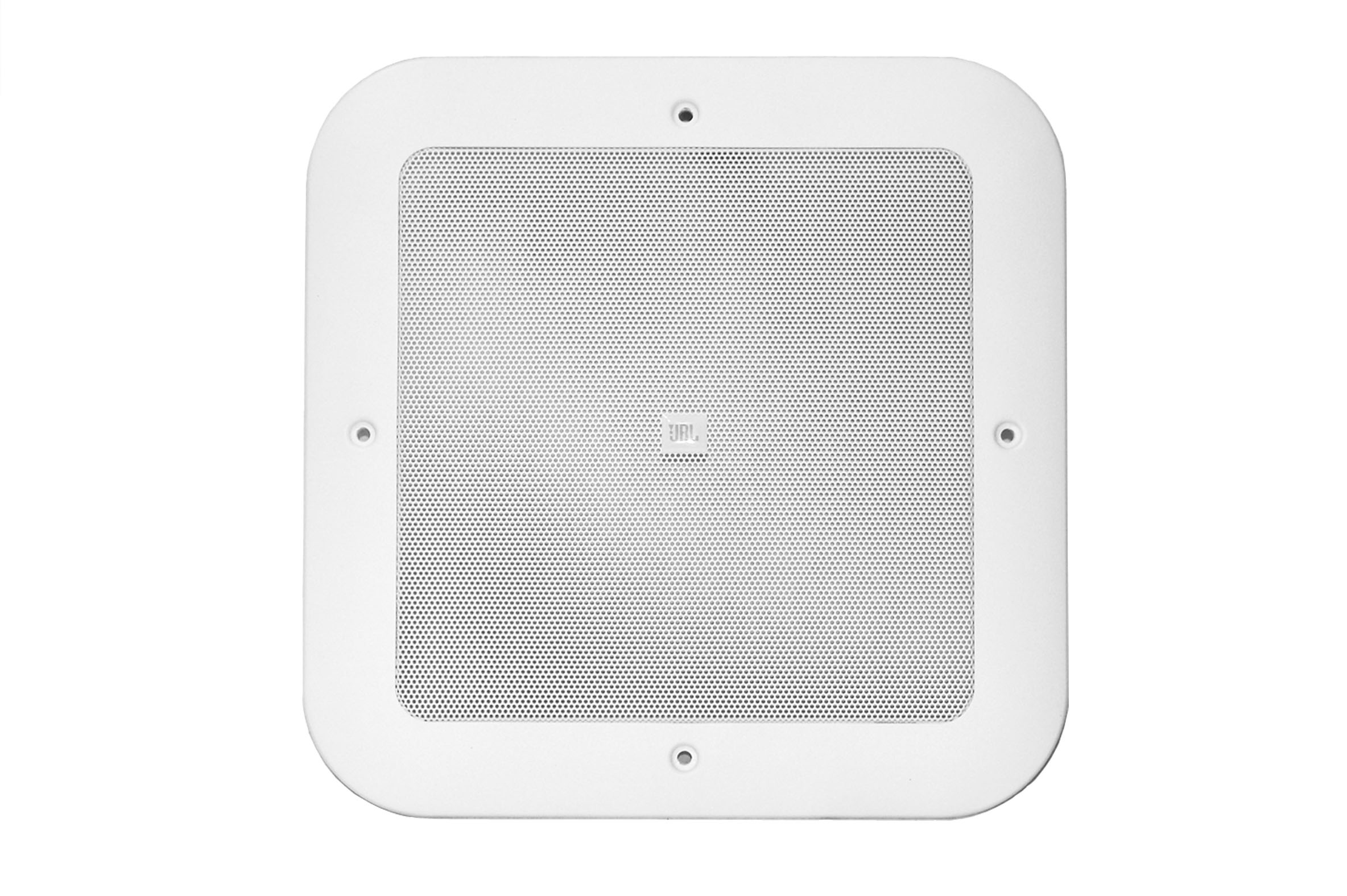

MTC-SG6/8 | Square Grille for Control 200 and Control 300 Series
MTC-SG6/8 Main photo
Larger Images

Square Grille for Control 200 and Control 300 Series



  • Rugged 19 gauge metal construction for enduring reliability.
  • Sculpted design for an elegant appearance and perfect for any decor or architectural setting.
  • Zinc plating provides a rust and scratch resistant surface for years of maintenance free wear.
  • Powder coated paint finish minimizes scratching and can easily be repainted to match any room color.

Documentation
MTC-TB6/8 | Tile Bridge for Control 200 and Control 300 Series
MTC-TB6/8 Main photo
Larger Images

Tile Bridge for Control 200 and Control 300 Series



  • Robust 18-gauge steel construction with an epoxy based powdercoat finish.
  • Over-The-Grid design reduces sound transmission to ceiling grid thereby minimizing rattle.
  • 310 mm (12.2 inch) opening accommodating both Control 328C/CT and Control 227C/CT models.
  • Fits 610 mm (24 inch) and 600 mm (23.6 inch) tile grids.

Documentation
MTC-300BB8 | 1 Cubic Ft. Backcan for Control 300 Series 8 in. Drivers
MTC-300BB8 Main photo
Larger Images

1 Cubic Ft. Backcan for Control 300 Series 8 in. Drivers

Professional Series

  • Extra-thick 16 gauge metal construction.
  • Lined with 12 mm (½ inch) thick MDF to eliminate resonances and to provide extra bass response.
  • Knockouts on top and side.

Documentation
MTC-300T150 | 150 Watt Transformer
MTC-300T150 Main photo
Larger Images

150 Watt Transformer

For use on either 70V or 100V distributed loudspeaker lines.


Documentation
