8" Coaxial Ceiling Loudspeaker with HF Compression Driver
Control 328CT has been engineered from the ground up to deliver exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.
Imagens maiores
Características
- Consistent 120° broadband pattern control covers an extremely large area.
- Shaped mounting baffle provides the pattern control of a 300 mm (12 in) horn from a 200 mm (8 in) driver.
- Components
• 200 mm (8 in) woofer with Kevlarreinforced cone and 50 mm (2 in) voice-coil.
• 25 mm (1" exit) compression driver. - Extraordinary clarity for speech and vocals with extended frequency response for music.
- 250 Watt power handling with very high sensitivity provides high SPL capability.
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- Clean, contemporary grille and optional backbox available.
Descarregamentos
Documentos
| Tamanho | |
Control 300 Brochure
atualizado: abr 2026
|
3 MB |
|
Control 328C_CT Spec Sheet
atualizado: abr 2026
|
700 KB |
|
Control 328C-CT Backcan Assembly Instructions
atualizado: abr 2026
|
500 KB |
|
Control 300 Transformer Bypass
atualizado: abr 2026
|
60 KB |
|
Control 300 Transformer Insertion Loss
atualizado: abr 2026
|
20 KB |
|
Control 300 User Guide
atualizado: abr 2026
|
2 MB |
Specifications
| Tamanho | |
|
|
700 KB |
Manuals
| Tamanho | |
|
|
60 KB |
|
|
20 KB |
Brochures
| Tamanho | |
|
|
20 MB |
|
|
3 MB |
|
|
20 MB |
CAD Drawings
| Tamanho | |
|
|
1 MB |
Compliances
| Tamanho | |
|
|
200 KB |
|
|
90 KB |
Software
| Tamanho | |
|
|
600 KB |
User Guides
| Tamanho | |
|
|
2 MB |
EASE Files
| Tamanho | |
|
|
1 MB |
Accessories
| Tamanho | |
|
|
600 KB |
Speaker Tunings
| Tamanho | |
|
|
600 KB |
Install Guides
| Tamanho | |
|
|
500 KB |
Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.
Peças e serviço
Especificações
| Frequency Range (-10dB) | 45 Hz – 18 kHz |
| Power Rating | See transformer taps |
| Transformer Taps | 68W, 34W, 17W, (& 8.5W @ 70V) |
| Frequency Response (±3 dB) | 60Hz – 16 kHz |
| Coverage Angle | 120° conical, constant directivity |
| Impedance | 8 ohms |
| Directivity Factor (Q) | 7.0 (Avg 1k - 16kHz) |
| Directivity Index (DI) | 8.5dB (Avg 1k - 16kHz) |
| Sensitivity | 93 dB (1 kHz - 16 kHz) |
| Maximum SPL (1m) | 118 dB (top 70V/100V tap) |
| Crossover Network | 1.9 kHz, 3rd order (18 dB/oct) high-pass plus conjugate |
| Dimensions (H x W x D) | 305 mm (12.0 in.) diameter round baffle x depth from back of baffle of 218 mm (8.6 in) |
| Input Connectors | Screw locking barrier strip for bare wire |
| Drivers | LF Driver: 200 mm (8 in) HF Driver: compression driver, 25 mm (1 inch) coil |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-300BB8. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (wood-lined; accessory) |
| Baffle/Rim | Metal, round, driver pre-mounted to baffle, ported. |
| Ceiling Cutout Size | 310 mm (12.2 in) diameter (for MTC-300BB8 backcan) |
| Included Accessories | Ported baffle pre-attached, plus transformer on 328CT. |
| Optional Accessories | MTC-RG6/8 Grille, round contoured, white. MTC-SG6/8 Grille, square, contoured, white. MTC-300BB8 Backbox, 25 liters (1 cubic feet) |
| Plenum Usage | Yes, with accessory backcan |
Acessórios
MTC-RG6/8 | Round Grille for Control 200 and Control 300 Series
Imagens maiores
Round Grille for Control 200 and Control 300 Series
- Rugged 19 gauge metal construction for enduring reliability.
- Sculpted design for an elegant appearance and perfect for any decor or architectural setting.
- Zinc underplating provides a rust and scratch resistant surface for years of maintenance free wear.
- Powder coat final finish minimizes scratching and can easily be repainted to match any room color.
Documentação
-
MTC-RG6/8 Spec Sheet
[80 KB]
-
Control 227C Install Sheet
[600 KB]
-
MTC-RG6/8 Hi Res Photo
[200 KB]
-
Brackets Declaration of Conformity
[100 KB]

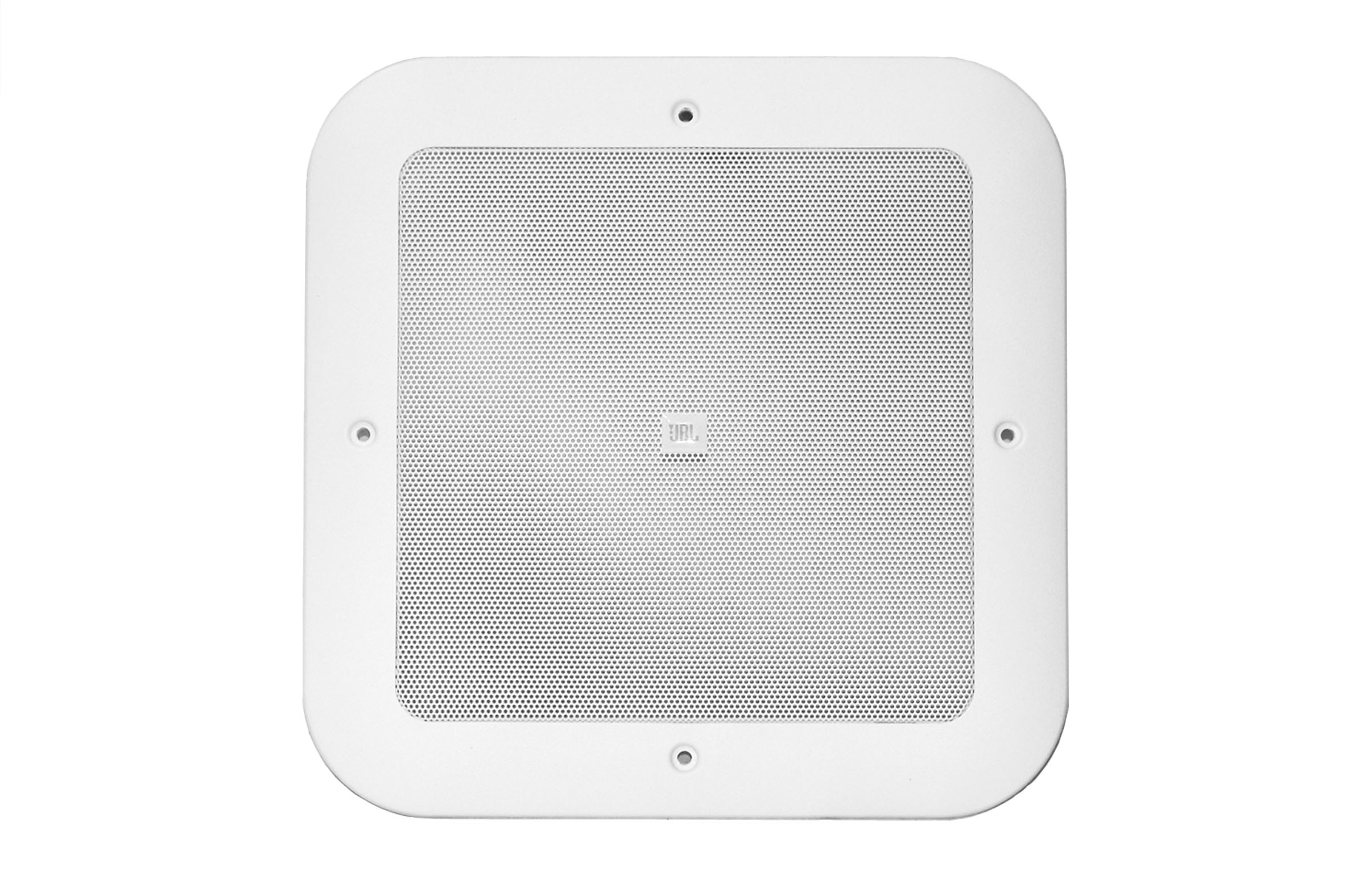

MTC-SG6/8 | Square Grille for Control 200 and Control 300 Series
Imagens maiores
Square Grille for Control 200 and Control 300 Series
- Rugged 19 gauge metal construction for enduring reliability.
- Sculpted design for an elegant appearance and perfect for any decor or architectural setting.
- Zinc plating provides a rust and scratch resistant surface for years of maintenance free wear.
- Powder coated paint finish minimizes scratching and can easily be repainted to match any room color.
Documentação
-
MTC-SG6/8 Spec Sheet
[600 KB]
-
MTC-SG6/8 Hi Res
[300 KB]
MTC-TB6/8 | Tile Bridge for Control 200 and Control 300 Series
Imagens maiores
Tile Bridge for Control 200 and Control 300 Series
- Robust 18-gauge steel construction with an epoxy based powdercoat finish.
- Over-The-Grid design reduces sound transmission to ceiling grid thereby minimizing rattle.
- 310 mm (12.2 inch) opening accommodating both Control 328C/CT and Control 227C/CT models.
- Fits 610 mm (24 inch) and 600 mm (23.6 inch) tile grids.
Documentação
-
MTC-TB6/8 Spec Sheet
[500 KB]
MTC-300BB8 | 1 Cubic Ft. Backcan for Control 300 Series 8 in. Drivers
Imagens maiores
1 Cubic Ft. Backcan for Control 300 Series 8 in. Drivers
Professional Series
- Extra-thick 16 gauge metal construction.
- Lined with 12 mm (½ inch) thick MDF to eliminate resonances and to provide extra bass response.
- Knockouts on top and side.
Documentação
-
MTC-300BB8 Spec Sheet
[3 MB]
-
Accessing the Conduit Knockouts
[100 KB]
-
Control 300 Ceiling Speaker Backboxes / Backcans
[1 MB]
-
Control 300 Ceiling Speakers
[1 MB]
-
JBL Brackets
[200 KB]
-
Brackets Declaration of Conformity
[100 KB]
MTC-300T150 | 150 Watt Transformer
Imagens maiores
150 Watt Transformer
For use on either 70V or 100V distributed loudspeaker lines.
Documentação
-
MTC-300T150 Spec Sheet
[200 KB]
