VTX A12

Dual 12-inch Line Array Loudspeaker | 90-Degree Dispersion

VTX A12

Next Generation Dual 12" Line Array Loudspeaker

JBL VTX A12 is a complete tour sound solution for mid- to large-size touring applications and high-end fixed installations. VTX A12 was designed from scratch to address the unique challenges of rental companies, FOH engineers and tour sound production crews. Next-generation JBL transducer technology and a high-frequency waveguide design deliver unmatched performance, sensitivity and coverage. A patented JBL rigging mechanism and redesigned suspension system streamline deployment and setup. And refinements to the physical design maximize reliability and versatility, while minimizing size and dramatically reducing weight. VTX A12 isn’t just a superior line array—it’s a completely new way to approach tour sound.



Features

  • New and improved JBL transducers for the best output per weight
  • Innovative HF section integrates the phasing plug and waveguide for high sensitivity and linearity even at high output levels
  • Redesigned Radiation Boundary Integrator® (RBI) for reduced horn edge diffraction, improved LF sensitivity, lower distortion, and 90-degree coverage down to 250 Hz
  • Next Generation LF section, including industry-defining Differential Drive woofers, with a dual magnet, dual voice-coil design for extended linear excursion
  • Best-in-class rigging for streamlined, rapid deployment
  • Full-face grill for superior weatherization and refined aesthetics
  • New transport cart and frame for simplified transport and setup
  • Optimizations throughout the design for space efficiency and reduced weight while simultaneously improving performance
  • Full integration with JBL system control and prediction software
  • Lightweight design


Reviews

"I just finished mixing the show, on the VTX A12. Killer set, everything sounded amazing and I feel like the crowd loved it."
—Reiley Brinser (FOH Engineer Ozomatli)

"Let’s be honest.  JBL is #1 on my list of preferred PA’s and I prefer a loudspeaker that is honest to my mix and the band.  I never run out of headroom, punch or clarity with JBL."
—Chris "Cookie" Hoff (FOH for Styx)

"Using the VTX A-12 at summer fest was a lot of fun its sounded great. Nick did a fantastic job tuning the pa for the venue. I tuned REO into the pa in about 2 minutes, really had a good time."
—Joe Walsh (FOH REO Speedwagon)

"Mixing in the box is only as good as the speaker at the end of the chain. The JBL VTX-A system I encountered at Summerfest created a beautiful experience. The sound matched the excitement in the air while the deep bass response surrounded and kept us all grounded."
—Timothy Burkhead (FOH Engineer Leon Bridges)

"The VTX A12 has the clarity and plenty of volume that I needed.  Also, the new B28 Subs had enough low end to shake the crowd.  It is a very balanced rig that you can run hard. JBL has never let me down."
—Matthew Stevens (FOH Engineer Better Than Ezra)

"As I pulled up in the bus to Summerfest, I saw our stage. Even from afar, I saw the distinct shape of the JBL A12 and I knew It was going to be a good day. The power, signature, and coverage was excellent. "
— Ken "Pooch" Van Druten (FOH Engineer)

Downloads

Specifications
  Version Language Size Uploaded
file type icon VTX A12 Spec Sheet
en version E, updated: Dec 2020
E  en  529 KB Dec 2020
Manuals
  Version Language Size Uploaded
file type icon VTX A12 User Manual
en version D, updated: Jul 2023
D  en  8.43 MB Jul 2023
file type icon VTX A12 Rigging Manual
en version D, updated: Jul 2023
D  en  47.8 MB Jul 2023
Brochures
  Version Language Size Uploaded
file type icon VTX A12 System Brochure
en version 1.0, updated: Dec 2020
1.0  en  13.6 MB Dec 2020
CAD Drawings
  Version Size Uploaded
file type icon VTX A12 Customer Drawings
version 1.0, updated: Dec 2020
1.0  719 KB Dec 2020
file type icon VTX A12 Revit/BIM Files
version 2.0, updated: Jul 2024
2.0  33.3 MB Jul 2024
file type icon VTX A12 Sketchup File
version 2.0, updated: Jul 2022
2.0  2.52 MB Jul 2022
Software
  Size Uploaded
download icon for Venue Synthesis Venue Synthesis
released: Jan 2025
Jan 2025
download icon for Performance Manager 3 Performance Manager 3
released: Jul 2024
Jul 2024
Ease Data
  Version Size Uploaded
file type icon VTX A12 EASE GLL
version 1.1, updated: Dec 2020
1.1  10.5 MB Dec 2020
Preset Libraries
  Version Size Uploaded
file type icon VTX A12 iTech HD Preset Library
version 1.2, updated: Jul 2024
1.2  1.56 MB Jul 2024
Service Notes
  Version Language Size Uploaded
file type icon VTX A12 Spare Parts
en version C, updated: Apr 2026
C  en  65.4 KB Apr 2026

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range (-10dB) 46 Hz - 19k Hz (Preset: VTX A12)
Horizontal Coverage (-6 dB) 90 degrees nominal (250 Hz - 18k Hz)
Max SPL 146 dB (Preset: VTX A12)
System Amplification Crown Audio I-Tech HD
Nominal Impedance LF: 2x 8 ohms
MF: 8 ohms
HF: 8 ohms
LF Driver (2) JBL 2264H 12-inch Neodymium Differential Drive® woofer
MF Driver (4) JBL 2165H 5.5-inch Neodymium Differential Drive® woofer
HF Driver (3) JBL 2423K 2-inch annular diaphragm compression driver
Enclosure Finnish birch plywood, Black DuraFlex finish, integral recessed handles
Suspension / Mounting High-grade steel with anti-corrosion coating, captive suspension plates, quick release pins, auto-locking mechanism for setting angles
Inter-enclosure Angle 0.25 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 6 | 8 | 10
Dimensions (H x W x D) 330 mm x 1118 mm x 495 mm
13 in x 44 in x 19.5 in
Net Weight (each) 60.8 kg (134 lb)

Accessories

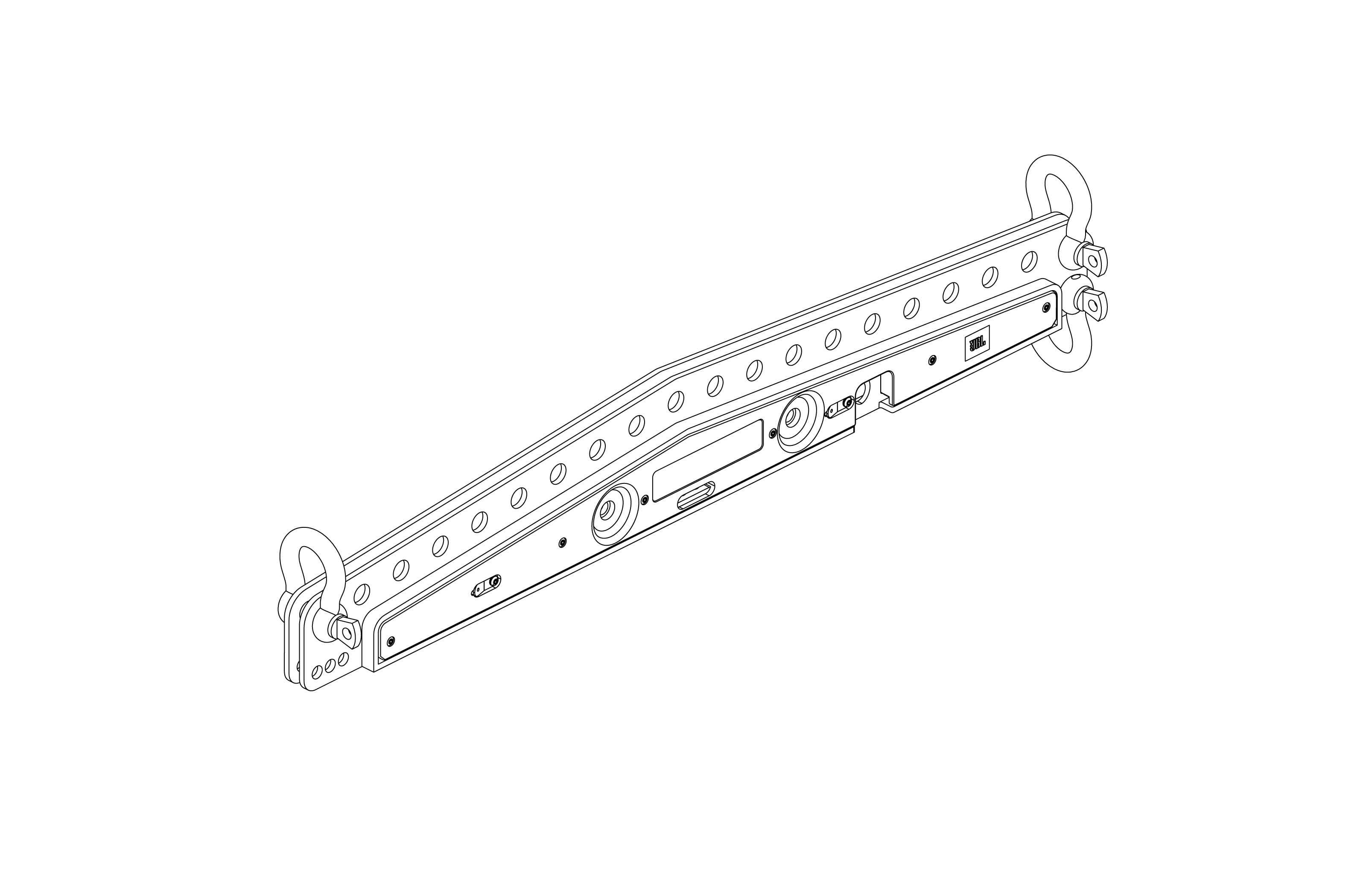

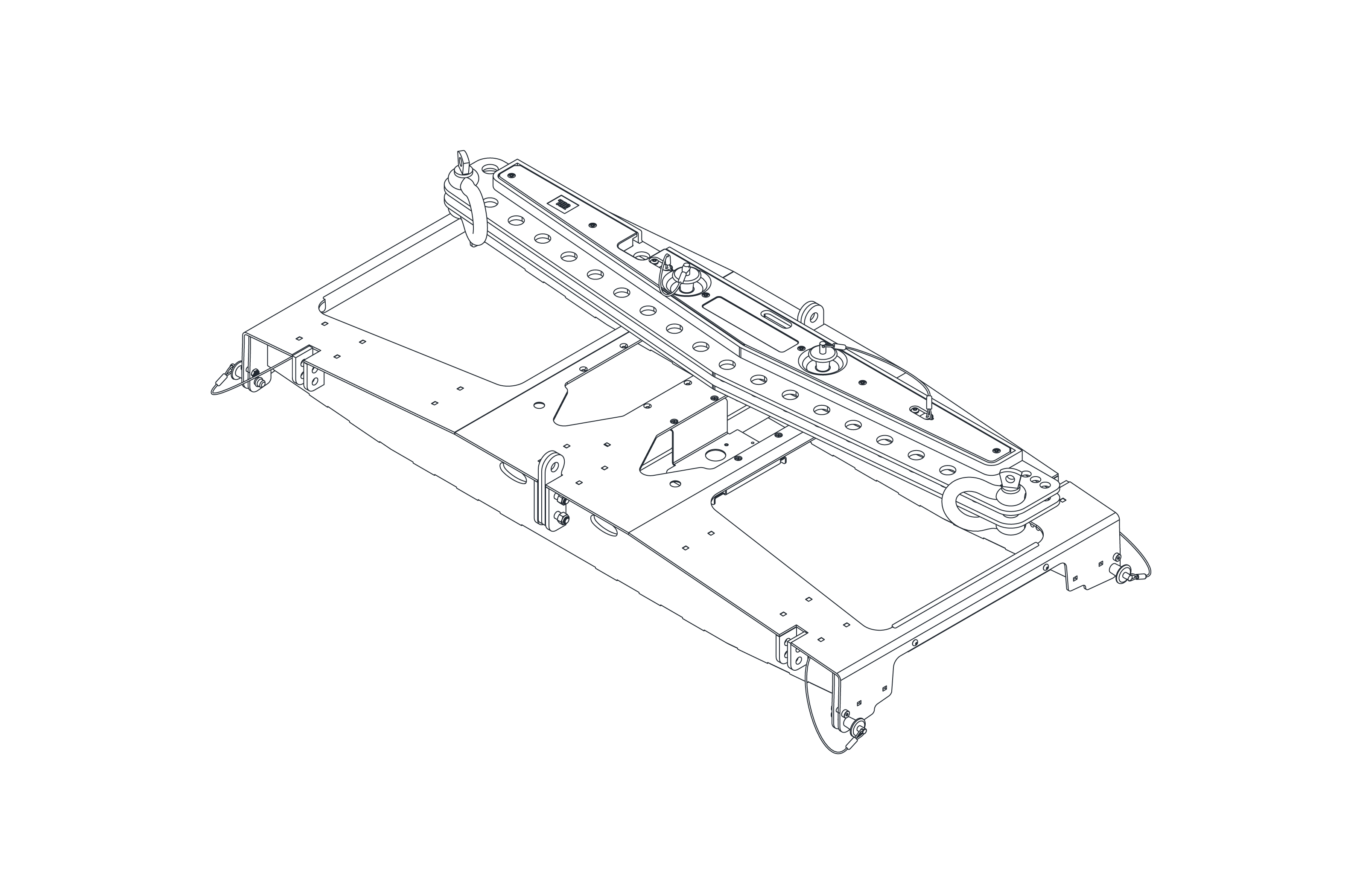

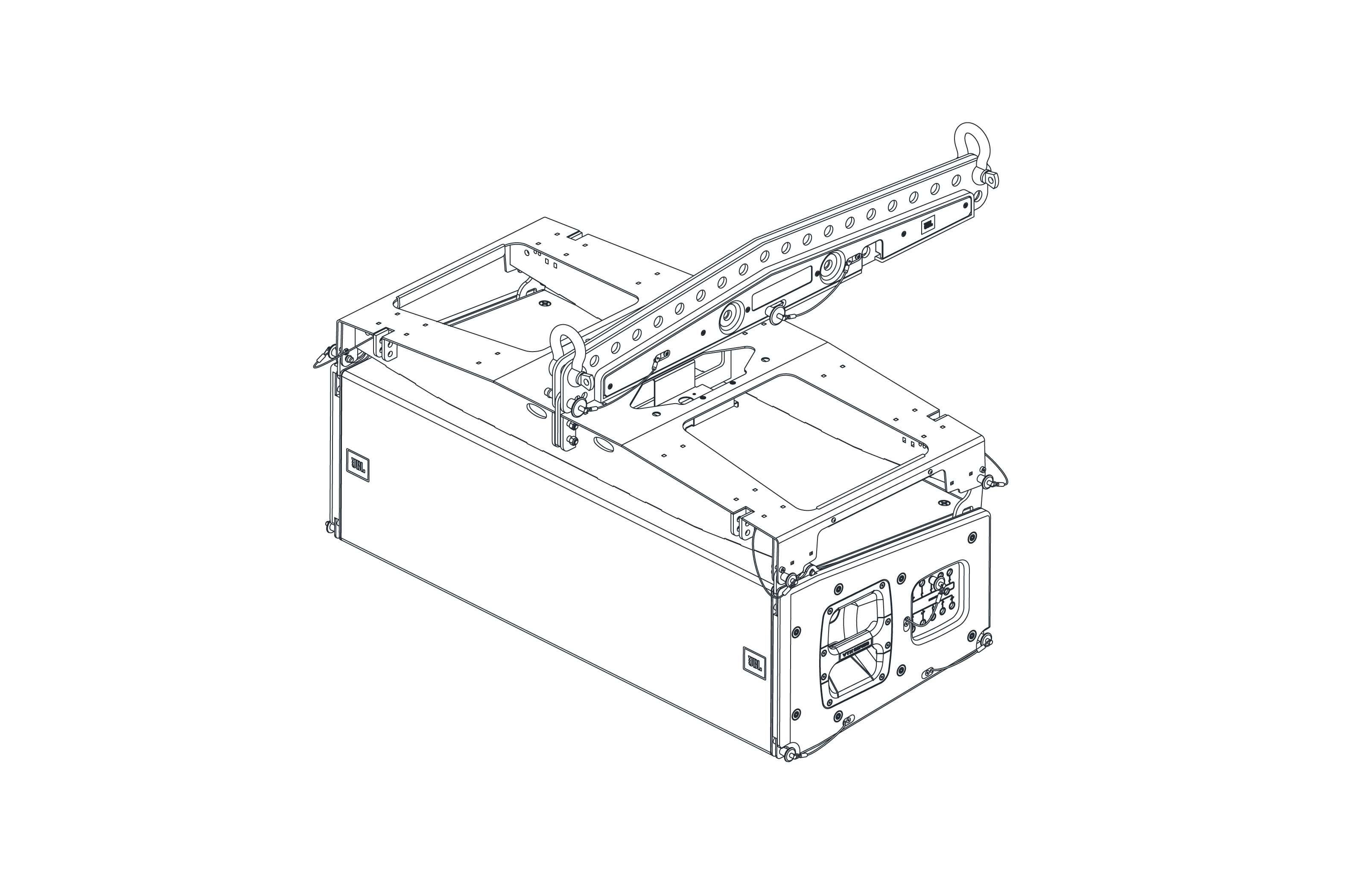

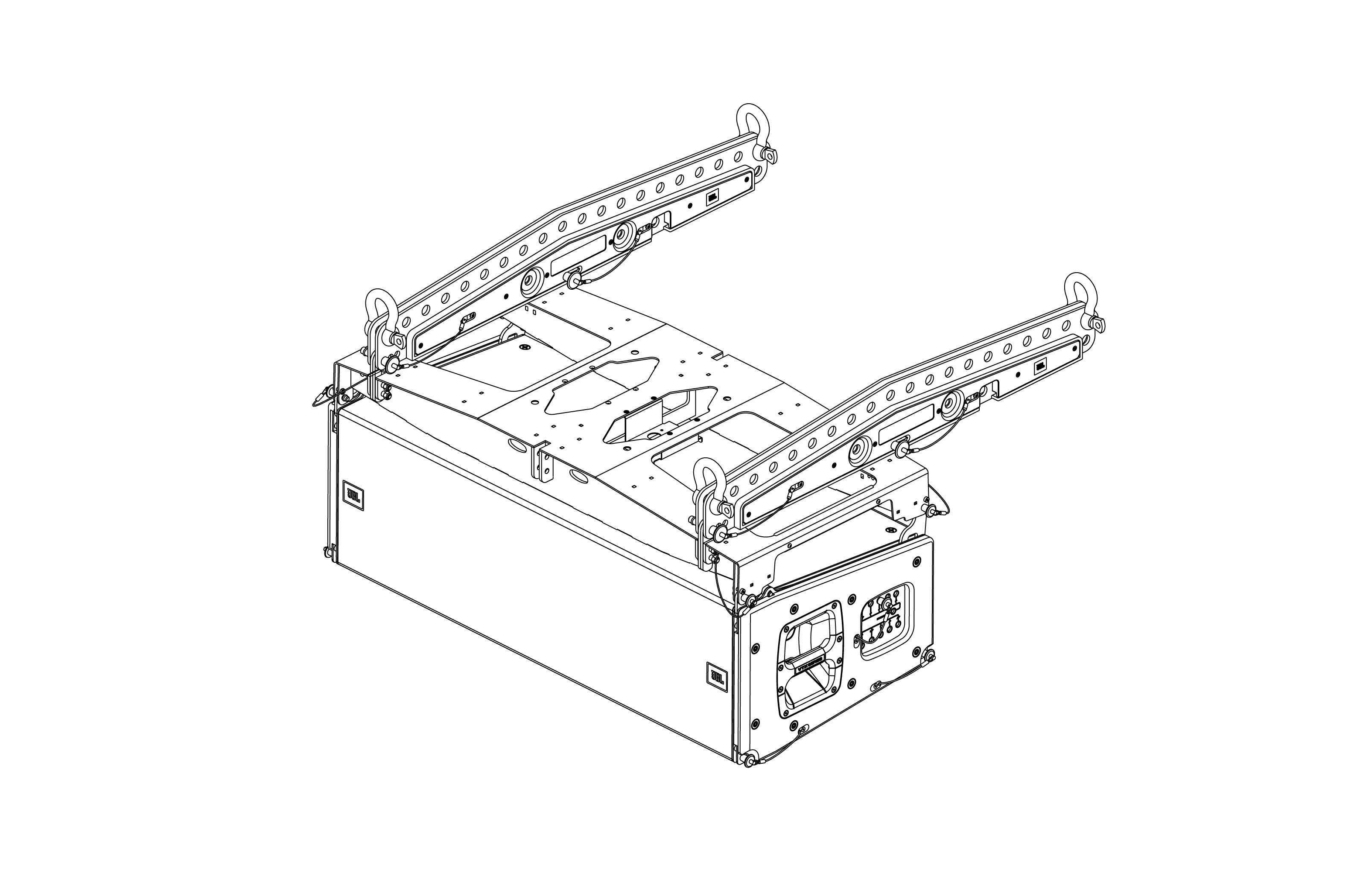

VTX A12 AF MKII | Array Frame for VTX A12 and VTX B35
VTX A12 AF MKII Main photo
Larger Images
VTX A12 AF MKII detail thumbnail #1 VTX A12 AF MKII detail thumbnail #2 VTX A12 AF MKII detail thumbnail #3 VTX A12 AF MKII detail thumbnail #4

Highlights:

  • Compatible with VTX A12 and VTX B35
  • One Extension Bar included
  • Integrated storage for up to two Extension Bars
  • Supports single-point, dual-point, and quad-point suspension
  • High-resolution single-point shackle positioning
  • Laser attachment bracket included

Included:

  • (1) VTX A12 AF MKII
  • (1) VTX A12 AF EB MKII
  • (3) 5/8-inch Shackles
  • (1) Laser Bracket
Documentation

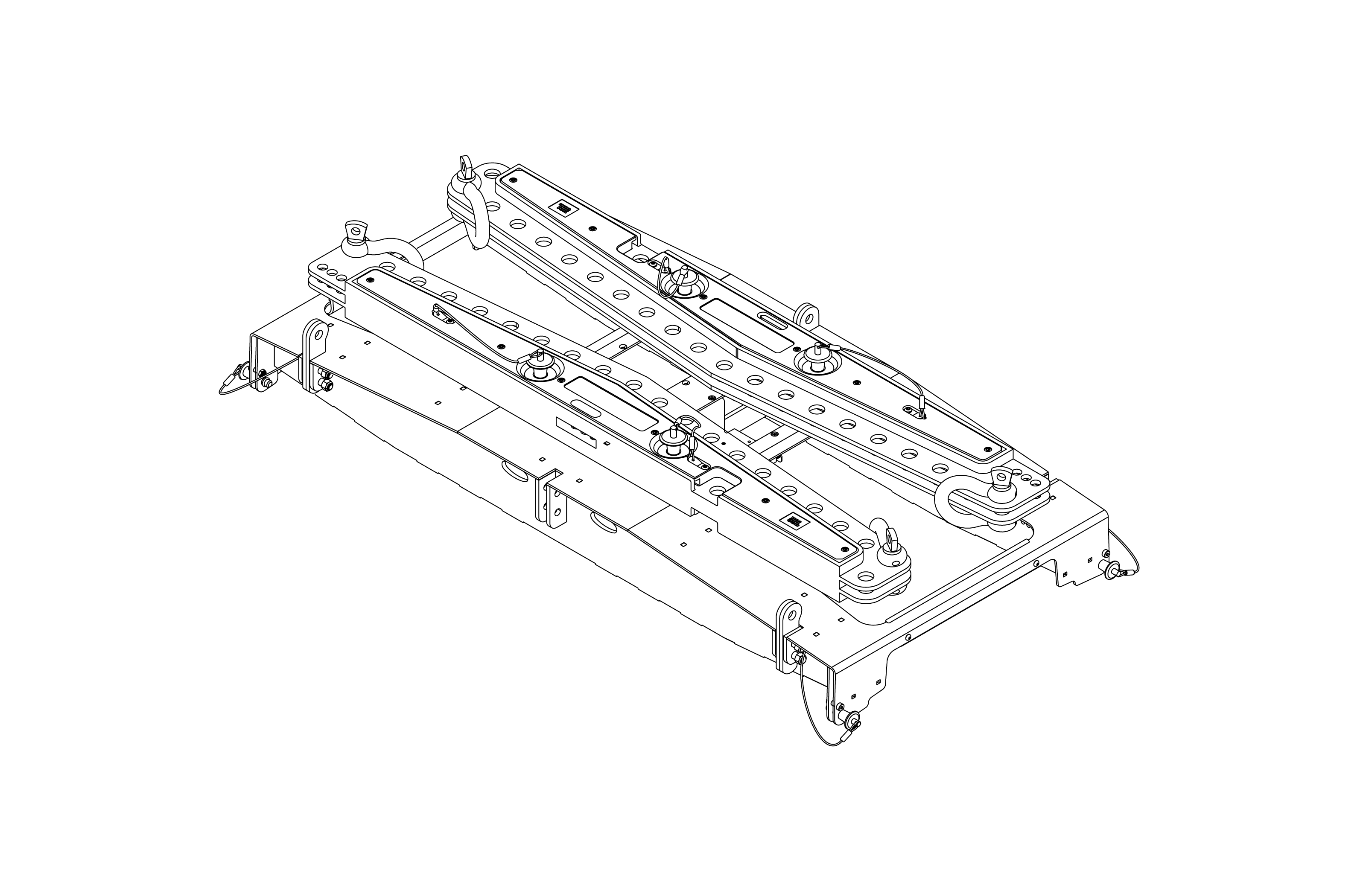

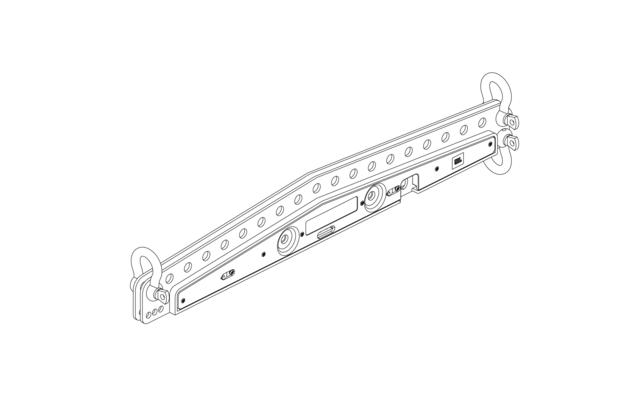

VTX A12 AF EB MKII | Extension Bar for VTX A12 Array Frame
VTX A12 AF EB MKII Main photo
Larger Images
VTX A12 AF EB MKII detail thumbnail #1 VTX A12 AF EB MKII detail thumbnail #2 VTX A12 AF EB MKII detail thumbnail #3 VTX A12 AF EB MKII detail thumbnail #4

Highlights:

  • Extension Bar for use with the A12 Array Frame
  • Lightweight design
  • Includes brackets and hardware for side-by-side suspension
  • Compatible with the original VTX A12 AF

Included:

  • (1) VTX A12 AF EB MKII
  • (4) Attachment Bracket Sets and Hardware
  • (3) 5/8-inch Shackles
Documentation

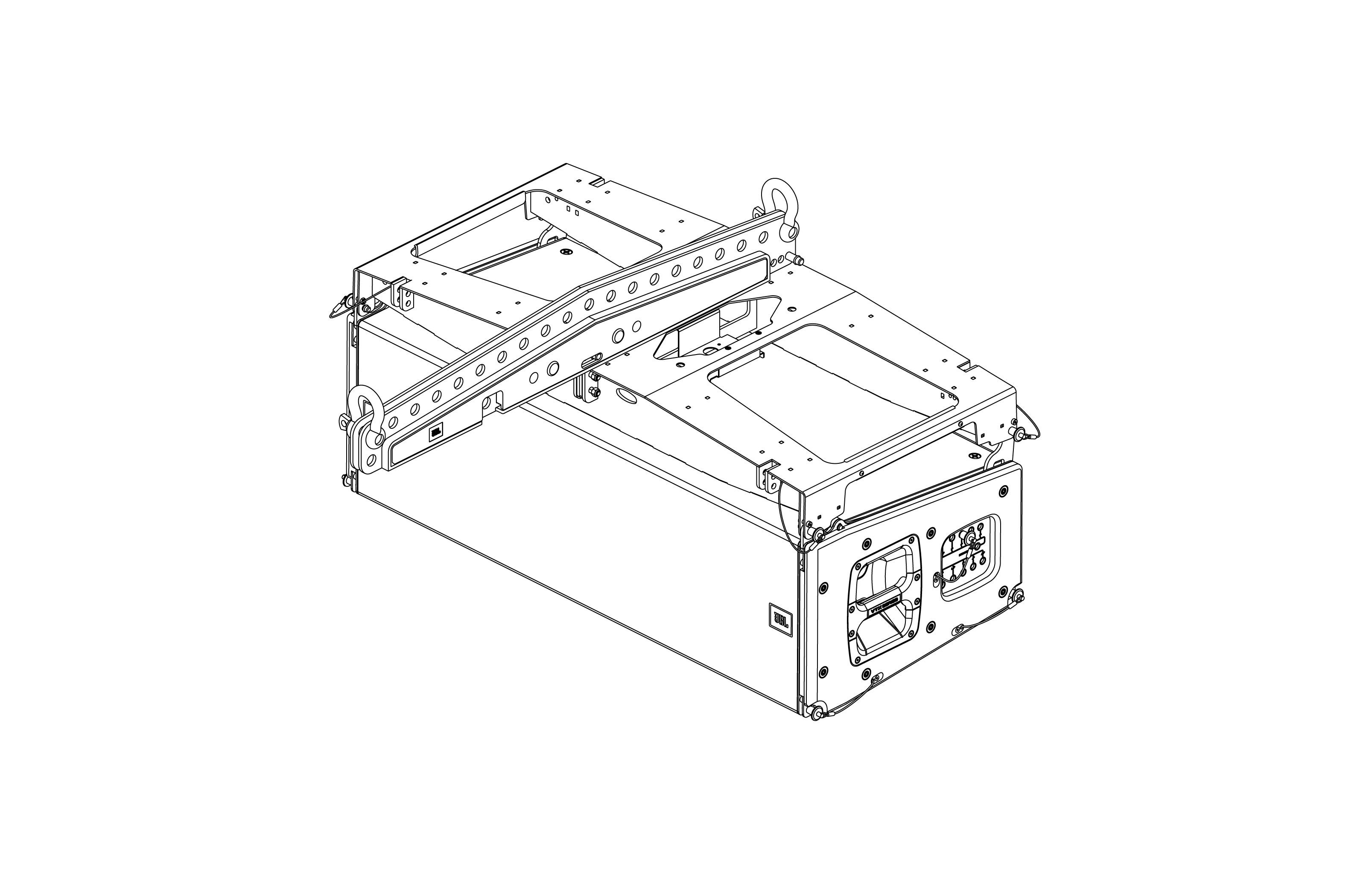

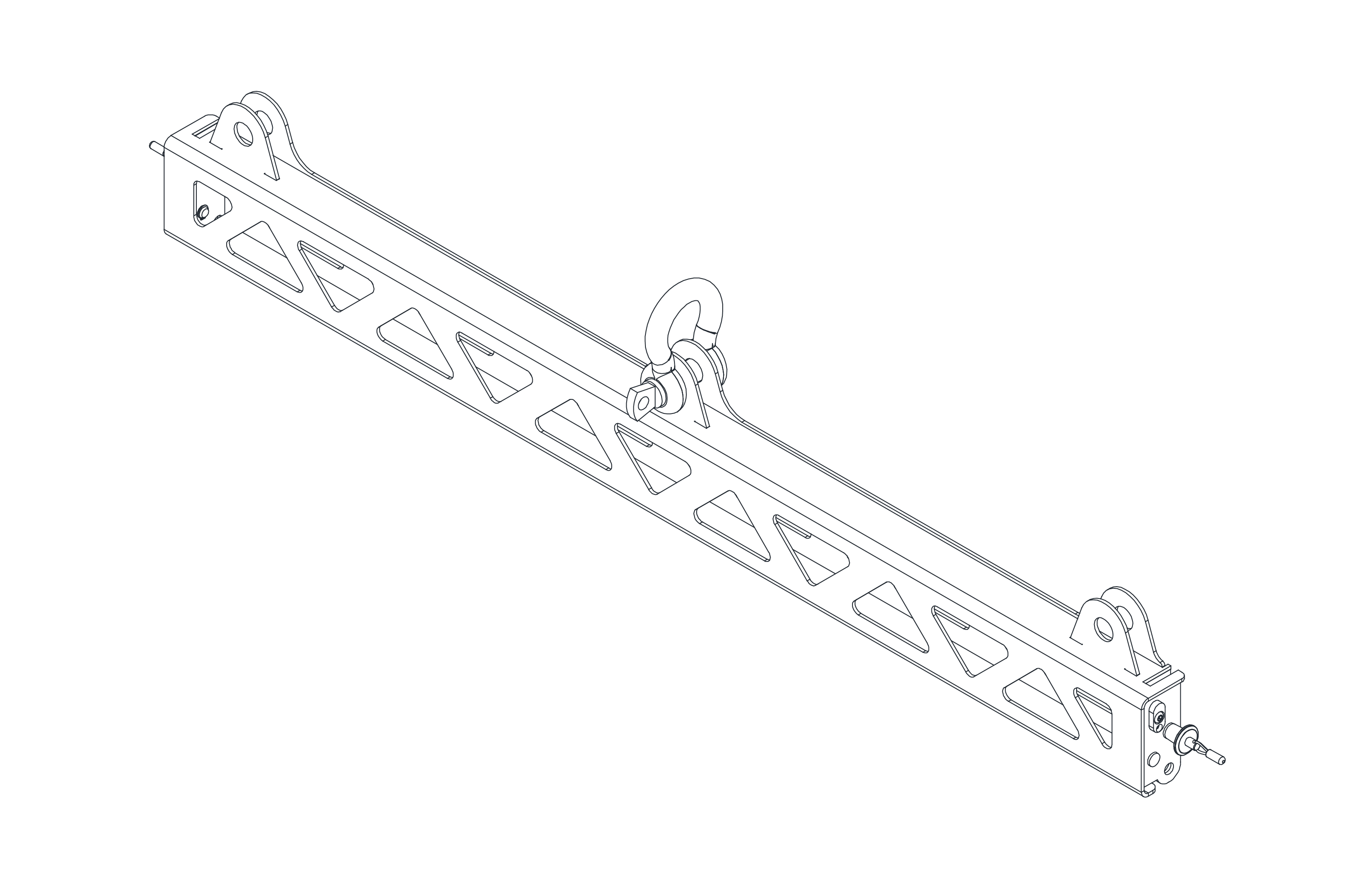

VTX A12 SB | Suspension Bar for VTX A12 and VTX B35
VTX A12 SB Main photo
Larger Images
VTX A12 SB detail thumbnail #1 VTX A12 SB detail thumbnail #2 VTX A12 SB detail thumbnail #3 VTX A12 SB detail thumbnail #4
Highlights:
  • Compatible with VTX A12 and VTX B35
  • Attaches to the top or bottom enclosure of an array
  • Supports pull-back applications
  • Can be used as a compact array frame for VTX A12
  • Supports standalone suspension of VTX B35 arrays
  • Lightweight design
Included:
  • (1) Suspension Bar
  • (1) 5/8 in Shackle
Documentation

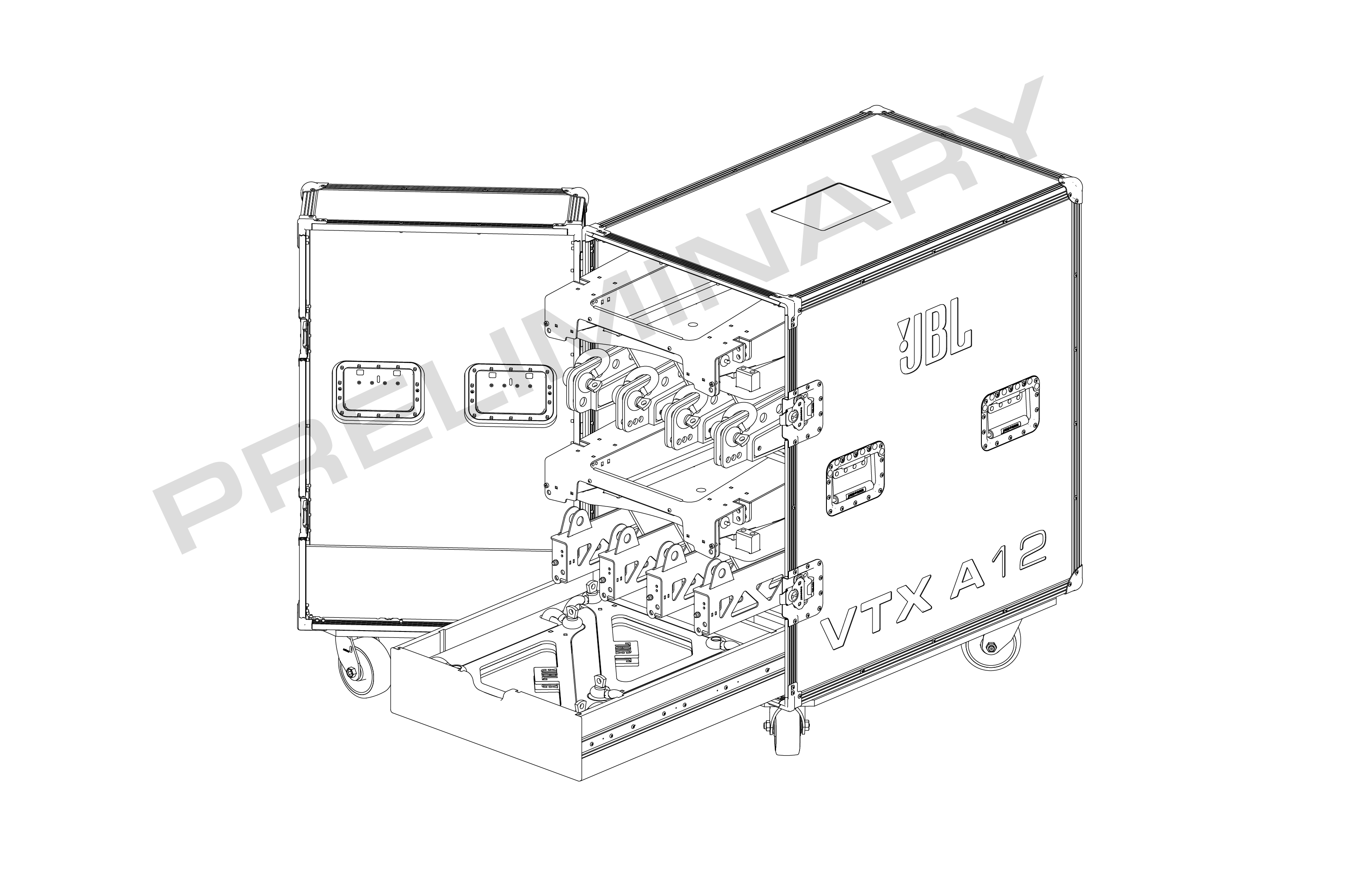

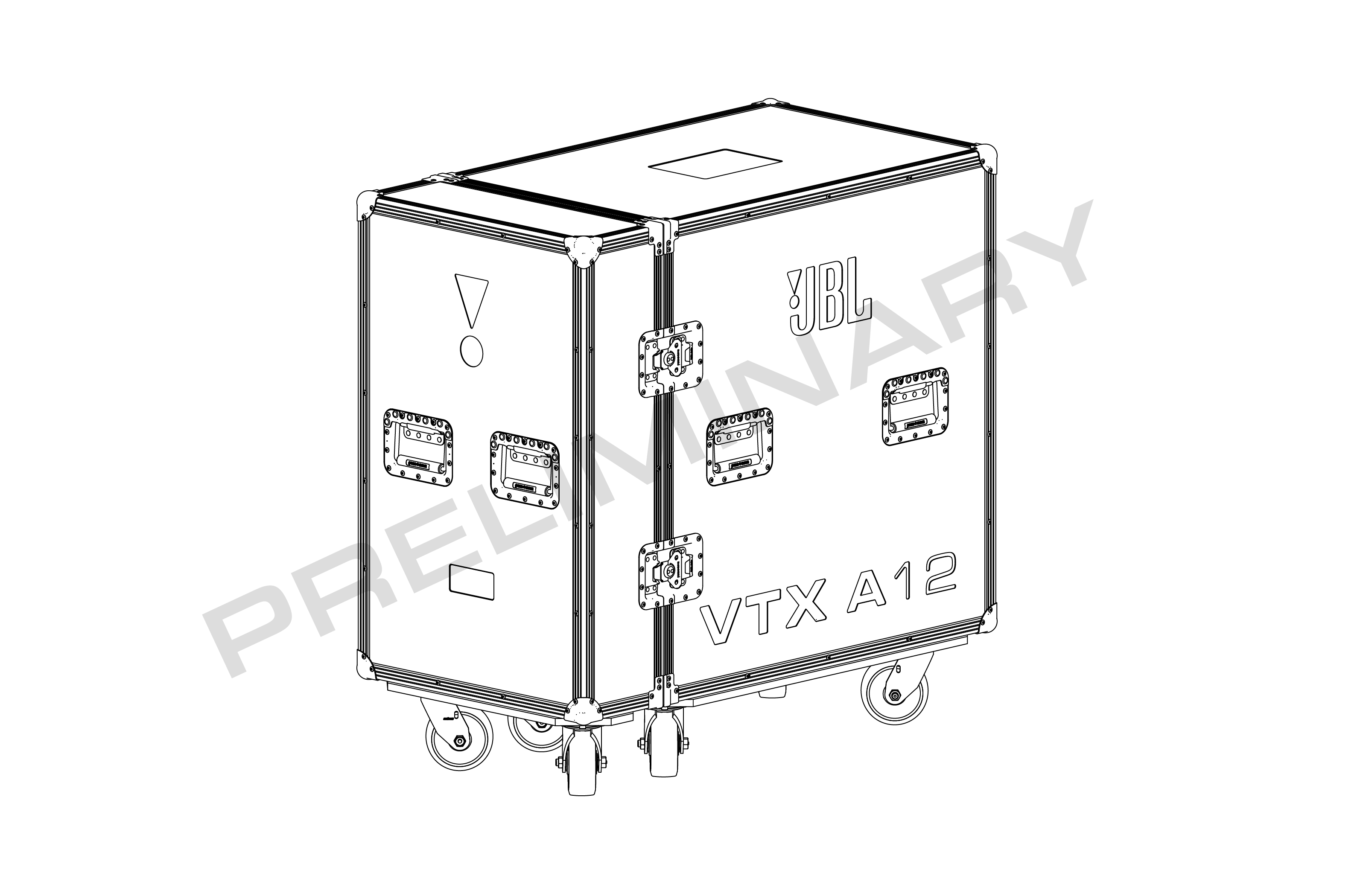

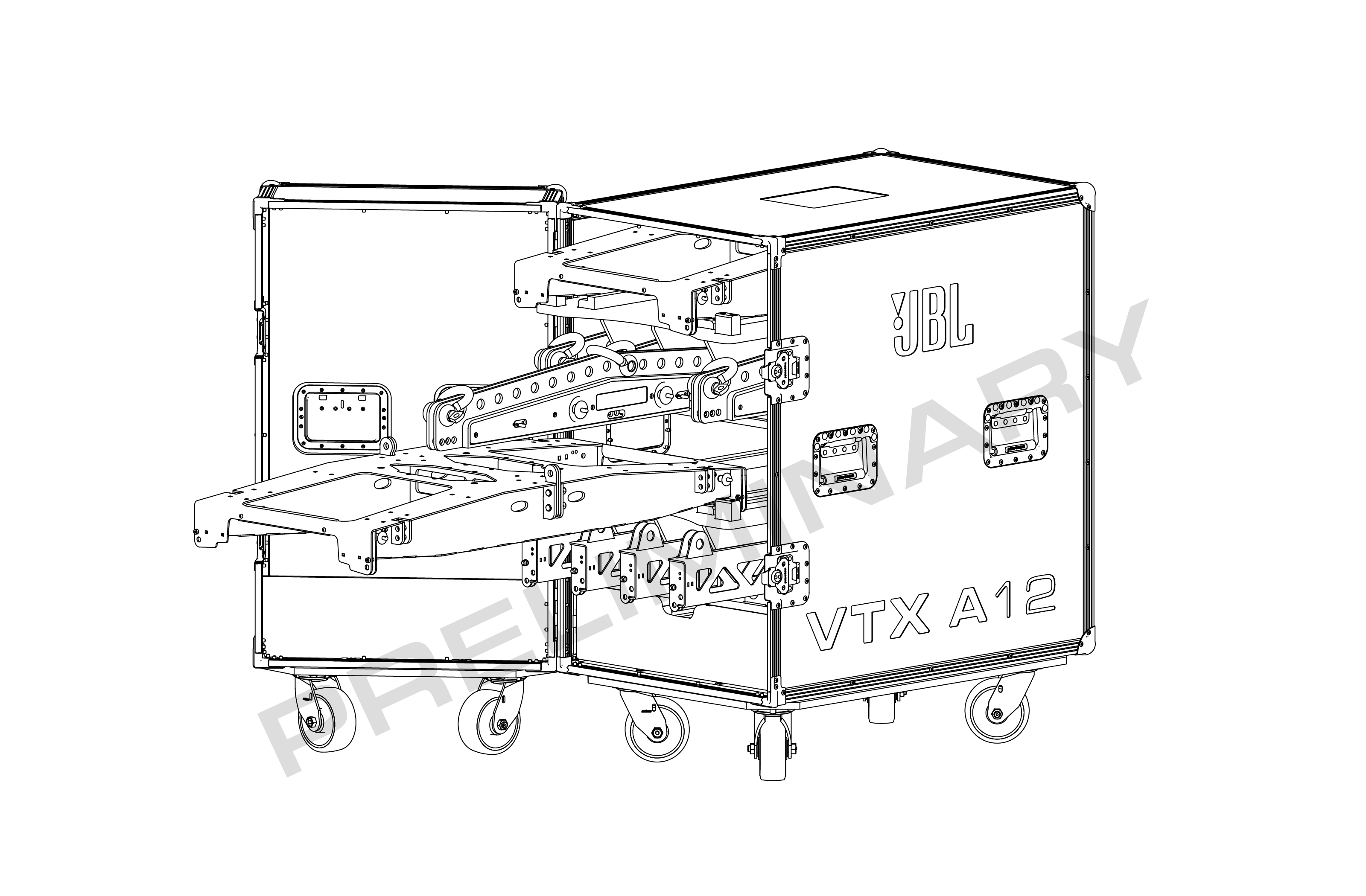

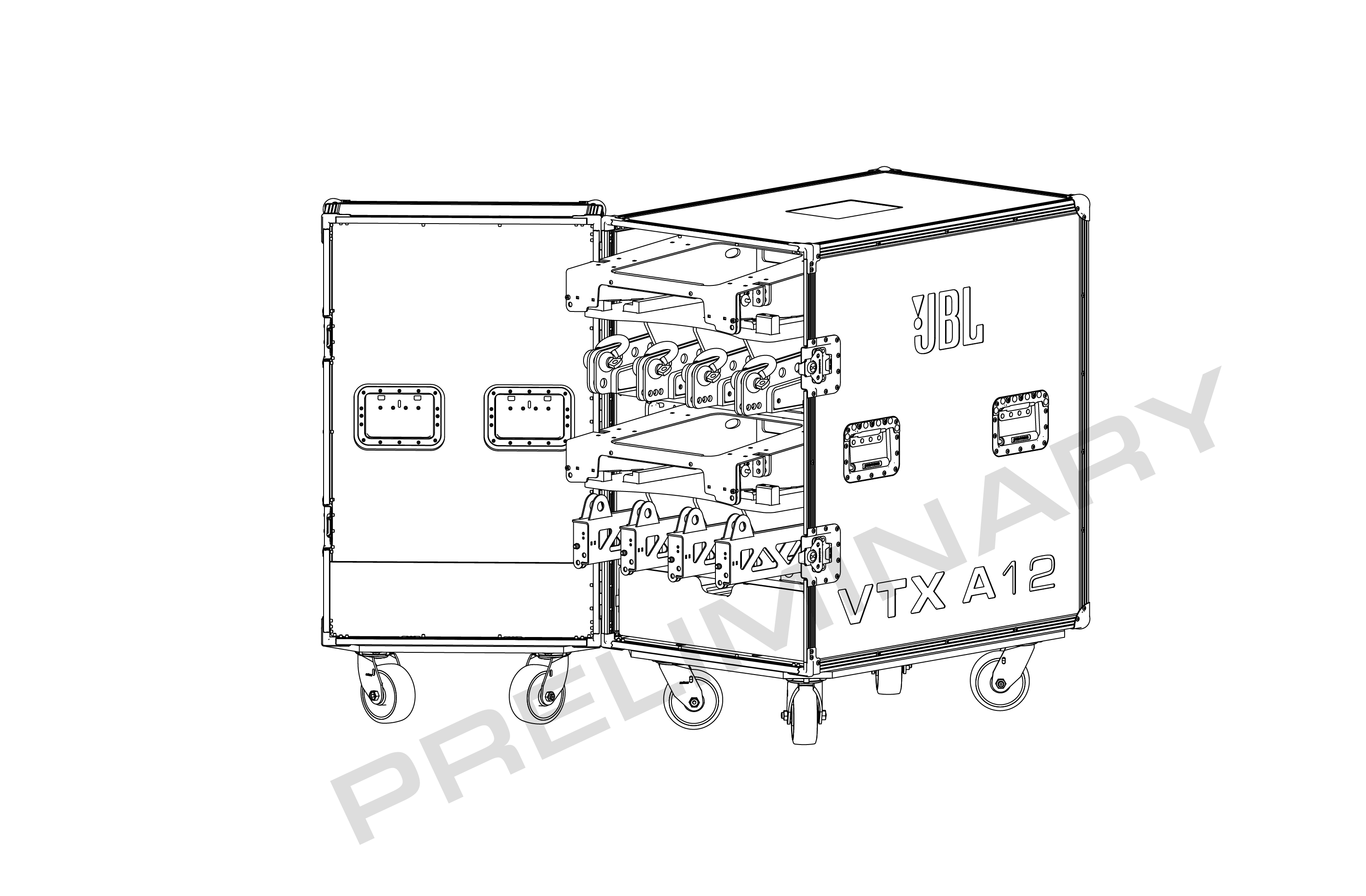

VTX A12 AF CASE | Road Case for VTX A12 Array Frame MKII
VTX A12 AF CASE Main photo
Larger Images
VTX A12 AF CASE detail thumbnail #1 VTX A12 AF CASE detail thumbnail #2 VTX A12 AF CASE detail thumbnail #3 VTX A12 AF CASE detail thumbnail #4

Highlights:

  • Road case for VTX A12 and VTX B35 rigging accessories
  • Optimized for truck packing alongside VTX A12 VT and VTX B35 VT transporters
  • Dedicated storage for Array Frames, Extension Bars, Suspension Bars, and Delta Plates
  • Side-access design for fast access to individual components
  • Black JBL DuraFlex™ finish
  • Heavy-duty tour-grade casters

Capacity:

  • (2) VTX A12 AF MKII
  • (4) VTX A12 AF EB MKII
  • (4) VTX A12 AB
  • (2) VTX DELTA
  • Includes space for auxiliary rigging accessories such as shackles, chains, and wire ropes

Included:

  • JBL-P3644MX (empty):
    • (1) VTX A12 AF CASE
  • JBL-P3647MX (complete):
    • (1) VTX A12 AF CASE
    • (1) VTX A12 AF CASE
    • (2) VTX A12 AF MKII
    • (2) VTX A12 AF EB MKII
    • (2) VTX A12 SB
    • (2) VTX DELTA
    • (12) 5/8-inch Shackles

Notes:

  • Not compatible with the original VTX A12 Array Frame
Documentation

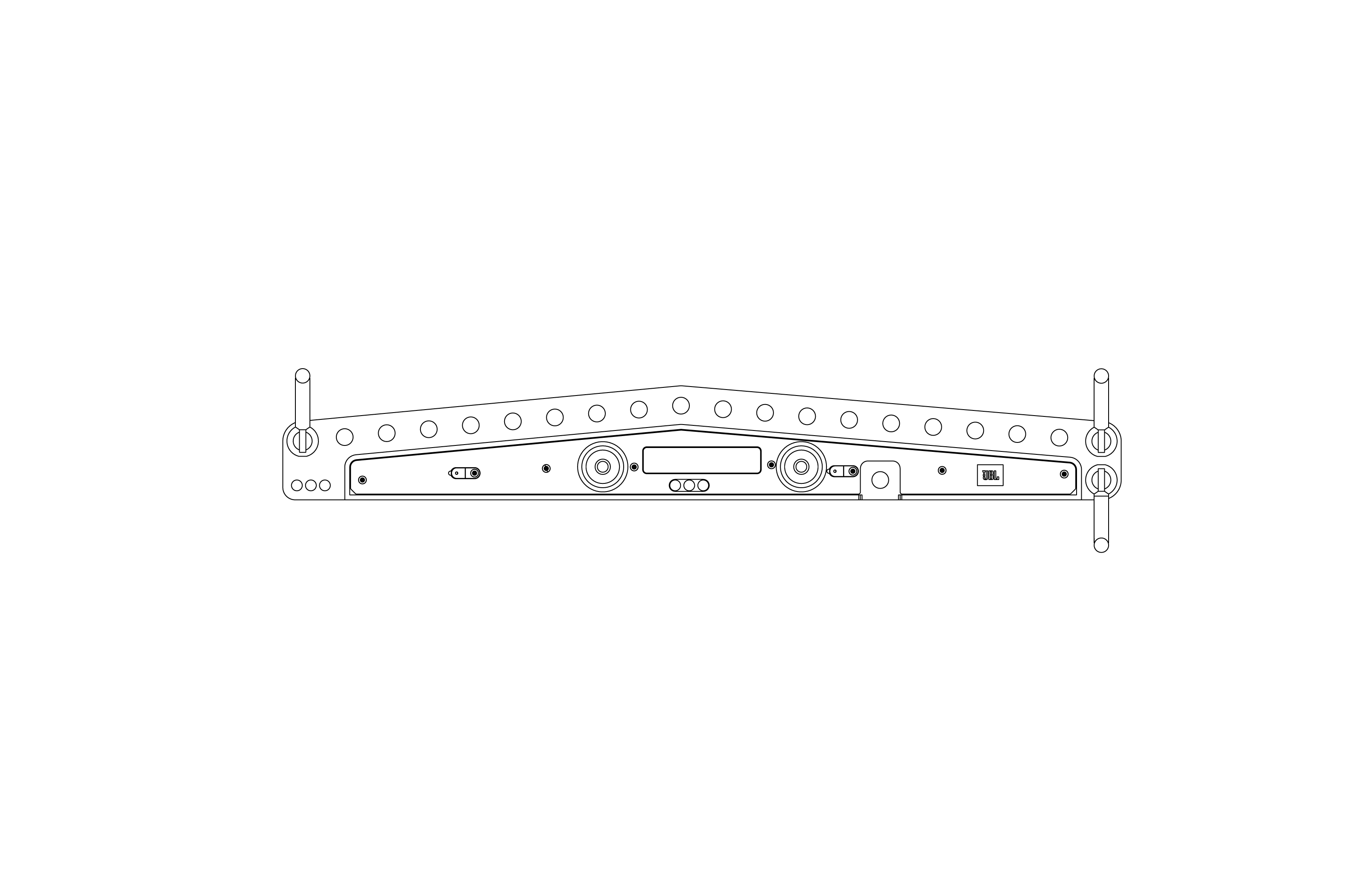

VTX DELTA | Delta Plate
VTX DELTA Main photo
Larger Images
VTX DELTA detail thumbnail #1 VTX DELTA detail thumbnail #2 VTX DELTA detail thumbnail #3 VTX DELTA detail thumbnail #4

Highlights:

  • High-quality universal delta plate accessory
  • Support for up to (24) JBL Line Array enclosures
  • Allows for up to +/- 10-degrees of horizontal adjustment
  • Lightweight design
  • Recommended point spacing: 1 meter (3.3 ft)
Included:
  • (1) VTX Delta
  • (3) 5/8 in Shackles
Documentation
VTX A12 VT | Vertical Transporter
VTX A12 VT Main photo
Larger Images
VTX A12 VT detail thumbnail #1 VTX A12 VT detail thumbnail #2 VTX A12 VT detail thumbnail #3 VTX A12 VT detail thumbnail #4
Highlights:
  • Vertical transport cart for (4) VTX A12 enclosures
  • Truck-friendly dimensions
  • Includes a hard top for easy stacking
  • Built-in stacking features for easy storage
  • Support for ground stacking
  • Lightweight design
  • Heavy-duty casters
Included:
  • (1) Vertical Transporter
  • (1) VT-TOP
Documentation
VTX A12 VT CVR | Vertical Transporter Cover
VTX A12 VT CVR Main photo
Larger Images
VTX A12 VT CVR detail thumbnail #1 VTX A12 VT CVR detail thumbnail #2 VTX A12 VT CVR detail thumbnail #3 VTX A12 VT CVR detail thumbnail #4
Highlights:
  • Heavy-duty soft cover for VTX A12 enclosures
  • Covers (4) VTX A12 enclosures on a VTX A12 VT
  • Includes input-panel flaps for testing purposes
  • Clear see-through pocket for shipping labels
  • Handle cut-outs for easy transportation
  • Folds and stores in the VTX A12 VT
  • Heavy-duty industrial-grade zippers
Included:
  • (1) VTX A12 VT CVR
Documentation
VTX A12 VT GND | Vertical Transporter Ground Stack
VTX A12 VT GND Main photo
Larger Images
VTX A12 VT GND detail thumbnail #1 VTX A12 VT GND detail thumbnail #2 VTX A12 VT GND detail thumbnail #3 VTX A12 VT GND detail thumbnail #4
Highlights:
  • Outrigger system for VTX A12 VT, VTX B28 VT and other compatible Vertical Transporters
  • Four screw jacks included for height adjustment
  • Innovative spring-based angle-set mechanism
  • Compact and lightweight design
  • Range: -15 to +5 degree
  • Vertical Transporter not included
Included:
(1) VTX A12 VT GND
Documentation

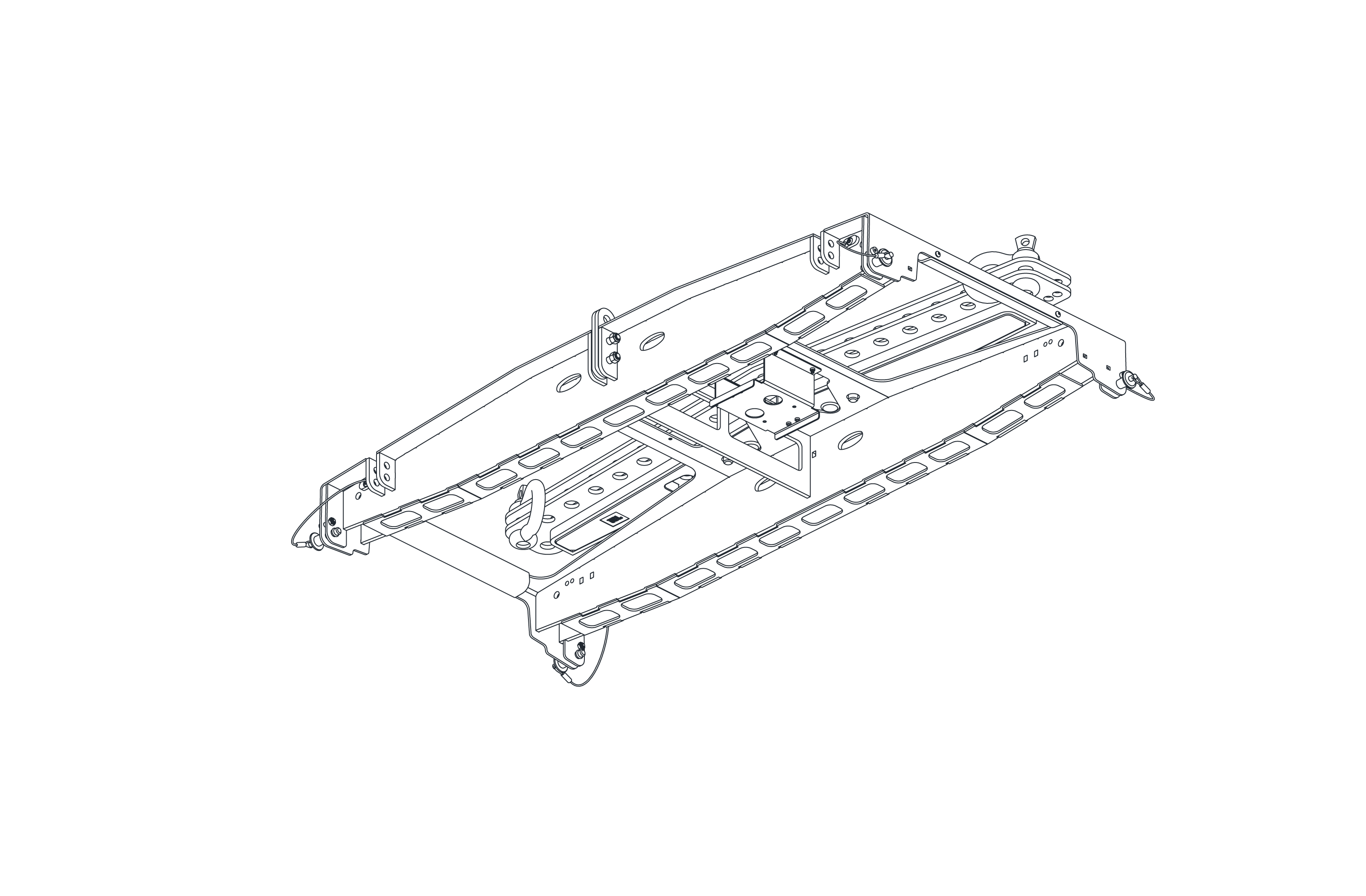

VTX A12 BP | Base Plate for VTX A12
VTX A12 BP Main photo
Larger Images
VTX A12 BP detail thumbnail #1 VTX A12 BP detail thumbnail #2 VTX A12 BP detail thumbnail #3 VTX A12 BP detail thumbnail #4

Highlights:

  • Enables ground stacking VTX A12 arrays
  • Universal M20 threaded pole mount
  • Attaches directly to VTX B28 subwoofer enclosure
  • Array angles selectable between -15 degrees and +5 degrees
  • Two-part lightweight design

Included:

  • (2) VTX A12 BP Base Plate (Left / Right)
Documentation

News

UBS Arena Amplifies Fan Experiences with JBL
UBS Arena Amplifies Fan Experiences with JBL
April 04, 2023
UBS Arena Amplifies Fan Experiences with JBL
The 2022 Latin Billboard Awards Celebrate Icons and Modern Stars with JBL Professional Solutions
The 2022 Latin Billboard Awards Celebrate Icons and Modern Stars with JBL Professional Solutions
January 28, 2023
The 2022 Latin Billboard Awards Celebrate Icons and Modern Stars with JBL Professional Solutions
UNITE San Antonio Brings People Together for Two Days of Music & Worship with HARMAN Professional Solutions
UNITE San Antonio Brings People Together for Two Days of Music & Worship with HARMAN Professional Solutions
December 29, 2022
UNITE San Antonio Brings People Together for Two Days of Music & Worship with HARMAN Professional Solutions
Alice Cooper Brings the Shock Factor Across the U.S. Using JBL Professional Audio Solutions
Alice Cooper Brings the Shock Factor Across the U.S. Using JBL Professional Audio Solutions
December 21, 2022
Alice Cooper Brings the Shock Factor Across the U.S. Using JBL Professional Audio Solutions
Thunder Audio Takes Mr. Worldwide Across North America with JBL VTX Systems on Pitbull’s Can’t Stop Us Now Tour
Thunder Audio Takes Mr. Worldwide Across North America with JBL VTX Systems on Pitbull’s Can’t Stop Us Now Tour
November 03, 2022
Thunder Audio Takes Mr. Worldwide Across North America with JBL VTX Systems on Pitbull’s Can’t Stop Us Now Tour
Summerfest Returns With Pristine and Impactful Live Sound by JBL Professional Solutions
Summerfest Returns With Pristine and Impactful Live Sound by JBL Professional Solutions
September 08, 2022
Summerfest Returns With Pristine and Impactful Live Sound by JBL Professional Solutions
Detroit’s Movement Festival Roars Back to Life With Help From JBL Professional Audio Solutions
Detroit’s Movement Festival Roars Back to Life With Help From JBL Professional Audio Solutions
July 22, 2022
Detroit’s Movement Festival Roars Back to Life With Help From JBL Professional Audio Solutions

Videos





















HARMAN Pro Insights

Exploring the Magic: Inside 14 JBL Worldwide Live Entertainment Stories feature

Exploring the Magic: Inside 14 JBL Worldwide Live Entertainment Stories

Live entertainment captivates audiences, transcends boundaries and unites fans in a celebration of sound and rhythm. From electrifying music festivals to immersive theatrical productions to enthralling sporting events, the magic of live entertainment relies on the technology driving it to bring performances to life. JBL

CONTINUE READING

Exploring Why World’s Top Stadiums & Arenas Turn to JBL Pro Installed Audio feature

Exploring Why World’s Top Stadiums & Arenas Turn to JBL Pro Installed Audio

Stadiums and arenas are about much more than just delivering engaging matchups, a significant amount of time is spent designing and delivering impeccable customer experiences throughout the venue. From the time guests arrive until the moment they leave, venues need a dynamic and intelligible system

CONTINUE READING

Backstage Pass to 8 Pro Audio & Lighting Shows Rocking Live Entertainment feature

Backstage Pass to 8 Pro Audio & Lighting Shows Rocking Live Entertainment

After a challenging couple of years, live music is back in full force. Tours, residencies and festivals are returning and filling venues to capacity. Iconic HARMAN Professional brands like JBL, Martin, Crown, AKG, BSS and Soundcraft are providing touring artists and suppliers as well as live venues

CONTINUE READING

Jimmy Buffett Hits Road with JBL VTX A12 Line Arrays feature

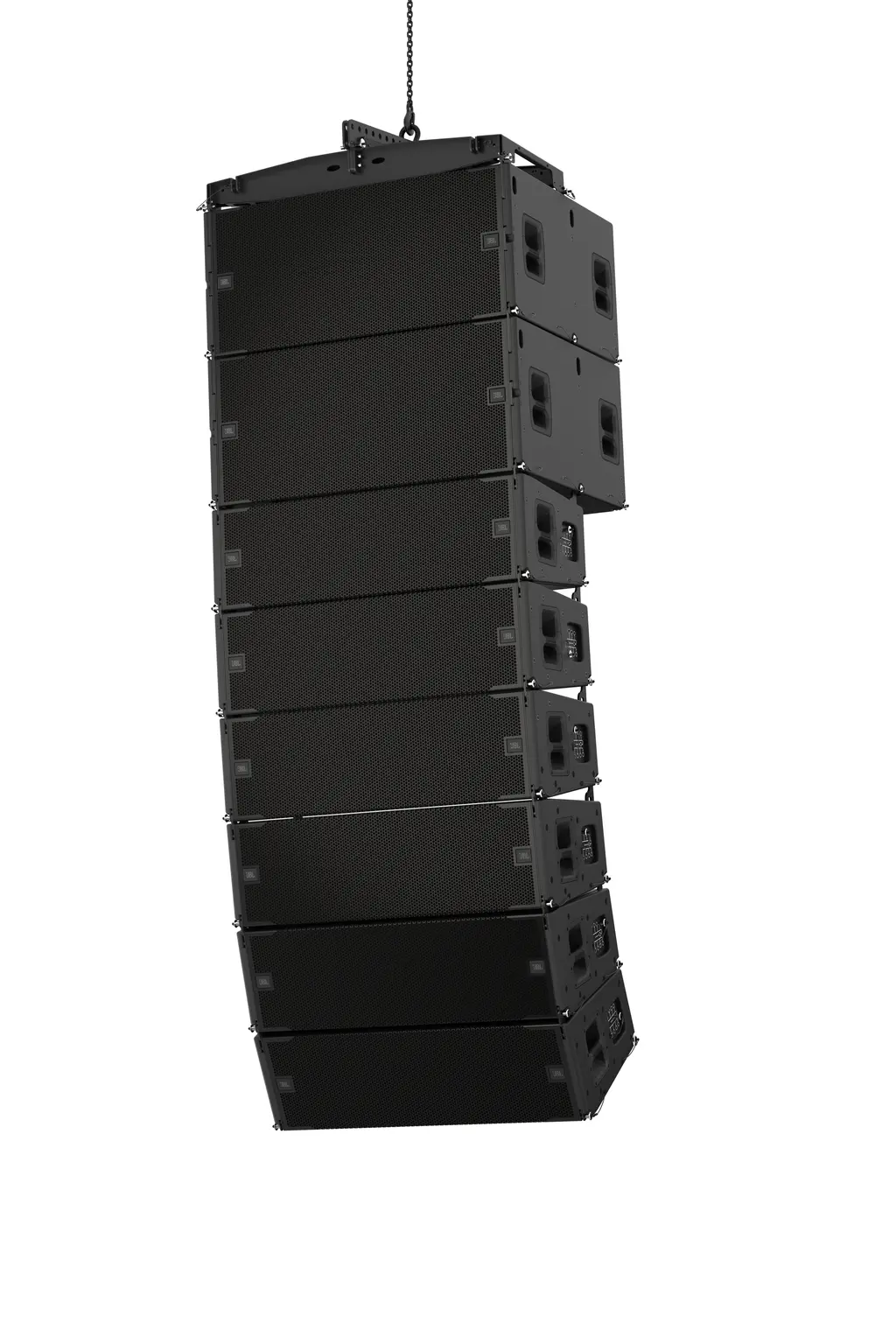

Jimmy Buffett Hits Road with JBL VTX A12 Line Arrays

Despite the laid-back, beach-bumming aesthetic of his music, Jimmy Buffett is one of the most active entertainers in show business. Since cementing his stardom with the 1977 mega-hit “Margaritaville,” the barefoot soft-rocker has released dozens of albums, toured around the world several times and built

CONTINUE READING

Support/FAQs

HARMAN Professional Solutions:
fFind Dealer
hHave Question
cConsultant Support

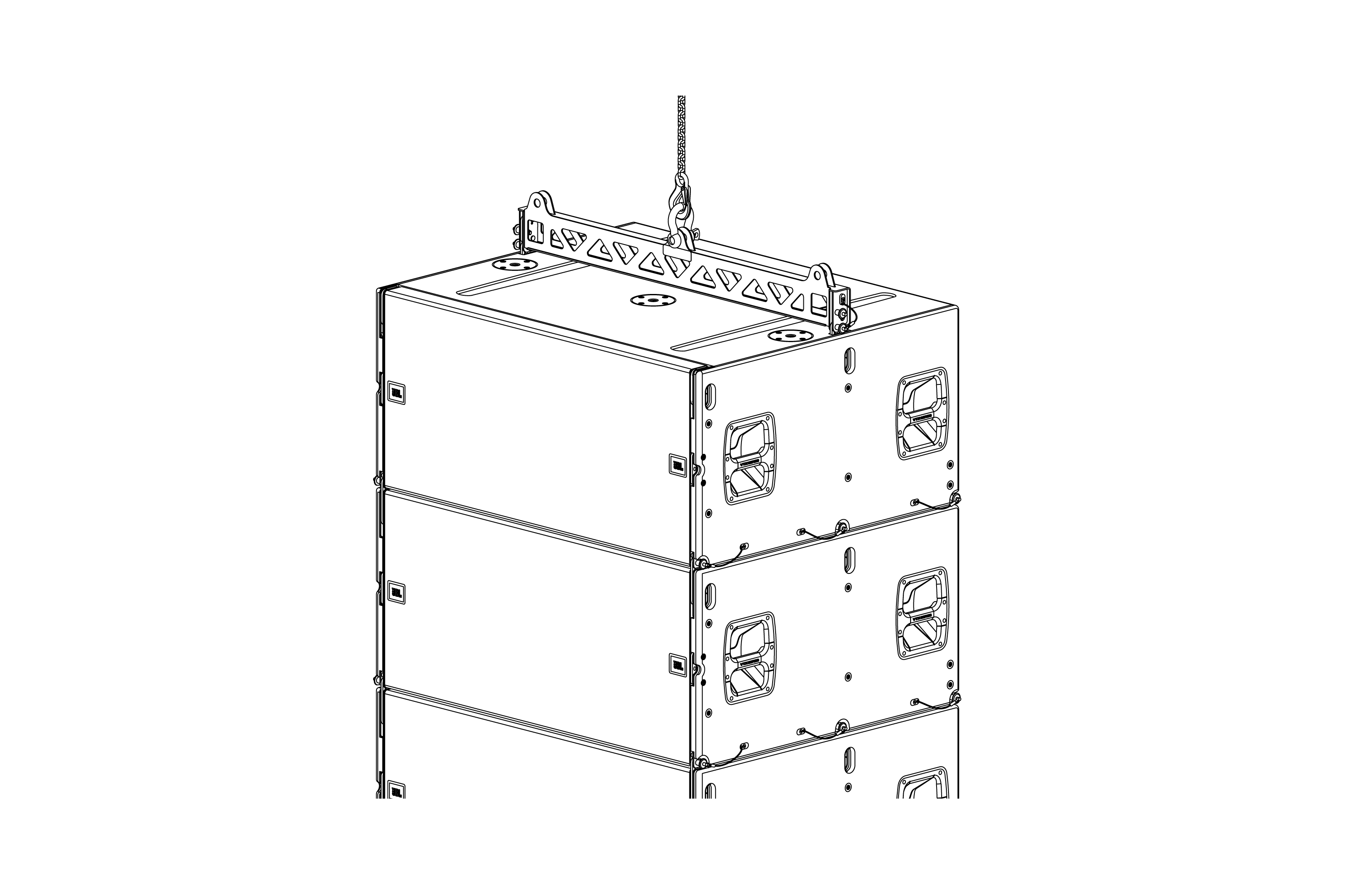

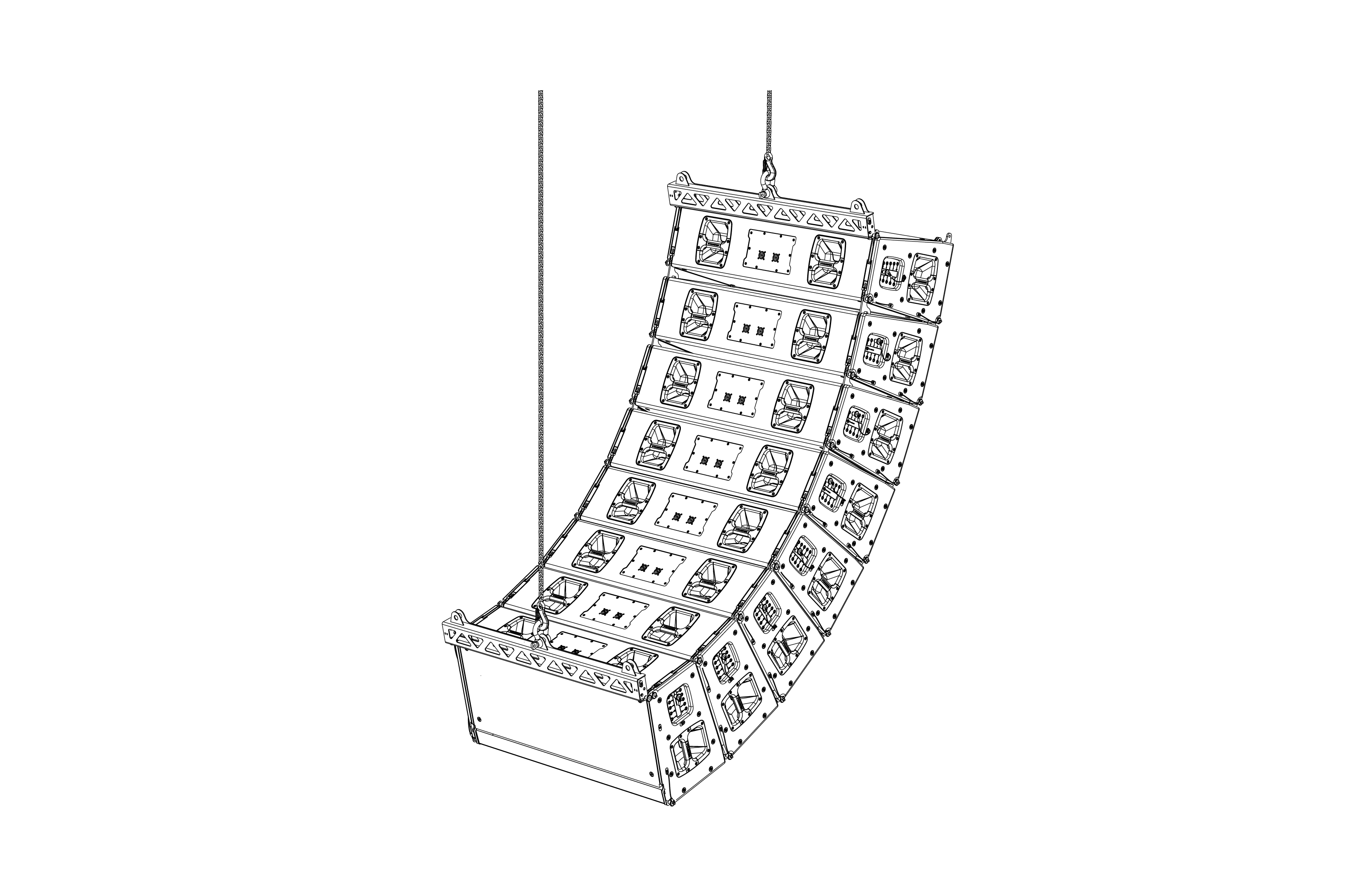

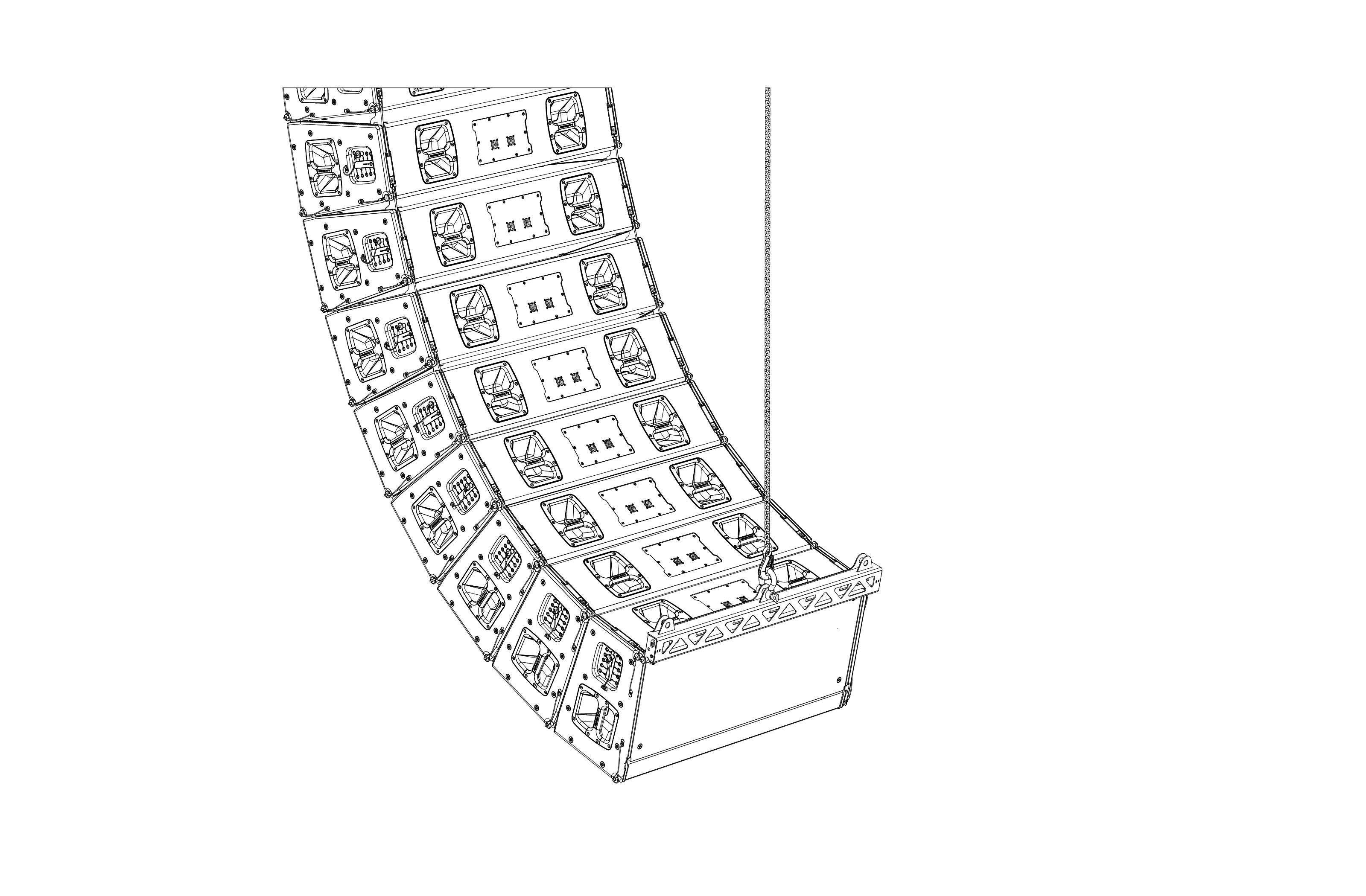

VTX A12

Dual 12-inch Line Array Loudspeaker | 90-Degree Dispersion

HARMAN Professional Solutions:
fFind Dealer
hHave Question
cConsultant Support
