VTX A12

Dual 12-inch Line Array Loudspeaker | 90-Degree Dispersion

VTX A12
รูปภาพขนาดใหญ่

Next Generation Dual 12" Line Array Loudspeaker

JBL VTX A12 is a complete tour sound solution for mid- to large-size touring applications and high-end fixed installations. VTX A12 was designed from scratch to address the unique challenges of rental companies, FOH engineers and tour sound production crews. Next-generation JBL transducer technology and a high-frequency waveguide design deliver unmatched performance, sensitivity and coverage. A patented JBL rigging mechanism and redesigned suspension system streamline deployment and setup. And refinements to the physical design maximize reliability and versatility, while minimizing size and dramatically reducing weight. VTX A12 isn’t just a superior line array—it’s a completely new way to approach tour sound.



คุณสมบัติ

  • New and improved JBL transducers for the best output per weight
  • Innovative HF section integrates the phasing plug and waveguide for high sensitivity and linearity even at high output levels
  • Redesigned Radiation Boundary Integrator® (RBI) for reduced horn edge diffraction, improved LF sensitivity, lower distortion, and 90-degree coverage down to 250 Hz
  • Next Generation LF section, including industry-defining Differential Drive woofers, with a dual magnet, dual voice-coil design for extended linear excursion
  • Best-in-class rigging for streamlined, rapid deployment
  • Full-face grill for superior weatherization and refined aesthetics
  • New transport cart and frame for simplified transport and setup
  • Optimizations throughout the design for space efficiency and reduced weight while simultaneously improving performance
  • Full integration with JBL system control and prediction software
  • Lightweight design


รีวิว

"I just finished mixing the show, on the VTX A12. Killer set, everything sounded amazing and I feel like the crowd loved it."
—Reiley Brinser (FOH Engineer Ozomatli)

"Let’s be honest.  JBL is #1 on my list of preferred PA’s and I prefer a loudspeaker that is honest to my mix and the band.  I never run out of headroom, punch or clarity with JBL."
—Chris "Cookie" Hoff (FOH for Styx)

"Using the VTX A-12 at summer fest was a lot of fun its sounded great. Nick did a fantastic job tuning the pa for the venue. I tuned REO into the pa in about 2 minutes, really had a good time."
—Joe Walsh (FOH REO Speedwagon)

"Mixing in the box is only as good as the speaker at the end of the chain. The JBL VTX-A system I encountered at Summerfest created a beautiful experience. The sound matched the excitement in the air while the deep bass response surrounded and kept us all grounded."
—Timothy Burkhead (FOH Engineer Leon Bridges)

"The VTX A12 has the clarity and plenty of volume that I needed.  Also, the new B28 Subs had enough low end to shake the crowd.  It is a very balanced rig that you can run hard. JBL has never let me down."
—Matthew Stevens (FOH Engineer Better Than Ezra)

"As I pulled up in the bus to Summerfest, I saw our stage. Even from afar, I saw the distinct shape of the JBL A12 and I knew It was going to be a good day. The power, signature, and coverage was excellent. "
— Ken "Pooch" Van Druten (FOH Engineer)

การดาวน์โหลด

Specifications
  เวอร์ชัน ภาษา ขนาด อัปโหลดแล้ว
file type icon VTX A12 Spec Sheet
en เวอร์ชัน E, อัปเดต: ธ.ค. 2020
E  en  529 กิโลไบต์ ธ.ค. 2020
Manuals
  เวอร์ชัน ภาษา ขนาด อัปโหลดแล้ว
file type icon VTX A12 User Manual
en เวอร์ชัน D, อัปเดต: ก.ค. 2023
D  en  8.43 เมกะไบต์ ก.ค. 2023
file type icon VTX A12 Rigging Manual
en เวอร์ชัน D, อัปเดต: ก.ค. 2023
D  en  47.8 เมกะไบต์ ก.ค. 2023
Brochures
  เวอร์ชัน ภาษา ขนาด อัปโหลดแล้ว
file type icon VTX A12 System Brochure
en เวอร์ชัน 1.0, อัปเดต: ธ.ค. 2020
1.0  en  13.6 เมกะไบต์ ธ.ค. 2020
CAD Drawings
  เวอร์ชัน ขนาด อัปโหลดแล้ว
file type icon VTX A12 Customer Drawings
เวอร์ชัน 1.0, อัปเดต: ธ.ค. 2020
1.0  719 กิโลไบต์ ธ.ค. 2020
file type icon VTX A12 Revit/BIM Files
เวอร์ชัน 2.0, อัปเดต: ก.ค. 2024
2.0  33.3 เมกะไบต์ ก.ค. 2024
file type icon VTX A12 Sketchup File
เวอร์ชัน 2.0, อัปเดต: ก.ค. 2022
2.0  2.52 เมกะไบต์ ก.ค. 2022
Software
  ขนาด อัปโหลดแล้ว
download icon for Venue Synthesis Venue Synthesis
เผยแพร่: ม.ค. 2025
ม.ค. 2025
download icon for Performance Manager 3 Performance Manager 3
เผยแพร่: ก.ค. 2024
ก.ค. 2024
Ease Data
  เวอร์ชัน ขนาด อัปโหลดแล้ว
file type icon VTX A12 EASE GLL
เวอร์ชัน 1.1, อัปเดต: ธ.ค. 2020
1.1  10.5 เมกะไบต์ ธ.ค. 2020
Preset Libraries
  เวอร์ชัน ขนาด อัปโหลดแล้ว
file type icon VTX A12 iTech HD Preset Library
เวอร์ชัน 1.2, อัปเดต: ก.ค. 2024
1.2  1.56 เมกะไบต์ ก.ค. 2024
Service Notes
  เวอร์ชัน ภาษา ขนาด อัปโหลดแล้ว
file type icon VTX A12 Spare Parts
en เวอร์ชัน C, อัปเดต: เม.ย. 2026
C  en  65.4 กิโลไบต์ เม.ย. 2026

หากลิงก์ใดด้านบนแสดงตัวอักษรแปลกๆ ในเบราว์เซอร์ของคุณ โปรดคลิกขวาที่ไฟล์เพื่อบันทึกไว้ในคอมพิวเตอร์ของคุณ

อะไหล่และบริการ

ข้อมูลจำเพาะ

Frequency Range (-10dB) 46 Hz - 19k Hz (Preset: VTX A12)
Horizontal Coverage (-6 dB) 90 degrees nominal (250 Hz - 18k Hz)
Max SPL 146 dB (Preset: VTX A12)
System Amplification Crown Audio I-Tech HD
Nominal Impedance LF: 2x 8 ohms
MF: 8 ohms
HF: 8 ohms
LF Driver (2) JBL 2264H 12-inch Neodymium Differential Drive® woofer
MF Driver (4) JBL 2165H 5.5-inch Neodymium Differential Drive® woofer
HF Driver (3) JBL 2423K 2-inch annular diaphragm compression driver
Enclosure Finnish birch plywood, Black DuraFlex finish, integral recessed handles
Suspension / Mounting High-grade steel with anti-corrosion coating, captive suspension plates, quick release pins, auto-locking mechanism for setting angles
Inter-enclosure Angle 0.25 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 6 | 8 | 10
Dimensions (H x W x D) 330 mm x 1118 mm x 495 mm
13 in x 44 in x 19.5 in
Net Weight (each) 60.8 kg (134 lbs)

อุปกรณ์เสริม

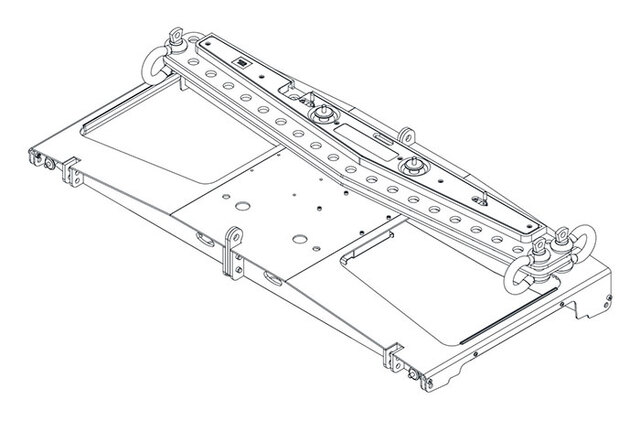

VTX A12 AF | Array Frame
VTX A12 AF Main photo
รูปภาพขนาดใหญ่
VTX A12 AF detail thumbnail #1 VTX A12 AF detail thumbnail #2 VTX A12 AF detail thumbnail #3 VTX A12 AF detail thumbnail #4
Highlights:
  • Support for up to (24) VTX A12 enclosures
  • Single, front-to-back or side-by-side pick point options
  • 0.5-degree pick point resolution
  • Built-in storage position for Extension Bar
  • Includes (1) VTX A12 AF EB Extension Bar
  • Support for 3rd party laser inclinometers
  • Compatible shackle size: 5/8 in
Included:
  • (1) VTX A12 AF
  • (1) Extension Bar
  • (1) Laser Bracket
  • (3) 5/8-inch Shackle
เอกสารประกอบ

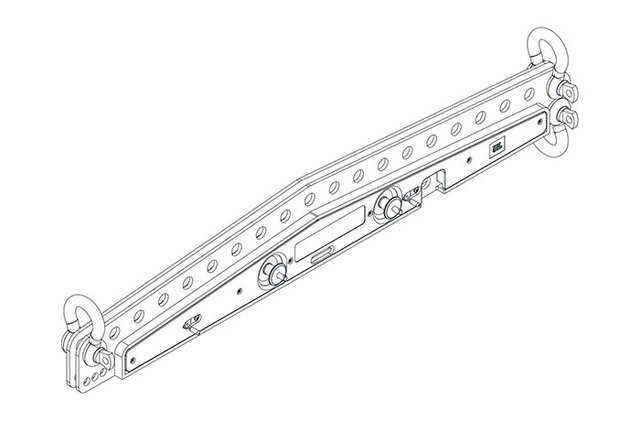

VTX A12 AF EB | Array Frame Extension Bar
VTX A12 AF EB Main photo
รูปภาพขนาดใหญ่
VTX A12 AF EB detail thumbnail #1 VTX A12 AF EB detail thumbnail #2 VTX A12 AF EB detail thumbnail #3 VTX A12 AF EB detail thumbnail #4
Highlights:
  • Extension Bar for use with VTX A12 AF
  • Single, front-to-back, or side-by-side pick point options
  • 0.5-degree pick point resolution
  • Lightweight design
  • Compatible shackle size: 5/8 in
Included:
  • (1) VTX A12 AF EB
  • (3) 5/8 in Shackles
  • (4) Extension Bar Attachment Brackets
  • (1) Set of Screws for Bracket Installation
เอกสารประกอบ

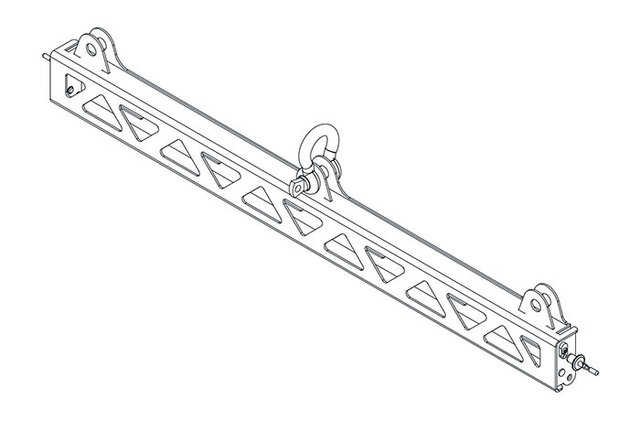

VTX A12 SB | Suspension Bar
VTX A12 SB Main photo
รูปภาพขนาดใหญ่
VTX A12 SB detail thumbnail #1 VTX A12 SB detail thumbnail #2 VTX A12 SB detail thumbnail #3 VTX A12 SB detail thumbnail #4
Highlights:
  • Suspension Bar accessory for VTX A12
  • Used for pull-back applications
  • Support for suspending VTX A12
  • Support for up to (18) VTX A12 enclosures
  • Lightweight design
  • Color: black
  • Shackle Size: 5/8 in
Included:
  • (1) Suspension Bar
  • (1) 5/8 in Shackle
เอกสารประกอบ
VTX DELTA | เดลต้า เพลต
VTX DELTA Main photo
รูปภาพขนาดใหญ่
VTX DELTA detail thumbnail #1 VTX DELTA detail thumbnail #2 VTX DELTA detail thumbnail #3 VTX DELTA detail thumbnail #4

ไฮไลท์:

  • อุปกรณ์เพลตเดลตาสากลคุณภาพสูง
  • รองรับตู้ JBL Line Array ได้ถึง (24) ตู้
  • ปรับแนวนอนได้ถึง +/- 10 องศา
  • ออกแบบให้เบาน้ำหนัก
  • ระยะห่างจุดที่แนะนำ: 1 เมตร (3.3 ฟุต)
รวมอยู่:
  • (1) VTX Delta
  • (3) สลิง 5/8 นิ้ว
เอกสารประกอบ

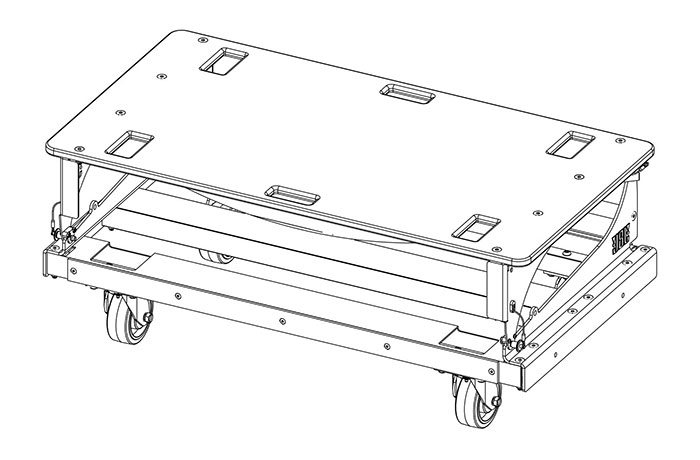

VTX A12 VT | Vertical Transporter
VTX A12 VT Main photo
รูปภาพขนาดใหญ่
VTX A12 VT detail thumbnail #1 VTX A12 VT detail thumbnail #2 VTX A12 VT detail thumbnail #3 VTX A12 VT detail thumbnail #4
Highlights:
  • Vertical transport cart for (4) VTX A12 enclosures
  • Truck-friendly dimensions
  • Includes a hard top for easy stacking

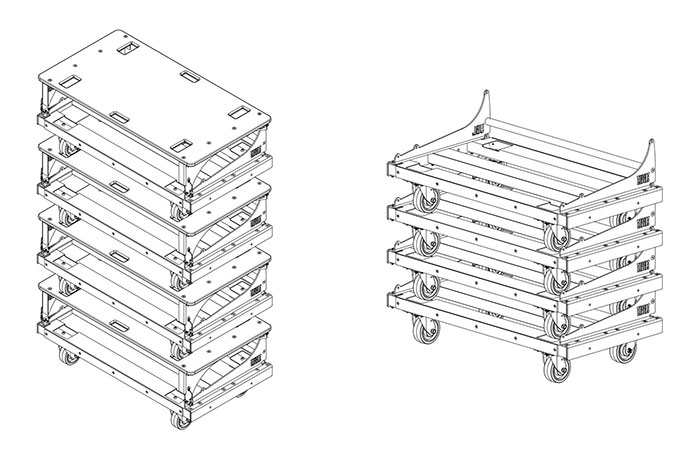

  • Built-in stacking features for easy storage
  • Support for ground stacking
  • Lightweight design
  • Heavy-duty casters
Included:
  • (1) Vertical Transporter
  • (1) VT-TOP
เอกสารประกอบ

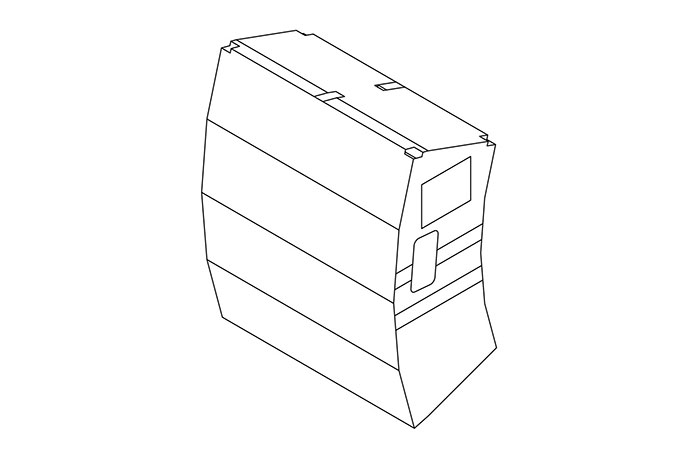

VTX A12 VT CVR | Vertical Transporter Cover
VTX A12 VT CVR Main photo
รูปภาพขนาดใหญ่
VTX A12 VT CVR detail thumbnail #1 VTX A12 VT CVR detail thumbnail #2 VTX A12 VT CVR detail thumbnail #3 VTX A12 VT CVR detail thumbnail #4
Highlights:
  • Heavy-duty soft cover for VTX A12 enclosures
  • Covers (4) VTX A12 enclosures on a VTX A12 VT
  • Includes input-panel flaps for testing purposes
  • Clear see-through pocket for shipping labels
  • Handle cut-outs for easy transportation
  • Folds and stores in the VTX A12 VT
  • Heavy-duty industrial-grade zippers
Included:
  • (1) VTX A12 VT CVR
เอกสารประกอบ

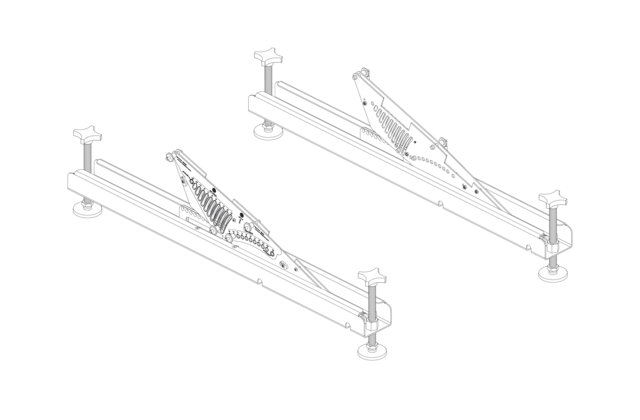

VTX A12 VT GND | Vertical Transporter Ground Stack
VTX A12 VT GND Main photo
รูปภาพขนาดใหญ่
VTX A12 VT GND detail thumbnail #1 VTX A12 VT GND detail thumbnail #2 VTX A12 VT GND detail thumbnail #3 VTX A12 VT GND detail thumbnail #4
Highlights:
  • Outrigger system for VTX A12 VT, VTX B28 VT and other compatible Vertical Transporters
  • Four screw jacks included for height adjustment
  • Innovative spring-based angle-set mechanism
  • Compact and lightweight design
  • Range: -15 to +5 degree
  • Vertical Transporter not included
Included:
(1) VTX A12 VT GND
เอกสารประกอบ

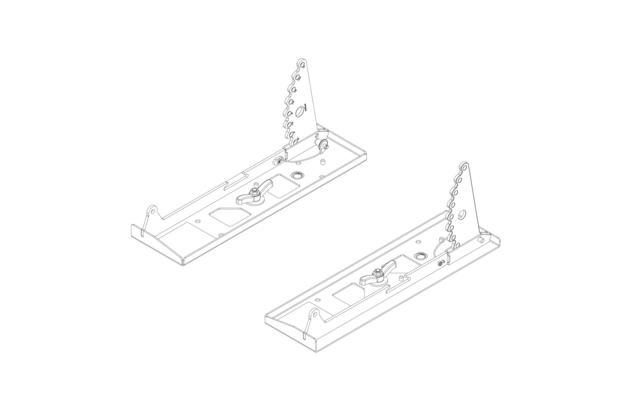

VTX A12 BP | Base Plate for VTX A12
VTX A12 BP Main photo
รูปภาพขนาดใหญ่
VTX A12 BP detail thumbnail #1 VTX A12 BP detail thumbnail #2 VTX A12 BP detail thumbnail #3 VTX A12 BP detail thumbnail #4

Highlights:

  • Enables ground stacking VTX A12 arrays
  • Universal M20 threaded pole mount
  • Attaches directly to VTX B28 subwoofer enclosure
  • Array angles selectable between -15 degrees and +5 degrees
  • Two-part lightweight design

Included:

  • (2) VTX A12 BP Base Plate (Left / Right)
เอกสารประกอบ

ข่าว

UBS Arena Amplifies Fan Experiences with JBL
UBS Arena Amplifies Fan Experiences with JBL
04 เมษายน 2023
UBS Arena Amplifies Fan Experiences with JBL
The 2022 Latin Billboard Awards Celebrate Icons and Modern Stars with JBL Professional Solutions
The 2022 Latin Billboard Awards Celebrate Icons and Modern Stars with JBL Professional Solutions
28 มกราคม 2023
The 2022 Latin Billboard Awards Celebrate Icons and Modern Stars with JBL Professional Solutions

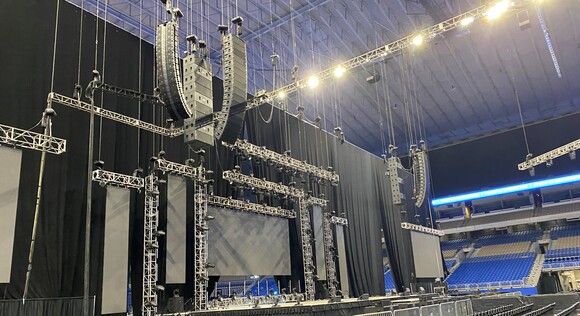

UNITE San Antonio Brings People Together for Two Days of Music & Worship with HARMAN Professional Solutions
