VT4888DP-DA, VT4888DP (discontinued)

Powered Midsize 3-Way High Directivity Line Array Element

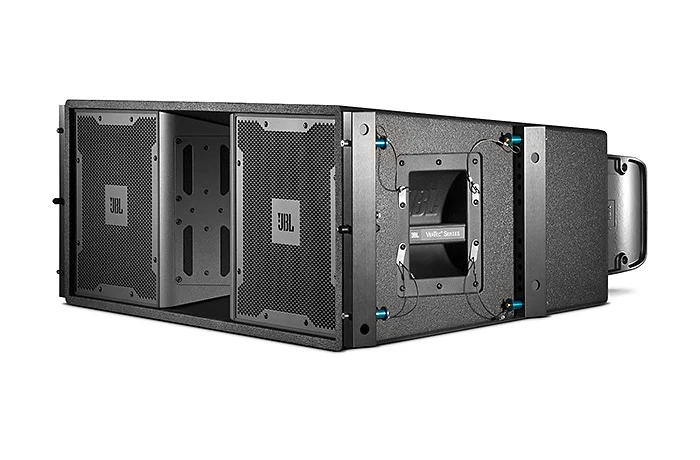

Larger Images

Powered Midsize 3-Way High Directivity Line Array Element

The powered VT4888DP Three-Way Line Array Element is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio and corporate A/V presentations of all types for both portable users and fixed venue installations.

Features

  • Advanced technology components: Differential Drive®, neodymium magnet, dual voice coil, Direct Cooled™ cone transducers for low weight and high output
  • JBL DrivePack® DP3 electronics package delivers superb audio quality and robust high efficiency Class-I power, perfectly matched to the enclosures, with comprehensive digital signal processing.
  • Modular bay is fitted with DPDA digital audio input module, featuring BSS OmniDrive HD signal processing. Also accepts basic (non-networked, analog) dbx input module or optional Crown networked input modules.
  • World-wide AC line voltages are automatically selected for 50 or 60 Hz
  • Advanced construction techniques using JBL PlyMax® provide exceptionally rigid, lightweight
    enclosure construction
  • Rugged DuraFlex™ exterior finish; weatherized components.
  • Patented, integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable hanging arrays.

Downloads

  Version Language Size Uploaded
DPDA Input Module Spec Sheet
en updated: Jun 19, 2015
  en  475 KB Jun 19, 2015
VT4888DPDA Spec Sheet
en updated: Jun 19, 2015
  en  2.75 MB Jun 19, 2015
VT4888DP Spec Sheet
en updated: Jun 19, 2015
  en  2.85 MB Jun 19, 2015
VTDP Midsize User's Guide
en updated: Jun 19, 2015
  en  2.13 MB Jun 19, 2015
Specifications
VT4888DPDA Spec Sheet
updated: Jul 08, 2019
    2.75 MB Jul 08, 2019
DPDA Input Module Spec Sheet
updated: Jul 08, 2019
    475 KB Jul 08, 2019
VT4888DP Spec Sheet
updated: Jul 08, 2019
    2.85 MB Jul 08, 2019
Brochures
Tour Sound Full Line Catalog
updated: Oct 18, 2019
    1.76 MB Oct 18, 2019
Full Line 2015 Catalog
updated: Jan 11, 2020
    11.7 MB Jan 11, 2020
VerTec Line Brochure
updated: Oct 03, 2019
    2.09 MB Oct 03, 2019
CAD Drawings
VT4888DP 3D DXF
updated: Jul 08, 2019
    305 KB Jul 08, 2019
VT4888DP 2D DXF
updated: Jul 08, 2019
    1.45 MB Jul 08, 2019
VT4888DP 2D PDF
updated: Jul 08, 2019
    150 KB Jul 08, 2019
Compliances
VerTec Series (Powered) Declaration of Conformity
updated: Oct 18, 2019
    89.4 KB Oct 18, 2019
Software
PerformanceManager
version 2.6.5.14, updated: Apr 06, 2020
2.6.5.14     103 MB Apr 06, 2020
Vertec Line Array Calculator
version 1.3.1, updated: Jan 23, 2020
1.3.1     18 MB Jan 23, 2020
Speaker Tunings
VT4888DPDA V4Preset
updated: Oct 18, 2019
    33.1 KB Oct 18, 2019
V4 DSP_DPCN_VT4888DP
updated: Oct 18, 2019
    56.2 KB Oct 18, 2019
V4 DSP DPAN_VT4888DP
updated: Oct 18, 2019
    53.3 KB Oct 18, 2019
VTDP ALL LIBRARIES V4 Preset
updated: Nov 01, 2019
    680 KB Nov 01, 2019
User Guides
VerTec DP Midsize User’s Guide
updated: Oct 03, 2019
    2.13 MB Oct 03, 2019
Accessories
VT Midsize Array Frame and Adapter CAD
updated: Jul 08, 2019
    4.04 MB Jul 08, 2019
Images

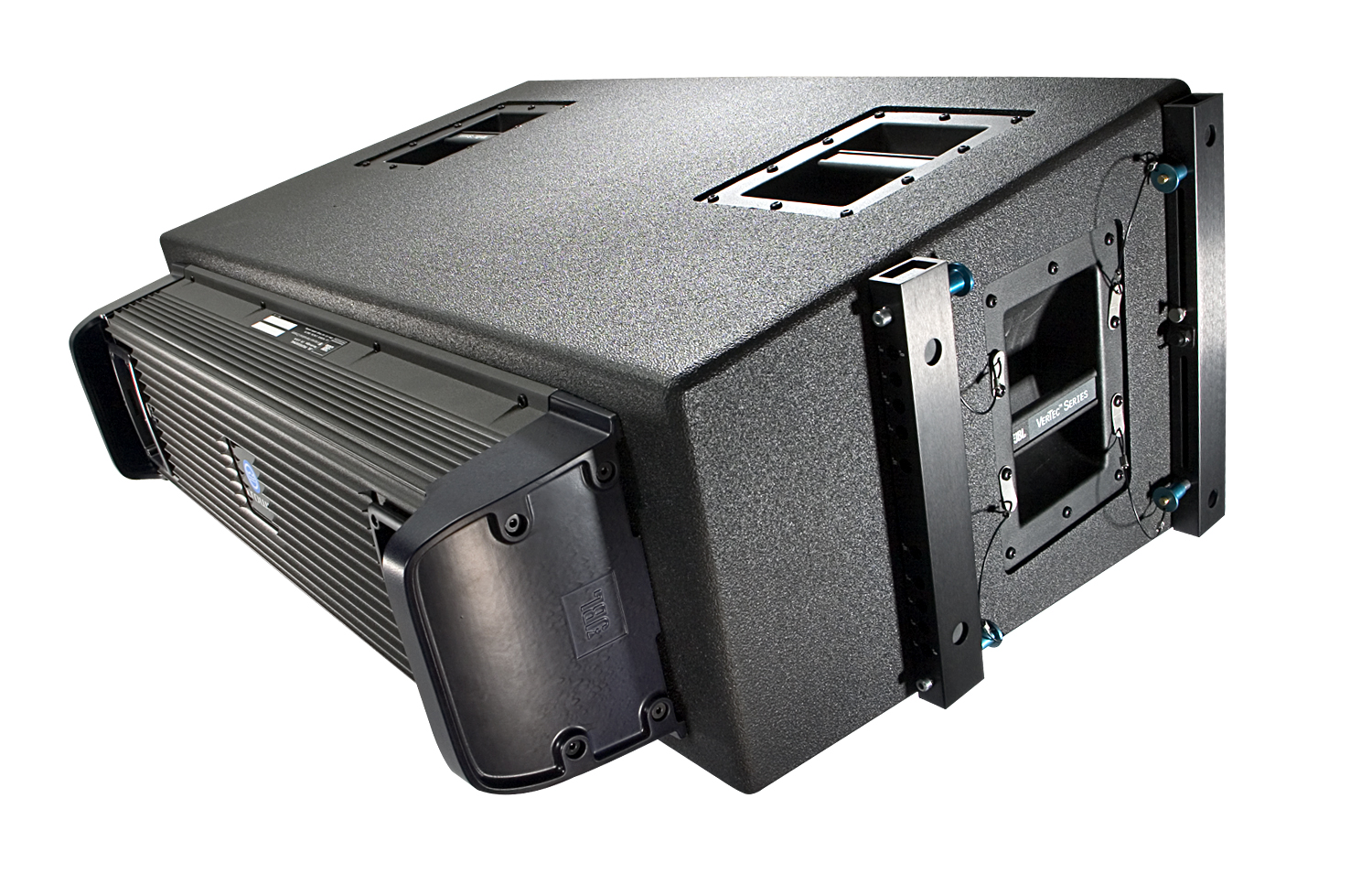

VT4888DP Photo
updated: Jul 08, 2019
    792 KB Jul 08, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Range 48 Hz-18 kHz (-10 dB)
Frequency Response 60 Hz - 16 kHz (±3 dB)
Power Rating 6000W Peak 3000W Continuous
Maximum Peak Output 139 dB SPL, 1m
Bandpass Nominal Impedance 4 ohm LF, 8 ohm MF, 16 ohm HF
Horizontal Coverage 90 degrees nominal 250 Hz - 16 kHz (-6 dB)
Dimensions (w x h x d) 1013 mm x 355 mm x 678 mm (39.9" x 14" x 26.7")
Net Weight 67.1 kg (148 lb)
