JBL Professional VT4888DP-DA, VT4888DP

Larger Images

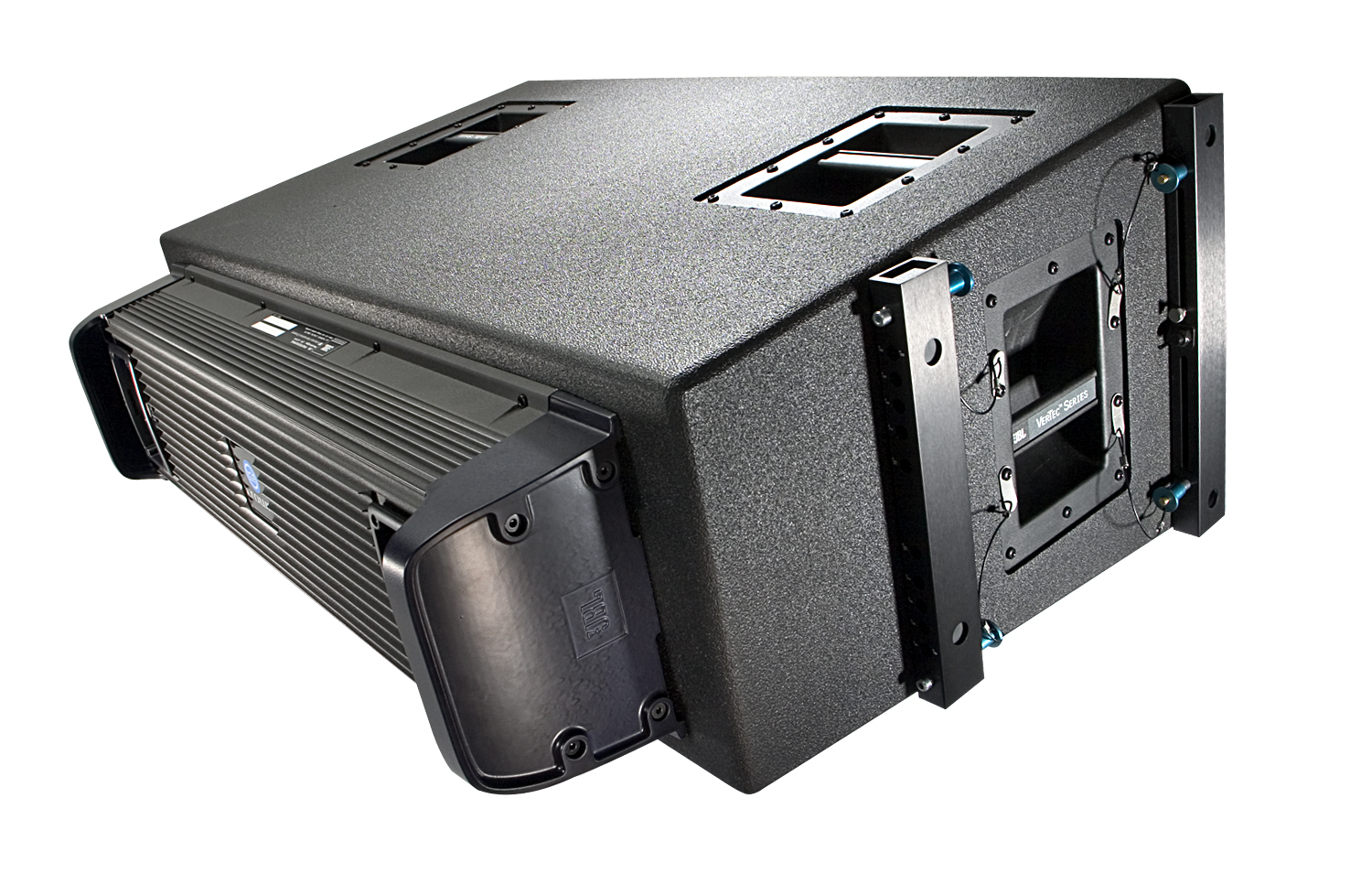

Powered Midsize 3-Way High Directivity Line Array Element

The powered VT4888DP Three-Way Line Array Element is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio and corporate A/V presentations of all types for both portable users and fixed venue installations.

Features

Advanced technology components: Differential Drive^®, neodymium magnet, dual voice coil, Direct Cooled™ cone transducers for low weight and high output
JBL DrivePack^® DP3 electronics package delivers superb audio quality and robust high efficiency Class-I power, perfectly matched to the enclosures, with comprehensive digital signal processing.
Modular bay is fitted with DPDA digital audio input module, featuring BSS OmniDrive HD signal processing. Also accepts basic (non-networked, analog) dbx input module or optional Crown networked input modules.
World-wide AC line voltages are automatically selected for 50 or 60 Hz
Advanced construction techniques using JBL PlyMax^® provide exceptionally rigid, lightweight
enclosure construction
Rugged DuraFlex™ exterior finish; weatherized components.
Patented, integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable hanging arrays.

Downloads

	Version	Language	Size	Uploaded
DPDA Input Module Spec Sheet updated: Apr 2024			475 KB	Apr 2024
VT4888DPDA Spec Sheet updated: Apr 2024			2,75 MB	Apr 2024
VT4888DP Spec Sheet updated: Apr 2024			2,85 MB	Apr 2024
VTDP Midsize User's Guide updated: Apr 2024			2,13 MB	Apr 2024
Specifications
VT4888DPDA Spec Sheet updated: Jul 2019			2,75 MB	Jul 2019
DPDA Input Module Spec Sheet updated: Jul 2019			475 KB	Jul 2019
VT4888DP Spec Sheet updated: Jul 2019			2,85 MB	Jul 2019
Brochures
VerTec Line Brochure updated: Okt 2020			2,09 MB	Okt 2020
CAD Drawings
VT4888DP 3D DXF updated: Okt 2020			305 KB	Okt 2020
VT4888DP 2D DXF updated: Okt 2020			1,45 MB	Okt 2020
VT4888DP 2D PDF updated: Okt 2020			150 KB	Okt 2020
Compliances
VerTec Series (Powered) Declaration of Conformity updated: Okt 2019			89,4 KB	Okt 2019
Software
Vertec Line Array Calculator version 1.3.1, updated: Aug 2023	1.3.1		18 MB	Aug 2023
PerformanceManager version 3.0.0, updated: Feb 2024	3.0.0		124 MB	Feb 2024
Speaker Tunings
VT4888DPDA V4Preset updated: Okt 2019			33,1 KB	Okt 2019
V4 DSP_DPCN_VT4888DP updated: Okt 2019			56,2 KB	Okt 2019
V4 DSP DPAN_VT4888DP updated: Okt 2019			53,3 KB	Okt 2019
VTDP ALL LIBRARIES V4 Preset updated: Okt 2020			680 KB	Okt 2020
User Guides
VerTec DP Midsize User’s Guide updated: Okt 2020			2,13 MB	Okt 2020
Accessories
VT Midsize Array Frame and Adapter CAD updated: Okt 2020			4,04 MB	Okt 2020
Images
VT4888DP Photo updated: Okt 2020			792 KB	Okt 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range	48 Hz-18 kHz (-10 dB)
Frequency Response	60 Hz - 16 kHz (±3 dB)
Power Rating	6000W Peak 3000W Continuous
Maximum Peak Output	139 dB SPL, 1m
Bandpass Nominal Impedance	4 ohm LF, 8 ohm MF, 16 ohm HF
Horizontal Coverage	90 degrees nominal 250 Hz - 16 kHz (-6 dB)
Dimensions (w x h x d)	1013 mm x 355 mm x 678 mm (39.9" x 14" x 26.7")
Net Weight	67.1 kg (148 lb)
