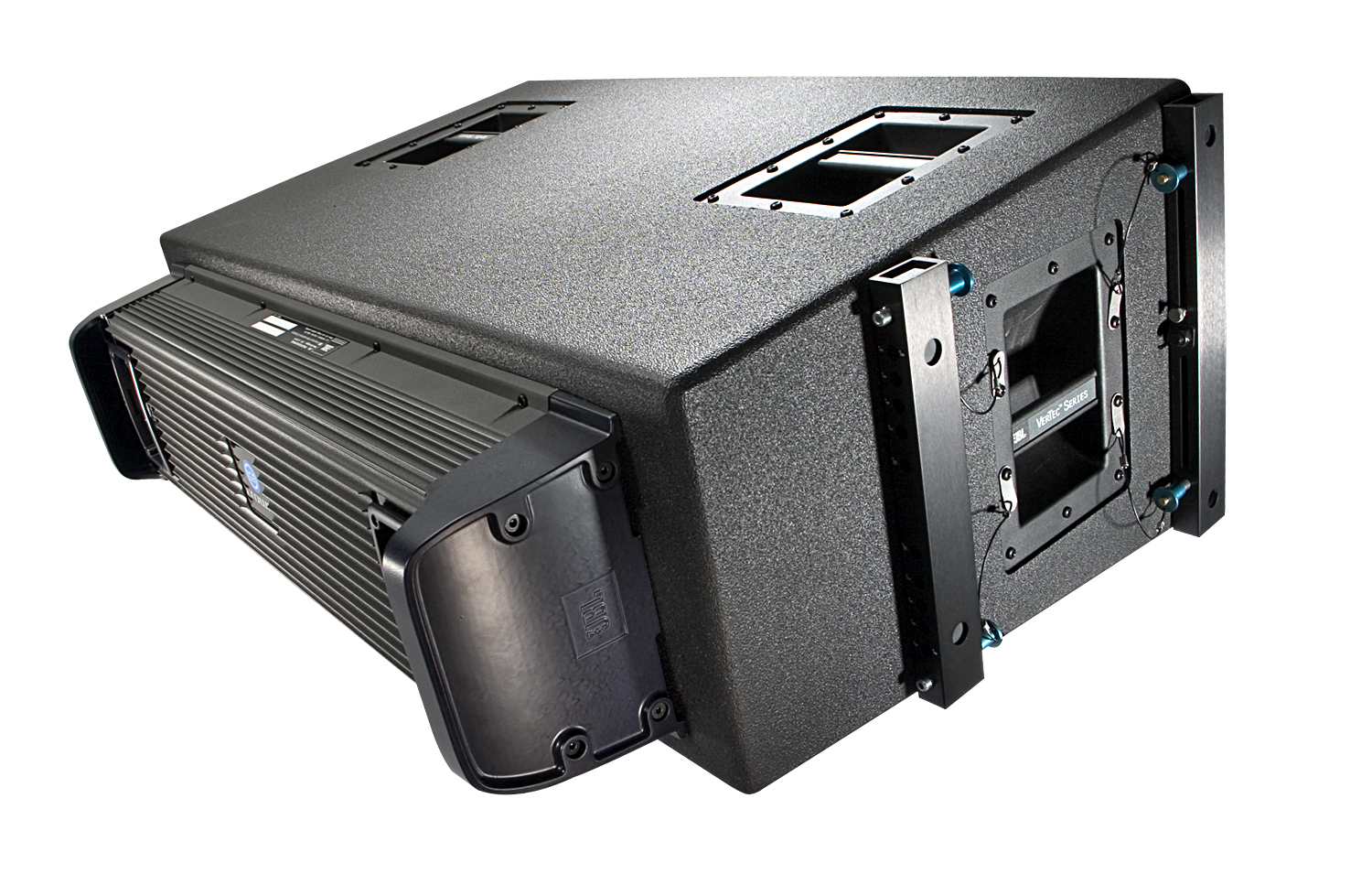

VT4888DP-DA, VT4888DP (停产)

Powered Midsize 3-Way High Directivity Line Array Element

VT4888DP-DA, VT4888DP
较大的图像

Powered Midsize 3-Way High Directivity Line Array Element

The powered VT4888DP Three-Way Line Array Element is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio and corporate A/V presentations of all types for both portable users and fixed venue installations.

特点

  • Advanced technology components: Differential Drive®, neodymium magnet, dual voice coil, Direct Cooled™ cone transducers for low weight and high output
  • JBL DrivePack® DP3 electronics package delivers superb audio quality and robust high efficiency Class-I power, perfectly matched to the enclosures, with comprehensive digital signal processing.
  • Modular bay is fitted with DPDA digital audio input module, featuring BSS OmniDrive HD signal processing. Also accepts basic (non-networked, analog) dbx input module or optional Crown networked input modules.
  • World-wide AC line voltages are automatically selected for 50 or 60 Hz
  • Advanced construction techniques using JBL PlyMax® provide exceptionally rigid, lightweight
    enclosure construction
  • Rugged DuraFlex™ exterior finish; weatherized components.
  • Patented, integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable hanging arrays.

下载

  Version Language Size Uploaded
file type icon DPDA Input Module Spec Sheet
en updated: 9月 2023
  en  475.0 KB 9月 2023
file type icon VT4888DPDA Spec Sheet
en updated: 9月 2023
  en  2.8 MB 9月 2023
file type icon VT4888DP Spec Sheet
en updated: 9月 2023
  en  2.8 MB 9月 2023
file type icon VTDP Midsize User's Guide
en updated: 9月 2023
  en  2.1 MB 9月 2023
Specifications
file type icon VT4888DPDA Spec Sheet
updated: 7月 2019
    2.8 MB 7月 2019
file type icon DPDA Input Module Spec Sheet
updated: 7月 2019
    475.0 KB 7月 2019
file type icon VT4888DP Spec Sheet
updated: 7月 2019
    2.8 MB 7月 2019
Brochures
file type icon VerTec Line Brochure
updated: 10月 2020
    2.1 MB 10月 2020
CAD Drawings
file type icon VT4888DP 3D DXF
updated: 10月 2020
    305.0 KB 10月 2020
file type icon VT4888DP 2D DXF
updated: 10月 2020
    1.5 MB 10月 2020
file type icon VT4888DP 2D PDF
updated: 10月 2020
    149.5 KB 10月 2020
Compliances
file type icon VerTec Series (Powered) Declaration of Conformity
updated: 10月 2019
    89.4 KB 10月 2019
Software
platform icon Vertec Line Array Calculator
version 1.3.1, updated: 8月 2023
1.3.1     18.0 MB 8月 2023
platform icon PerformanceManager
version 2.9.1.5, updated: 8月 2023
2.9.1.5     117.2 MB 8月 2023
Speaker Tunings
file type icon VT4888DPDA V4Preset
updated: 10月 2019
    33.1 KB 10月 2019
file type icon V4 DSP_DPCN_VT4888DP
updated: 10月 2019
    56.2 KB 10月 2019
file type icon V4 DSP DPAN_VT4888DP
updated: 10月 2019
    53.3 KB 10月 2019
file type icon VTDP ALL LIBRARIES V4 Preset
updated: 10月 2020
    679.7 KB 10月 2020
User Guides
file type icon VerTec DP Midsize User’s Guide
updated: 10月 2020
    2.1 MB 10月 2020
Accessories
file type icon VT Midsize Array Frame and Adapter CAD
updated: 10月 2020
    4.0 MB 10月 2020
Images
file type icon VT4888DP Photo
updated: 10月 2020
    792.4 KB 10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 48 Hz-18 kHz (-10 dB)

频率响应

60 Hz - 16 kHz (±3 dB)
额定功率 6000W Peak 3000W Continuous
Maximum Peak Output 139 dB SPL, 1m
Bandpass Nominal Impedance 4 ohm LF, 8 ohm MF, 16 ohm HF
Horizontal Coverage 90 degrees nominal 250 Hz - 16 kHz (-6 dB)
尺寸(W × H × D) 1013 mm x 355 mm x 678 mm (39.9" x 14" x 26.7")
净重量 67.1 kg (148 lb)
