VT4881A (discontinued)

Compact Arrayable 1-18" Subwoofer

VT4881A
Larger Images

Compact Arrayable 1-18" Subwoofer

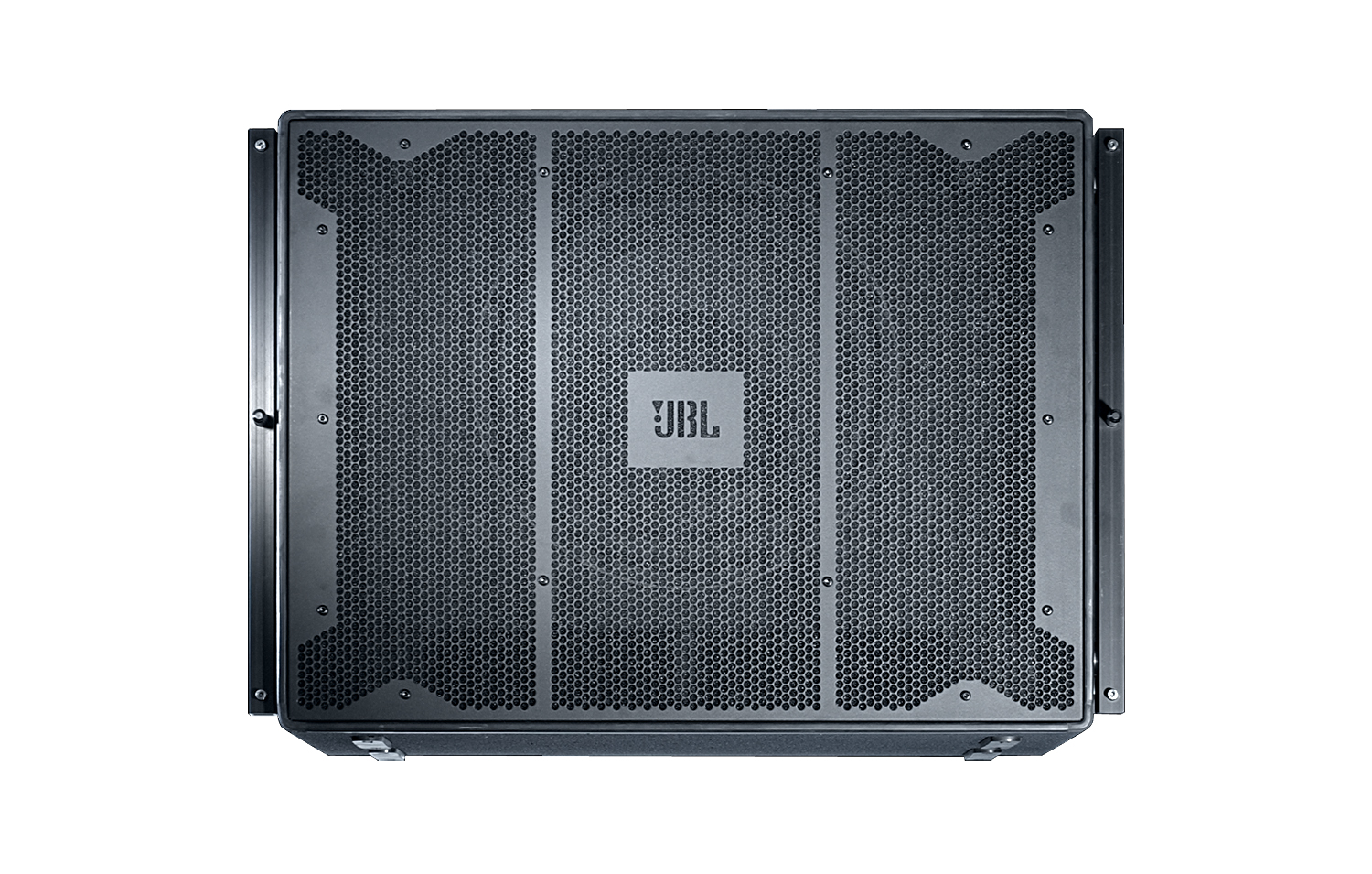

The VT4881A is designed to deliver high quality sound reinforcement of VLF (Very Low Frequency) musical information for a variety of applications including concert audio and theatrical presentations of all types.



Features

  • Advanced technology component: Differential Drive®, dual voice coil, Direct Cooled™ cone transducer.
  • Advanced construction techniques and hybrid materials provide exceptionally rigid, lightweight enclosure.
  • Rugged DuraFlex™ exterior finish; weatherized components Integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable hanging arrays.
  • For ground-stacked or suspended applications in stand-alone arrays or in combination with other VERTEC® system products.


Downloads

  Version Language Size Uploaded
Specifications
file type icon VT4881A Spec Sheet
updated: Oct 2020
    595 KB Oct 2020
Brochures
file type icon VerTec Line Brochure
updated: Oct 2020
    2.09 MB Oct 2020
CAD Drawings
file type icon VT4881A 2D PDF
updated: Oct 2020
    146 KB Oct 2020
file type icon VT4881A 2D DXF
updated: Oct 2020
    1.34 MB Oct 2020
file type icon VT4881A 3D DXF
updated: Oct 2020
    195 KB Oct 2020
Compliances
file type icon VerTec Series Declaration of Conformity
updated: Oct 2019
    144 KB Oct 2019
Software
platform icon Vertec Line Array Calculator
version 1.3.1, updated: Aug 2023
1.3.1     18 MB Aug 2023
platform icon PerformanceManager
version 3.0.0, updated: Feb 2024
3.0.0     124 MB Feb 2024
Helpful Links
file type icon AES Paper: J and Spiral Arrays
updated: Oct 2020
    324 KB Oct 2020
file type icon Considerations for Deployment of Line Arrays
updated: Oct 2020
    518 KB Oct 2020
file type icon Directional Radiation Characteristics - Line Array
updated: Oct 2020
    1.12 MB Oct 2020
file type icon AES Paper: Pressure Response of Line Source
updated: Oct 2020
    388 KB Oct 2020
file type icon AES Journal Article: Analysis of Line Arrays
updated: Oct 2020
    856 KB Oct 2020
file type icon High Frequency Components for High Output Line Arrays
updated: Oct 2020
    2.94 MB Oct 2020
Speaker Tunings
file type icon Vertec All DSP Platforms
updated: Oct 2020
    96.3 MB Oct 2020
file type icon BSS 366 VT4886 VT4883
updated: Oct 2019
    3.96 MB Oct 2019
file type icon DBX 4800 VT4886 VT4883
updated: Oct 2019
    3.19 MB Oct 2019
file type icon V5 DPDA DrivePack VT4881A
updated: Oct 2019
    404 KB Oct 2019
file type icon BSS Soundweb London All Libraries
updated: Oct 2019
    35.1 MB Oct 2019
Accessories
file type icon VT Compact Array Frame and Adapter CAD
updated: Oct 2020
    7.3 MB Oct 2020
Images
file type icon VT4881 photo
updated: Oct 2020
    749 KB Oct 2020
Ease Data
file type icon VerTec EASE DLL
version 3.0, updated: Dec 2020
3.0    1.19 MB Dec 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range 25 Hz - 160 Hz (-10dB)
Frequency Response 34 Hz - 125 Hz (± 3 dB)
Continuous Power Rating 2000W
Sensitivity 91 dB, 1W / 1m (2.83 Vrms at 3.3 ft)
Nominal Impedances 8 ohm
Dimensions (w x h x d) 787 mm x 569 mm x 654 mm(31 in x 22.4 in x 25.8 in)
Weight 50.4 kg (111 lb)
