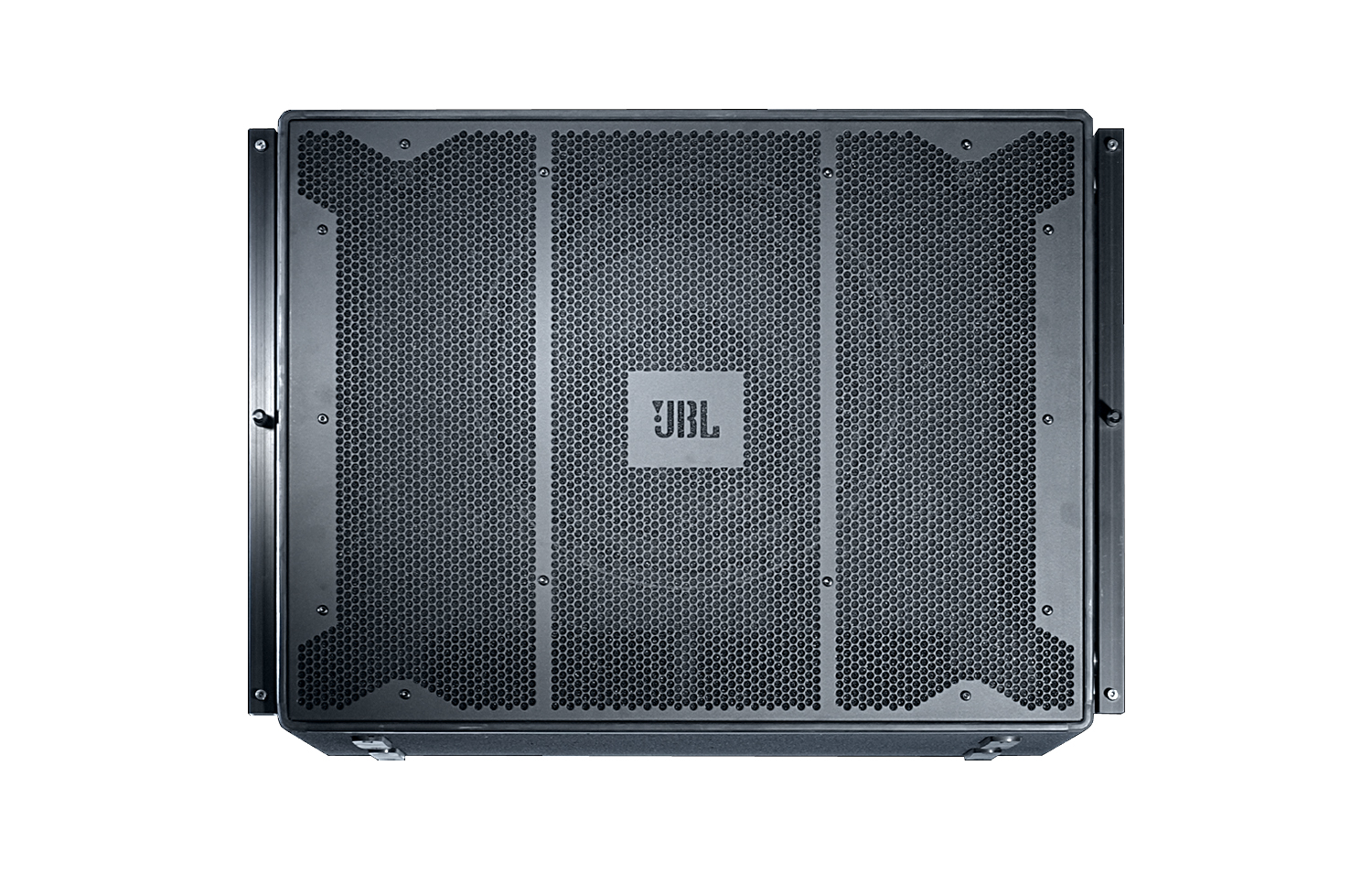

Compact Arrayable 1-18" Subwoofer
The VT4881A is designed to deliver high quality sound reinforcement of VLF (Very Low Frequency) musical information for a variety of applications including concert audio and theatrical presentations of all types.
큰 이미지
특징
- Advanced technology component: Differential Drive®, dual voice coil, Direct Cooled™ cone transducer.
- Advanced construction techniques and hybrid materials provide exceptionally rigid, lightweight enclosure.
- Rugged DuraFlex™ exterior finish; weatherized components Integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable hanging arrays.
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other VERTEC® system products.
다운로드
Specifications
| 크기 | |
|
|
595KB |
Brochures
| 크기 | |
|
|
2.09MB |
CAD Drawings
| 크기 | |
|
|
146KB |
|
|
1.34MB |
|
|
195KB |
Compliances
| 크기 | |
|
|
144KB |
Software
| 크기 | |
|
|
134MB |
|
|
18MB |
Helpful Links
| 크기 | |
|
|
324KB |
|
|
518KB |
|
|
1.12MB |
|
|
388KB |
|
|
856KB |
|
|
2.94MB |
Speaker Tunings
| 크기 | |
|
|
96.3MB |
|
|
3.96MB |
|
|
3.19MB |
|
|
404KB |
|
|
35.1MB |
Accessories
| 크기 | |
|
|
7.3MB |
Images
| 크기 | |
|
|
749KB |
Ease Data
| 크기 | |
|
|
1.19MB |
위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하세요.
부품 및 서비스
사양
| Frequency Range | 25 Hz - 160 Hz (-10dB) |
| Frequency Response | 34 Hz - 125 Hz (± 3 dB) |
| Continuous Power Rating | 2000W |
| Sensitivity | 91 dB, 1W / 1m (2.83 Vrms at 3.3 ft) |
| Nominal Impedances | 8 ohm |
| Dimensions (w x h x d) | 787 mm x 569 mm x 654 mm(31 in x 22.4 in x 25.8 in) |
| Weight | 50.4 kg (111 lb) |
