Compact Arrayable 1-18" Subwoofer
The VT4881A is designed to deliver high quality sound reinforcement of VLF (Very Low Frequency) musical information for a variety of applications including concert audio and theatrical presentations of all types.
Larger Images
Features
- Advanced technology component: Differential Drive®, dual voice coil, Direct Cooled™ cone transducer.
- Advanced construction techniques and hybrid materials provide exceptionally rigid, lightweight enclosure.
- Rugged DuraFlex™ exterior finish; weatherized components Integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable hanging arrays.
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other VERTEC® system products.
Downloads
| Size | ||||
Specifications | ||||
VT4881A Spec Sheet
updated: 22.10.2020
|
595 KB | |||
Brochures | ||||
|
VerTec Line Brochure
updated: 22.10.2020
|
2,09 MB | |||
CAD Drawings | ||||
|
VT4881A 2D PDF
updated: 22.10.2020
|
146 KB | |||
VT4881A 2D DXF
updated: 22.10.2020
|
1,34 MB | |||
|
VT4881A 3D DXF
updated: 22.10.2020
|
195 KB | |||
Compliances | ||||
|
VerTec Series Declaration of Conformity
updated: 18.10.2019
|
144 KB | |||
Software | ||||
Vertec Line Array Calculator
version 1.3.1,
updated: 23.01.2020
|
18 MB | |||
|
PerformanceManager
version 2.9.1.5,
updated: 02.12.2022
|
117 MB | |||
Helpful Links | ||||
|
AES Paper: J and Spiral Arrays
updated: 22.10.2020
|
324 KB | |||
|
Considerations for Deployment of Line Arrays
updated: 22.10.2020
|
518 KB | |||
|
Directional Radiation Characteristics - Line Array
updated: 22.10.2020
|
1,12 MB | |||
|
AES Paper: Pressure Response of Line Source
updated: 22.10.2020
|
388 KB | |||
|
AES Journal Article: Analysis of Line Arrays
updated: 22.10.2020
|
856 KB | |||
|
High Frequency Components for High Output Line Arrays
updated: 22.10.2020
|
2,94 MB | |||
Speaker Tunings | ||||
|
Vertec All DSP Platforms
updated: 22.10.2020
|
96,3 MB | |||
|
BSS 366 VT4886 VT4883
updated: 18.10.2019
|
3,96 MB | |||
|
DBX 4800 VT4886 VT4883
updated: 18.10.2019
|
3,19 MB | |||
|
V5 DPDA DrivePack VT4881A
updated: 18.10.2019
|
404 KB | |||
|
BSS Soundweb London All Libraries
updated: 31.10.2019
|
35,1 MB | |||
Accessories | ||||
|
VT Compact Array Frame and Adapter CAD
updated: 22.10.2020
|
7,3 MB | |||
Images | ||||
|

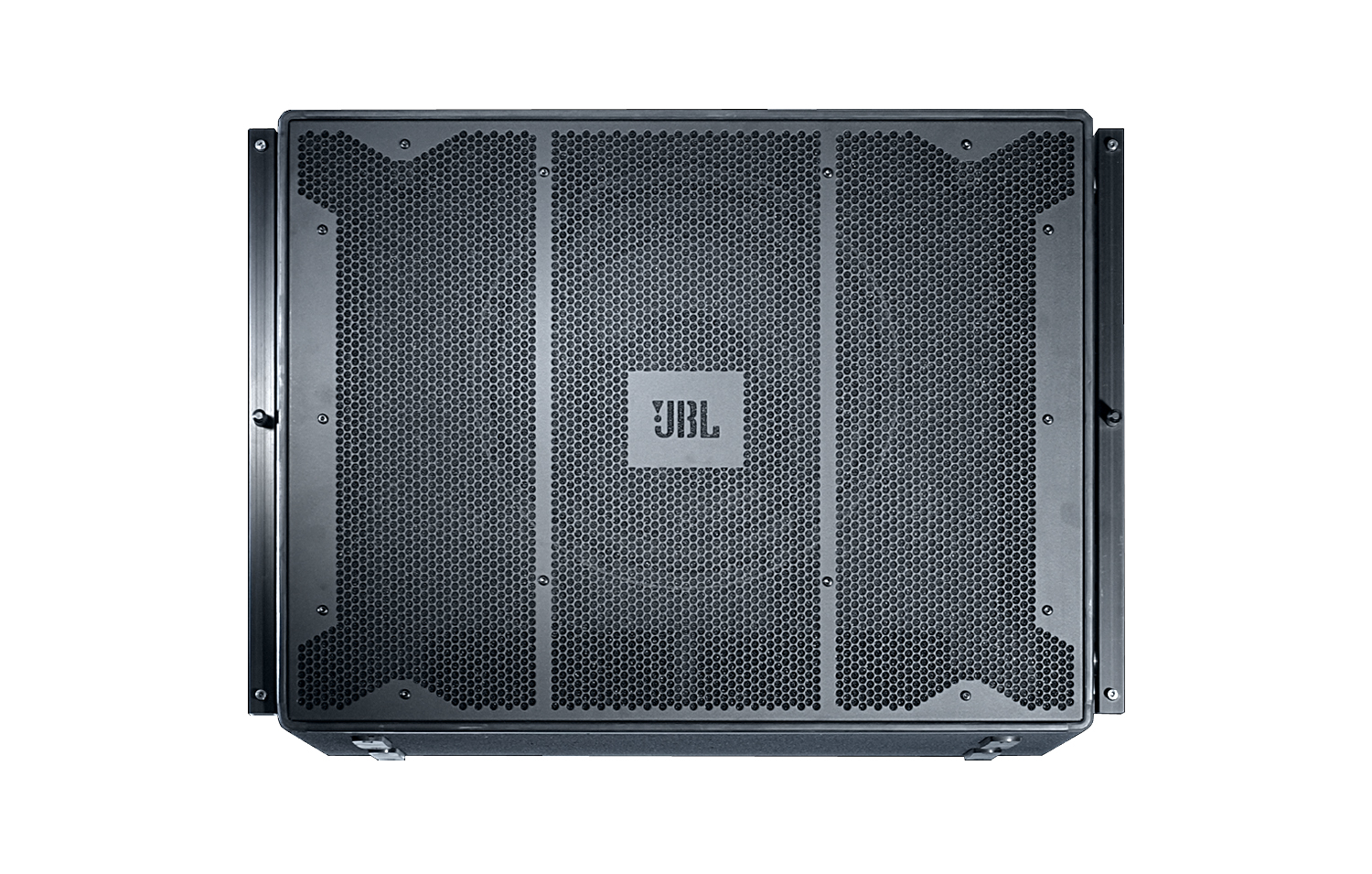

VT4881 photo
updated: 22.10.2020
|
749 KB | |||
Ease Data | ||||
|
VerTec EASE DLL
version 3.0,
updated: 04.12.2020
|
1,19 MB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
Specifications
| Frequency Range | 25 Hz - 160 Hz (-10dB) |
| Frequency Response | 34 Hz - 125 Hz (± 3 dB) |
| Continuous Power Rating | 2000W |
| Sensitivity | 91 dB, 1W / 1m (2.83 Vrms at 3.3 ft) |
| Nominal Impedances | 8 ohm |
| Dimensions (w x h x d) | 787 mm x 569 mm x 654 mm(31 in x 22.4 in x 25.8 in) |
| Weight | 50.4 kg (111 lb) |
