PRX612M (discontinued)

12 in. Two-Way Multipurpose Self-Powered Sound Reinforcement System

Larger Images

12 in. Two-Way Multipurpose Self-Powered Sound
Reinforcement System

PRX612M is the most compact and versatile speaker in the PRX600 Series. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA.



Features

  • Maximum SPL 134db peak
  • Dual purpose enclosure for both front-of house and floor monitor applications
  • Eight M10 fly points for horizontal or vertical suspension. One M10 pull-back point
  • Optimized EQ for monitor or front-of-house applications
  • 305mm (12 in) Differential Drive® dual voice-coil and magnetic gap, neodymium woofer
  • 37.5mm (1.5 in) annular polymer diaphragm, neodymium, compression driver
  • 1000 Watt (Dual 500 watt) Class-D, Crown® amplifier
  • DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
  • Professional XLR line and ¼" Mic/Instrument inputs, with loop through
  • Dual-angle pole mount socket

Applications

  • PRX612M is the most compact and versatile speaker in the PRX600 Series. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX612M is a perfect match with a PRX618S subwoofer, offering a high performance self-powered
    sub/sat system.
  • The PRX612M is comprised of a 305 mm (12in) 262F-1 Differential Drive® woofer, a 2408H-1, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1000 watt (dual 500 watt) Crown® Class-D digital power amplifier. A propriety DSP chip is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
  • All PRX600 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of
    1000 lbs. each.
  • The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level, via the level control knob.


Downloads

  Version Language Size Uploaded
Specifications
PRX612M Spec Sheet
updated: Jul 16, 2019
    422 KB Jul 16, 2019
Manuals
PRX600 Users Guide - French
fr updated: Oct 23, 2019
  fr  3.68 MB Oct 23, 2019
Brochures
PRX600 Brochure
updated: Jul 16, 2019
    1.49 MB Jul 16, 2019
CAD Drawings
PRX600 Drawings 2D & 3D
updated: Oct 31, 2019
    4.8 MB Oct 31, 2019
User Guides
PRX600 Users Guide
updated: Jul 16, 2019
    4.65 MB Jul 16, 2019
Images

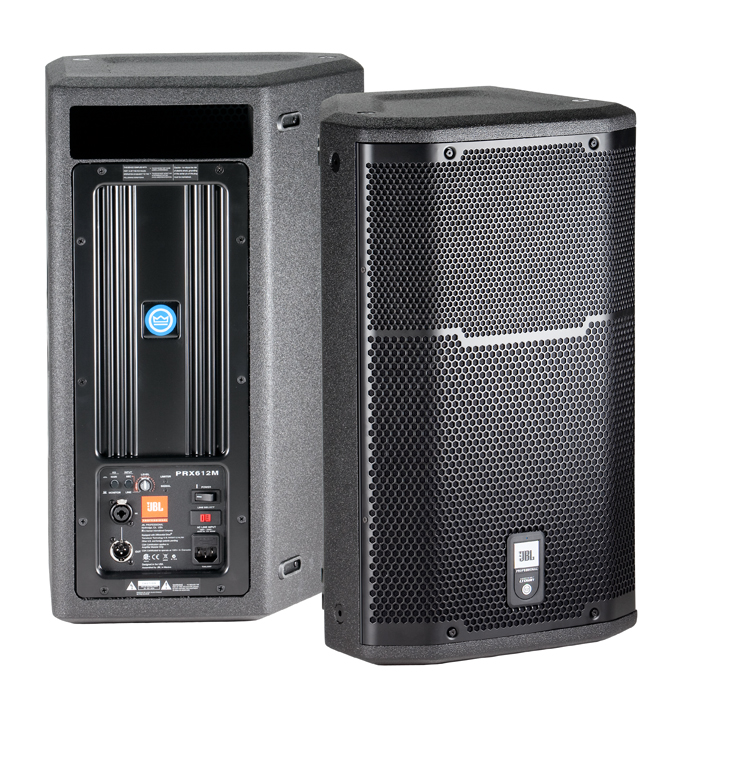

PRX612M Front-Back
updated: Jul 16, 2019
    375 KB Jul 16, 2019

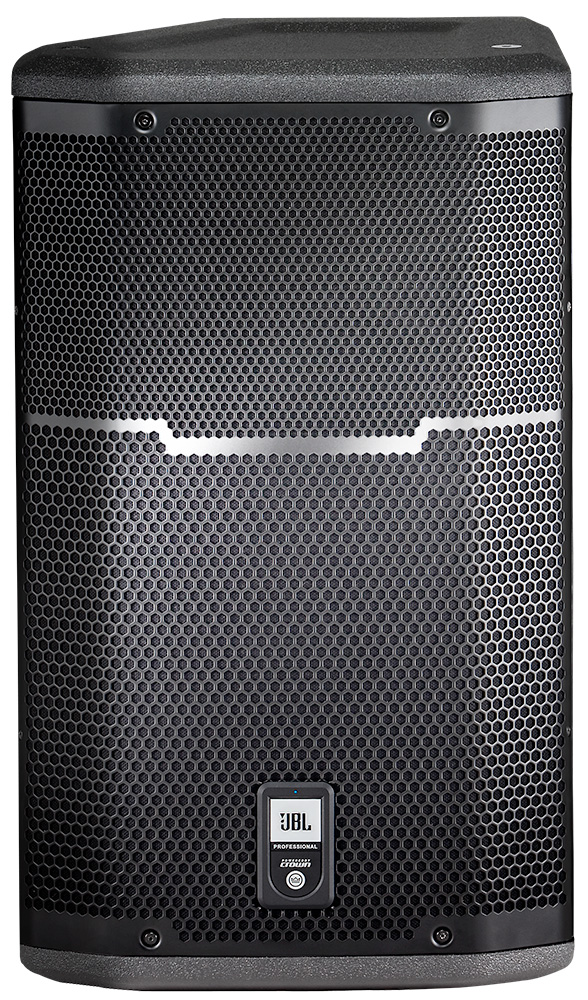

PRX612M Front
updated: Jul 16, 2019
    370 KB Jul 16, 2019
Ease Data
PRX 600 Ease Data
updated: Oct 18, 2019
    203 KB Oct 18, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

System Type Self-powered 12", two-way, bass-reflex
Maximum SPL Output Full Range: 134 dB peakMonitor: 133 dB peak
Frequency Range (-10 dB) Full Range: 50 Hz – 19.5 kHzMonitor: 51 Hz – 19.5 kHz
Frequency Response (±3 dB) Full Range: 60 Hz – 17.5 kHzMonitor: 61 Hz – 18.5 kHz
Coverage Pattern 90º x 50º nominal
Amp Design Crown® Class D
Power Rating 1000 W ( 2 x 500 )
Dimension (H x W x D): 592 mm x 353 mm x 340 mm ( 23.3 in x 13.9 in x 13.4 in )
Net Weight 15.6 kg ( 34.5 lb )
