JBL Professional PRX612M

រូបភាពធំជាង

ប្រព័ន្ធពង្រឹងសម្លេងពីរផ្លូវ (Two-Way) ទំហំ ១២ អ៊ីញ ដែលមានអំភ្លីជាប់ក្នុងខ្លួន សម្រាប់ការប្រើប្រាស់ច្រើនគោលបំណង

PRX612M គឺជាឧបករណ៍បំពងសម្លេងដែលមានទំហំតូចជាងគេ និងអាចប្រើប្រាស់បានបត់បែនបំផុតក្នុងស៊េរី PRX600។ វាត្រូវបានរចនាឡើងដើម្បីផ្តល់សមត្ថភាពដំណើរការអតិបរមាបើប្រៀបនឹងទម្ងន់ និងទំហំរបស់វា ទាំងក្នុងនាមជាម៉ូនីទ័រលើឆាក និងជាប្រព័ន្ធសម្លេង PA មេនៅផ្នែកខាងមុខ (front of house)។

លក្ខណៈពិសេស

Maximum SPL 134db peak
Dual purpose enclosure for both front-of house and floor monitor applications
Eight M10 fly points for horizontal or vertical suspension. One M10 pull-back point
Optimized EQ for monitor or front-of-house applications
305mm (12 in) Differential Drive® dual voice-coil and magnetic gap, neodymium woofer
37.5mm (1.5 in) annular polymer diaphragm, neodymium, compression driver
1000 Watt (Dual 500 watt) Class-D, Crown® amplifier
DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
Professional XLR line and ¼" Mic/Instrument inputs, with loop through
Dual-angle pole mount socket

Applications

PRX612M is the most compact and versatile speaker in the PRX600 Series. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX612M is a perfect match with a PRX618S subwoofer, offering a high performance self-powered
sub/sat system.
The PRX612M is comprised of a 305 mm (12in) 262F-1 Differential Drive® woofer, a 2408H-1, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1000 watt (dual 500 watt) Crown® Class-D digital power amplifier. A propriety DSP chip is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
All PRX600 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of
1000 lbs. each.
The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level, via the level control knob.

ការទាញយក

Specifications

	ទំហំ	បានផ្ទុកឡើង
PRX612M Spec Sheet បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	422 KB	តុលា 2020

Manuals

	ភាសា	ទំហំ	បានផ្ទុកឡើង
PRX600 Users Guide - French បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020		3.68 MB	តុលា 2020

Brochures

	ទំហំ	បានផ្ទុកឡើង
PRX600 Brochure បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	1.49 MB	តុលា 2020

CAD Drawings

	ទំហំ	បានផ្ទុកឡើង
PRX600 Drawings 2D & 3D បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	4.8 MB	តុលា 2020

User Guides

	ទំហំ	បានផ្ទុកឡើង
PRX600 Users Guide បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	4.65 MB	តុលា 2020

Images

	ទំហំ	បានផ្ទុកឡើង

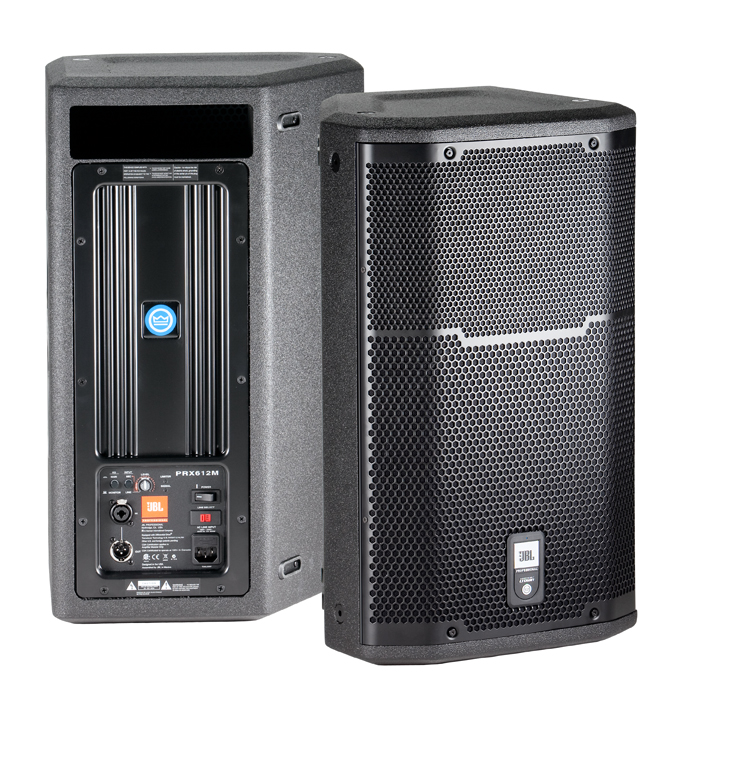

PRX612M Front-Back បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	375 KB	តុលា 2020

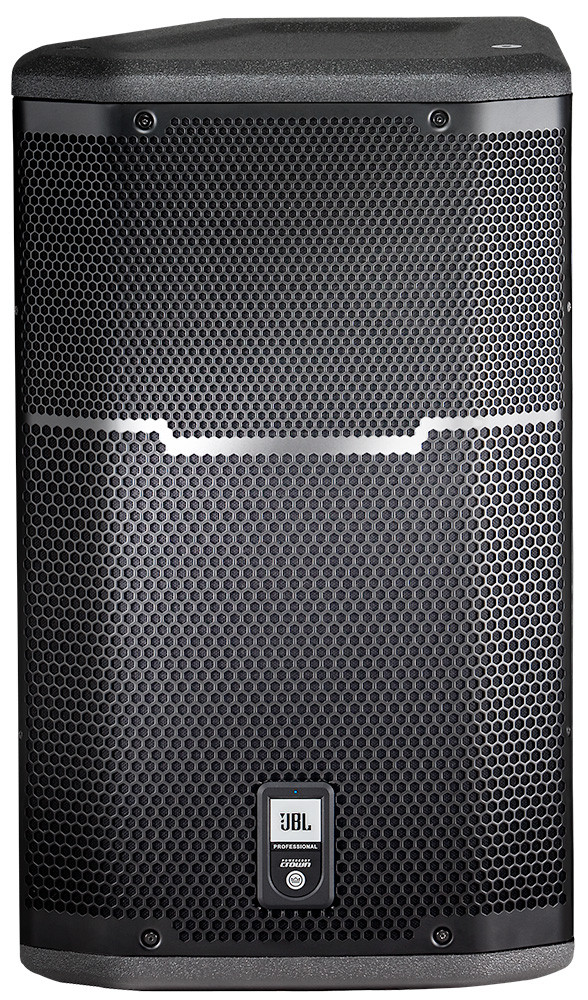

PRX612M Front បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	370 KB	តុលា 2020

Ease Data

	ទំហំ	បានផ្ទុកឡើង
PRX 600 Ease Data បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	203 KB	តុលា 2020

ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។

ផ្នែក និងសេវាកម្ម

លក្ខណៈពិសេស

System Type	Self-powered 12", two-way, bass-reflex
Maximum SPL Output	Full Range: 134 dB peakMonitor: 133 dB peak
Frequency Range (-10 dB)	Full Range: 50 Hz – 19.5 kHzMonitor: 51 Hz – 19.5 kHz
Frequency Response (±3 dB)	Full Range: 60 Hz – 17.5 kHzMonitor: 61 Hz – 18.5 kHz
Coverage Pattern	90º x 50º nominal
Amp Design	Crown® Class D
Power Rating	1000 W ( 2 x 500 )
Dimensions (H x W x D)	592 mm x 353 mm x 340 mm ( 23.3 in x 13.9 in x 13.4 in )
Net Weight	15.6 kg ( 34.5 lb )
