JBL Professional PRX612M

Grandes images

Système de Renforcement Sonore Automoteur Polyvalent Biamplifiée 12 po

Le PRX612M est l'enceinte la plus compacte et la plus polyvalente de la série PRX600. Il a été conçu pour offrir des performances maximales en fonction de son poids et de sa taille, tant comme moniteur de scène que comme enceinte principale de sonorisation principale.

Caractéristiques

Maximum SPL 134db peak
Dual purpose enclosure for both front-of house and floor monitor applications
Eight M10 fly points for horizontal or vertical suspension. One M10 pull-back point
Optimized EQ for monitor or front-of-house applications
305mm (12 in) Differential Drive® dual voice-coil and magnetic gap, neodymium woofer
37.5mm (1.5 in) annular polymer diaphragm, neodymium, compression driver
1000 Watt (Dual 500 watt) Class-D, Crown® amplifier
DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
Professional XLR line and ¼" Mic/Instrument inputs, with loop through
Dual-angle pole mount socket

Applications

PRX612M is the most compact and versatile speaker in the PRX600 Series. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX612M is a perfect match with a PRX618S subwoofer, offering a high performance self-powered
sub/sat system.
The PRX612M is comprised of a 305 mm (12in) 262F-1 Differential Drive® woofer, a 2408H-1, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1000 watt (dual 500 watt) Crown® Class-D digital power amplifier. A propriety DSP chip is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
All PRX600 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of
1000 lbs. each.
The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level, via the level control knob.

Téléchargements

Specifications

	Taille	Téléchargé
PRX612M Spec Sheet mis à jour : oct. 2020	422 ko	oct. 2020

Manuals

	Langue	Taille	Téléchargé
PRX600 Users Guide - French mis à jour : oct. 2020		3,68 Mo	oct. 2020

Brochures

	Taille	Téléchargé
PRX600 Brochure mis à jour : oct. 2020	1,49 Mo	oct. 2020

CAD Drawings

	Taille	Téléchargé
PRX600 Drawings 2D & 3D mis à jour : oct. 2020	4,8 Mo	oct. 2020

User Guides

	Taille	Téléchargé
PRX600 Users Guide mis à jour : oct. 2020	4,65 Mo	oct. 2020

Images

	Taille	Téléchargé

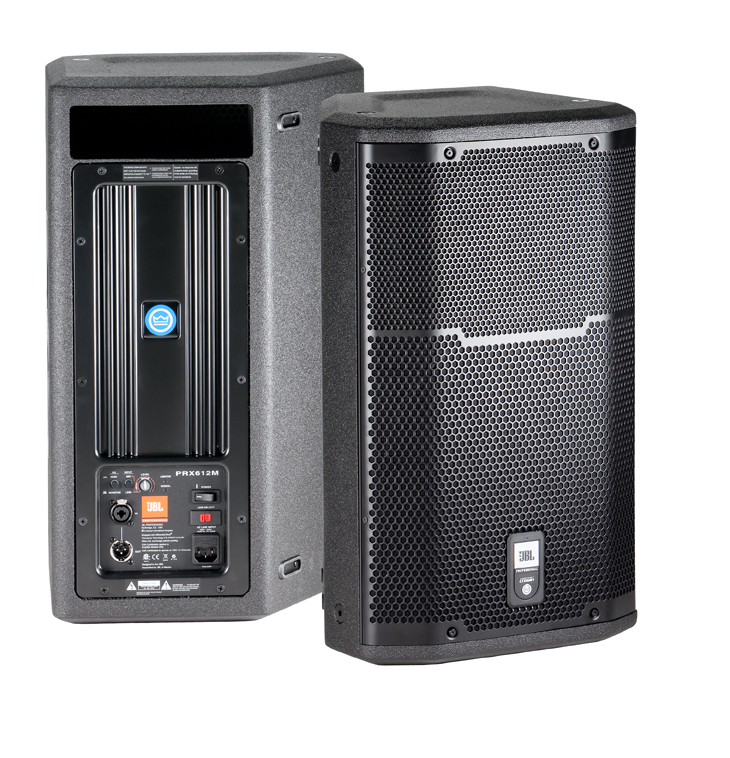

PRX612M Front-Back mis à jour : oct. 2020	375 ko	oct. 2020

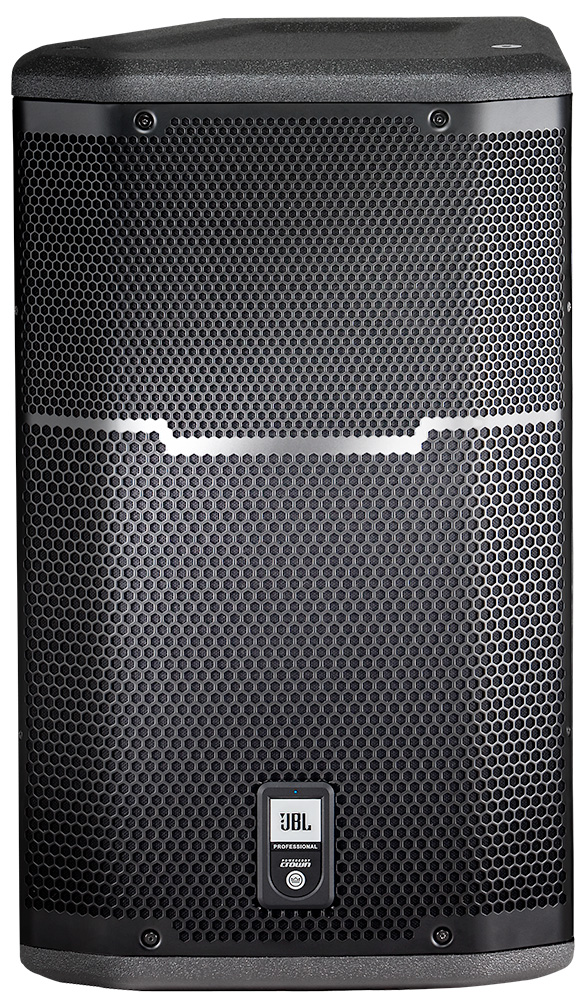

PRX612M Front mis à jour : oct. 2020	370 ko	oct. 2020

Ease Data

	Taille	Téléchargé
PRX 600 Ease Data mis à jour : oct. 2020	203 ko	oct. 2020

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Pièces détachées et réparations

Caractéristiques techniques

System Type	Self-powered 12", two-way, bass-reflex
Maximum SPL Output	Full Range: 134 dB peakMonitor: 133 dB peak
Frequency Range (-10dB)	Full Range: 50 Hz – 19.5 kHzMonitor: 51 Hz – 19.5 kHz
Frequency Response (±3 dB)	Full Range: 60 Hz – 17.5 kHzMonitor: 61 Hz – 18.5 kHz
Coverage Pattern	90º x 50º nominal
Amp Design	Crown® Class D
Power Rating	1000 W ( 2 x 500 )
Dimensions (H x W x D)	592 mm x 353 mm x 340 mm ( 23.3 in x 13.9 in x 13.4 in )
Net Weight	15.6 kg ( 34.5 lb )
