MD52 (discontinued)

2-Way Full-Range Loudspeaker System with 1 x 12" LF

MD52
Larger Images

2-Way Full-Range Loudspeaker System with 1 x 12" LF

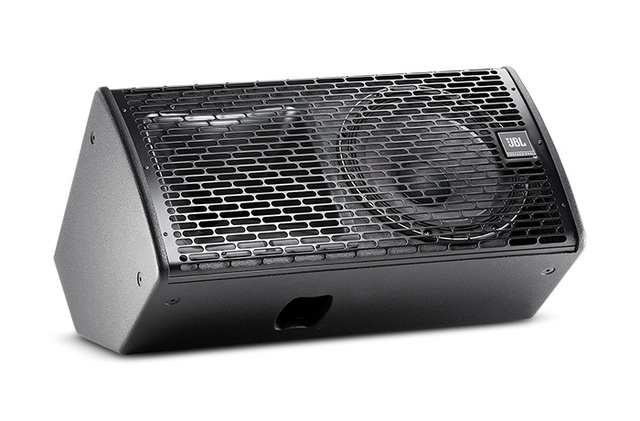

JBL’s Marquis Dance Club Series is a state-of-the-art family of loudspeaker systems designed specifically for the Dance Club Market. The MD52 is also designed for the mobile DJ requiring a light weight, high fidelity portable system. The multiangle enclosure features a 45° angle on one side for use as a floor monitor in the horizontal orientation and is fitted handles, a pole mount cup on the bottom panel. MD52 is a medium-power 90° x 50°, 12" 2-way fully passive full-range system utilizing a 262H Differential Drive transducers and a 2408H-1 compression driver with a 1.5" diaphragm for smooth low distortion high-frequency response. All of the Marquis Series loudspeakers offer unprecedented fidelity, clarity, and breathtaking purity.



Features

  • JBL 262H 2” dual voice coil – dual magnetic gap Differential Drive® woofers
  • JBL 2408H-1 1.5" diaphragm, 1" exit compression driver
  • 90° x 50° rotatable PT™ Progressive Transition waveguide
  • Pole mount socket for portable applications

Applications

  • Sophisticated dance clubs
  • Mobile DJ
  • Live sound reinforcement


Downloads

  Version Language Size Uploaded
file type icon Marquis Dance Brochure
en updated: Mar 2024
  en  538 KB Mar 2024
file type icon MD52 Spec Sheet
en updated: Mar 2024
  en  300 KB Mar 2024
Data Sheets
file type icon MD52 Spec Sheet
updated: Oct 2019
    300 KB Oct 2019
Specifications
file type icon Marquis Dance Club Series Spec Sheets
updated: Jul 2019
    3.97 MB Jul 2019
Brochures
file type icon Marquis Dance Club Series Brochure
updated: Jul 2019
    538 KB Jul 2019
CAD Drawings
file type icon Marquis Dance Series 2D DXF Drawings
updated: Oct 2019
    612 KB Oct 2019
file type icon Marquis Dance Series 3D DXF Drawings
updated: Oct 2019
    10.4 MB Oct 2019
file type icon Marquis Dance Series Customer Drawings PDF
updated: Oct 2019
    205 KB Oct 2019
Compliances
file type icon Marquis Dance Club Series Declaration of Conformity
updated: Oct 2019
    144 KB Oct 2019
Images

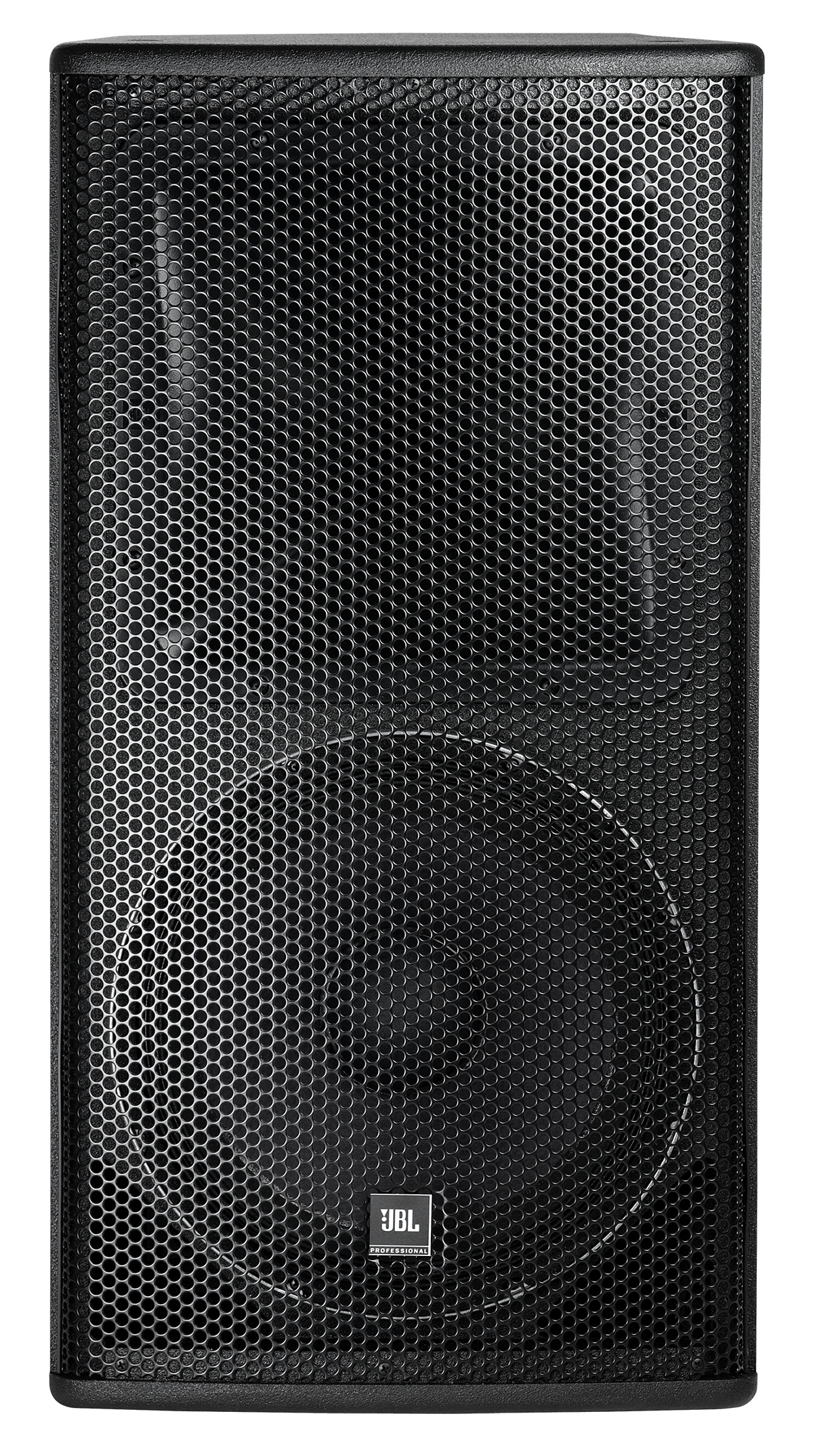

file type icon MD52 Hi-Res Image
updated: Jul 2019
    912 KB Jul 2019

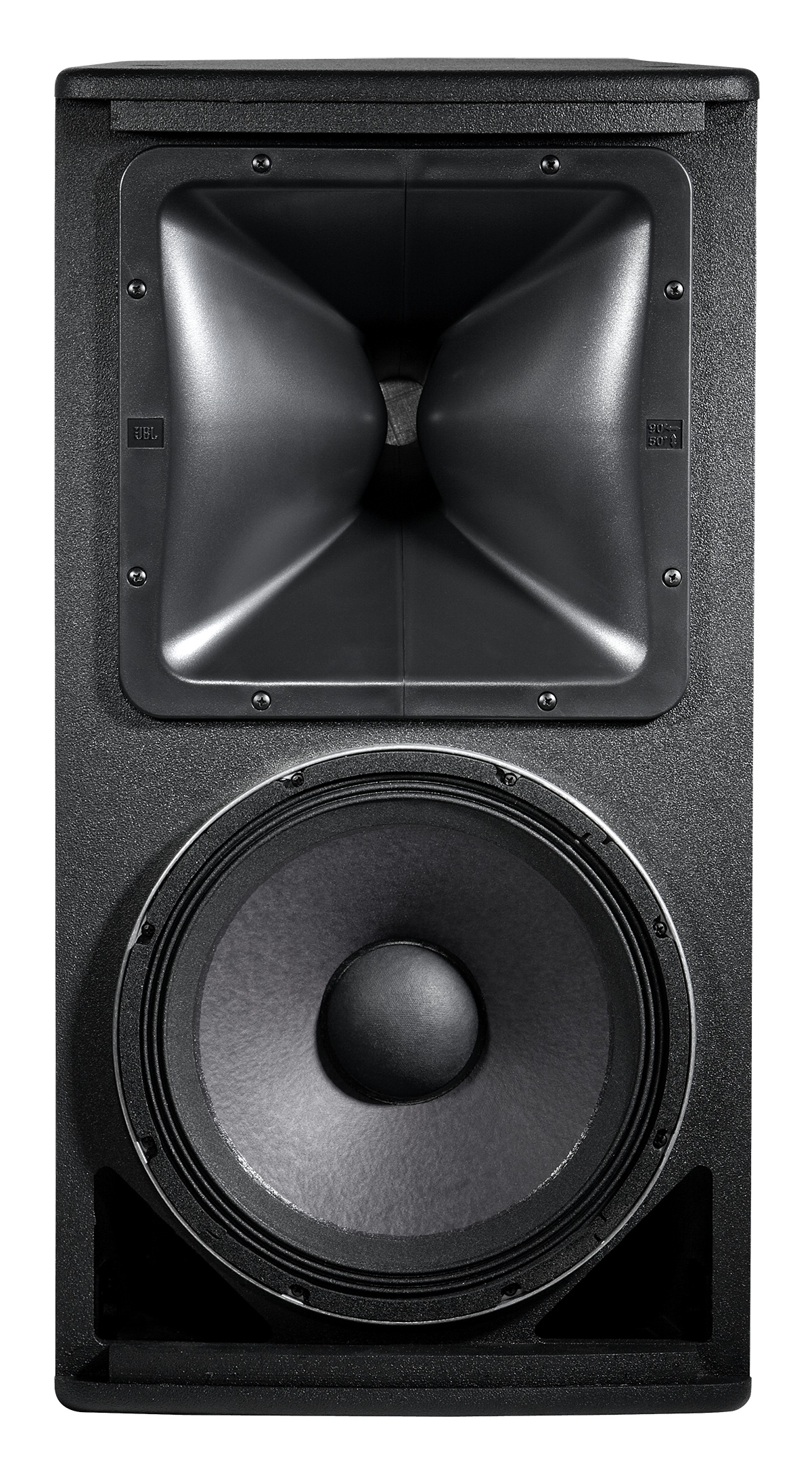

file type icon MD52 Hi-Res Image 2
updated: Jul 2019
    1.21 MB Jul 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range (-10dB) 39 Hz – 20 kHz
Power Rating 550 W (2200 W peak) 2 hrs
Coverage Pattern 90° x 50°, rotatable waveguide
Frequency Response (±3 dB) 53 Hz – 19 kHz
Directivity Factor (Q) 11.0
Directivity Index (DI) 10.4 dB
Passive Crossover Frequency 1.4 kHz
System Power Rating 300 W (1200 W peak), 100 hrs
Maximum SPL (1m) 123 dB-SPL cont avg (129 dB peak)
System Sensitivity 96 dB SPL, 2.83V (1W) @ 1m (3.3 ft)
LF Driver 1 x JBL 262H-1 300 mm (12 in ) Differential Drive woofer with dual 50.8 mm (2 in) voice coil
HF Driver JBL 2408H-1, 25.4 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
Waveguide PT-H95HF-1 Progressive Transition Waveguide
Enclosure Trapezoidal with 7.5° and 45° side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment 10 x M10 attachment points (2 top, 2 bottom, 2 each side, 2 rear), 4 x M8 (rear panel) for OmniMount® 60.0 35 mm pole mount socket
Finish Black DuraFlex™ finish.
Grille Powder coated 14 gauge perforated steel
Input Connectors Neutrik Speakon® NL4 (2 wired in parallel), plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AGW) wire or max width 9 mm (.375 in) spade lugs. NL4’s +1/-1 in parallel with barrier strip (+2/-2 loop-through).
Dimensions (H x W x D in vertical orientation) 711.2 x 371.4 x 400.6 mm(28 x 14.6 x 15.8 in)
Net Weight 20.6 kg (45.5 lb)
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers
