MD52 (停产)

2-Way Full-Range Loudspeaker System with 1 x 12" LF

MD52
较大的图像

2-Way Full-Range Loudspeaker System with 1 x 12" LF

JBL’s Marquis Dance Club Series is a state-of-the-art family of loudspeaker systems designed specifically for the Dance Club Market. The MD52 is also designed for the mobile DJ requiring a light weight, high fidelity portable system. The multiangle enclosure features a 45° angle on one side for use as a floor monitor in the horizontal orientation and is fitted handles, a pole mount cup on the bottom panel. MD52 is a medium-power 90° x 50°, 12" 2-way fully passive full-range system utilizing a 262H Differential Drive transducers and a 2408H-1 compression driver with a 1.5" diaphragm for smooth low distortion high-frequency response. All of the Marquis Series loudspeakers offer unprecedented fidelity, clarity, and breathtaking purity.



特点

  • JBL 262H 2” dual voice coil – dual magnetic gap Differential Drive® woofers
  • JBL 2408H-1 1.5" diaphragm, 1" exit compression driver
  • 90° x 50° rotatable PT™ Progressive Transition waveguide
  • Pole mount socket for portable applications

Applications

  • Sophisticated dance clubs
  • Mobile DJ
  • Live sound reinforcement


下载

  Version Language Size Uploaded
file type icon Marquis Dance Brochure
en updated: 5月 2023
  en  538.4 KB 5月 2023
file type icon MD52 Spec Sheet
en updated: 5月 2023
  en  299.9 KB 5月 2023
Data Sheets
file type icon MD52 Spec Sheet
updated: 10月 2019
    299.9 KB 10月 2019
Specifications
file type icon Marquis Dance Club Series Spec Sheets
updated: 7月 2019
    4.0 MB 7月 2019
Brochures
file type icon Marquis Dance Club Series Brochure
updated: 7月 2019
    538.4 KB 7月 2019
CAD Drawings
file type icon Marquis Dance Series 2D DXF Drawings
updated: 10月 2019
    611.9 KB 10月 2019
file type icon Marquis Dance Series 3D DXF Drawings
updated: 10月 2019
    10.4 MB 10月 2019
file type icon Marquis Dance Series Customer Drawings PDF
updated: 10月 2019
    204.9 KB 10月 2019
Compliances
file type icon Marquis Dance Club Series Declaration of Conformity
updated: 10月 2019
    144.2 KB 10月 2019
Images

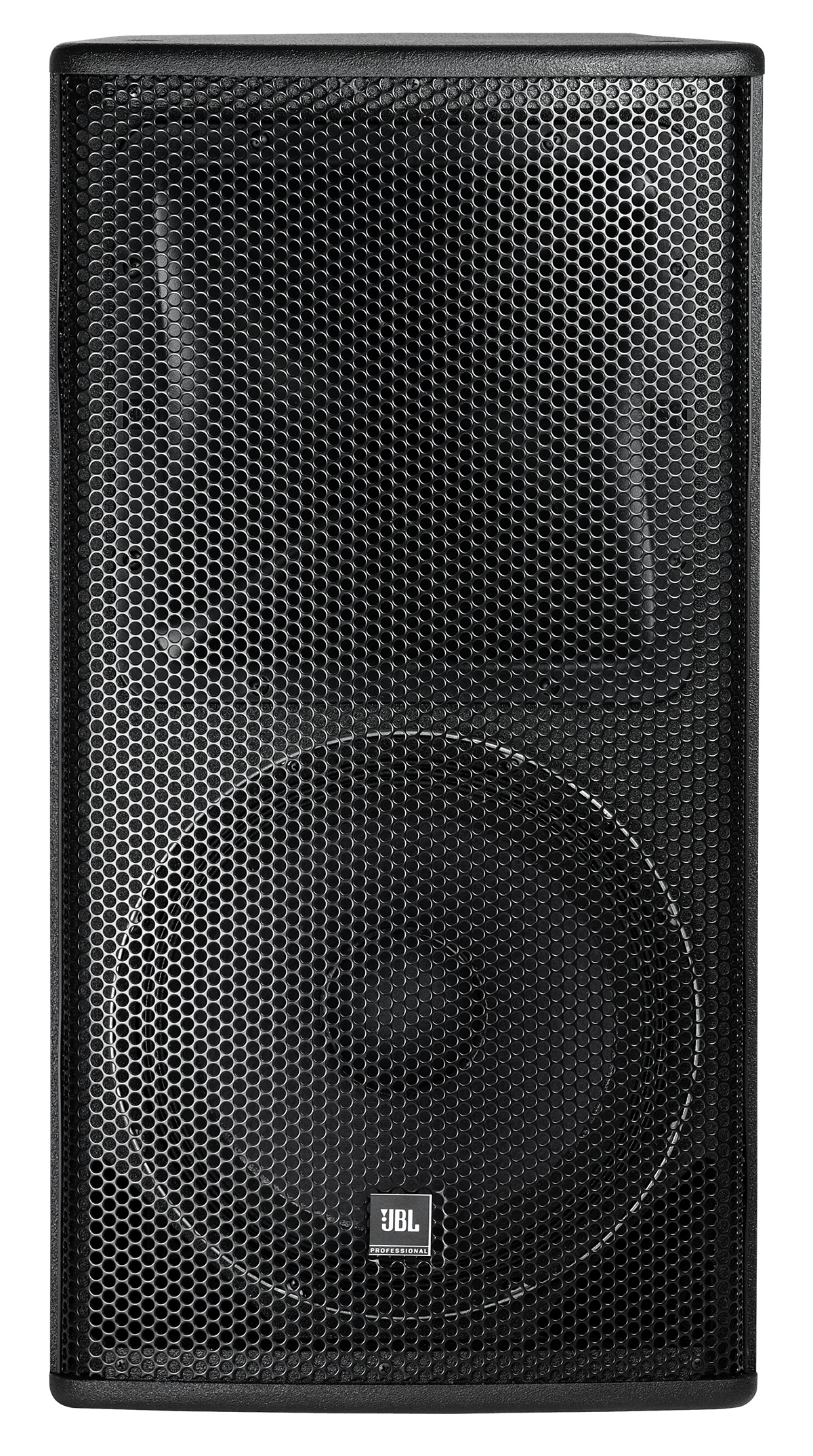

file type icon MD52 Hi-Res Image
updated: 7月 2019
    912.1 KB 7月 2019

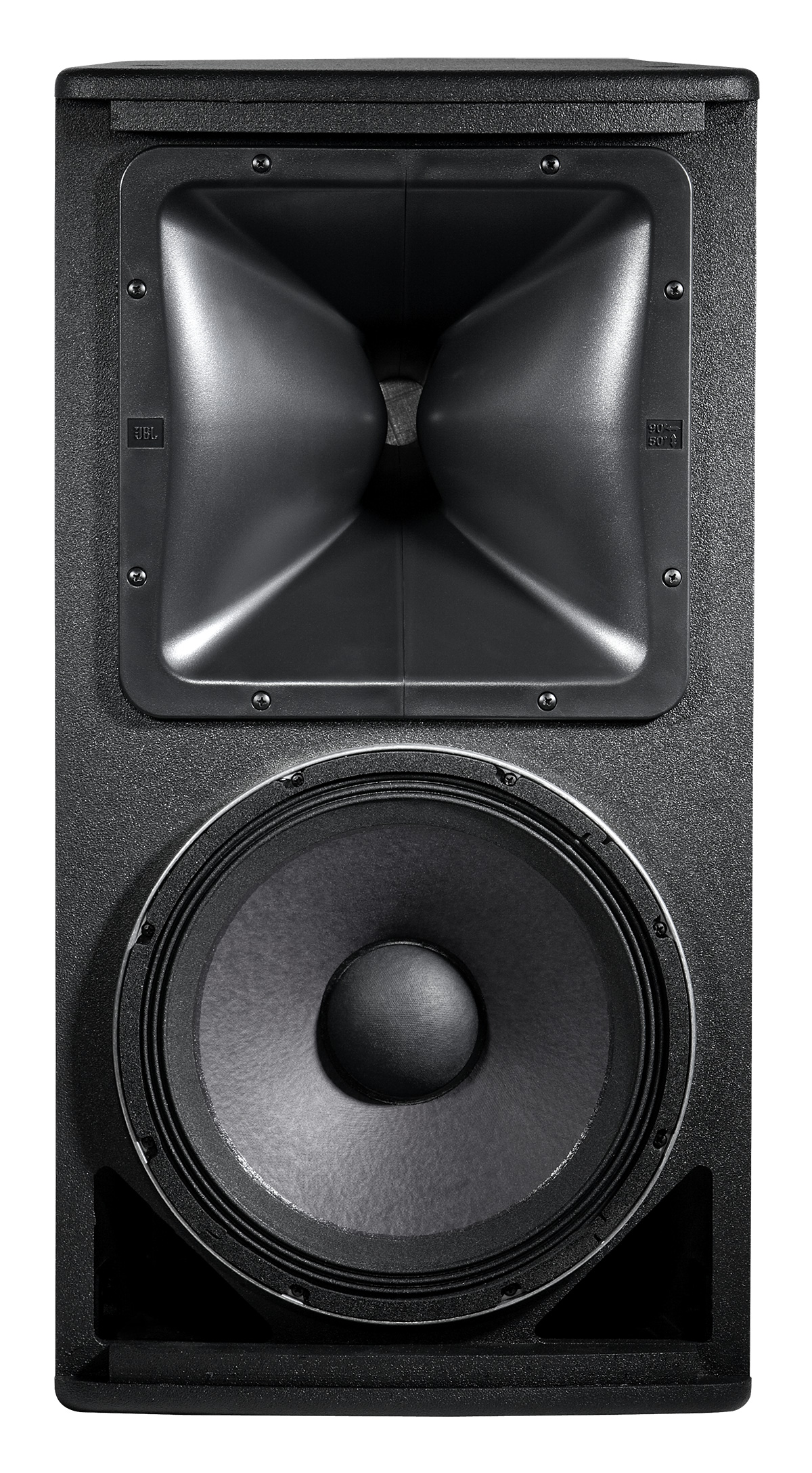

file type icon MD52 Hi-Res Image 2
updated: 7月 2019
    1.2 MB 7月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 (-10dB) 39 Hz – 20 kHz
额定功率 550 W (2200 W peak) 2 hrs
覆盖范围 90° x 50°, rotatable waveguide
Frequency Response (±3 dB) 53 Hz – 19 kHz
Directivity Factor (Q) 11.0
Directivity Index (DI) 10.4 dB
Passive Crossover Frequency 1.4 kHz
系统额定功率 300 W (1200 W peak), 100 hrs
Maximum SPL (1m) 123 dB-SPL cont avg (129 dB peak)
系统灵敏度 96 dB SPL, 2.83V (1W) @ 1m (3.3 ft)
低频驱动单元 1 x JBL 262H-1 300 mm (12 in ) Differential Drive woofer with dual 50.8 mm (2 in) voice coil
HF 驱动程序 JBL 2408H-1, 25.4 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
Waveguide PT-H95HF-1 Progressive Transition Waveguide
Enclosure Trapezoidal with 7.5° and 45° side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment 10 x M10 attachment points (2 top, 2 bottom, 2 each side, 2 rear), 4 x M8 (rear panel) for OmniMount® 60.0 35 mm pole mount socket
外观颜色 Black DuraFlex™ finish.
网罩 Powder coated 14 gauge perforated steel
输入接口 Neutrik Speakon® NL4 (2 wired in parallel), plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AGW) wire or max width 9 mm (.375 in) spade lugs. NL4’s +1/-1 in parallel with barrier strip (+2/-2 loop-through).
Dimensions (H x W x D in vertical orientation) 711.2 x 371.4 x 400.6 mm(28 x 14.6 x 15.8 in)
净重量 20.6 kg (45.5 lb)
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers
