CSS8004

100 mm (4 in) Commercial Series Ceiling Speakers

Larger Images

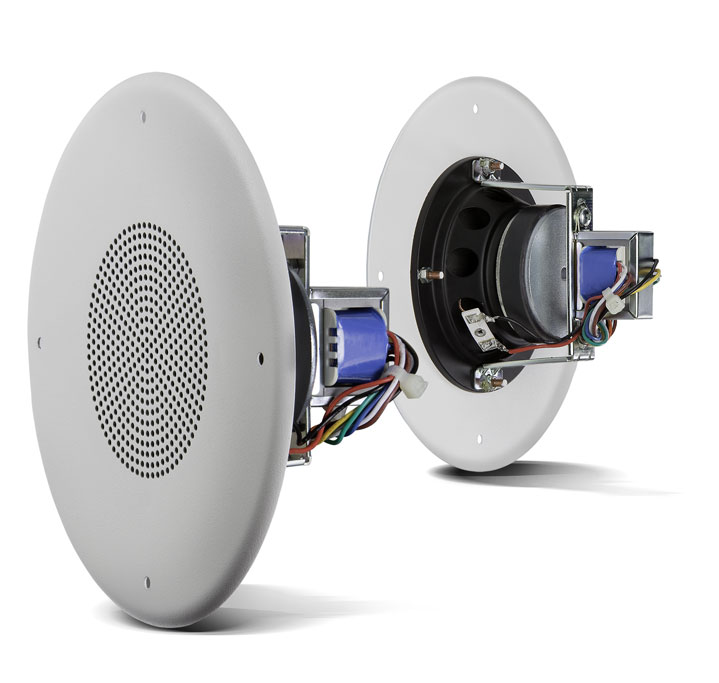

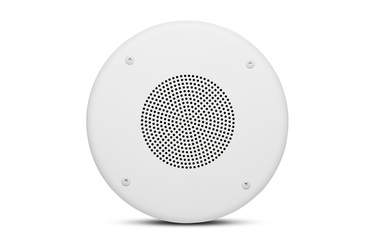

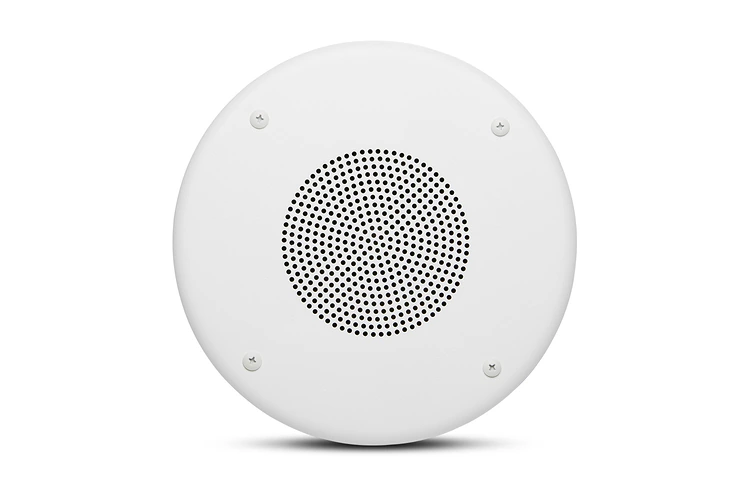

100 mm (4 in) Commercial Series Ceiling Speakers

JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.

Features

  • High 90 dB sensitivity
  • 5 Watt multi-tap transformer for 100V, 70V and 25V distributed lines
  • Very wide 175° coverage
  • Fits CSS-BB4 backcan

Downloads

  Version Language Size Uploaded
Specifications
CSS8004/CSS8008/CSS8018 Spec Sheet
updated: Apr 29, 2019
    1.24 MB Apr 29, 2019
Manuals
Ceiling Speaker Accessory Guide
updated: Oct 18, 2019
    127 KB Oct 18, 2019
Brochures
Commercial Series Introductory Sheet
updated: Oct 18, 2019
    250 KB Oct 18, 2019
Compliances
CSS8000 Declaration of Conformity
updated: Oct 18, 2019
    145 KB Oct 18, 2019
Software
Distributed System Design (DSD) v3.6.2
version 3.6.2, updated: Jan 14, 2020
3.6.2     805 KB Jan 14, 2020
Install Guides
CSS8004 Install Instructions
updated: Apr 29, 2019
    42.9 KB Apr 29, 2019
Ease Data
CSS 8000 Ease Files
updated: Apr 29, 2019
    35.8 KB Apr 29, 2019
Ease SPK/DLL Files - Full JBL Pro Line
updated: Jul 08, 2019
    20.5 MB Jul 08, 2019
Images
CSS8004 Hi-Res Image
updated: Apr 29, 2019
    50.9 KB Apr 29, 2019
Speaker Tunings
Commercial, CBT, and AWC Tunings 181030
updated: Feb 24, 2020
    557 KB Feb 24, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Drivers 100 mm (4 in)
Sensitivity (1W, 1m) 90 dB (2k - 6k Hz)
Frequency Range (-10 dB) Driver/Grille Assembly 85 Hz – 18 kHz
Installed in CSS-BB backcan 130 Hz – 18 kHz
Coverage Angle 175° conical
Driver Continuous Power Handling 15 Watts
Transformer Taps 5W, 2.5W, 1.3W
Transformer Taps 5W, 2.5W, 1.3W, 0.7W
Transformer Taps 5W, 2.5W, 1.3W, 0.7W
Transformer Insertion Loss 1.5 dB Maximum
Transformer Connection Bare wire
Motor Mass 200 g (7 oz)
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Matching CSS Backcan CSS-BB4
Other Compatible Backcans N/A
Bolt Mounting Circle to Backcan 4 points on 165 mm(6.5 in) diameter
Cutout DiameterOpen-back 125 mm (5.0 in)
In CSS-BB backcan 170 mm (6.7 in)
Depth (behind grille) 94 mm (3.7 in)
Grille Diameter 198 mm (7.8 in)
Net Weight (each) 0.90 kg (1.0 lb)
Shipping Weight (ea) 1.26 kg (2.8 lb)
Included Accessories 4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan.
Power Rating See transformer taps
Transformer Taps 100V Taps - 5W, 2.5W, 1.3W
70V Taps - 5W, 2.5W, 1.3W, 0.7W
25V Taps - 5W, 2.5W, 1.3W, 0.7W
Maximum SPL (1m) 97 dB (top 25V/70V/100V tap)
Input Connectors Bare wire
Backcan formed steel (accessory)
Baffle/Rim Metal
Ceiling Cutout Size 125 mm (5.0 in)
Plenum Usage Yes, with accessory backcan
Color White

Accessories

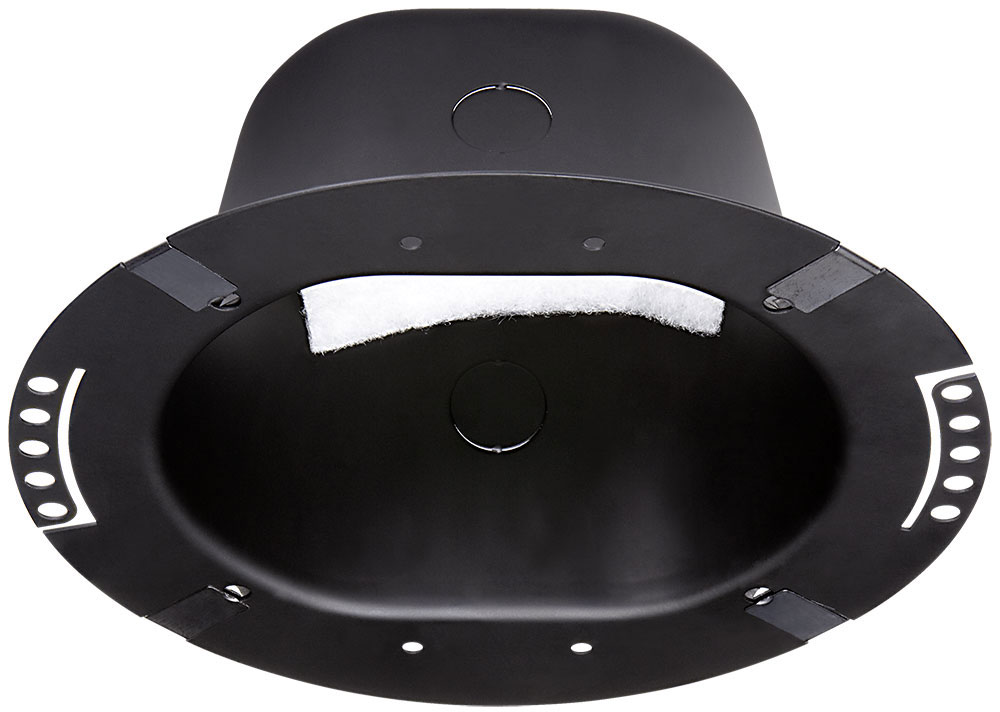

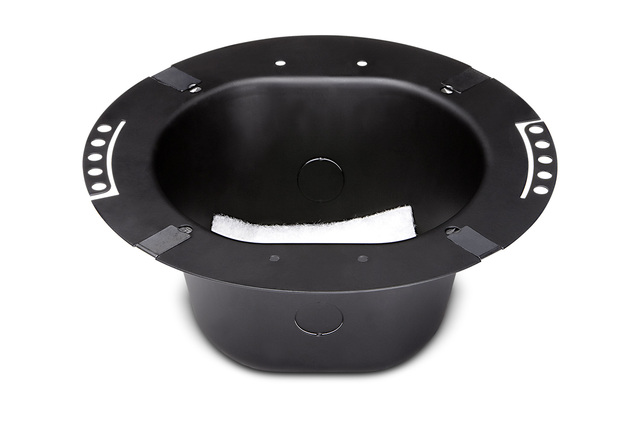

CSS-BB4x6 | 4" Backcan for CSS8004 speaker
CSS-BB4x6 Main photo
Larger Images

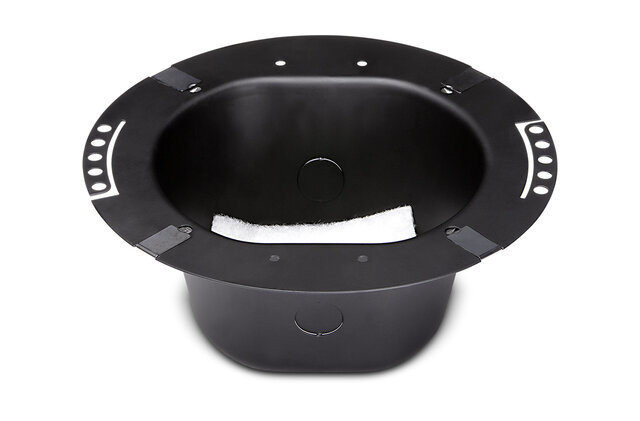

4" Backcan for CSS8004 speaker
