JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.
| Size | ||||
Specifications | ||||
CSS8004/CSS8008/CSS8018 Spec Sheet
updated: 10月 2020
|
1.2 MB | |||
Manuals | ||||
|
Ceiling Speaker Accessory Guide
updated: 10月 2019
|
126.9 KB | |||
Brochures | ||||
Control Contractor Brochure (2023)
version B,
updated: 6月 2023
|
8.2 MB | |||
|
Commercial Series Introductory Sheet
updated: 10月 2019
|
249.8 KB | |||
Compliances | ||||
|
CSS8000 Declaration of Conformity
updated: 10月 2019
|
144.7 KB | |||
Software | ||||
Distributed System Design (DSD) v3.6.2
version 3.6.2,
updated: 9月 2021
|
804.8 KB | |||
Application Guides | ||||
|
Series Application Guide (English)
version 1.7,
updated: 4月 2020
|
6.9 MB | |||
|
Series Application Guide (Chinese)
version 1.7,
updated: 4月 2020
|
11.5 MB | |||
Speaker Tunings | ||||
|
Commercial, CBT, and AWC Tunings 220616
version A,
updated: 5月 2023
|
557.0 KB | |||
Ease Data | ||||
Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月 2022
|
21.0 MB | |||
|
CSS 8000 Ease Files
updated: 10月 2020
|
35.8 KB | |||
Images | ||||
|

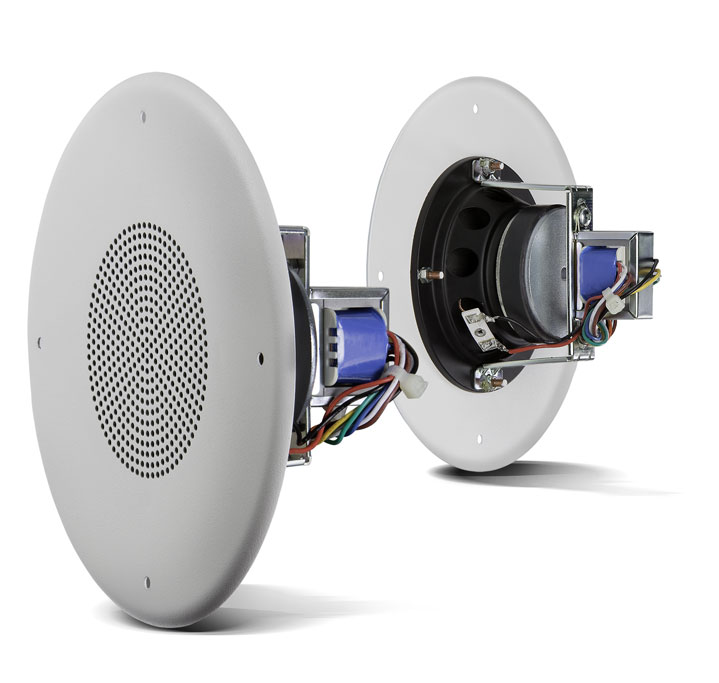

CSS8004 Hi-Res Image
updated: 10月 2020
|
50.9 KB | |||
Install Guides | ||||
|
CSS8004 Install Instructions
updated: 10月 2020
|
42.9 KB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
| Drivers | 100 mm (4 in) |
灵敏度 |
90 dB (2k - 6k Hz) |
| Frequency Range (-10 dB) Driver/Grille Assembly | 85 Hz – 18 kHz |
| Installed in CSS-BB backcan | 130 Hz – 18 kHz |
| 覆盖角度 | 175° conical |
| 驱动单元连续功率承受能力 | 15 Watts |
| 变压器抽头 | 5W, 2.5W, 1.3W |
| 变压器抽头 | 5W, 2.5W, 1.3W, 0.7W |
| 变压器抽头 | 5W, 2.5W, 1.3W, 0.7W |
| 变压器插入损耗 | 1.5 dB Maximum |
| Transformer Connection | Bare wire |
| Motor Mass | 200 g (7 oz) |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Matching CSS Backcan | CSS-BB4 |
| Other Compatible Backcans | N/A |
| Bolt Mounting Circle to Backcan | 4 points on 165 mm(6.5 in) diameter |
| Cutout DiameterOpen-back | 125 mm (5.0 in) |
| In CSS-BB backcan | 170 mm (6.7 in) |
| Depth (behind grille) | 94 mm (3.7 in) |
| Grille Diameter | 198 mm (7.8 in) |
| Net Weight (each) | 0.90 kg (1.0 lb) |
| Shipping Weight (ea) | 1.26 kg (2.8 lb) |
随附配件 |
4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan. |
| 额定功率 | See transformer taps |
| 变压器抽头 | 100V Taps - 5W, 2.5W, 1.3W 70V Taps - 5W, 2.5W, 1.3W, 0.7W 25V Taps - 5W, 2.5W, 1.3W, 0.7W |
| Maximum SPL (1m) | 97 dB (top 25V/70V/100V tap) |
| 输入接口 | Bare wire |
| Backcan | formed steel (accessory) |
| Baffle/Rim | Metal |
| Ceiling Cutout Size | 125 mm (5.0 in) |
| Plenum Usage | Yes, with accessory backcan |
| 颜色 | White |
CSS-BB4x6
For suspended ceilings, tile rail is CSS-TR4/8.
Comes in packs of 6 pcs CSS-BB4x6, for 6 speakers.

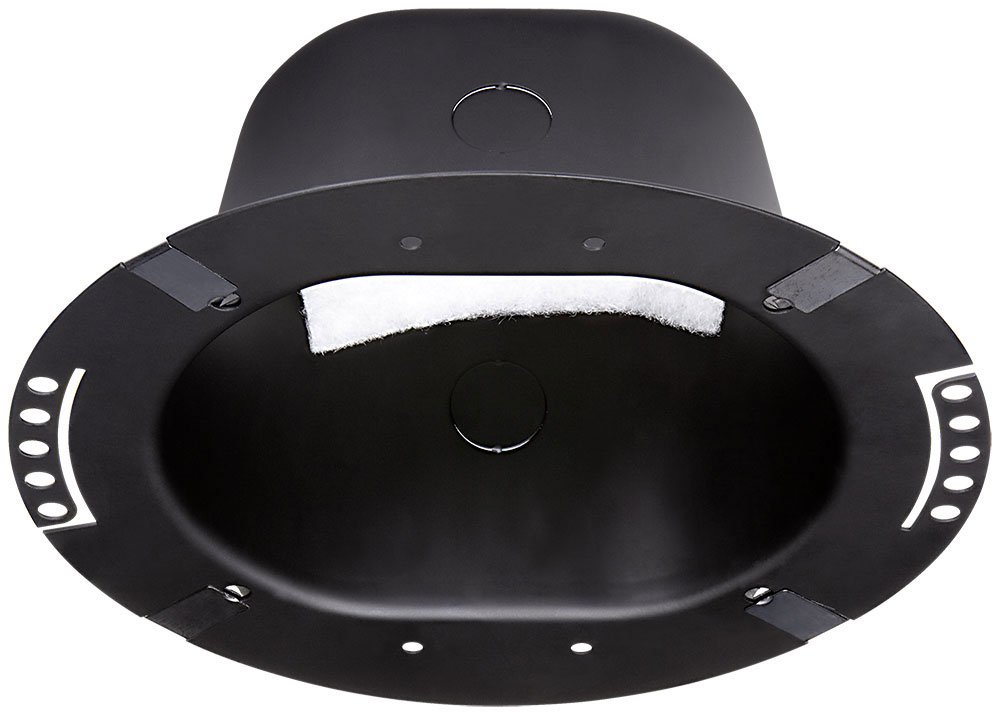

CSS-BB4x6 Hi-Res Image
[61.5 KB]
CSS8004/CSS8008/CSS8018 Spec Sheet
[1.2 MB]
Commercial Series Introductory Sheet
[249.8 KB]
CSS-TR4/8x12
For suspended ceilings.
Comes in packs of 12 pcs CSS-TR4/8x12, for 6 backcans.
CSS-TR4/8x12 Hi-Res Image
[22.2 KB]
CSS8004/CSS8008/CSS8018 Spec Sheet
[1.2 MB]
Commercial Series Introductory Sheet
[249.8 KB]
