Control 328CT

8" Coaxial Ceiling Loudspeaker with HF Compression Driver

Larger Images

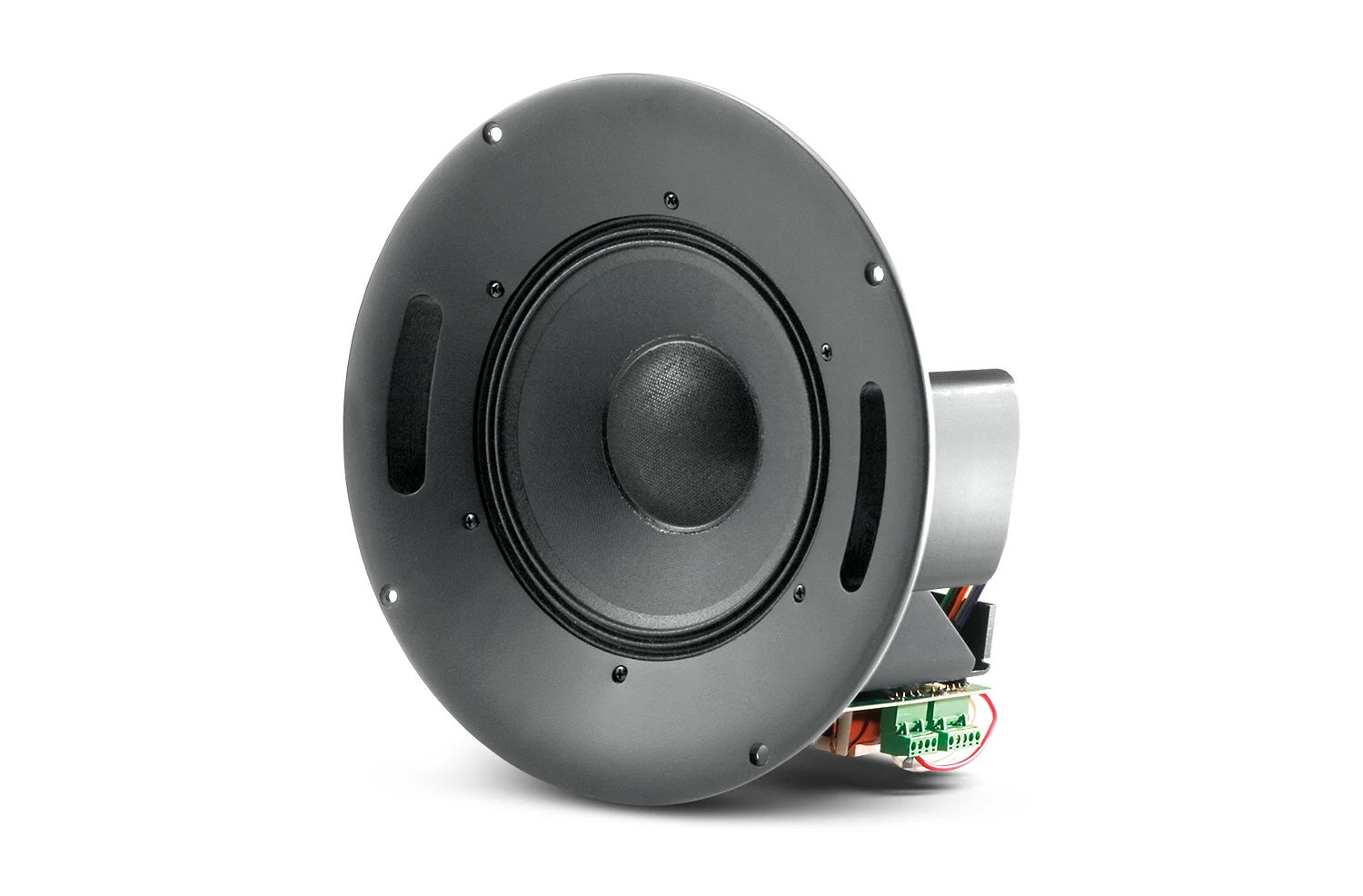

8" Coaxial Ceiling Loudspeaker with HF Compression Driver

Control 328CT has been engineered from the ground up to deliver exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Features

  • Consistent 120° broadband pattern control covers an extremely large area.
  • Shaped mounting baffle provides the pattern control of a 300 mm (12 in) horn from a 200 mm (8 in) driver.
  • Components
    • 200 mm (8 in) woofer with Kevlarreinforced cone and 50 mm (2 in) voice-coil.
    • 25 mm (1" exit) compression driver.
  • Extraordinary clarity for speech and vocals with extended frequency response for music.
  • 250 Watt power handling with very high sensitivity provides high SPL capability.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • Clean, contemporary grille and optional backbox available.

Downloads

  Version Language Size Uploaded
Control 300 Brochure
en updated: Jun 10, 2015
  en  2.9 MB Jun 10, 2015
Control 328C_CT Spec Sheet
en updated: Jun 10, 2015
  en  720 KB Jun 10, 2015
Control 328C-CT Backcan Assembly Instructions
en updated: Jun 10, 2015
  en  539 KB Jun 10, 2015
Control 300 Transformer Bypass
en updated: Jun 10, 2015
  en  59.2 KB Jun 10, 2015
Control 300 Transformer Insertion Loss
en updated: Jun 10, 2015
  en  15.4 KB Jun 10, 2015
Control 300 User Guide
en updated: Jun 10, 2015
  en  2.02 MB Jun 10, 2015
Specifications
Control 328C/CT Spec Sheet
updated: Apr 29, 2019
    720 KB Apr 29, 2019
Manuals
Transformer Bypass on Control 321CT, Control 322CT, or Control 328CT
updated: Oct 18, 2019
    59.2 KB Oct 18, 2019
Control 300 Series Transformer Insertion Loss Chart
updated: Oct 18, 2019
    15.4 KB Oct 18, 2019
Ceiling Speaker Accessory Guide
updated: Oct 18, 2019
    127 KB Oct 18, 2019
Brochures
Control 300 Brochure
updated: Apr 29, 2019
    2.9 MB Apr 29, 2019
CAD Drawings
Control 300 Ceiling Speakers
updated: Oct 18, 2019
    1.39 MB Oct 18, 2019
Bim Objects
BIM (Revit) Files
updated: Oct 03, 2019
    12.4 MB Oct 03, 2019
Compliances
JBL Control Series Passive Speakers DoC
updated: Dec 17, 2019
    179 KB Dec 17, 2019
Control 300 Series Declaration of Conformity
updated: Oct 18, 2019
    92.7 KB Oct 18, 2019
Software
Distributed System Design (DSD) v3.6.2
version 3.6.2, updated: Jan 14, 2020
3.6.2     805 KB Jan 14, 2020
User Guides
Control 300 User Guide
updated: Apr 29, 2019
    2.02 MB Apr 29, 2019
Install Guides
Control 328C/CT Assembly Guide
updated: Apr 29, 2019
    539 KB Apr 29, 2019
Speaker Tunings
Commercial, CBT, and AWC Tunings 181030
updated: Feb 24, 2020
    557 KB Feb 24, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Response (-10dB) 45 Hz – 18 kHz
Power Rating See transformer taps
Transformer Taps 68W, 34W, 17W, (& 8.5W @ 70V)
Frequency Response (±3 dB) 60Hz – 16 kHz
Coverage Angle 120° conical, constant directivity
Impedance 8 ohms
Directivity Factor (Q) 7.0 (Avg 1k - 16kHz)
Directivity Index (DI) 8.5dB (Avg 1k - 16kHz)
Sensitivity 93 dB (1 kHz - 16 kHz)
Maximum SPL (1m) 118 dB (top 70V/100V tap)
Crossover Network 1.9 kHz, 3rd order (18 dB/oct) high-pass plus conjugate
Dimensions (H x W x D) 305 mm (12.0 in.) diameter round baffle x depth from back of baffle of 218 mm (8.6 in)
Input Connectors Screw locking barrier strip for bare wire
Drivers LF Driver: 200 mm (8 in)
HF Driver: compression driver, 25 mm (1 inch) coil
Color White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-300BB8. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (wood-lined; accessory)
Baffle/Rim Metal, round, driver pre-mounted to baffle, ported.
Ceiling Cutout Size 310 mm (12.2 in) diameter (for MTC-300BB8 backcan)
Included Accessories Ported baffle pre-attached, plus transformer on 328CT.
Optional Accessories MTC-RG6/8 Grille, round contoured, white. MTC-SG6/8 Grille, square, contoured, white. MTC-300BB8 Backbox, 25 liters (1 cubic feet)
Plenum Usage Yes, with accessory backcan
