Control 23T (discontinued)

Ultra-Compact Indoor/ Outdoor Background/ Foreground Loudspeaker

Larger Images

Ultra-Compact Indoor/Outdoor Background/Foreground Loudspeaker

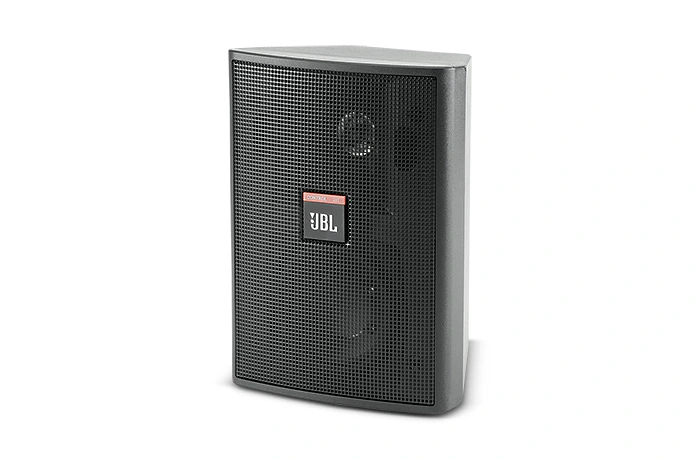

The Control® 23T is the most compact of JBL Professional’s Control Contractor Series indoor/outdoor loudspeakers making it a perfect choice for patios, foyers, retail or other applications where foreground/background music and paging are required, with minimum aesthetic impact.

Features

  • Isolation transformer for 70.7 V / 100 V distributed-line sound systems.
  • Components: 3.5 in Polypropylene coated woofer, .5 in Titanium coated horn loaded tweeter.
  • Built-in InvisiBall® mounting hardware.
  • Weather resistant enclosure and transducers.
  • Readily paintable to match decor.
  • 130 mm (5.25 in ) polypropylene coated woofer,
    10 mm (.75 in ) titanium coated horn-loaded tweeter.
  • 90° x 90° high frequency horn.

Downloads

  Version Language Size Uploaded
Control Contractor Brochure
en updated: Jun 08, 2015
  en  1.71 MB Jun 08, 2015
Control 23T Spec Sheet
en updated: Jun 08, 2015
  en  663 KB Jun 08, 2015
Control Contractor Surface Mount Owners Manual
en updated: Jun 08, 2015
  en  1.96 MB Jun 08, 2015
Specifications
Control 23T Spec Sheet
updated: Jul 12, 2019
    663 KB Jul 12, 2019
Manuals
JBL Installed Sound Configuration Guide
updated: Oct 18, 2019
    160 KB Oct 18, 2019
Control Contractor Series FAQ
updated: Oct 18, 2019
    65 KB Oct 18, 2019
Brochures
Control Contractor Brochure
updated: Apr 29, 2019
    1.71 MB Apr 29, 2019
Bim Objects
BIM (Revit) Files
updated: Oct 03, 2019
    12.4 MB Oct 03, 2019
Compliances
Control Contractor Series Declaration of Conformity
updated: Oct 18, 2019
    131 KB Oct 18, 2019
JBL Control Series Passive Speakers DoC
updated: Dec 17, 2019
    179 KB Dec 17, 2019
Software
Distributed System Design (DSD) v3.6.2
version 3.6.2, updated: Jan 14, 2020
3.6.2     805 KB Jan 14, 2020
Install Guides
Guide to Business Music
updated: Sep 30, 2019
    52.4 KB Sep 30, 2019
Control Contractor Weather Resistance Testing
updated: Sep 30, 2019
    37.6 KB Sep 30, 2019
Attaching Control Contractor Speakers to Stands
updated: Nov 02, 2019
    76.4 KB Nov 02, 2019
Invisiball™ Installation Instructions
updated: Sep 30, 2019
    227 KB Sep 30, 2019
Control Contractor Bracket and Adapter Handbook
updated: Sep 27, 2019
    774 KB Sep 27, 2019
MTC-PC2 & MTC-PC3 Installation
updated: Sep 30, 2019
    42.5 KB Sep 30, 2019
InvisiBall Threading Specifications
updated: Sep 27, 2019
    27.4 KB Sep 27, 2019
Owner's Manuals
Control Contractor Surface Mount Owner’s Manual
updated: Apr 29, 2019
    1.96 MB Apr 29, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Range 100Hz to 21kHz (-10 dB)
Power Capacity 50 W Continuous Program Power; 25 W Continuous Pink Noise
Transformer Taps 5 W @ 70V, 10 W @ 100V (IEC pink noise, 100 hrs.)
Directivity Factor (Q) 4.8 dB
Directivity Index (DI) 6.8 dB
Nominal Impedance 8 ohms
Crossover Frequency 3.5kHz
LF Driver 88mm (3.5 in) Polypropylene cone w/ WeatherEdge
HF Driver 13mm (.5 in ) Titanium coated polycarbonate
Enclosure Material HIPS (High Impact Polystyrene)
Overload Protection Full-Range power limiting to protect network and transducers
Terminations Spring terminals, accepts banana plug
Safety Agency Rating Transformer UL1876 recognized
Environmental Conforms to Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating.
Dimensions (H x W x D) 193 x 140 x 111 mm (7.6 x 5.5 x 4.4 in)
Net Weight (each) 1.8kg (4 lb)
Shipping Weight (ea) 4.1kg (9 lb)
Included Accessories variety of paints and finishes to Invisiball Assembly 4mm x 80mm hex key
Optional Accessories MTC-23V: For vertical columnar orientation of up to 3 loudspeakers polypropylene and terminating its MTC-25/23H: For horizontal splaying of two speakers. Three brackets array up to six loudspeakers in a 360° array.
