Control 12C/T

Compact Ceiling Loudspeaker

Larger Images

Compact Ceiling Loudspeaker

Control 12C/T is a full-range ceiling speaker consisting of 76 mm (3 inch) wide-bandwidth cone driver mounted in a vented, paintable baffle made of UV resistant UL94-V0 material, with a preattached blind-mount backcan for quick and easy installation.

Features

  • 76 mm (3 in) full-range driver
  • Blind-mount backcan for quick and easy install
  • Combined 70V/100V and low impedance direct operation
    • 20 Watts at 8Ω nominal setting
    • 15W multi-tap at 70V/100V
  • 68 Hz – 17 kHz bandwidth with wide 130° coverage
  • White or black (-BK)

Downloads

  Version Language Size Uploaded
Specifications
Control 12C/T Spec Sheet
version C, updated: Apr 27, 2020
  341 KB Apr 27, 2020
Manuals
Ceiling Speaker Accessory Guide
updated: Oct 18, 2019
    127 KB Oct 18, 2019
Brochures
Commercial Sound Full Line 2015 Catalog
updated: Oct 21, 2019
    2.02 MB Oct 21, 2019
Full Line 2015 Catalog
updated: Jan 11, 2020
    11.7 MB Jan 11, 2020
CAD Drawings
Control and Control Contractor Series
updated: Oct 18, 2019
    2.36 MB Oct 18, 2019
Control 12C/T CAD Drawings
updated: Apr 29, 2019
    890 KB Apr 29, 2019
Bim Objects
CONTROL 12C/T BIM Object
updated: Aug 27, 2019
    Aug 27, 2019
Compliances
Control 10 Series - Declaration of Conformity
updated: Oct 18, 2019
    129 KB Oct 18, 2019
JBL Control Series Passive Speakers DoC
updated: Dec 17, 2019
    179 KB Dec 17, 2019
Software
Distributed System Design (DSD) v3.6.2
version 3.6.2, updated: Jan 14, 2020
3.6.2     805 KB Jan 14, 2020
Owner's Manuals
Control 10 Series Owner's Manual
updated: Apr 29, 2019
    390 KB Apr 29, 2019
Ease Data
Ease SPK/DLL Files - Full JBL Pro Line
updated: Jul 08, 2019
    20.5 MB Jul 08, 2019
Control 10 Series Ease Data
updated: Apr 29, 2019
    350 KB Apr 29, 2019
Clf Files
CLF Files
version 03-16-20, updated: Mar 16, 2020
03-16-20    22.5 MB Mar 16, 2020
Accessories
MTC-14WG/16WG High Humidity Grille
updated: Oct 09, 2019
    762 KB Oct 09, 2019
Images

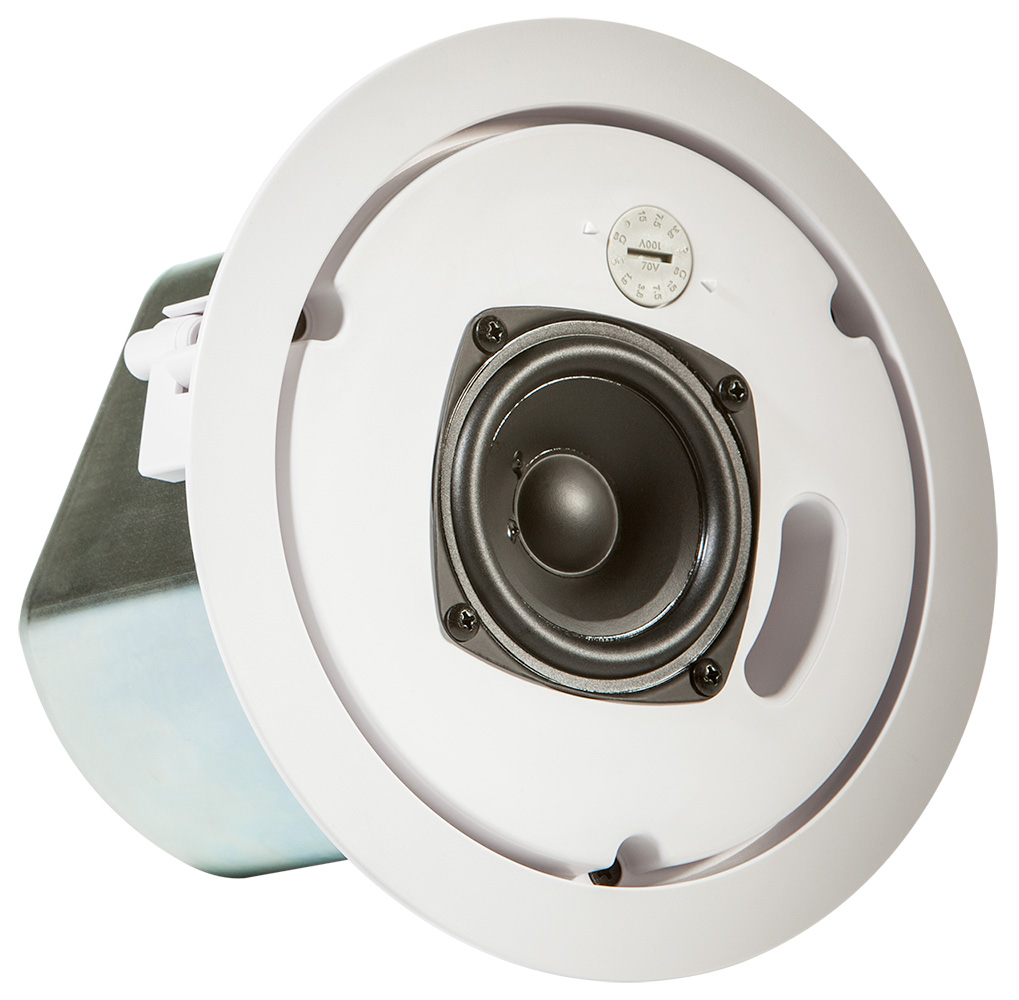

Control 12C/T White No Grill
updated: Apr 29, 2019
    161 KB Apr 29, 2019

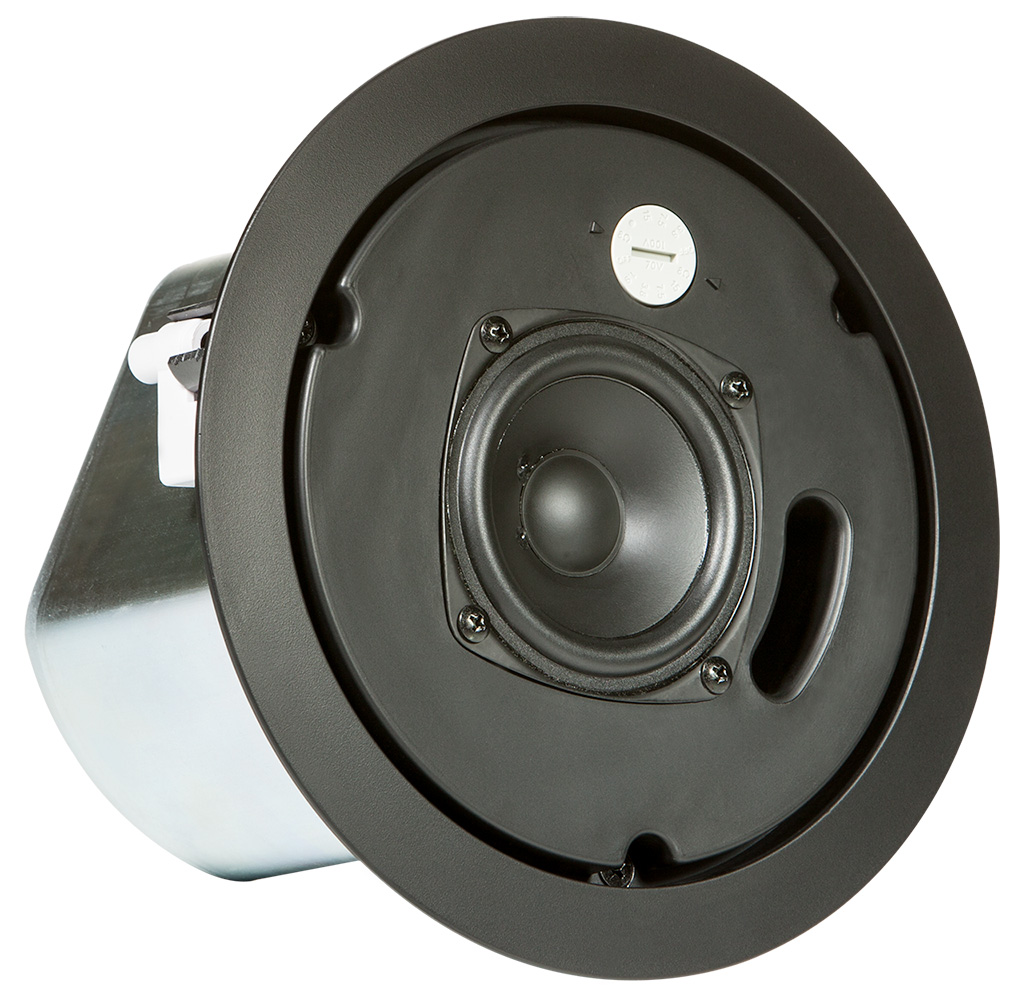

Control 12C/T Black No Grill
updated: Apr 29, 2019
    244 KB Apr 29, 2019

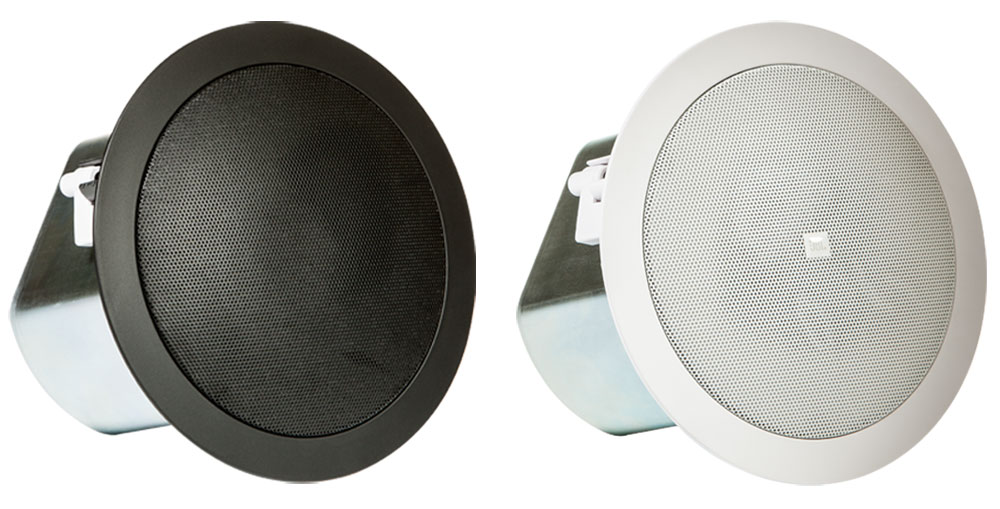

Control 12C/T Black and White
updated: Apr 29, 2019
    88.4 KB Apr 29, 2019
Speaker Tunings
Commercial, CBT, and AWC Tunings 181030
updated: Feb 24, 2020
    557 KB Feb 24, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Response (-10dB) 68 Hz – 17 kHz
Power Rating IEC System Long-Term Ratings (low-Z direct):
40 Watts Continuous Program Power
20 Watts Continuous Pink Noise (80W peak), 100 hr
Transformer Taps 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only)
Frequency Response (±3 dB) 95 Hz – 15 kHz
Sensitivity (1W, 1m) 84 dB (1kHz - 16 kHz)
Coverage Angle 130° conical
Directivity Factor (Q) 9.8
Directivity Index (DI) 7.4 dB
Maximum SPL (1m) 97 dB (low-impedance, 103 dB peak)
96 dB (top 70V/100V tap)
Impedance 8 ohms (in direct/bypass 8Ω setting)
Drivers 76 mm (3 inch) with polypropylene cone, butyl rubber surround, Kapton™ voice coil former, high temperature voice coil, aluminum coupling ring for low distortion and HF extension
Input Connectors Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
Connector Wiring Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
Strain Reliefs Strain relief for two cables or two flex conduits via coupled clamping mechanism
Materials ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
Safety Agency UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
Dimensions 196 mm diameter x 138 mm depth from back of baffle (7.7 in diameter x 5.4 in depth)
Ceiling Cutout Size 170 mm (6.7 in) diameter (cardboard cutout template included)
Ceiling Thickness Range Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses.
Safety Seismic Attachment One point, top surface
Net Weight 1.6 kg (3.5 lbs, one speaker)
Shipping Weight 6.7 kg (14.7 lbs, pair in master carton)
Included Accessories C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille.
Optional Accessories MTC-24NC new construction bracket MTC-24MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans
Color White or Black
Backcan formed steel (included "blind-mount")
Baffle/Rim ABS baffle with UL94-V0 and UL94-5VB flame class fire rating.
Plenum Usage Yes, backcan included
