컴팩트 천장 스피커

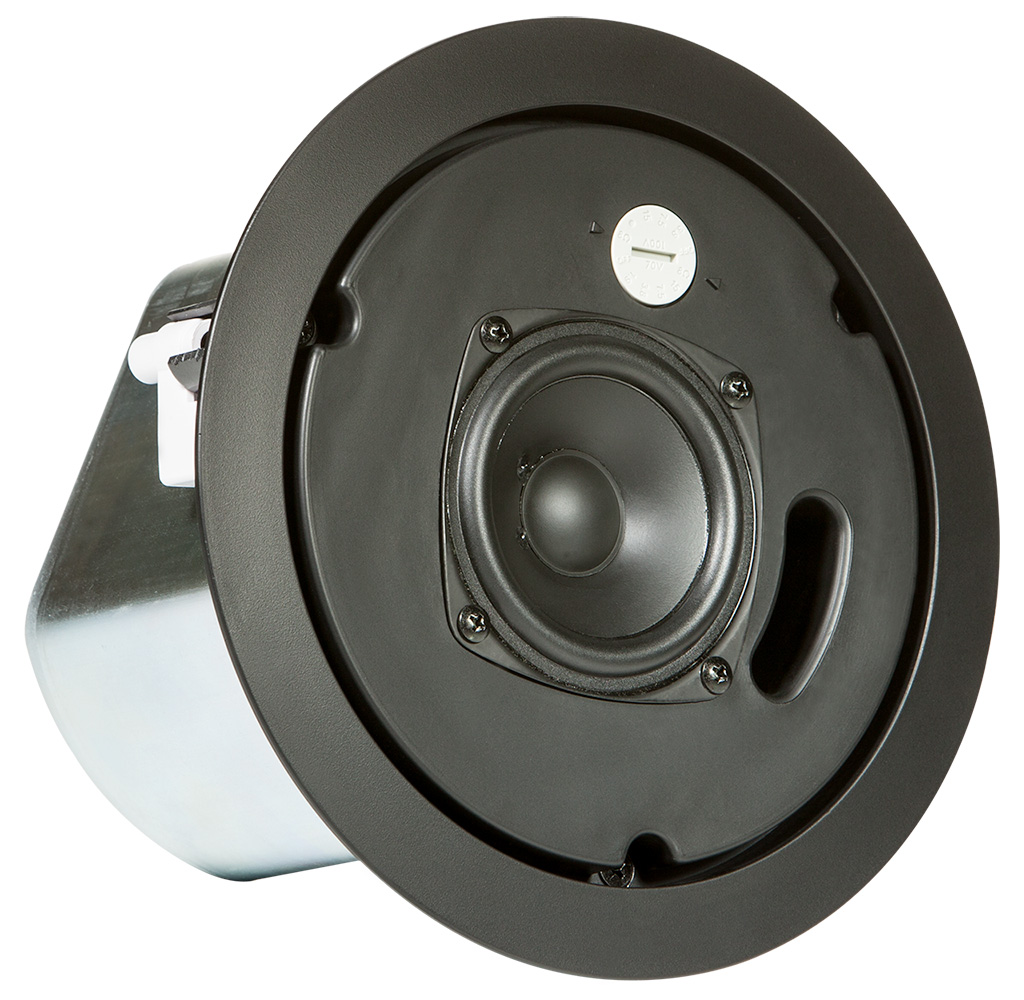

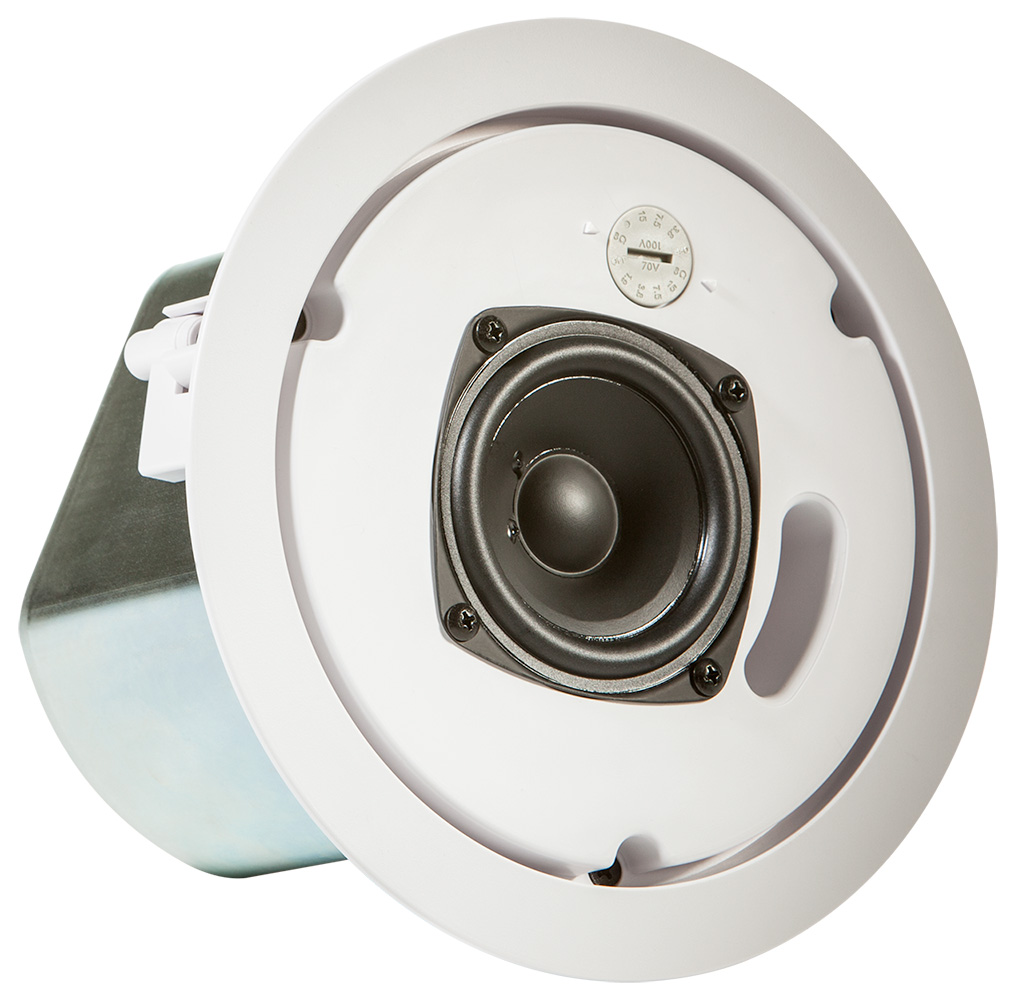

Control 12C/T는 76mm(3인치) 광대역 콘 드라이버로 구성된 풀레인지 천장 스피커입니다. 자외선 내성 UL94-V0 재질의 통풍형 도장 가능 배플에 장착되어 있으며, 신속하고 간편한 설치를 위한 통합 백캔을 갖추고 있습니다.
더 큰 이미지
기능
- 76 mm (3인치) 풀레인지 드라이버
- 일체형 백캔으로 빠르고 간편한 설치
- 70V/100V 및 저임피던스 직접 구동 겸용
• 8Ω 공칭 설정에서 20W
• 70V/100V에서 15W 멀티탭 - 68 Hz – 17 kHz 대역폭, 130° 광범위 커버리지

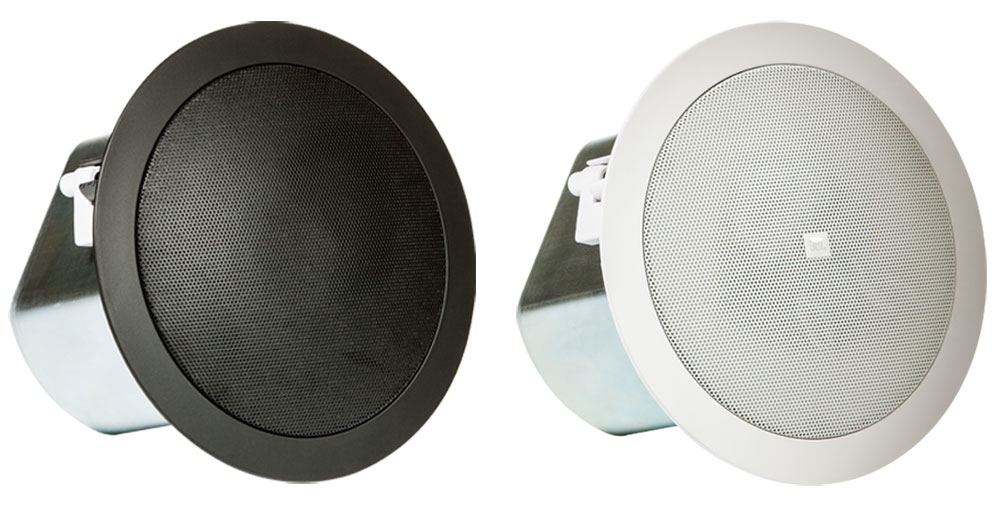

- 화이트 또는 블랙 (-BK)
다운로드
Specifications
| 크기 | |
|
|
341KB |
Manuals
| 크기 | |
|
|
127KB |
Brochures
| 크기 | |
|
|
21MB |
|
|
23MB |
|
|
14MB |
업데이트됨: 2026년 3월월
CAD Drawings
| 크기 | |
|
|
2.36MB |
|
|
890KB |
BIM Objects
| 크기 | |
|
|
Compliances
| 크기 | |
|
|
129KB |
|
|
179KB |
Software
| 크기 | |
|
|
612KB |
Simulation Data
| 크기 | |
|
|
21MB |
|
|
24MB |
Owner's Manuals
| 크기 | |
|
|
390KB |
Accessories
| 크기 | |
|
|
204KB |
|
|
762KB |
Ease Data
| 크기 | |
|
|
1.17MB |
|
|
11.5MB |
|
|
350KB |
Images
| 크기 | |
|
|
161KB |
|
|
244KB |
|
|
88.4KB |
Speaker Tunings
| 크기 | |
|
|
557KB |
위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하십시오.
부품 및 서비스
사양
| Frequency Range (-10dB) | 68 Hz – 17 kHz |
| Power Rating | IEC System Long-Term Ratings (low-Z direct): 40 Watts Continuous Program Power 20 Watts Continuous Pink Noise (80W peak), 100 hr |
| Transformer Taps | 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only) |
| Frequency Response (±3 dB) | 95 Hz – 15 kHz |
| Sensitivity | 84 dB (1kHz - 16 kHz) |
| Coverage Angle | 130° conical |
| Directivity Factor (Q) | 9.8 |
| Directivity Index (DI) | 7.4 dB |
| Maximum SPL (1m) | 97 dB (low-impedance, 103 dB peak) 96 dB (top 70V/100V tap) |
| Impedance | 8 ohms (in direct/bypass 8Ω setting) |
| Drivers | 76 mm (3 inch) with polypropylene cone, butyl rubber surround, Kapton™ voice coil former, high temperature voice coil, aluminum coupling ring for low distortion and HF extension |
| Input Connectors | Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2) |
| Connector Wiring | Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru |
| Strain Reliefs | Strain relief for two cables or two flex conduits via coupled clamping mechanism |
| Materials | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan |
| Safety Agency | UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems |
| Dimensions | 196 mm diameter x 138 mm depth from back of baffle (7.7 in diameter x 5.4 in depth) |
| Ceiling Cutout Size | 170 mm (6.7 in) diameter (cardboard cutout template included) |
| Ceiling Thickness Range | Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses. |
| Safety Seismic Attachment | One point, top surface |
| Net Weight | 1.6 kg (3.5 lbs, one speaker) |
| Shipping Weight | 6.7 kg (14.7 lbs, pair in master carton) |
| Included Accessories | C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille. |
| Optional Accessories | MTC-24NC new construction bracket MTC-24MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans |
| Color | White or Black |
| Backcan | formed steel |
| Baffle/Rim | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. |
| Plenum Usage | Yes, integrated backcan |
