コンパクト天井スピーカー

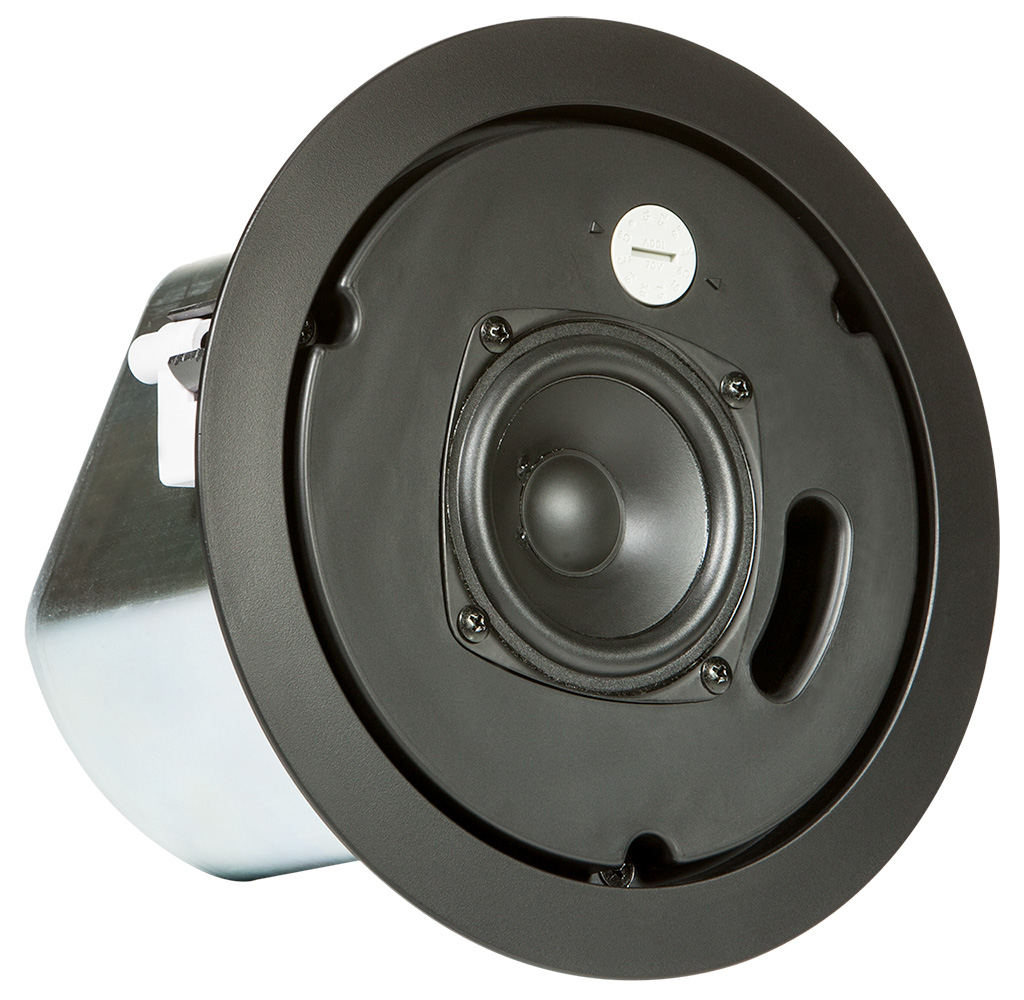

Control 12C/Tは、76 mm（3インチ）広帯域コーンドライバーを搭載したフルレンジ天井スピーカーです。UV耐性UL94-V0材料製の通気性のある塗装可能なバッフルに取り付けられており、一体型バックカンにより迅速かつ簡単に設置できます。
画像を拡大
特長
- 76 mm (3 in) フルレンジドライバー
- 一体型バックカンで迅速かつ簡単に設置
- 70V/100V およびローインピーダンス直接動作の併用
• 8Ω公称設定で20ワット
• 70V/100V マルチタップで15W - 68 Hz – 17 kHz 帯域幅、広い130°カバレッジ

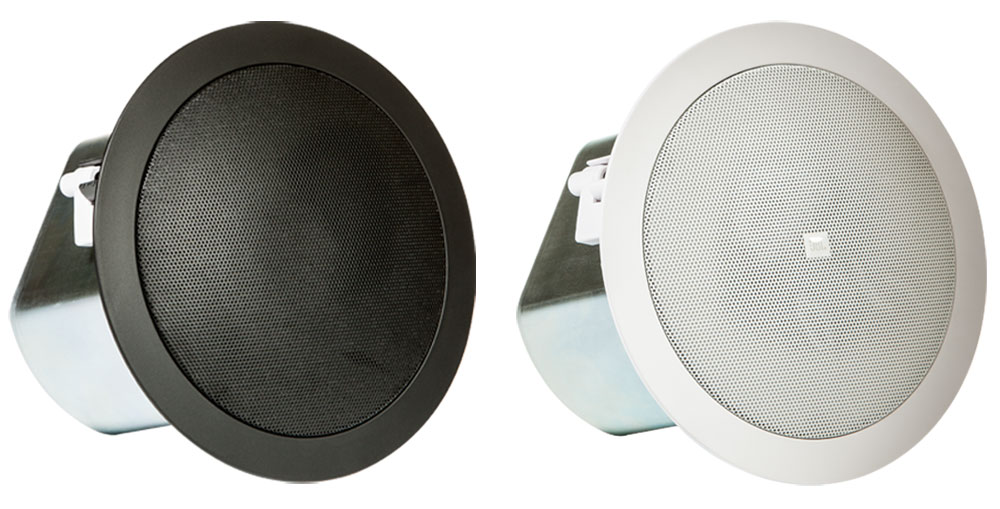

- ホワイトまたはブラック (-BK)
ダウンロード
Specifications
| サイズ | |
|
|
341KB |
Manuals
| サイズ | |
|
|
127KB |
Brochures
| サイズ | |
|
|
21MB |
|
|
23MB |
|
|
14MB |
更新: 2026年3月
CAD Drawings
| サイズ | |
|
|
2.36MB |
|
|
890KB |
BIM Objects
| サイズ | |
|
|
Compliances
| サイズ | |
|
|
129KB |
|
|
179KB |
Software
| サイズ | |
|
|
612KB |
Simulation Data
| サイズ | |
|
|
21MB |
|
|
24MB |
Owner's Manuals
| サイズ | |
|
|
390KB |
Accessories
| サイズ | |
|
|
204KB |
|
|
762KB |
Ease Data
| サイズ | |
|
|
1.17MB |
|
|
11.5MB |
|
|
350KB |
Images
| サイズ | |
|
|
161KB |
|
|
244KB |
|
|
88.4KB |
Speaker Tunings
| サイズ | |
|
|
557KB |
上記のリンクをクリックしてブラウザで文字化けが発生する場合は、ファイルを右クリックしてコンピューターに保存してください。
パーツ＆サービス
仕様
| Frequency Range (-10dB) | 68 Hz – 17 kHz |
| Power Rating | IEC System Long-Term Ratings (low-Z direct): 40 Watts Continuous Program Power 20 Watts Continuous Pink Noise (80W peak), 100 hr |
| Transformer Taps | 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only) |
| Frequency Response (±3 dB) | 95 Hz – 15 kHz |
| Sensitivity | 84 dB (1kHz - 16 kHz) |
| Coverage Angle | 130° conical |
| Directivity Factor (Q) | 9.8 |
| Directivity Index (DI) | 7.4 dB |
| Maximum SPL (1m) | 97 dB (low-impedance, 103 dB peak) 96 dB (top 70V/100V tap) |
| Impedance | 8 ohms (in direct/bypass 8Ω setting) |
| Drivers | 76 mm (3 inch) with polypropylene cone, butyl rubber surround, Kapton™ voice coil former, high temperature voice coil, aluminum coupling ring for low distortion and HF extension |
| Input Connectors | Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2) |
| Connector Wiring | Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru |
| Strain Reliefs | Strain relief for two cables or two flex conduits via coupled clamping mechanism |
| Materials | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan |
| Safety Agency | UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems |
| Dimensions | 196 mm diameter x 138 mm depth from back of baffle (7.7 in diameter x 5.4 in depth) |
| Ceiling Cutout Size | 170 mm (6.7 in) diameter (cardboard cutout template included) |
| Ceiling Thickness Range | Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses. |
| Safety Seismic Attachment | One point, top surface |
| Net Weight | 1.6 kg (3.5 lbs, one speaker) |
| Shipping Weight | 6.7 kg (14.7 lbs, pair in master carton) |
| Included Accessories | C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille. |
| Optional Accessories | MTC-24NC new construction bracket MTC-24MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans |
| Color | White or Black |
| Backcan | formed steel |
| Baffle/Rim | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. |
| Plenum Usage | Yes, integrated backcan |
