مكبر صوت سقفي مضغوط

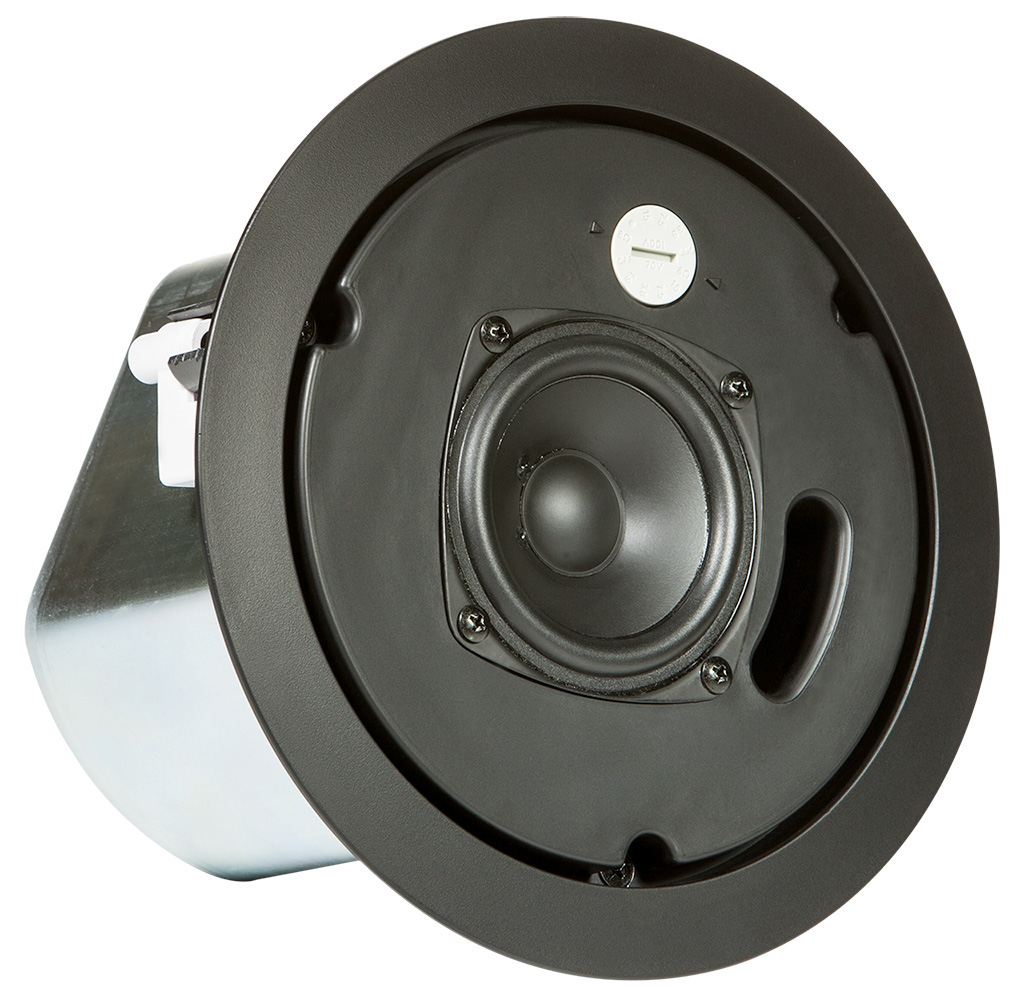

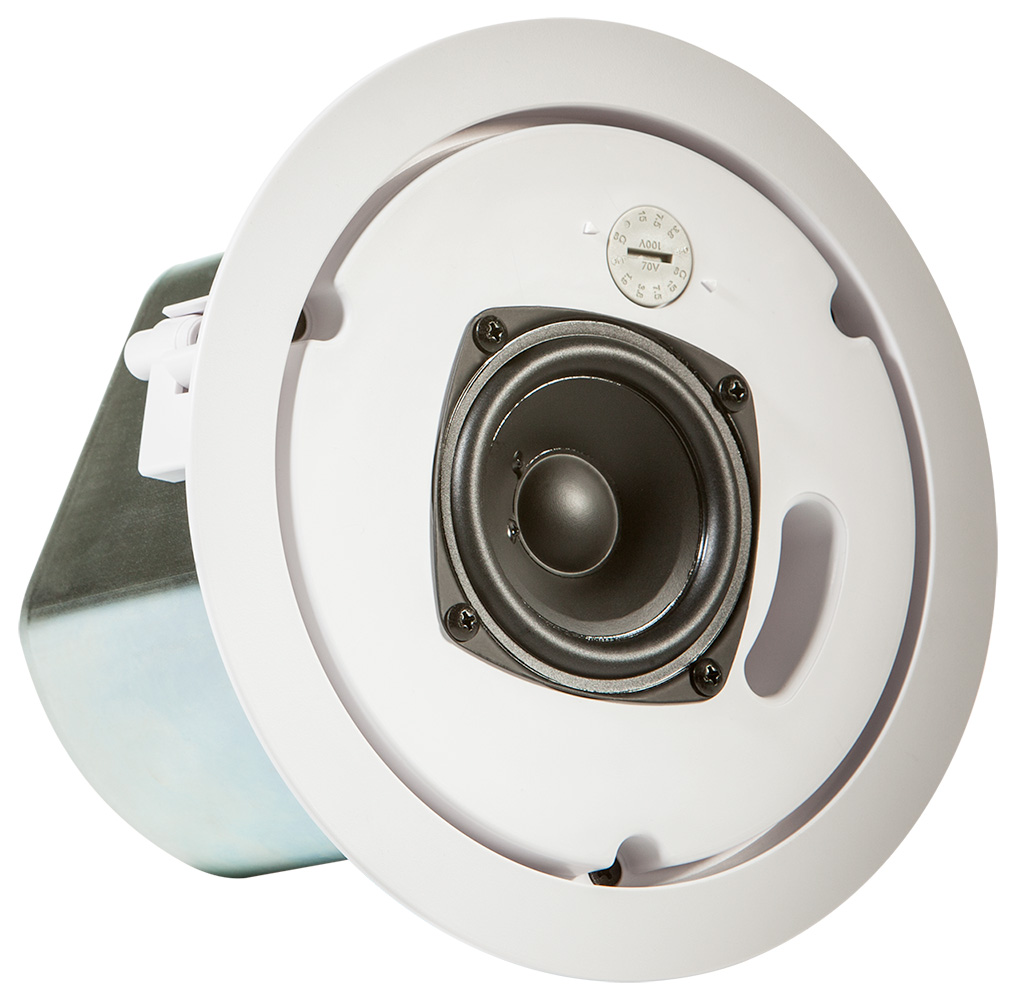

Control 12C/T مكبر صوت سقفي كامل النطاق يتضمن مشغل مخروطي بنطاق ترددي عريض بقطر 76 مم (3 بوصات) مثبت في حاجز مهوى وقابل للطلاء مصنوع من مادة UL94-V0 المقاومة للأشعة فوق البنفسجية، مع صندوق خلفي مدمج يتيح التثبيت السريع والسهل.
صور أكبر
الميزات
- مشغل متكامل المدى 76 ملم (3 بوصات)
- صندوق خلفي مدمج للتثبيت السريع والسهل
- تشغيل مباشر مدمج بنظام 70V/100V وممانعة منخفضة
• 20 واط عند الإعداد الاسمي 8Ω
• 15 واط متعدد الصنابير عند 70V/100V - نطاق تردد 68 Hz – 17 kHz مع تغطية واسعة بزاوية 130°

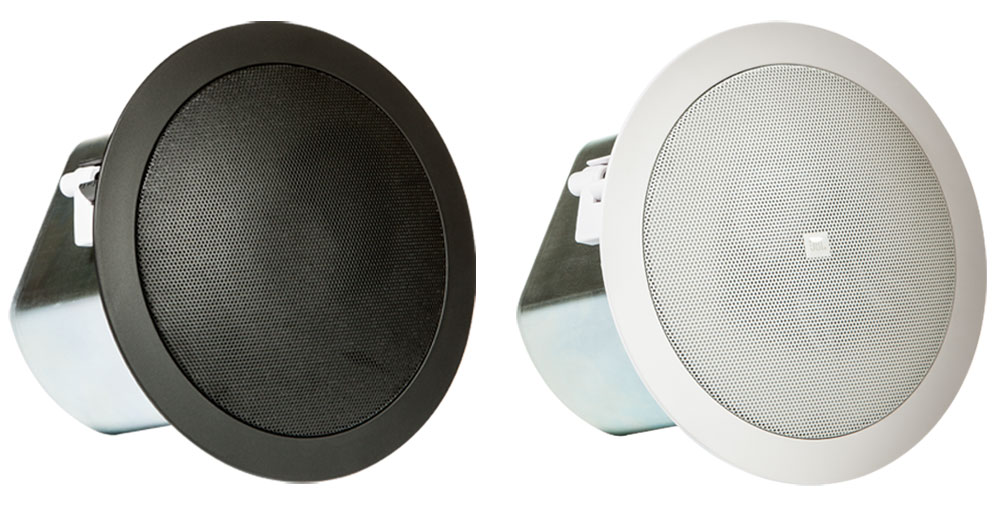

- أبيض أو أسود (-BK)
التنزيلات
Specifications
| الحجم | |
|
|
341 KB |
Manuals
| الحجم | |
|
|
127 KB |
Brochures
| الحجم | |
|
|
21 MB |
|
|
23 MB |
|
|
14 MB |
تم التحديث: مارس 2026
CAD Drawings
| الحجم | |
|
|
2.36 MB |
|
|
890 KB |
BIM Objects
| الحجم | |
|
|
Compliances
| الحجم | |
|
|
129 KB |
|
|
179 KB |
Software
| الحجم | |
|
|
612 KB |
Simulation Data
| الحجم | |
|
|
21 MB |
|
|
24 MB |
Owner's Manuals
| الحجم | |
|
|
390 KB |
Accessories
| الحجم | |
|
|
204 KB |
|
|
762 KB |
Ease Data
| الحجم | |
|
|
1.17 MB |
|
|
11.5 MB |
|
|
350 KB |
Images
| الحجم | |
|
|
161 KB |
|
|
244 KB |
|
|
88.4 KB |
Speaker Tunings
| الحجم | |
|
|
557 KB |
إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.
القطع والخدمة
المواصفات
| Frequency Range (-10dB) | 68 Hz – 17 kHz |
| Power Rating | IEC System Long-Term Ratings (low-Z direct): 40 Watts Continuous Program Power 20 Watts Continuous Pink Noise (80W peak), 100 hr |
| Transformer Taps | 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only) |
| Frequency Response (±3 dB) | 95 Hz – 15 kHz |
| Sensitivity | 84 dB (1kHz - 16 kHz) |
| Coverage Angle | 130° conical |
| Directivity Factor (Q) | 9.8 |
| Directivity Index (DI) | 7.4 dB |
| Maximum SPL (1m) | 97 dB (low-impedance, 103 dB peak) 96 dB (top 70V/100V tap) |
| Impedance | 8 ohms (in direct/bypass 8Ω setting) |
| Drivers | 76 mm (3 inch) with polypropylene cone, butyl rubber surround, Kapton™ voice coil former, high temperature voice coil, aluminum coupling ring for low distortion and HF extension |
| Input Connectors | Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2) |
| Connector Wiring | Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru |
| Strain Reliefs | Strain relief for two cables or two flex conduits via coupled clamping mechanism |
| Materials | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan |
| Safety Agency | UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems |
| Dimensions | 196 mm diameter x 138 mm depth from back of baffle (7.7 in diameter x 5.4 in depth) |
| Ceiling Cutout Size | 170 mm (6.7 in) diameter (cardboard cutout template included) |
| Ceiling Thickness Range | Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses. |
| Safety Seismic Attachment | One point, top surface |
| Net Weight | 1.6 kg (3.5 lbs, one speaker) |
| Shipping Weight | 6.7 kg (14.7 lbs, pair in master carton) |
| Included Accessories | C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille. |
| Optional Accessories | MTC-24NC new construction bracket MTC-24MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans |
| Color | White or Black |
| Backcan | formed steel |
| Baffle/Rim | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. |
| Plenum Usage | Yes, integrated backcan |
