8350

Very High Power Cinema Surround Speaker for Digital Applications

Larger Images

Very High Power Cinema Surround Speaker for Digital Applications

The 8350 Cinema Surround Speaker offers very high power handling, high sensitivity, and extended bass response in a very compact enclosure. The twoway 8350’s reliability and performance features position it as the ideal high power surround for the extended dynamic range required by digital sound formats.



Features

  • 60 Hz to 19 kHz Frequency Range
  • High Sensitivity, 97 dB SPL, 1 W, 1 m (3.3 ft)
  • High Power Handling Capability: 350 watts continuous pink noise
  • Convenient mounting design uses JBL QuickMount™, Omnimount® or APC Multimount brackets
  • Special cabinet shape incorporates 20° angled front baffle
  • SMPTE/ISO2969 Curve X high frequency de-emphasis
  • Lightweight, rigid molded enclosure
  • Input terminals located on top of cabinet for quick access
  • Uniform horizontal and vertical coverage
  • THX® Approved


Downloads

  Version Language Size Uploaded
Data Sheets
2516 Quick-Mount Fixed-Angle Bracket for JBL 8320, 8340A and 8350 Loudspeakers
updated: Oct 15, 2019
    697 KB Oct 15, 2019
Brochures
Full Line 2015 Catalog
updated: Jan 11, 2020
    11.7 MB Jan 11, 2020
Compliances
Cinema Sound - Surround Systems Declaration of Conformity
updated: Oct 18, 2019
    86.1 KB Oct 18, 2019
Owner's Manuals
8350 Information
updated: Jul 18, 2019
    336 KB Jul 18, 2019
Information Documents
JBL Digital Surround Series Cinema Loudspeakers
updated: Oct 23, 2019
    128 KB Oct 23, 2019
Ease Data
Ease SPK/DLL Files - Full JBL Pro Line
updated: Jul 08, 2019
    20.5 MB Jul 08, 2019
Spec Sheets (Pdf)s
8350 Spec Sheet
updated: Dec 03, 2019
    336 KB Dec 03, 2019
Hi Res Images

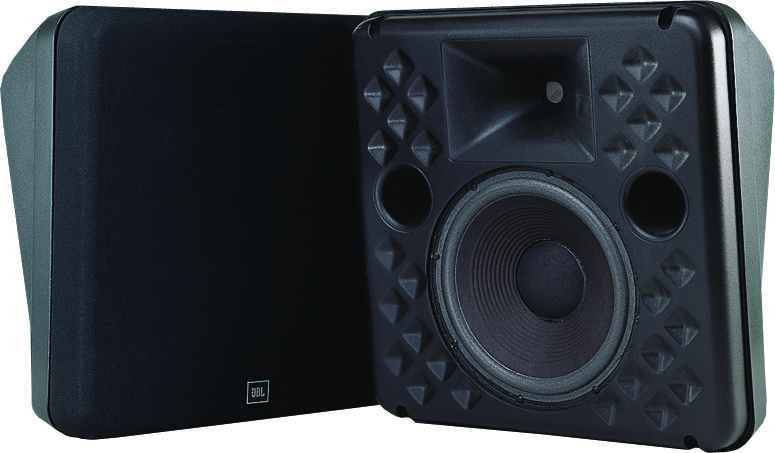

8350 Front Angle
updated: Dec 03, 2019
    767 KB Dec 03, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Range (-10 dB) 60 Hz - 19 kHz
Frequency Response (±3 dB) 75 Hz - 17 kHz
Power Rating 350 watts continuouspink noise1400 watts peak
Sensitivity (1W/1m) 99 dB-SPL half-space / wall-mounted97 dB-SPL free-field
Maximum Peak SPL 130 dB/1m
Nominal Impedance 8 ohms
Hor. Coverage Angle (-6 dB) 100° averaged 400 Hz to 12 kHz
Vert. Coverage Angle (-6 dB) 80° averaged 400 Hz to 12 kHz
Directivity Factor (Q) 7 averaged 400 Hz to 12 kHz
Directivity Index (DI) 8.4 dB averaged 400 Hz to 12 kHz
Crossover Frequency 1.4 kHz
High Frequency Contour ISO2969 Curve X surround contour
Polarity EIA (Positive voltage to RED terminal gives forward cone motion)
Low Freq Transducer Nominal Diameter 250 mm (10 in)64 mm (2.5 in) voice coil
High Freq Transducer Nominal Diameter 25 mm (1 in) exit38 mm (1.5 in) voice coil
Downward Firing Angle Nominal 20° when mounted flush on back panel
Enclosure Material Textured Black H.I.P.S. Plastic
Grille Color Black
Input Connectors 5-way binding posts
Dimensions (H x W x D) 457 mm x 457 mm x 260 mm(18 in x 18 in x 10.25 in)
Net Weight 9.5 kg (21 lb)

Accessories

2516 Bracket | 2516 Quick-Mount® Fixed-Angle Bracket
2516 Bracket Main photo
Larger Images

2516 Quick-Mount® Fixed-Angle Bracket

Quick-Mount® Fixed-Angle Bracket

  • Cost-effective wall-mount bracket
  • Designed for 8320, 8340A, and 8350 surrounds
  • Packed two brackets to a carton

Documentation
2517 Speaker Mount | 2517 Speaker MountPan and Tilt Rotations
2517 Speaker Mount Main photo
Larger Images

2517 Speaker Mount Pan and Tilt Rotations

2517 Speaker Mount Pan and Tilt Rotations

  • Alloy steel
  • Black powder coat paint
  • Designed for 8320, 8340A, and 8350 surrounds

Documentation
