Very High Power Cinema Surround Speaker for Digital Applications

The 8350 Cinema Surround Speaker offers very high power handling, high sensitivity, and extended bass response in a very compact enclosure. The twoway 8350’s reliability and performance features position it as the ideal high power surround for the extended dynamic range required by digital sound formats.



Caractéristiques

  • 60 Hz to 19 kHz Frequency Range
  • High Sensitivity, 97 dB SPL, 1 W, 1 m (3.3 ft)
  • High Power Handling Capability: 350 watts continuous pink noise
  • Convenient mounting design uses JBL QuickMount™, Omnimount® or APC Multimount brackets
  • Special cabinet shape incorporates 20° angled front baffle
  • SMPTE/ISO2969 Curve X high frequency de-emphasis
  • Lightweight, rigid molded enclosure
  • Input terminals located on top of cabinet for quick access
  • Uniform horizontal and vertical coverage
  • THX® Approved


Téléchargements

Data Sheets
  Taille Téléchargé
697 ko oct. 2019
Compliances
  Taille Téléchargé
86,1 ko oct. 2019
Simulation Data
  Taille Téléchargé
21 Mo mai 2024
Owner's Manuals
  Taille Téléchargé
file type icon 8350 Information
mis à jour : oct. 2020
336 ko oct. 2020
Information documents
  Taille Téléchargé
128 ko oct. 2019
Spec Sheets
  Taille Téléchargé
file type icon 8350 Spec Sheet
mis à jour : oct. 2020
336 ko oct. 2020
HI-RES IMAGEs
  Taille Téléchargé

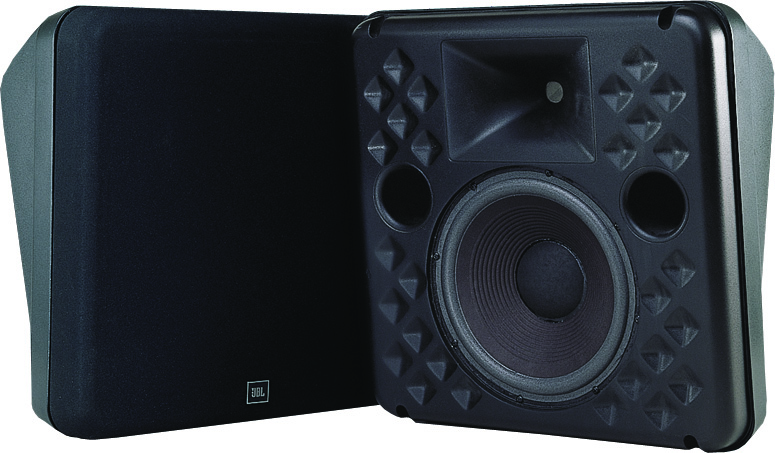

file type icon 8350 Front Angle
mis à jour : oct. 2020
767 ko oct. 2020

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Pièces détachées et réparations

Caractéristiques techniques

Frequency Range (-10dB) 60 Hz - 19 kHz
Frequency Response (±3 dB) 75 Hz - 17 kHz
Power Rating 350 watts continuouspink noise1400 watts peak
Sensitivity 99 dB-SPL half-space / wall-mounted97 dB-SPL free-field
Maximum Peak SPL 130 dB/1m
Nominal Impedance 8 ohms
Horizontal Coverage Angle (-6dB) 100° averaged 400 Hz to 12 kHz
Vertical Coverage Angle (-6dB) 80° averaged 400 Hz to 12 kHz
Directivity Factor (Q) 7 averaged 400 Hz to 12 kHz
Directivity Index (DI) 8.4 dB averaged 400 Hz to 12 kHz
Crossover Frequency 1.4 kHz
High Frequency Contour ISO2969 Curve X surround contour
Polarity EIA (Positive voltage to RED terminal gives forward cone motion)
Low Freq Transducer Nominal Diameter 250 mm (10 in)64 mm (2.5 in) voice coil
High Freq Transducer Nominal Diameter 25 mm (1 in) exit38 mm (1.5 in) voice coil
Downward Firing Angle Nominal 20° when mounted flush on back panel
Enclosure Material Textured Black H.I.P.S. Plastic
Grille Color Black
Input Connectors 5-way binding posts
Dimensions (H x W x D) 457 mm x 457 mm x 260 mm(18 in x 18 in x 10.25 in)
Net Weight 9.5 kg (21 lb)

Accessoires

2516 Bracket | 2516 Quick-Mount® Fixed-Angle Bracket
2516 Bracket Main photo
Grandes images
2516 Bracket detail thumbnail #1

2516 Quick-Mount® Fixed-Angle Bracket

Quick-Mount® Fixed-Angle Bracket

  • Cost-effective wall-mount bracket
  • Designed for 8320, 8340A, and 8350 surrounds
  • Packed two brackets to a carton

Documentation
2517 Speaker Mount | 2517 Speaker MountPan and Tilt Rotations
2517 Speaker Mount Main photo
Grandes images
2517 Speaker Mount detail thumbnail #1

2517 Speaker Mount Pan and Tilt Rotations

2517 Speaker Mount Pan and Tilt Rotations

  • Alloy steel
  • Black powder coat paint
  • Designed for 8320, 8340A, and 8350 surrounds

Documentation
